NicolaiS14 SWIFT HRZ
- Motor
- Bosch Performance Line SX60 Nm
- Battery
- 400 WhBosch PowerTube 400, removable; 250 Wh Range Extender optional
- Travel F / R
- 160 / 130 mm
- Wheels
- 29"
- Frame
- Alloy
Overview
The NICOLAI S14 SWIFT HRZ (€11,999) is the top build of the S14 SWIFT: Bosch Performance Line SX with 400 Wh, Fox 36 Factory Grip2 160 mm fork, Fox Float X shock, SRAM X0 Eagle AXS Transmission and Hope Tech 4 E4 brakes.
The S14 SWIFT is NICOLAI's light e-MTB: a hand-welded 7020-T6 aluminium 29er trail bike that takes the geometry and suspension layout of the non-assisted S14 (150 mm fork, 130 mm Horst-link rear) and adds the Bosch Performance Line SX motor (60 Nm and 400 % assist since the Bosch 2026 performance update, up to 600 W) with a removable 400 Wh PowerTube battery.
Geometry follows NICOLAI's Geolution Trail concept: 480 mm reach and 64.8° head angle in size M, 76.5° seat angle, 452 mm chainstays, five sizes S–XXL. The battery is swapped tool-free through a hatch under the motor, a 250 Wh Range Extender fits on the down tube, and a Purion 200 remote handles the Bosch Smart System. Three builds (HLS, TNS, HRZ) are offered; components can be changed in the online configurator.
- Bosch Performance Line SX: 60 Nm, 600 W
- 400 Wh removable battery + 250 Wh Range Extender option
- 150 mm fork / 130 mm rear, 29"
- Hand-welded 7020-T6 aluminium frame, made in Germany

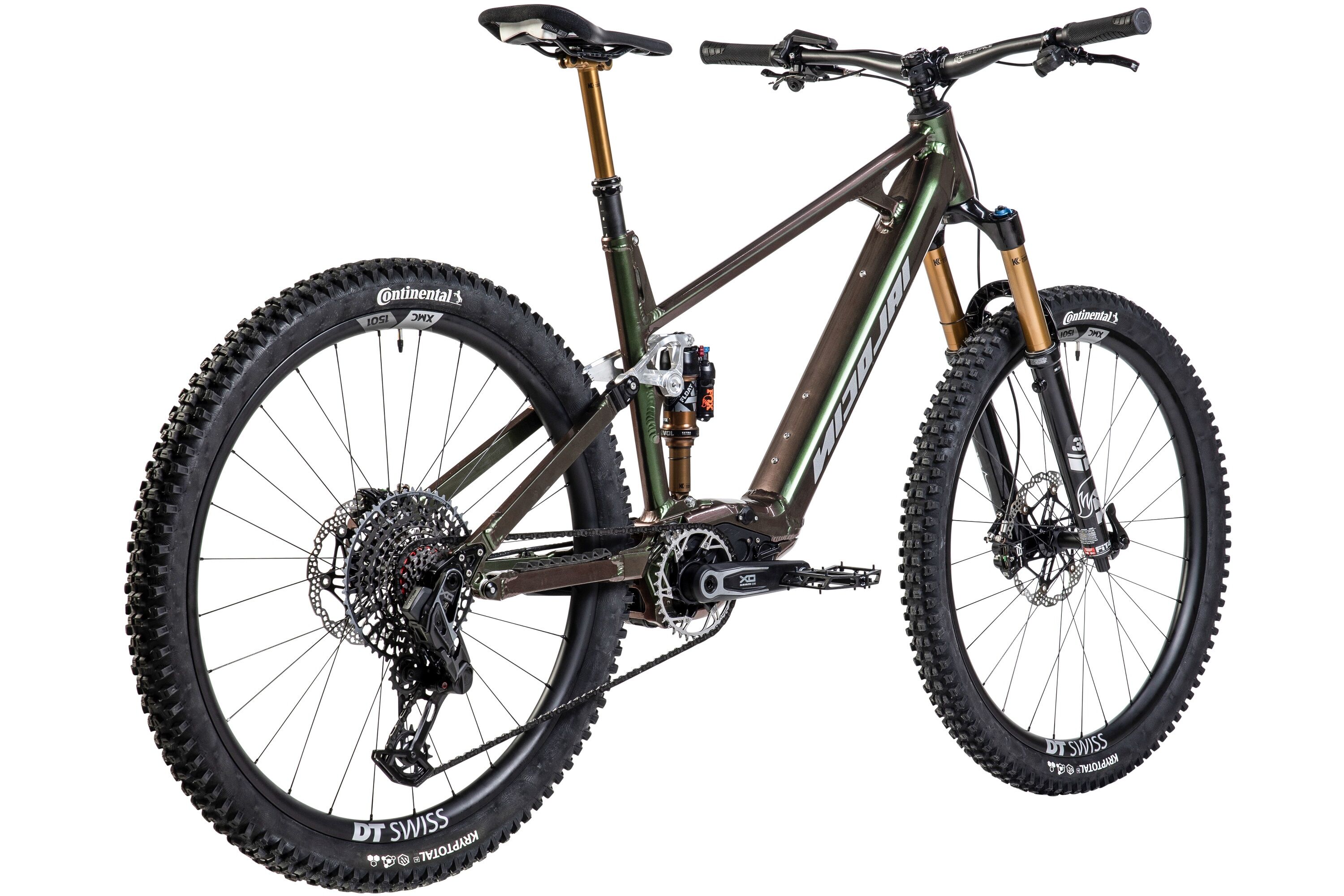

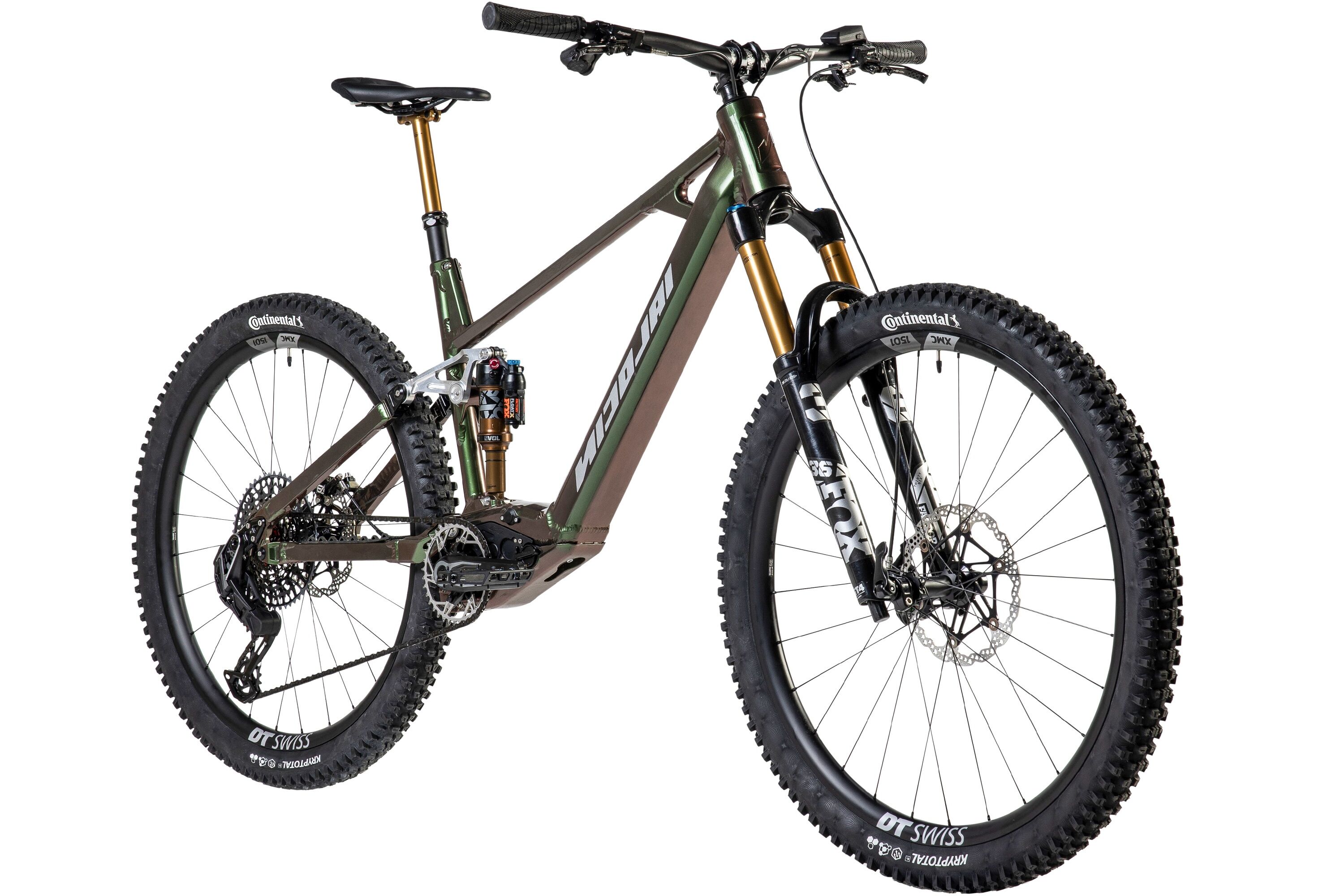

Gallery
Photos: NICOLAI
Full specifications
Frame & suspension
- Frame
- NICOLAI S14 SWIFT, 7020-T6 aluminium, Horst-link, 130 mm rear travel
- Fork
- Fox 36 Factory Grip2 29", 160 mm
- Rear shock
- Fox Float X Performance Elite 210x50 (per product text)
E-system
- Motor
- Bosch Performance Line SX (60 Nm, 600 W)
- Battery
- Bosch PowerTube 400 (400 Wh), removable
- Display
- Bosch Purion 200
Drivetrain
- Rear derailleur
- SRAM X0 Eagle AXS Transmission (T-Type)
- Crankset
- SRAM X0 T-Type Eagle AXS Bosch 160 mm, 36T
- Cassette
- SRAM X0 T-Type 10-52T
Brakes
- Brakes
- Hope Tech 4 E4
- Rotors
- Hope Floating Disc 203/180 mm Centerlock
Wheels & tyres
- Wheelset
- DT Swiss HXC 1501 LS 29", 30 mm
- Front tyre
- Continental Kryptotal-F Enduro Soft 29x2.4
- Rear tyre
- Continental Kryptotal-R Enduro Soft 29x2.4
Cockpit
- Stem
- Race Face Turbine R 35, 32 mm
- Handlebar
- Race Face Next 35, 760x20 mm
- Grips
- SQlab 70X
- Seatpost
- Fox Transfer Factory 30.9, 175 mm
- Saddle
- SQlab 60X Ergowave Active 140 mm
Other
- Pedals
- Acros A-Flat MD
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
S14 SWIFT geometry
| Size | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| QReach | 447 mm | 480 mm | 500 mm | 517 mm | 538 mm |
| RStack | 611 mm | 620 mm | 629 mm | 638 mm | 656 mm |
| ATop tube length | 594 mm | 629 mm | 650 mm | 670 mm | 695 mm |
| BSeat tube length | 400 mm | 440 mm | 455 mm | 475 mm | 505 mm |
| CHead tube length | 110 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| EHead angle | 64.8° | 64.8° | 64.8° | 64.8° | 64.8° |
| FSeat angle (effective) | 76.5° | 76.5° | 76.5° | 76.5° | 76.5° |
| HrChainstay length | 452 mm | 452 mm | 452 mm | 452 mm | 452 mm |
| DWheelbase | 1221 mm | 1258 mm | 1283 mm | 1304 mm | 1333 mm |
| GBB drop | -30 mm | -30 mm | -30 mm | -30 mm | -30 mm |
| OStandover | 730 mm | 722 mm | 722 mm | 722 mm | 728 mm |
| MSeat tube offset | 47 mm | 97 mm | 112 mm | 132 mm | 157 mm |
Source: NICOLAI tech sheet S14 SWIFT (2025).
S14 SWIFT: builds compared
S14 SWIFT range →| S14 SWIFT HLS | S14 SWIFT TNS | S14 SWIFT HRZ | |
|---|---|---|---|
| Price | €9,499 | €10,999 | €11,999 |
| Frame | Alloy | Alloy | Alloy |
| Fork | Fox 34 Factory Fit4 29", 140 mm | Fox 36 Factory 29", 150 mm | Fox 36 Factory Grip2 29", 160 mm |
| Shock | Fox Float X Factory 210x50 | Fox Float X Performance Elite 210x50 | Fox Float X Performance Elite 210x50 (per product text) |
| Derailleur | SRAM GX Eagle | SRAM GX Eagle AXS Transmission | SRAM X0 Eagle AXS Transmission (T-Type) |
| Brakes | Magura MT Trail | Magura MT5 Pro HC | Hope Tech 4 E4 |
| Display | Bosch Purion 200 | Bosch Purion 200 | Bosch Purion 200 |
S14 SWIFT HRZ: FAQ
How much does the Nicolai S14 SWIFT HRZ cost?
€11,999 (RRP Germany, VAT incl. (base configuration)). The S14 SWIFT range runs from €9,499 (S14 SWIFT HLS) to €11,999 (S14 SWIFT HRZ). Prices vary by country and dealer.
What motor and battery does the Nicolai S14 SWIFT HRZ have?
Bosch Performance Line SX (60 Nm). 400 Wh battery — bosch PowerTube 400, removable; 250 Wh Range Extender optional.
How much suspension travel does the Nicolai S14 SWIFT HRZ have?
160 mm at the fork and 130 mm at the rear, on 29" wheels.
What sizes does the Nicolai S14 SWIFT HRZ come in?
S, M, L, XL, XXL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the S14 SWIFT HRZ and the S14 SWIFT TNS?
They share the S14 SWIFT frame platform and motor; the differences are in the parts — fork: Fox 36 Factory Grip2 29" vs Fox 36 Factory 29"; shock: Fox Float X Performance Elite 210x50 (per product text) vs Fox Float X Performance Elite 210x50; derailleur: SRAM X0 Eagle AXS Transmission (T-Type) vs SRAM GX Eagle AXS Transmission; price: €11,999 vs €10,999.
