LapierreOvervolt HT 6.6
- Motor
- Bosch Performance Line CX100 Nm
- Battery
- 600 WhBosch PowerTube
- Travel F / R
- 120 / – mm
- Wheels
- 27.5"
- Frame
- Alloy
Overview
The Lapierre Overvolt HT 6.6 (€3,299) is a mid-range build of the Overvolt HT: Bosch Performance Line CX with 600 Wh, Suntour XCR34 Coil 15x110 29 120 mm fork, Shimano CUES U6000 10/11s Shadow+ and Shimano MT401 2 pistons brakes.
The Overvolt HT is Lapierre's aluminium e-MTB hardtail for getting started on the trails, with 29-inch wheels and a 120 mm fork.
The 8.8 and 6.6 use the Bosch Performance Line CX with 800 Wh and 600 Wh batteries respectively; the entry 5.6 has the Performance Line PX motor and a 600 Wh battery. Lapierre lists the wheel size as 27.5 inch, with 2.6- to 2.8-inch tyres depending on the build.
- Aluminium hardtail
- 120 mm fork, 27.5-inch wheels
- Bosch Performance Line CX or PX
- 800 or 600 Wh battery

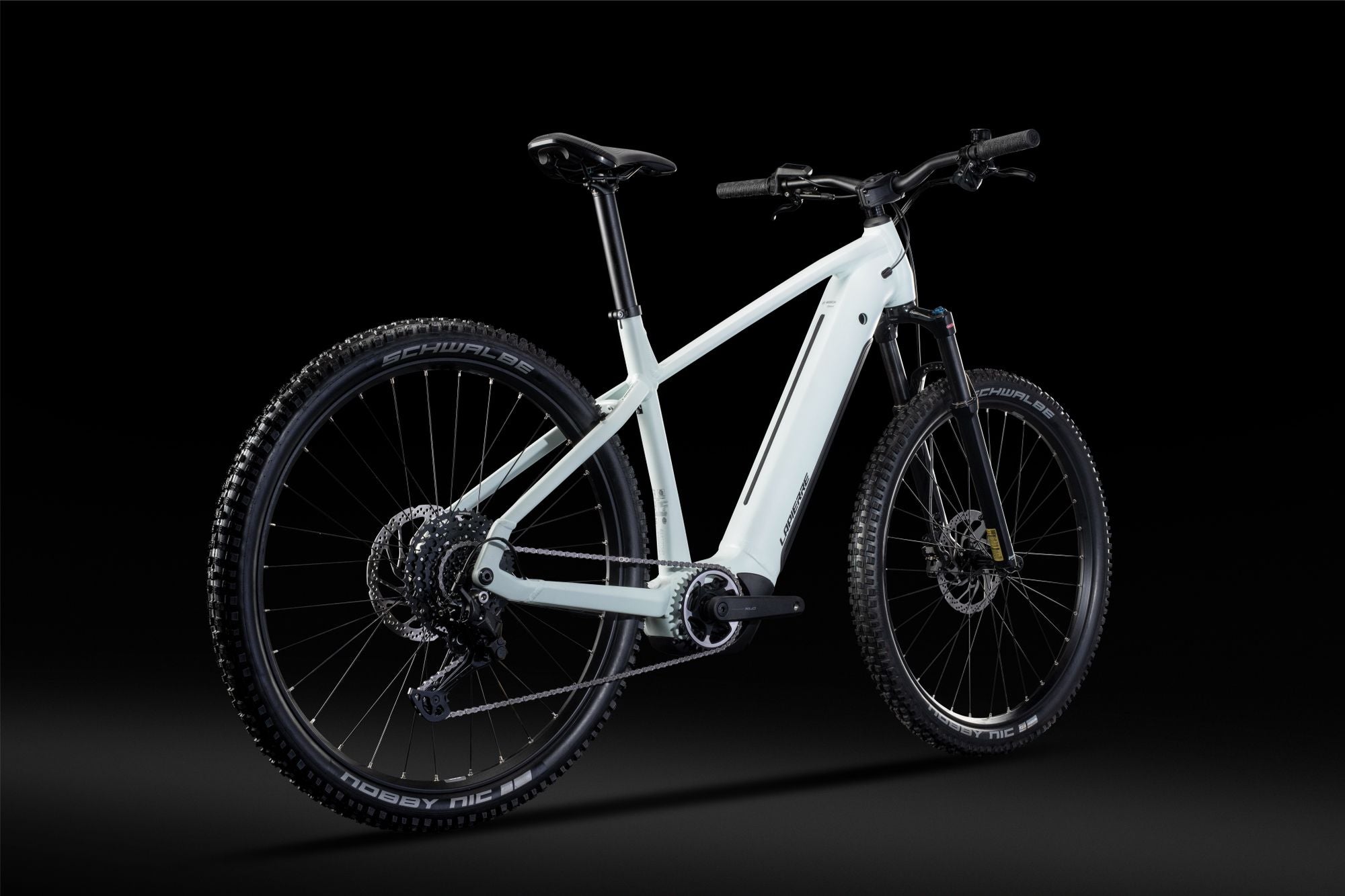

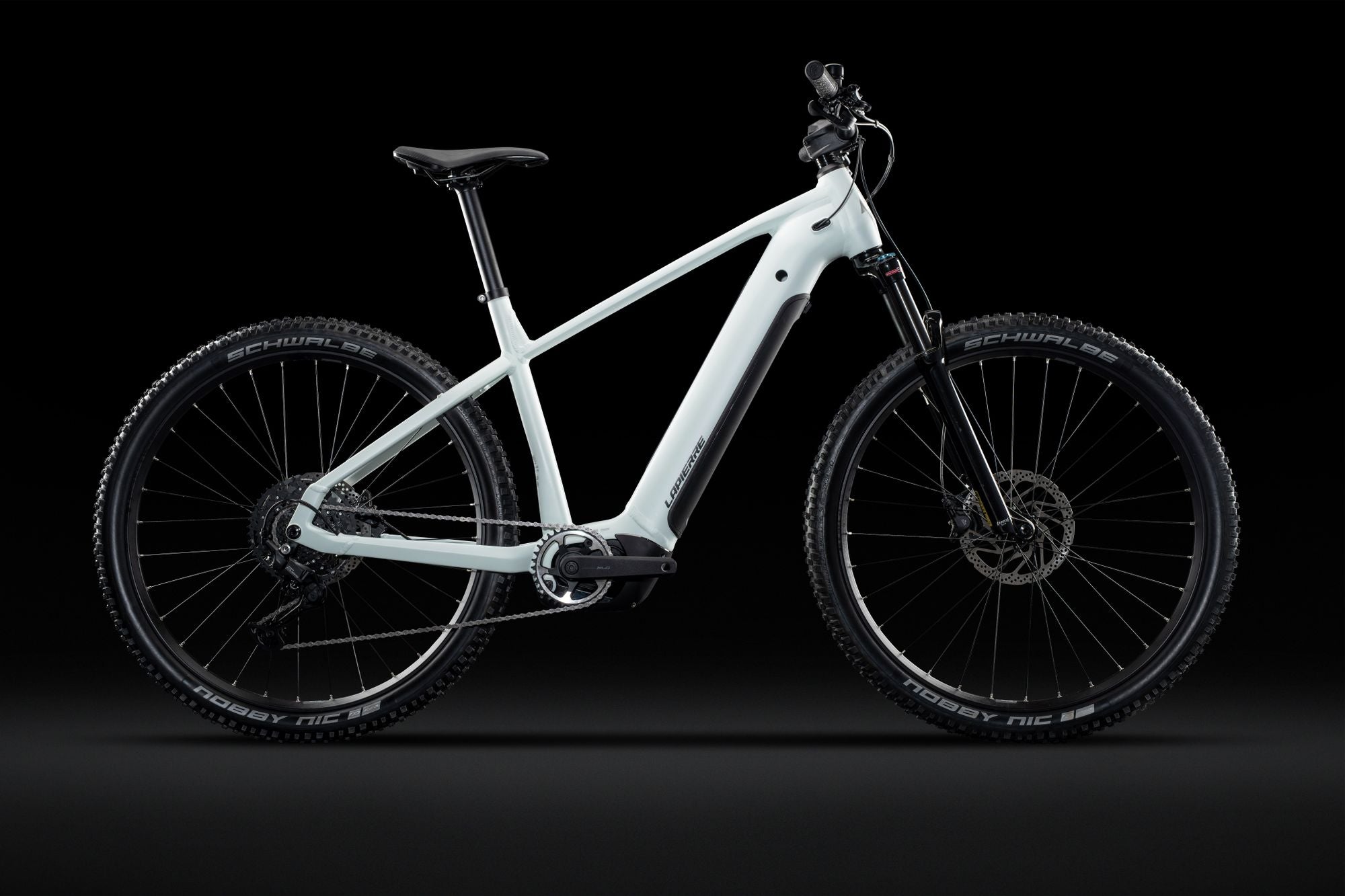

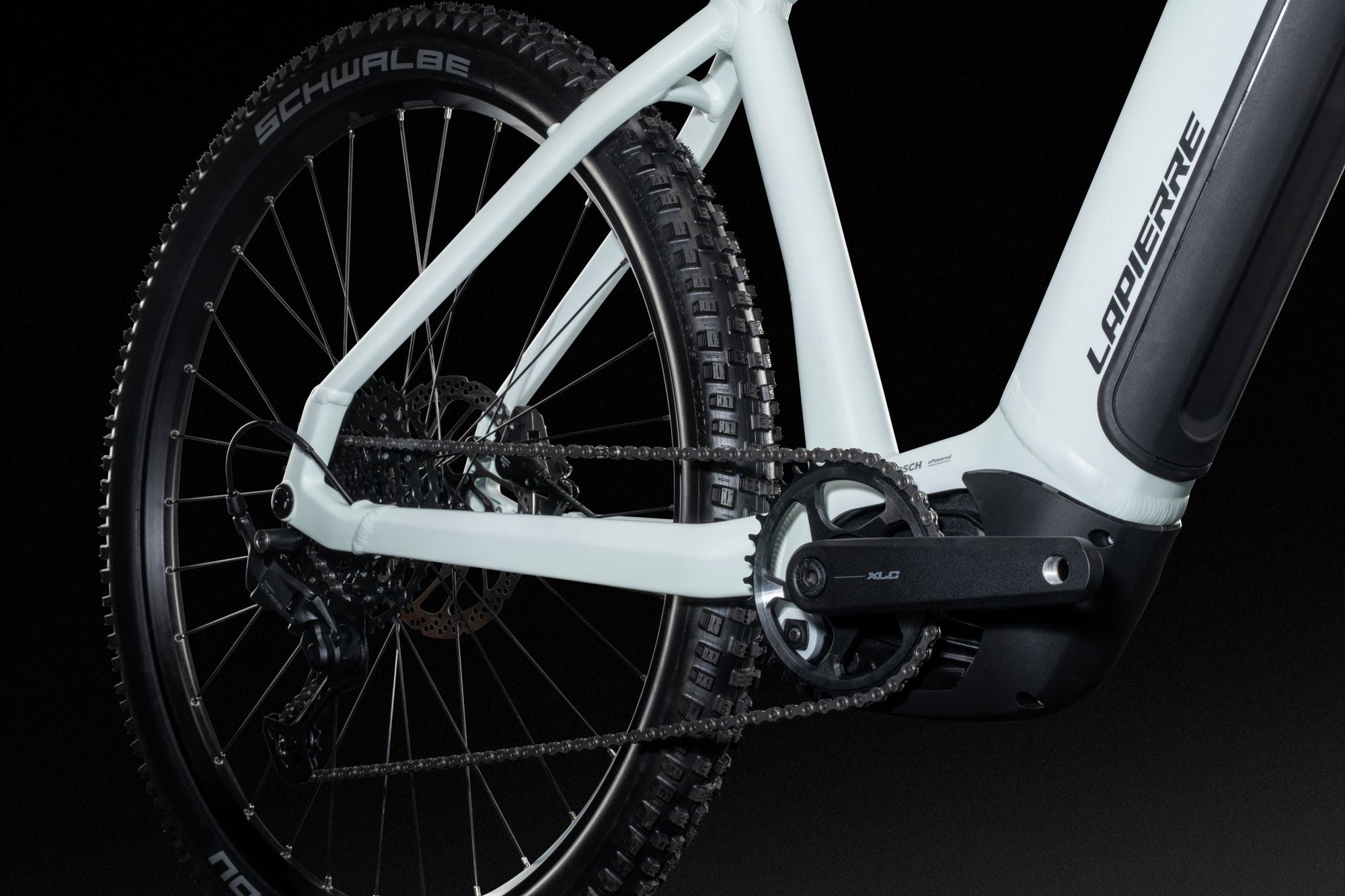

Gallery
Photos: Lapierre
Full specifications
Frame & suspension
- Frame
- HIGH Aluminium Gents
- Max system weight
- 120 kg

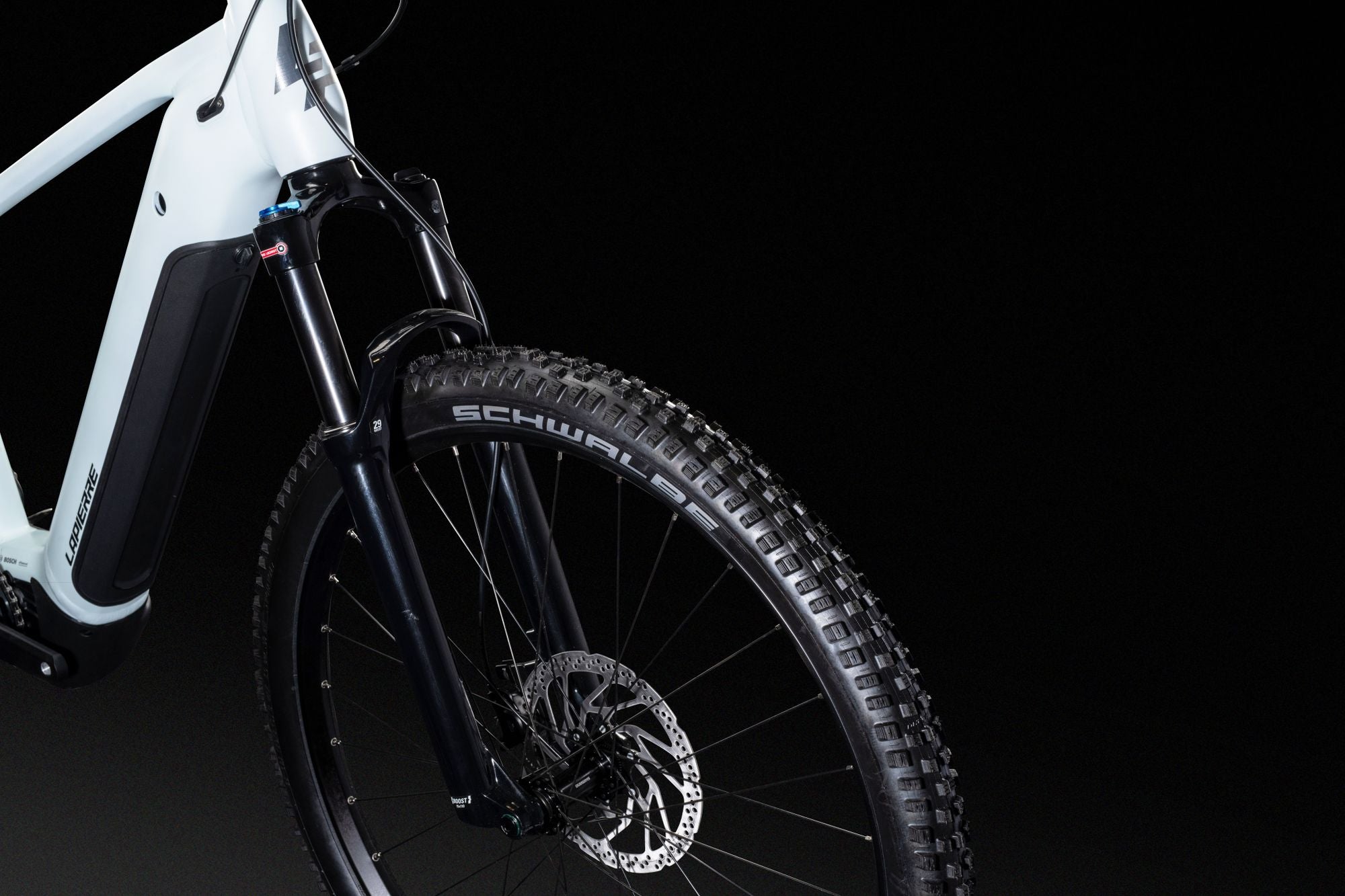

- Fork
- Suntour XCR34 Coil 15x110 29 120 mm
E-system
- Battery
- Bosch Powertube 600Wh
- Charger
- Bosch Quick Charger Charger 4A
- Display
- Bosch Intuvia 100
- Motor
- Bosch Performance line CX
Drivetrain
- Cassette
- Shimano Cassette CUES CS-LG300-10, HG
- Chain
- Shimano Chain CUES LG500 9/10/11s
- Crankset
- Crank + chainring

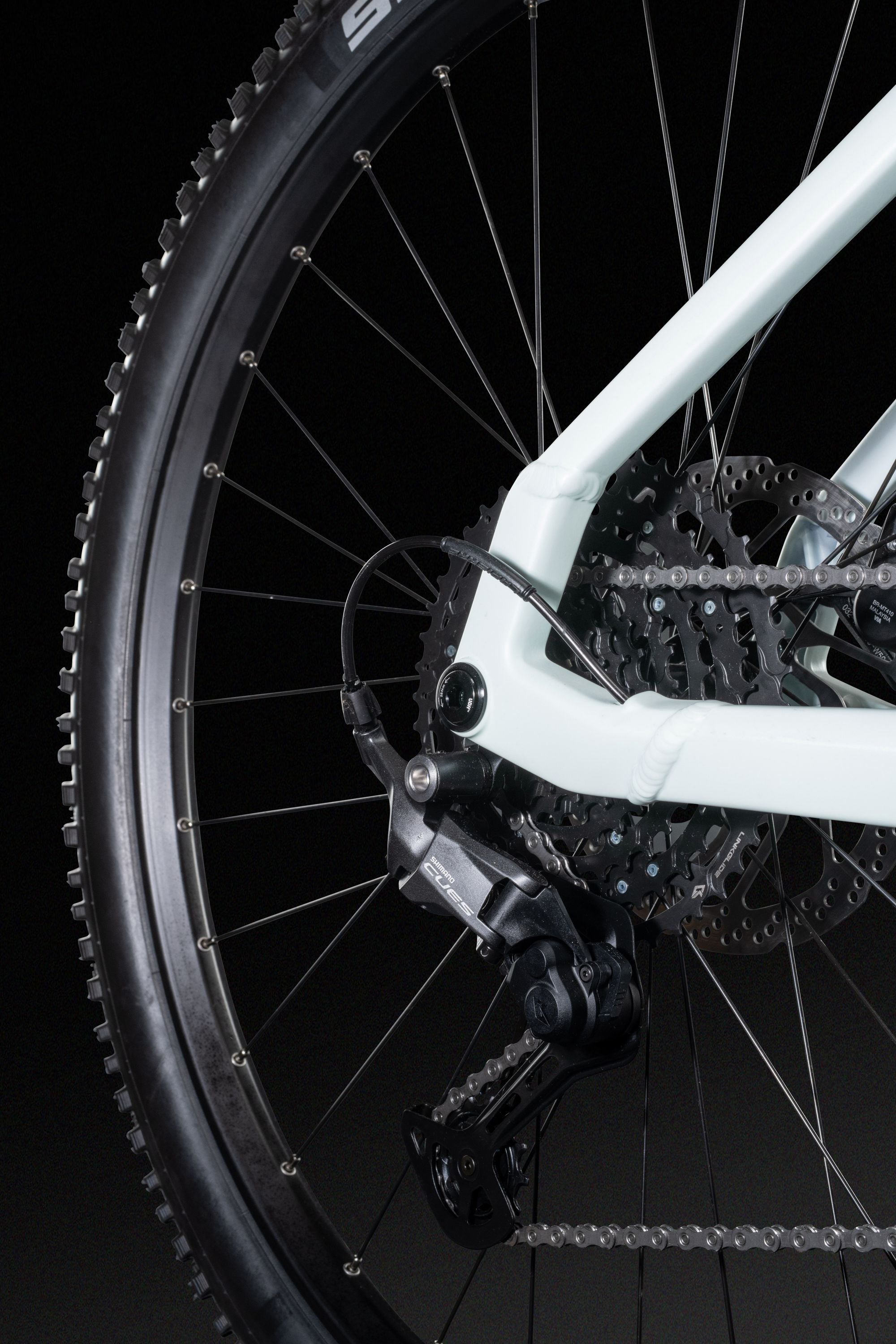

- Rear derailleur
- Shimano CUES U6000 10/11s Shadow+
- Number of gears
- 10
- Shifter
- Shimano Triggershift CUES SL-U6000-10R
Brakes
- Front Brake
- Shimano Hydraulic Disc brake MT401 2 pistons, 203 mm
- Rear Brake
- Shimano Hydraulic Disc brake MT401 2 pistons, 203 mm
Wheels & tyres
- Rims
- Ryde Disc30 32H, 30-584 Black Anodized
- Tyres
- Schwalbe Nobby Nic Performance ADDIX, 67EPI 65-584

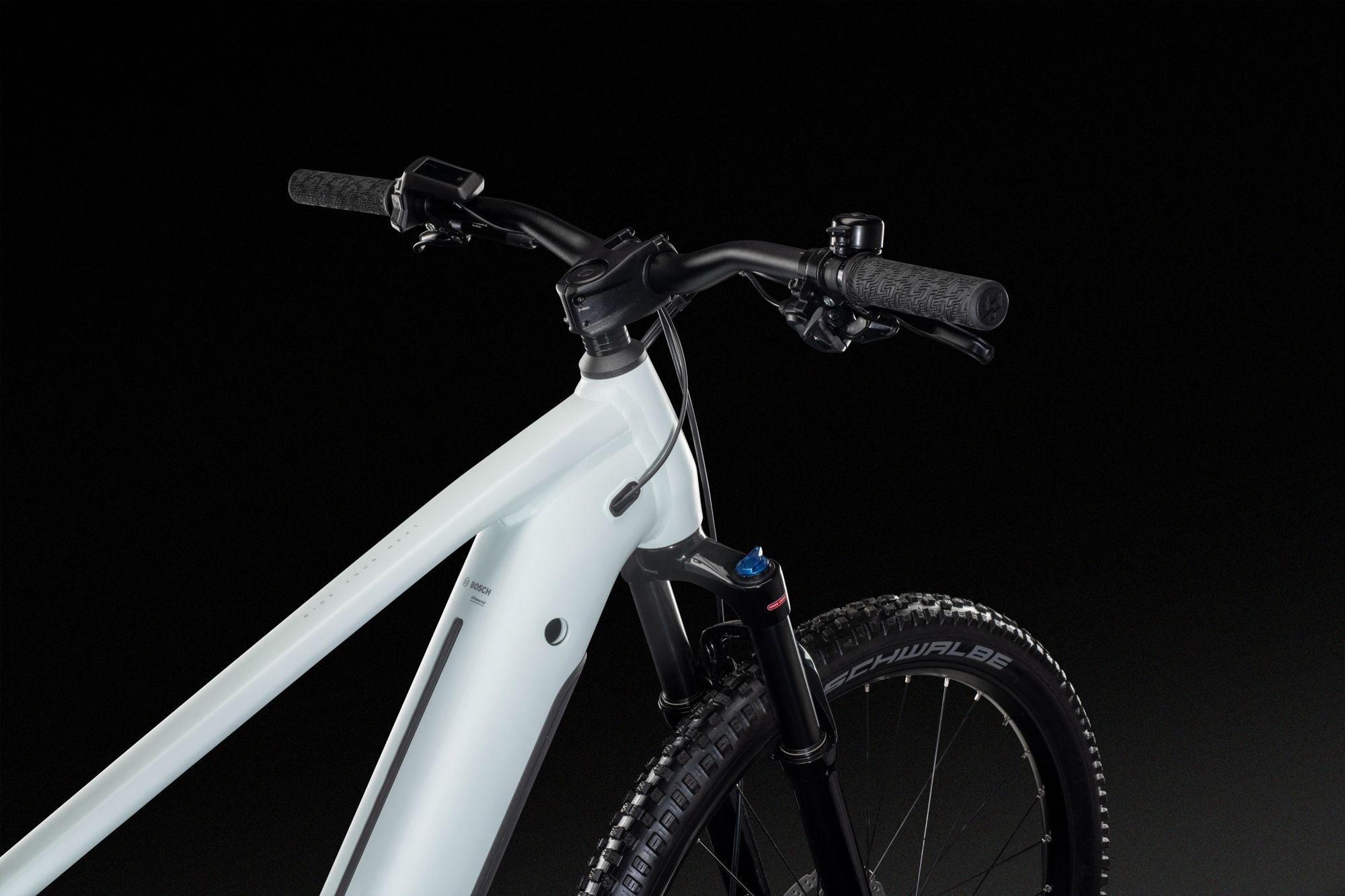

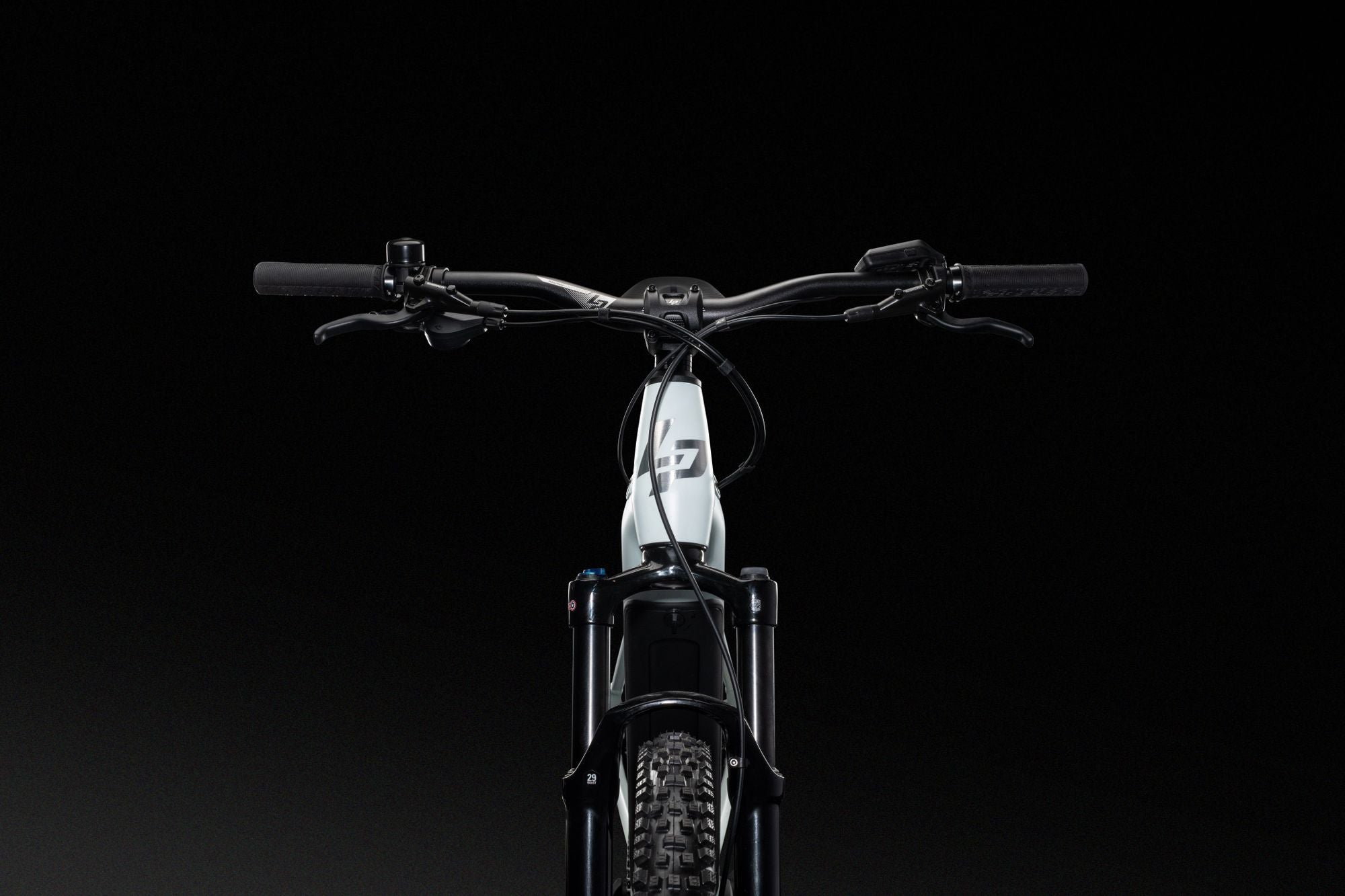

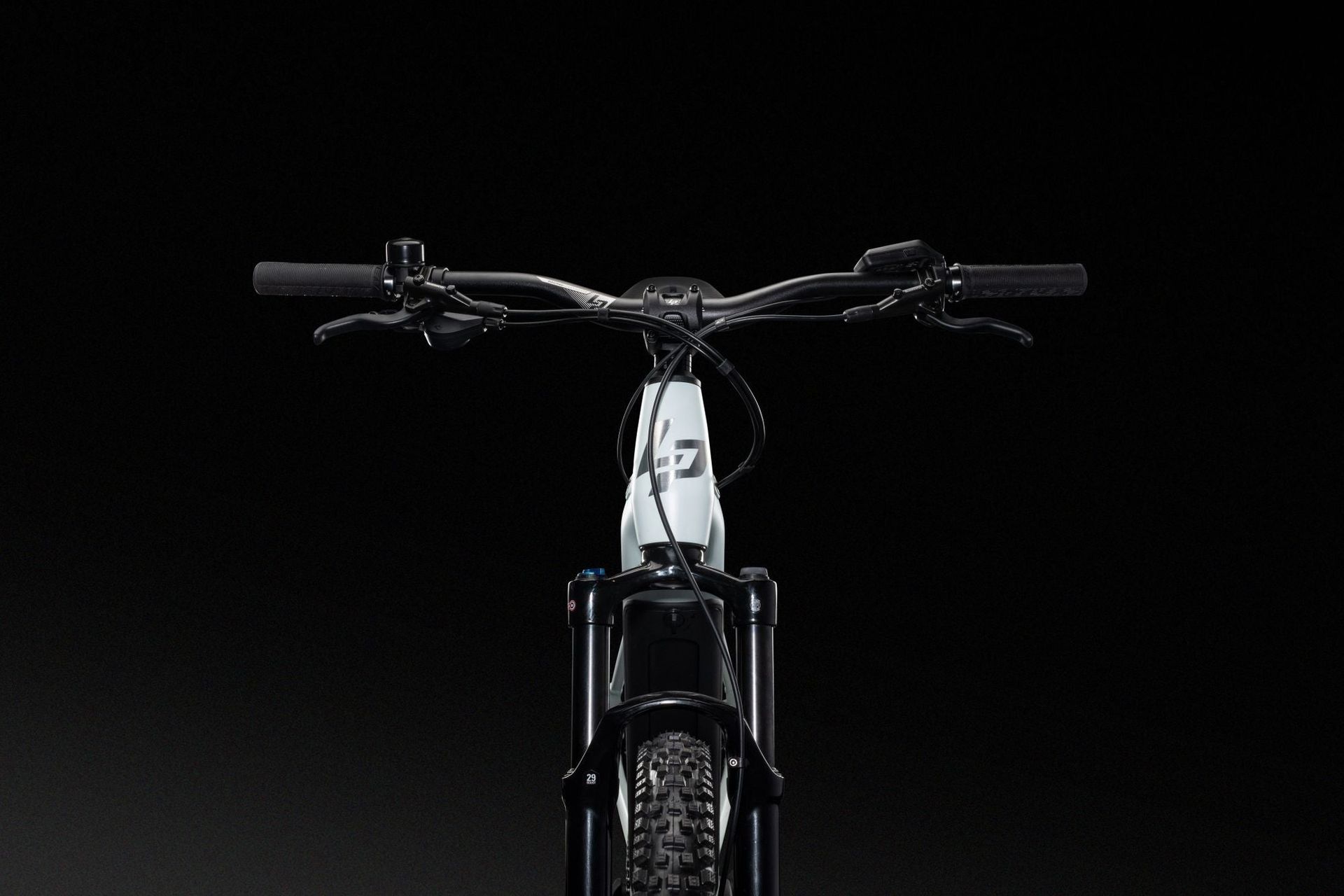

Cockpit
- Grips
- Lapierre grips small diameter
- Handlebar
- Lapierre Flat bar Alloy 6061 DB, Rise: 15 mm, Ø: 31.8 mm
- Pedals
- XLC by VP
- Saddle
- Selle Royal MTB Vivo

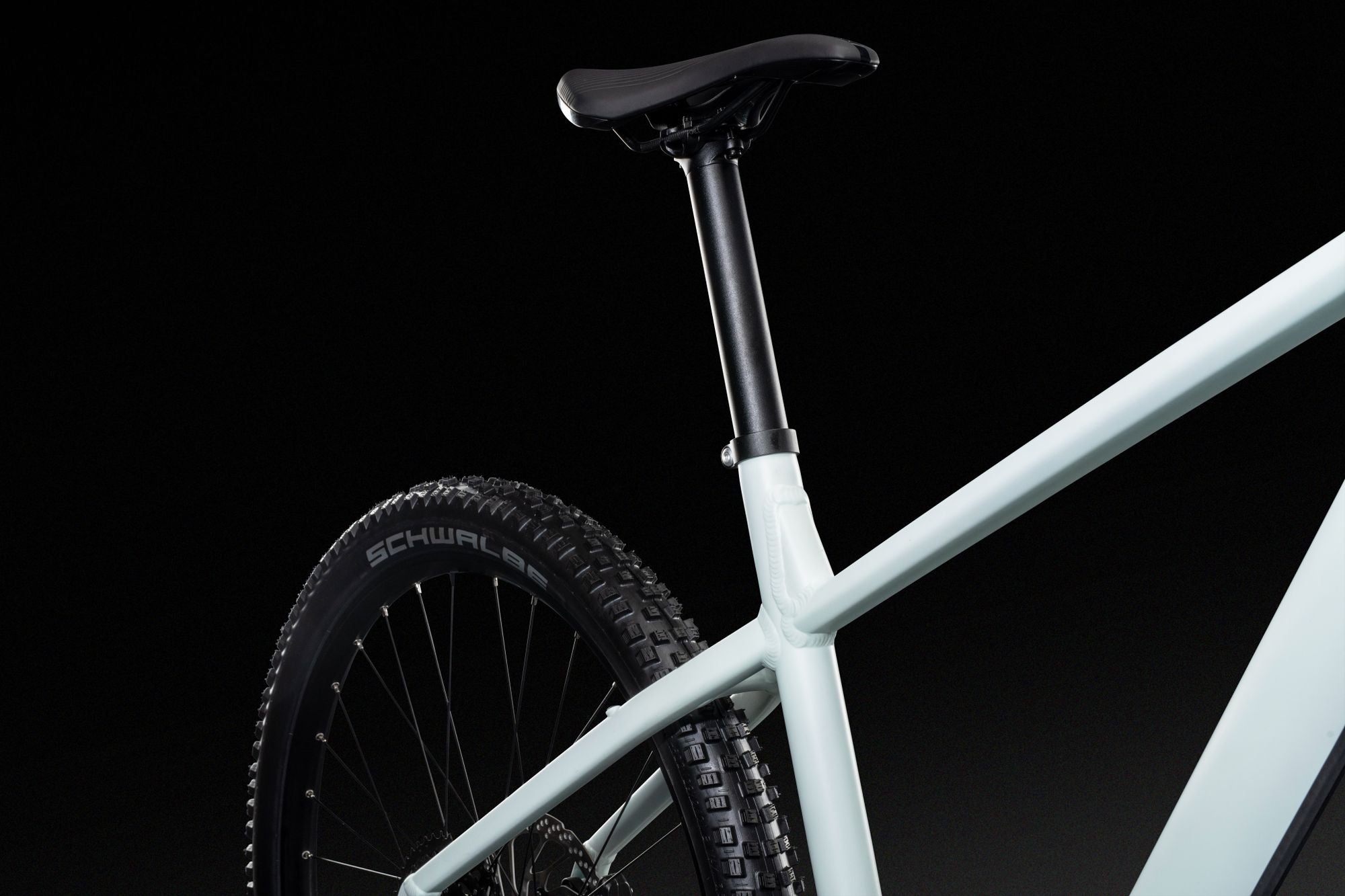

- Seatpost
- Lapierre Non Suspension Alloy, Ø: 34.9 mm, L: 300 mm 300 mm
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Overvolt HT geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat tube length | 400 mm | 450 mm | 500 mm | 550 mm |
| BTop Tube length | 610 mm | 625 mm | 648 mm | 670 mm |
| CHead tube length | 140 mm | 140 mm | 150 mm | 160 mm |
| DHead Tube Angle | 68° | 67° | 67° | 67° |
| ESeat Tube Angle | 74° | 74° | 74° | 74° |
| FChain stay length | 465 mm | 475 mm | 475 mm | 475 mm |
| GWheelbase | 1171 mm | 1216 mm | 1240 mm | 1264 mm |
| HStack | 656 mm | 674 mm | 683 mm | 692 mm |
| IReach | 422 mm | 432 mm | 452 mm | 472 mm |
| KBottom bracket drop | 60 mm | 65 mm | 65 mm | 65 mm |
Source: Lapierre.
Overvolt HT: builds compared
Overvolt HT range →| Overvolt HT 5.6 | Overvolt HT 6.6 | Overvolt HT 8.8 | |
|---|---|---|---|
| Price | €2,799 | €3,299 | €3,999 |
| Frame | Alloy | Alloy | Alloy |
| Fork | Suntour SF25-XCR34 Boost DS, 120 mm | Suntour XCR34 Coil 15x110 29 120 mm | Rockshox Psylo Silver R 15x110 29 120 mm |
| Derailleur | Shimano CUES RD-U4000-9s | Shimano CUES U6000 10/11s Shadow+ | Shimano CUES U6000 10/11s Shadow+ |
| Brakes | Tektro Hydraulic Disc brake HD-M280 | Shimano Hydraulic Disc brake MT401 2 pistons | Shimano Hydraulic Disc brake MT401 2 pistons |
| Wheels | XLC WR-M37 (S) WR-M39 (M-XL) Disc 30/622, 32H | Ryde Disc30 32H, 30-584 Black Anodized | Ryde Disc30 32H, 30-584 Black Anodized |
| Display | Bosch Intuvia 100 + LED Remote | Bosch Intuvia 100 | Bosch Purion 200 |
Overvolt HT 6.6: FAQ
How much does the Lapierre Overvolt HT 6.6 cost?
€3,299 (RRP (Lapierre international EUR store), VAT incl.). The Overvolt HT range runs from €2,799 (Overvolt HT 5.6) to €3,999 (Overvolt HT 8.8). Prices vary by country and dealer.
What motor and battery does the Lapierre Overvolt HT 6.6 have?
Bosch Performance Line CX (100 Nm). 600 Wh battery — bosch PowerTube.
How much suspension travel does the Lapierre Overvolt HT 6.6 have?
120 mm at the fork, on 27.5" wheels.
What sizes does the Lapierre Overvolt HT 6.6 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Overvolt HT 6.6 and the Overvolt HT 8.8?
They share the Overvolt HT frame platform and motor; the differences are in the parts — fork: Suntour XCR34 Coil 15x110 29 120 mm vs Rockshox Psylo Silver R 15x110 29 120 mm; price: €3,299 vs €3,999.
