HaibikeALLTRACK 10
- Motor
- Bosch Performance Line CX85 Nm
- Battery
- 800 WhPowerTube
- Travel F / R
- 120 / – mm
- Wheels
- 29" (S: 27.5")
- Frame
- Alloy
Overview
The Haibike ALLTRACK 10 (€4,199) is a mid-range build of the ALLTRACK range: Bosch Performance Line CX (85 Nm) with 800 Wh, RockShox Reba RL Motion Control fork, Sram Eagle 70 T-Type 12s and Sram DB4 Stealth A-MAJIG brakes.
The ALLTRACK is Haibike's e-hardtail range: an aluminium frame with a 120 mm fork and Bosch power — the Performance Line PX on the ALLTRACK 4 and 6, the CX on the 10 and 11 ABS — with 600 or 800 Wh batteries.
- Aluminium hardtail
- 120 mm fork
- Bosch PX or CX
- 600 or 800 Wh

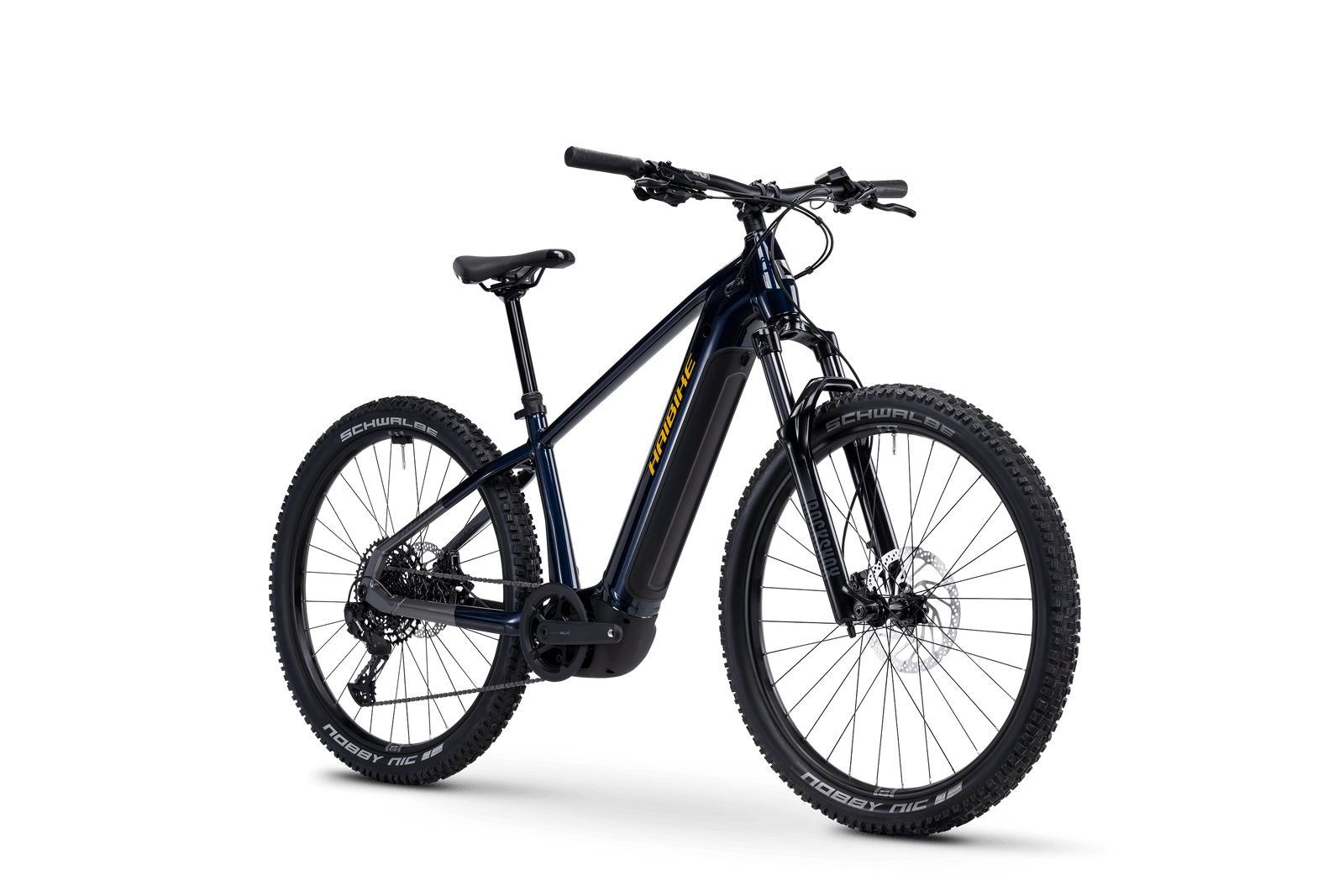

Gallery
Photos: Haibike
Full specifications
Frame & suspension
- Frame
- aluminium, disc brake Post Mount
- Fork

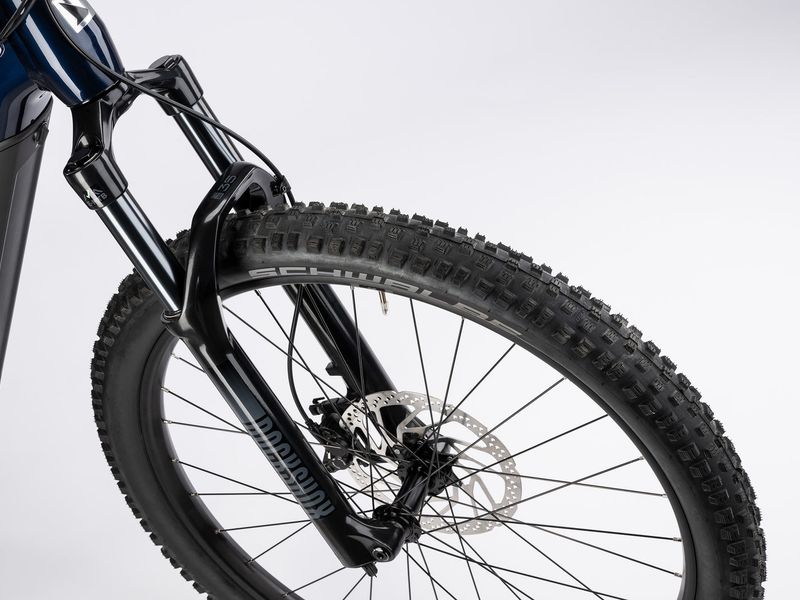

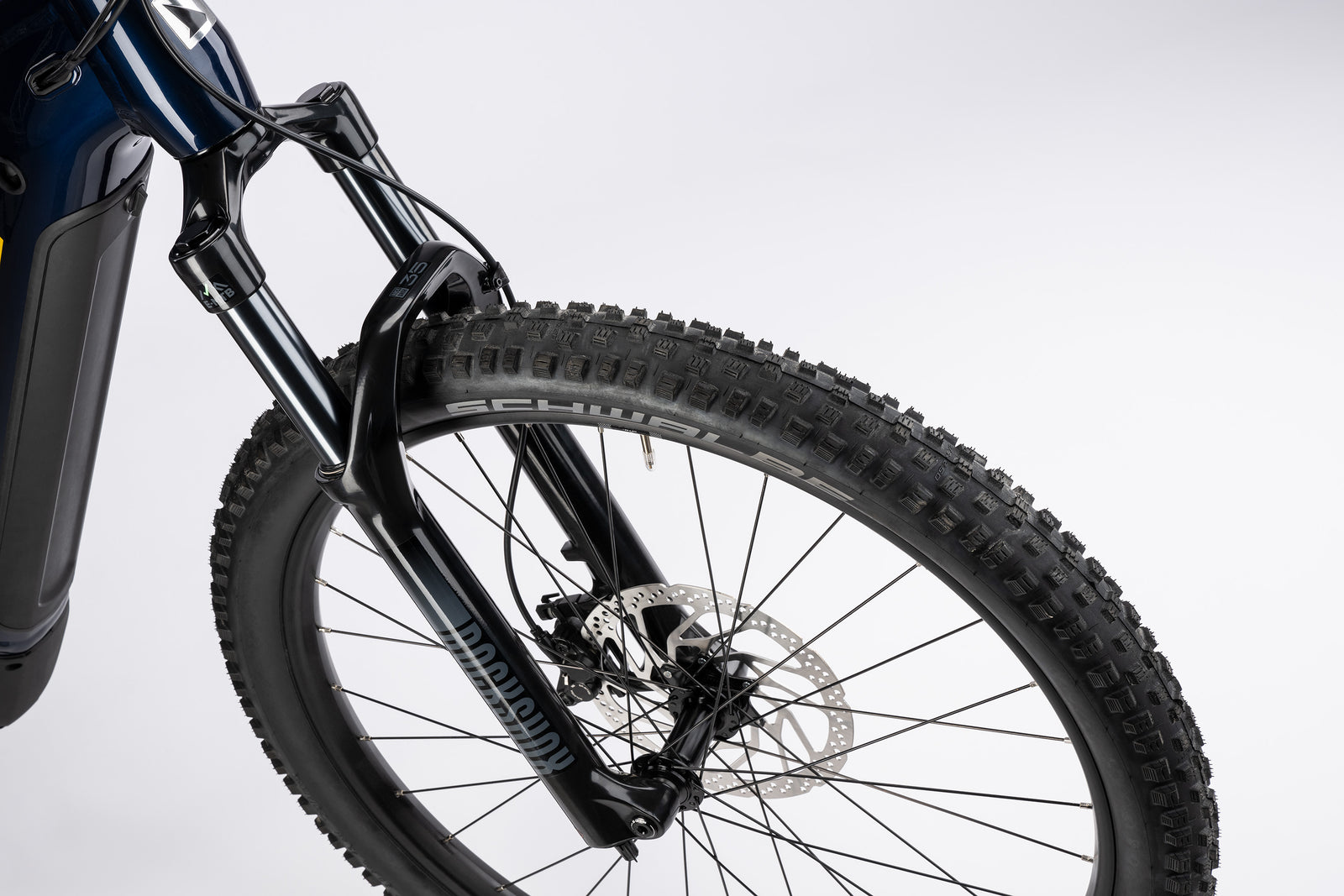

- RockShox Reba RL Motion Control, DebonAir, Offset: 44 mm, Travel: 120mm
E-system
- Battery
- Bosch PowerTube 800Wh
- Charger
- Bosch Charger 4A 220-240V
- Display
- Bosch Kiox 300 + LED Remote
- Motor

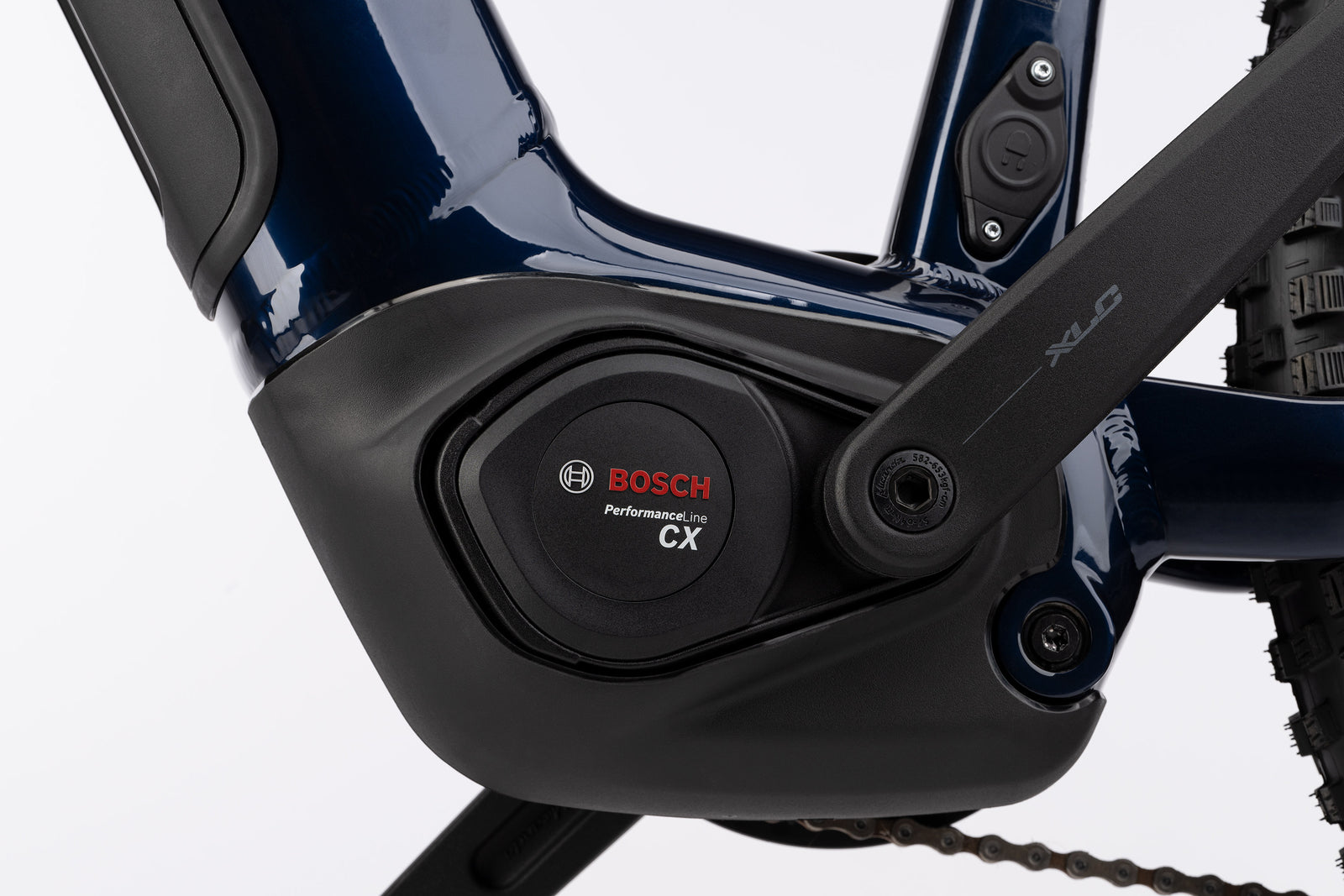

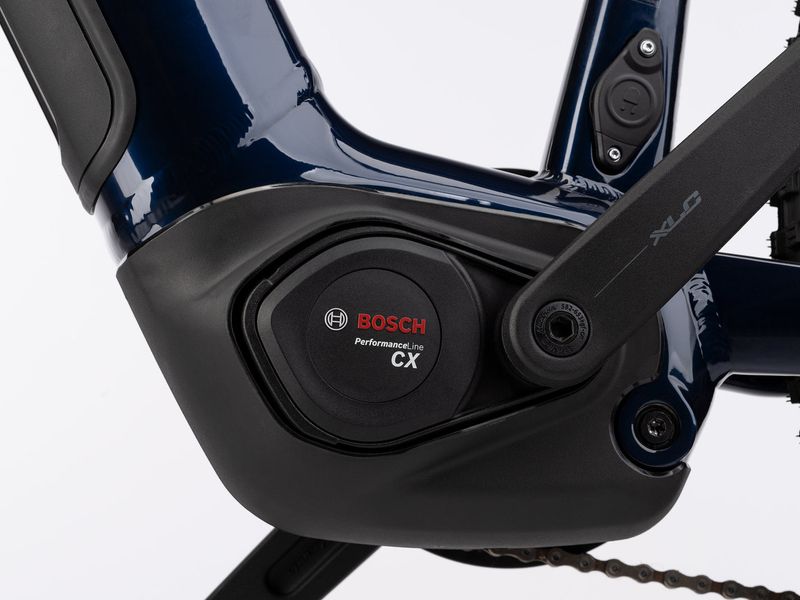

- Bosch Performance Line CX, 600W, 85Nm, 25km/h
Drivetrain
- Chain

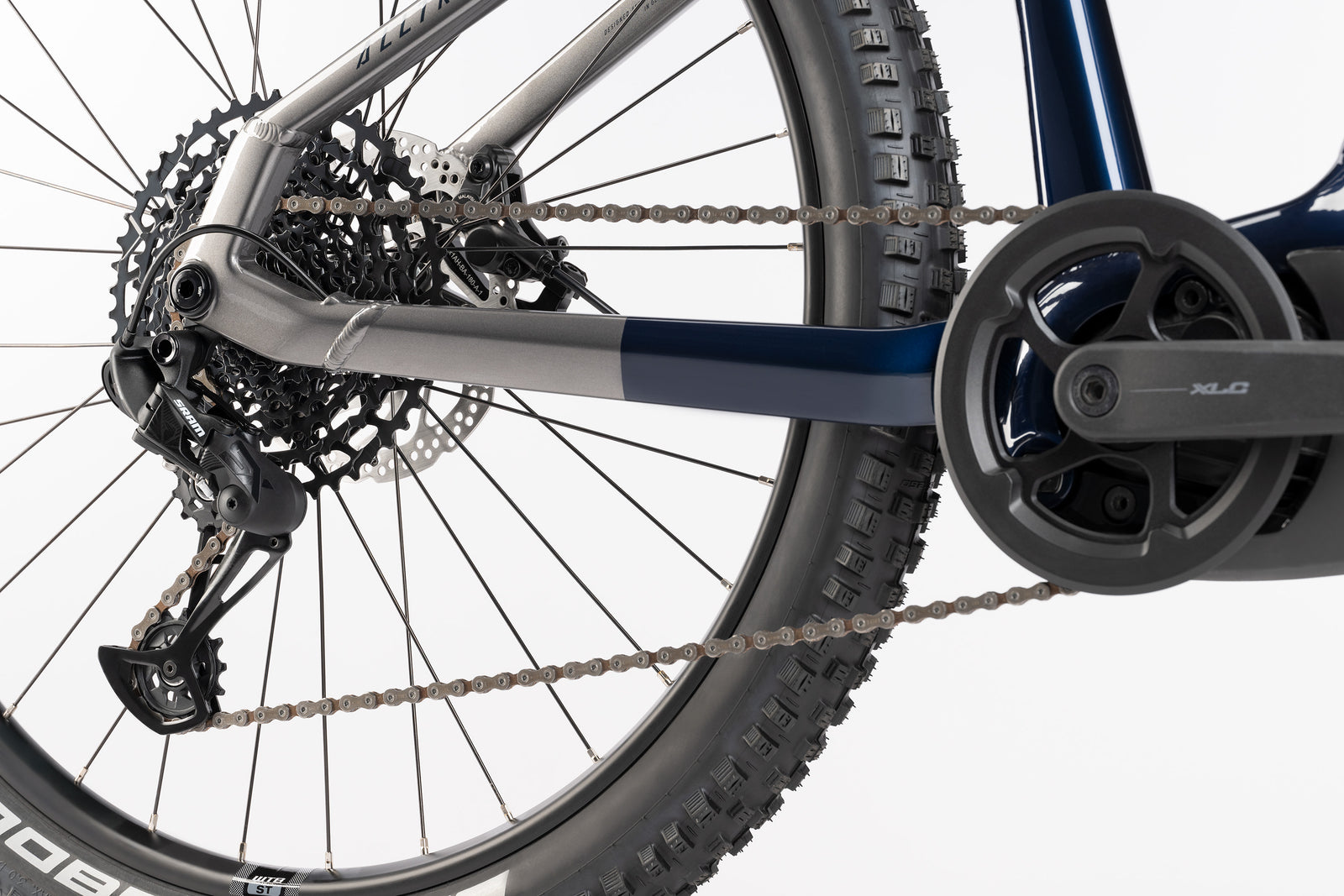

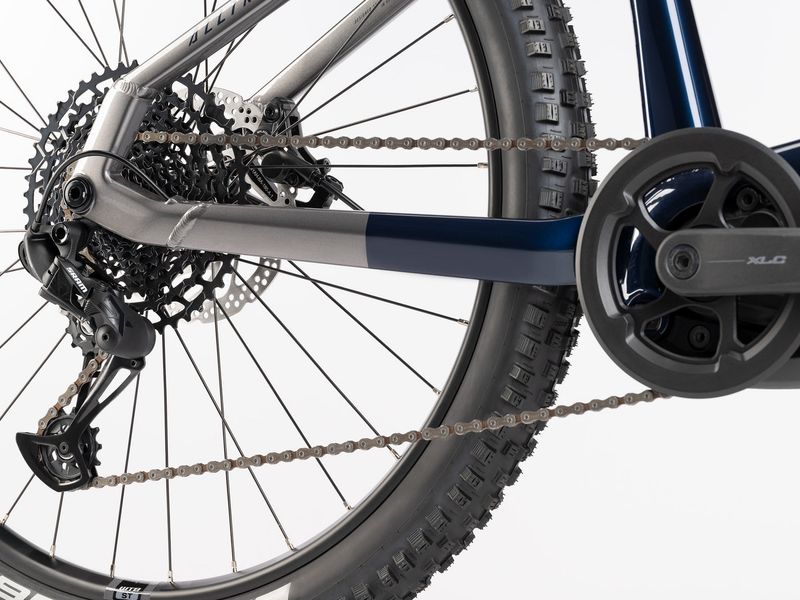

- Sram Eagle 70 T-Type 12s
- Rear derailleur
- Sram Eagle 70 T-Type 12s, 12-speed
- Gears
- 12-speed
- Shifter
- Sram Eagle 70 T-Type Trigger, Trigger shifter
Brakes
- Front brake
- Sram DB4 Stealth A-MAJIG, 4 pistons, organic pad, 203 mm
- Rear brake
- Sram DB4 Stealth A-MAJIG, 4 pistons, organic pad, 180 mm
Wheels & tyres
- Rims
- XLC WR-M39 Disc 30/622 32H 6,5 mm Valve
- Tyres
- Schwalbe Nobby Nic Performance, ADDIX, 67EPI, 65-622
Cockpit

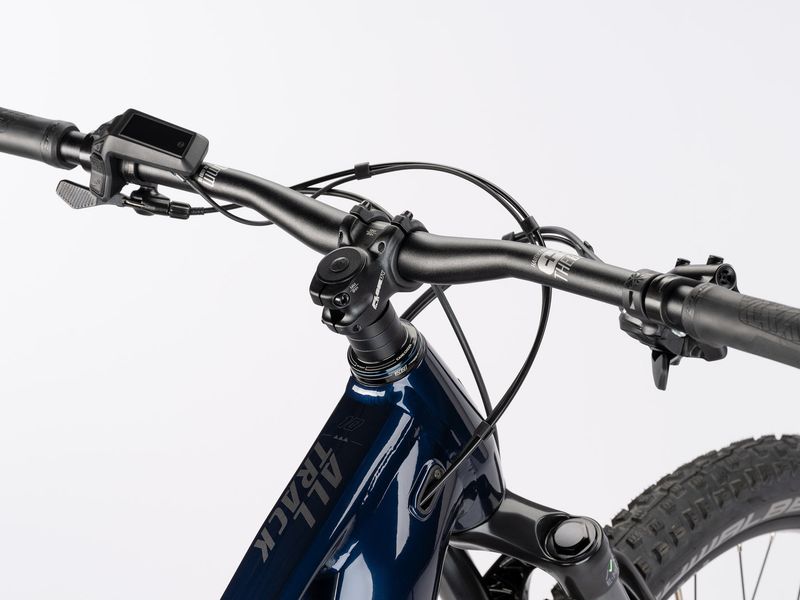

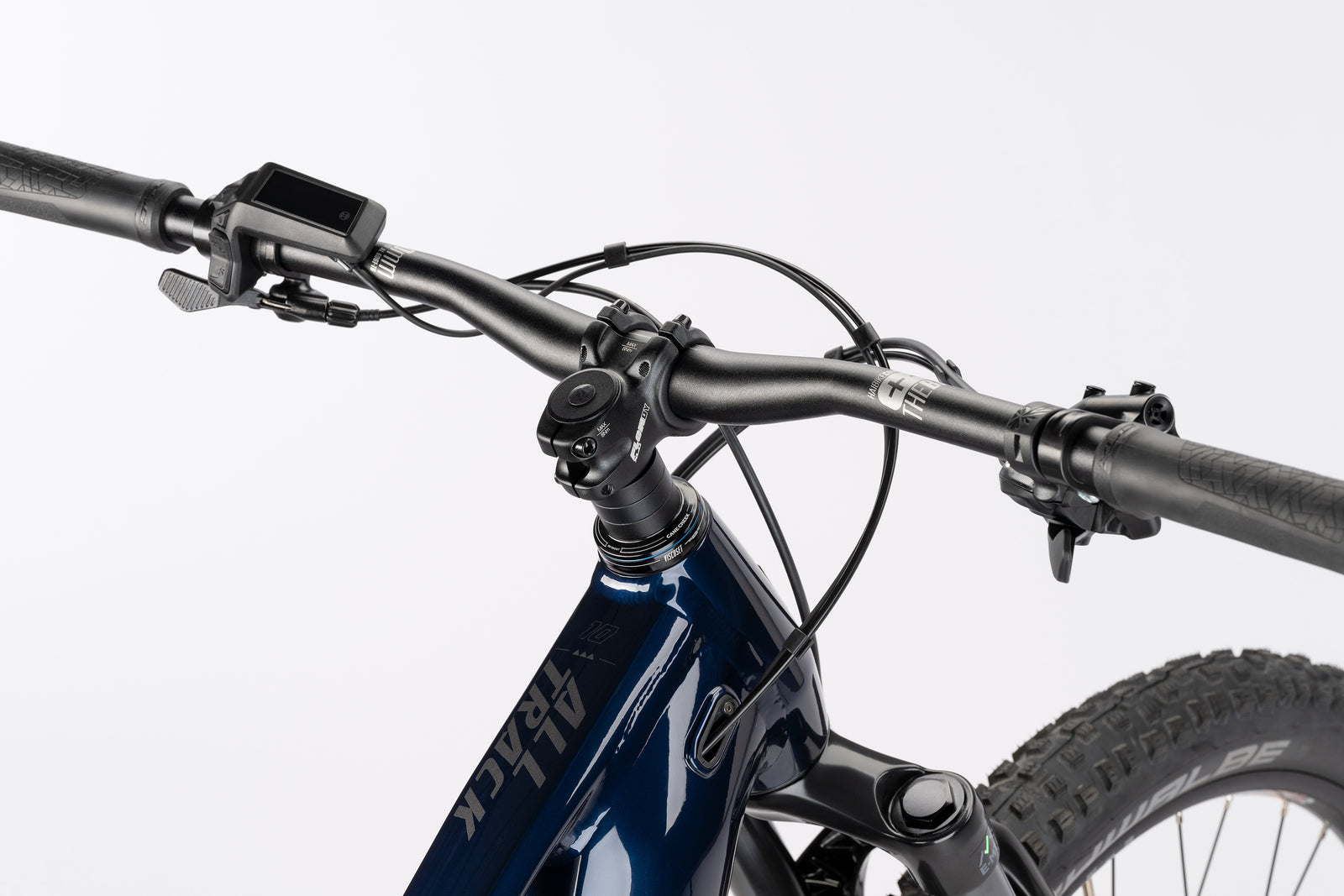

- Grips
- XLC MTB Grip Set VLG-1751D2
- Handlebar
- XLC HB-M32, Dia. 31.8 mm, Rise: 20 mm, backsweep 9° 780 mm
- Pedals
- XLC Flat Pedal PD-M29 w/ Reflector + integrated Pins
- Saddle
- XLC SA-S10 143 mm Sport
- Seatpost
- XLC Dropper SP-T21, Dia. 34.9 mm, Travel: 125 mm, L: 399 mm
Other
- Max system weight
- 150kg
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
ALLTRACK geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| BTop Tube length | 610 mm | 625 mm | 648 mm | 670 mm |
| CHead tube length | 140 mm | 140 mm | 150 mm | 160 mm |
| DHead Tube Angle | 68° | 67° | 67° | 67° |
| ESeat Tube Angle | 74° | 74° | 74° | 74° |
| FChain stay length | 465 mm | 475 mm | 475 mm | 475 mm |
| GWheelbase | 1171 mm | 1216 mm | 1240 mm | 1264 mm |
| HStack | 656 mm | 674 mm | 683 mm | 692 mm |
| IReach | 422 mm | 432 mm | 452 mm | 472 mm |
| JStand over height | 760 mm | 760 mm | 760 mm | 790 mm |
| KBottom bracket drop | 60 mm | 65 mm | 65 mm | 65 mm |
Source: Haibike.
ALLTRACK: builds compared
ALLTRACK range →| ALLTRACK 4 | ALLTRACK 6 | ALLTRACK 10 | ALLTRACK 11 ABS | |
|---|---|---|---|---|
| Price | €2,999 | €3,399 | €4,199 | €4,799 |
| Frame | Alloy | Alloy | Alloy | Alloy |
| Fork | SR Suntour XCM34-Boost NLO 15AH4-110, Offset: 44 mm | SR Suntour XCM34-Boost NLO 15AH4-110, Offset: 44 mm | RockShox Reba RL Motion Control, DebonAir | RockShox Psylo Silver RC, Travel: 120mm |
| Derailleur | Shimano CUES RD-U4000 9s | Shimano CUES RD-U6000 10/11s | Sram Eagle 70 T-Type 12s | Sram NX Eagle 12s |
| Brakes | Tektro HD-M280 | Tektro HD-M280 | Sram DB4 Stealth A-MAJIG | Magura MT C Allroad ABS |
| Wheels | XLC WR-M37 Disc 30/584 32H 6,5 mm Valve | XLC WR-M37 Disc 30/584 32H 6,5 mm Valve | XLC WR-M39 Disc 30/622 32H 6,5 mm Valve | WTB ST i30 TCS 2.0 27.5" 32H |
| Display | Bosch LED remote | Bosch Purion 200 | Bosch Kiox 300 + LED Remote | Bosch Kiox 500 + LED Remote |
ALLTRACK 10: FAQ
How much does the Haibike ALLTRACK 10 cost?
€4,199 (RRP Germany, VAT incl.). The ALLTRACK range runs from €2,999 (ALLTRACK 4) to €4,799 (ALLTRACK 11 ABS). Prices vary by country and dealer.
What motor and battery does the Haibike ALLTRACK 10 have?
Bosch Performance Line CX (85 Nm). 800 Wh battery — powerTube.
How much suspension travel does the Haibike ALLTRACK 10 have?
120 mm at the fork, on 29" (S: 27.5") wheels.
What sizes does the Haibike ALLTRACK 10 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the ALLTRACK 10 and the ALLTRACK 11 ABS?
They share the ALLTRACK frame platform and motor; the differences are in the parts — fork: RockShox Reba RL Motion Control vs RockShox Psylo Silver RC; derailleur: Sram Eagle 70 T-Type 12s vs Sram NX Eagle 12s; brakes: Sram DB4 Stealth A-MAJIG vs Magura MT C Allroad ABS; price: €4,199 vs €4,799.
