BHiLYNX+ NX Trail Carbon 8.5
- Motor
- Bosch Performance Line CX100 Nm
- Battery
- 800 WhIntegrated, non-removable
- Travel F / R
- 150 / 140 mm
- Wheels
- 29"
- Frame
- Carbon
Overview

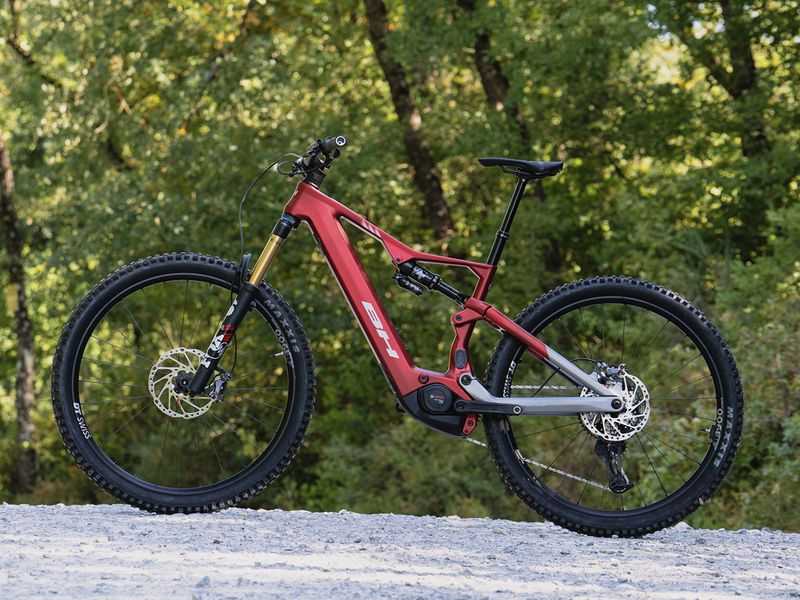

The BH iLYNX+ NX Trail Carbon 8.5 (€7,499.90) is a mid-range build of the iLYNX+ NX Trail: Bosch Performance Line CX (Gen 5) (100 Nm) with 800 Wh, FOX 36 FLOAT Performance fork, FOX FLOAT X Performance shock, Shimano XT DI2 12sp and Shimano XT 4 Piston brakes.

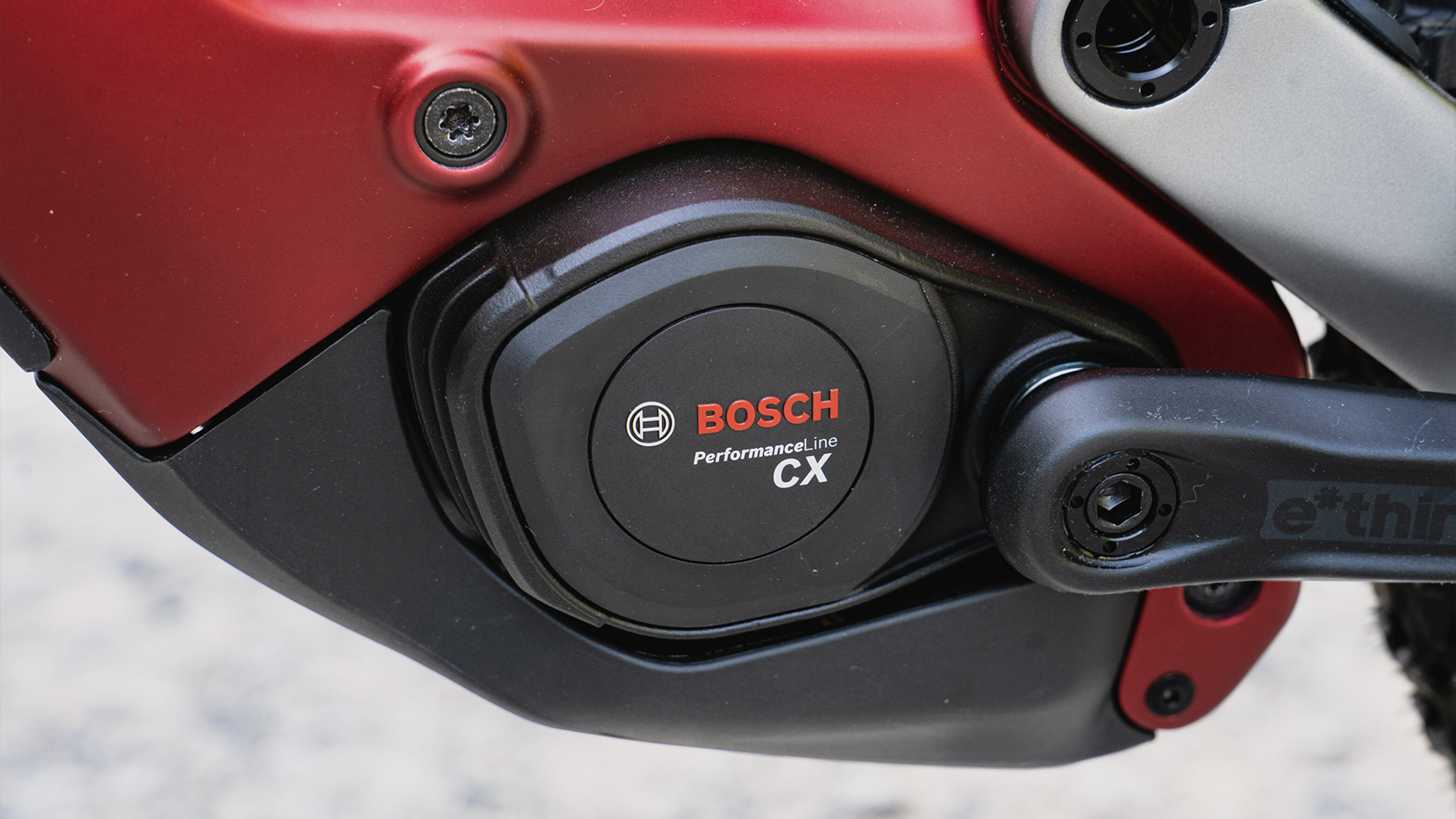

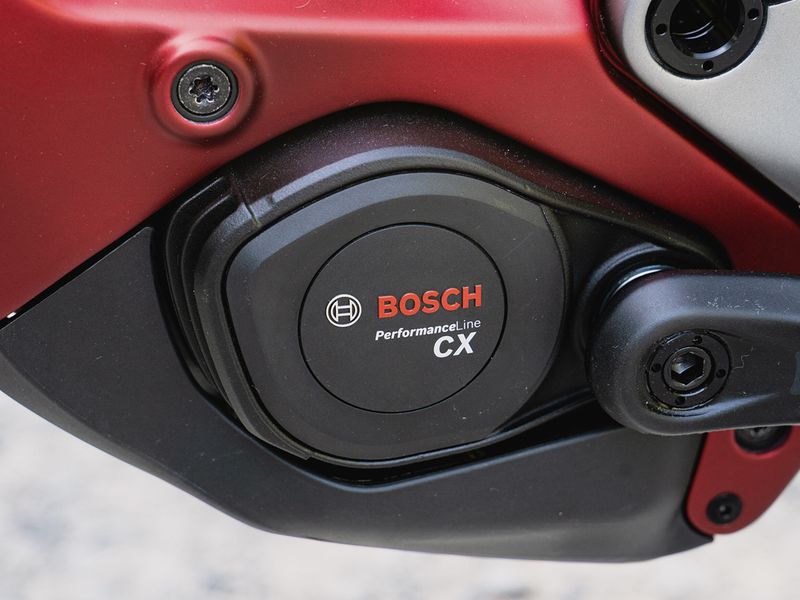

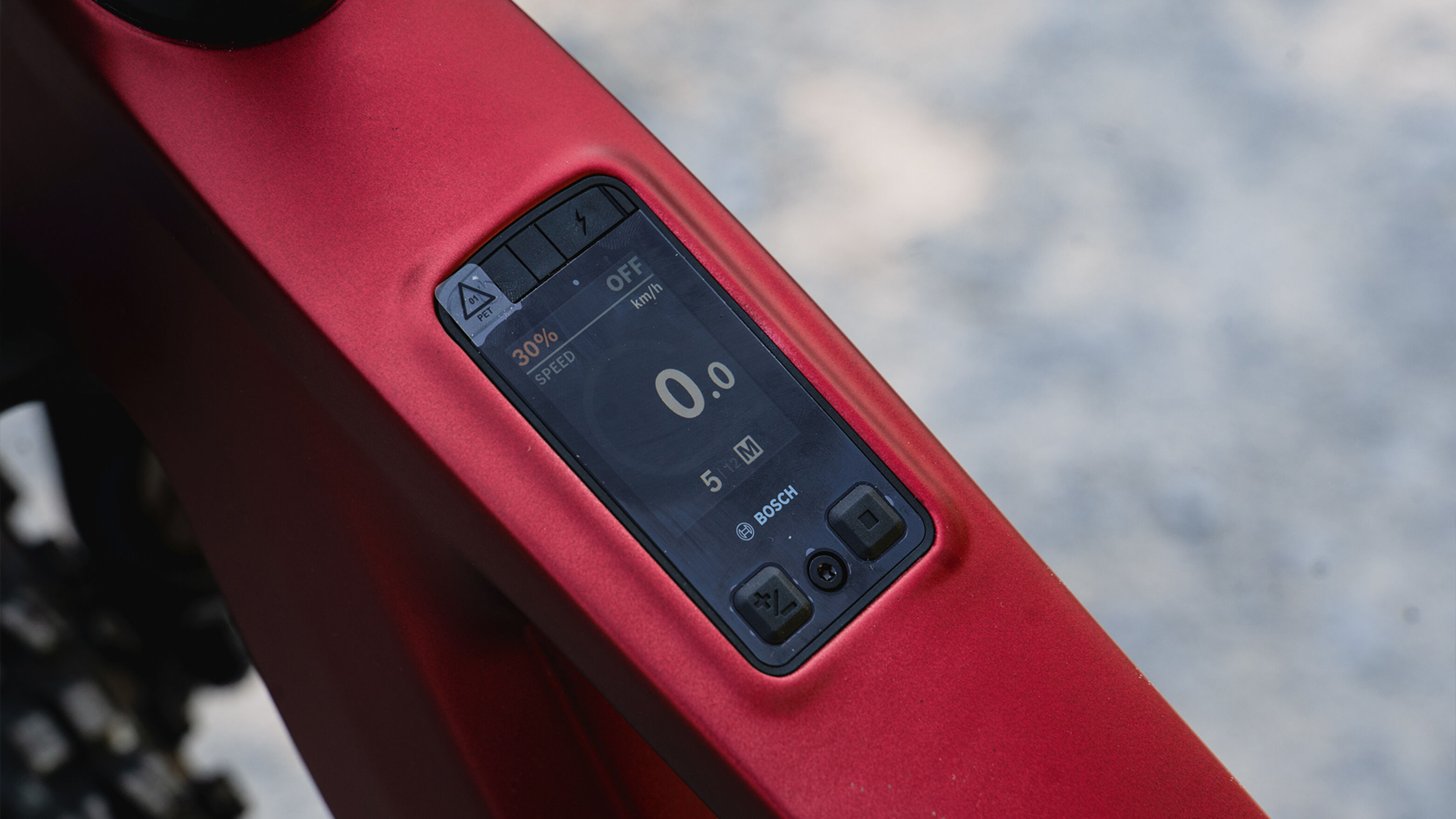

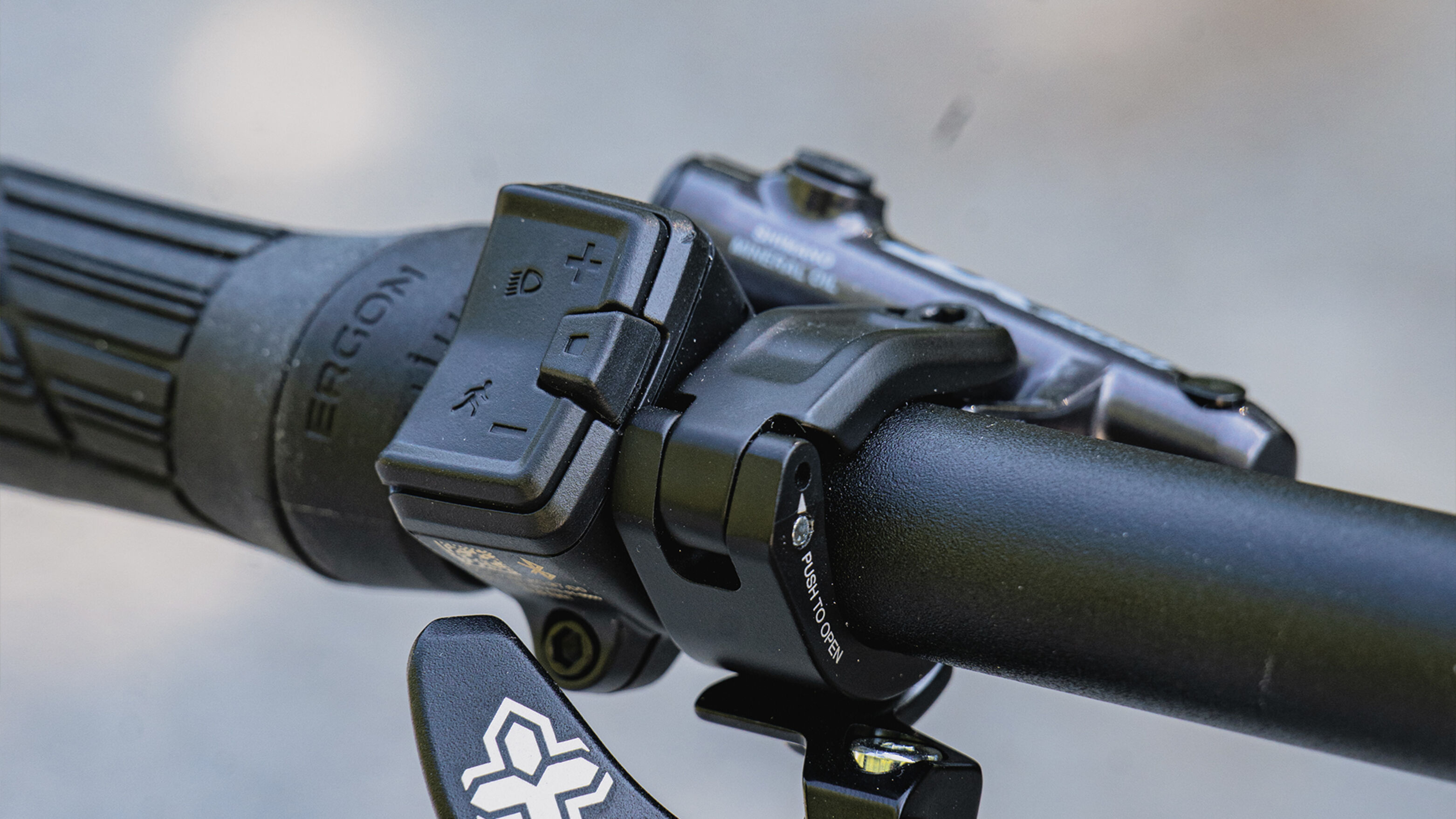

The iLYNX+ NX Trail is BH's Bosch-powered trail e-MTB: Performance Line CX motor (BH quotes 2.8 kg, 100 Nm and up to 400% assistance) and an 800 Wh non-removable battery, with Kiox 400C display and Mini Remote.

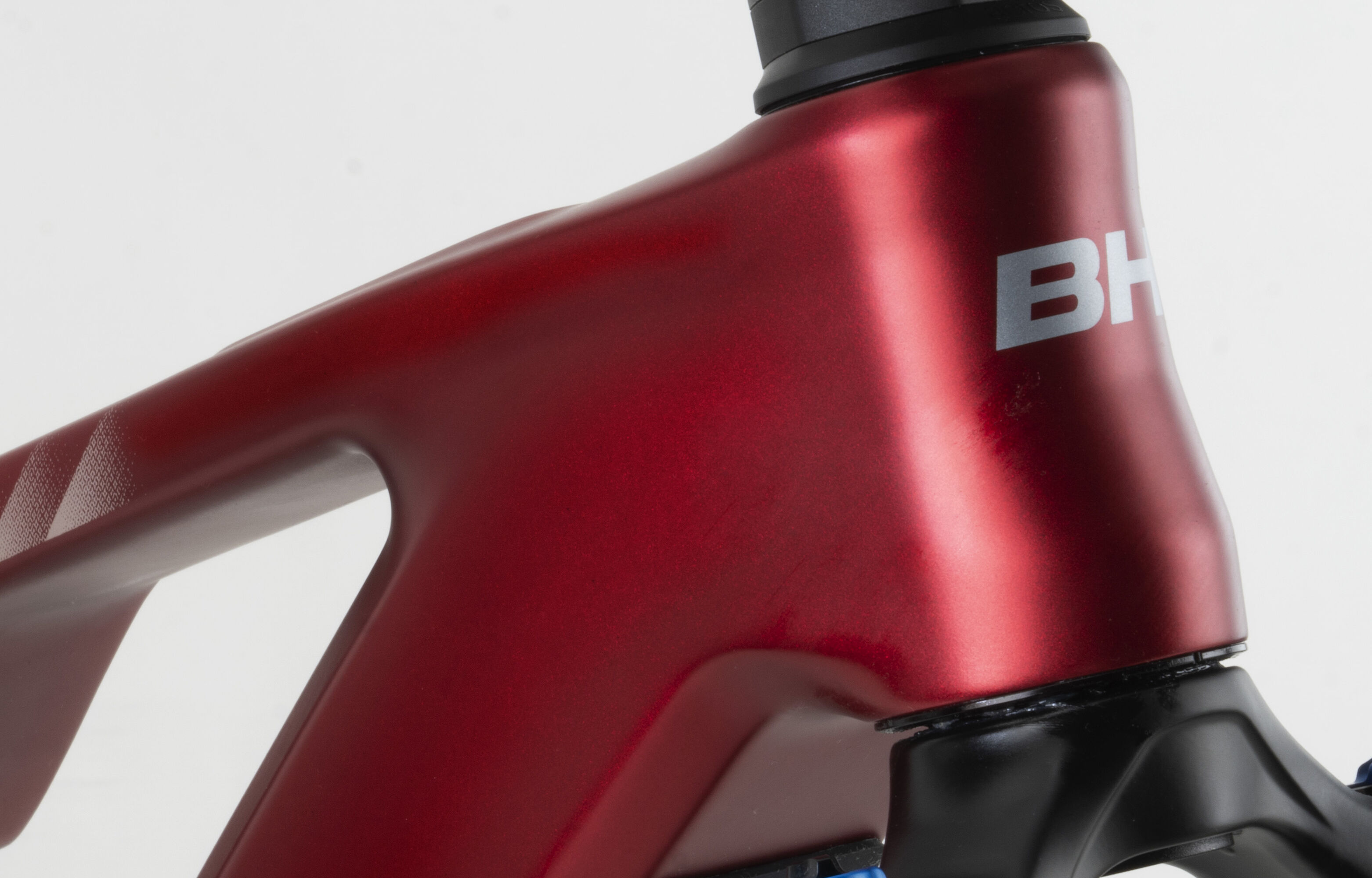

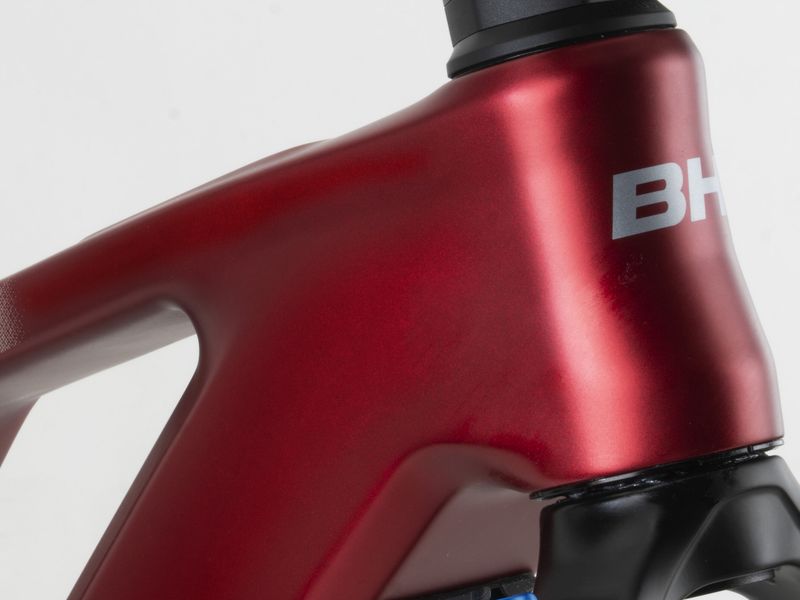

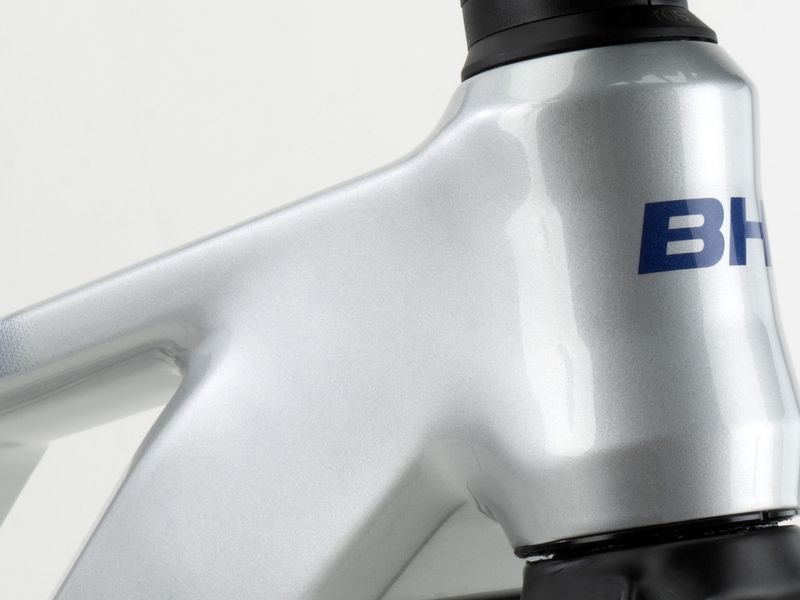

The 29-inch frame offers 140 mm of Split Pivot rear travel with 140–150 mm forks, a compact 440 mm rear end and an oversized main pivot. Alloy and carbon frames are available.
- Bosch Performance Line CX, 100 Nm
- 800 Wh battery
- 140 mm Split Pivot, 29" wheels
- Kiox 400C + Mini Remote

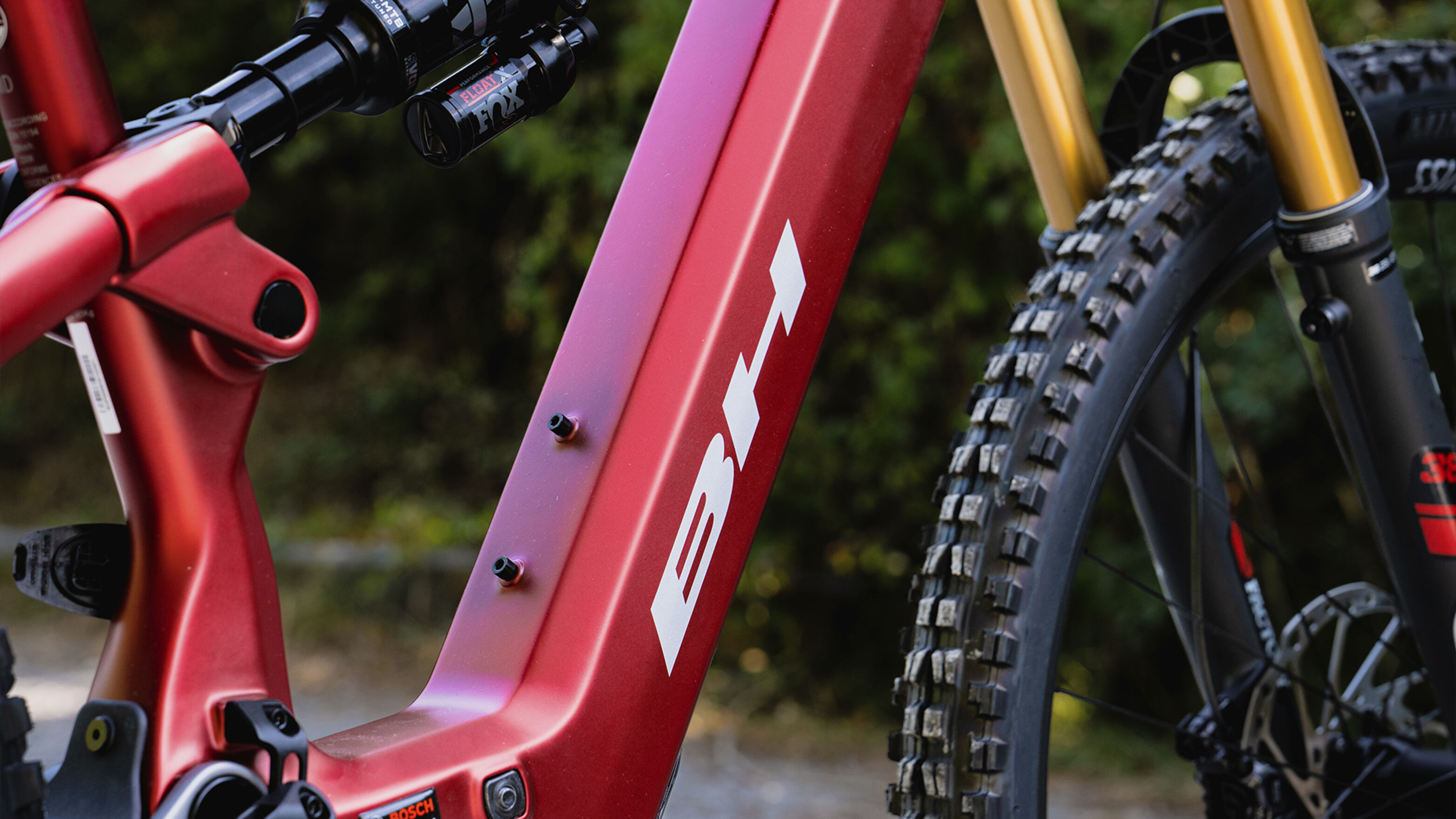

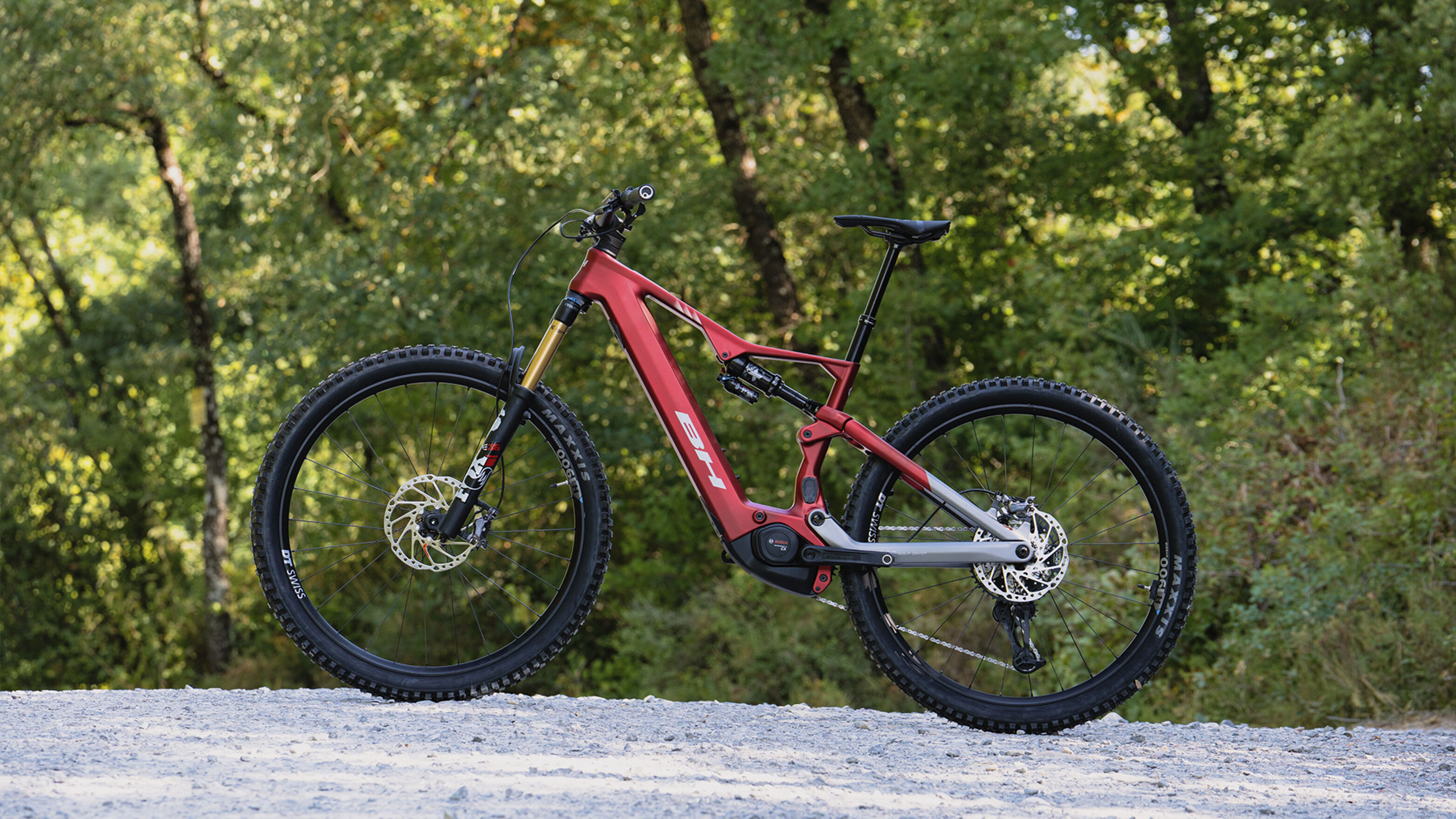

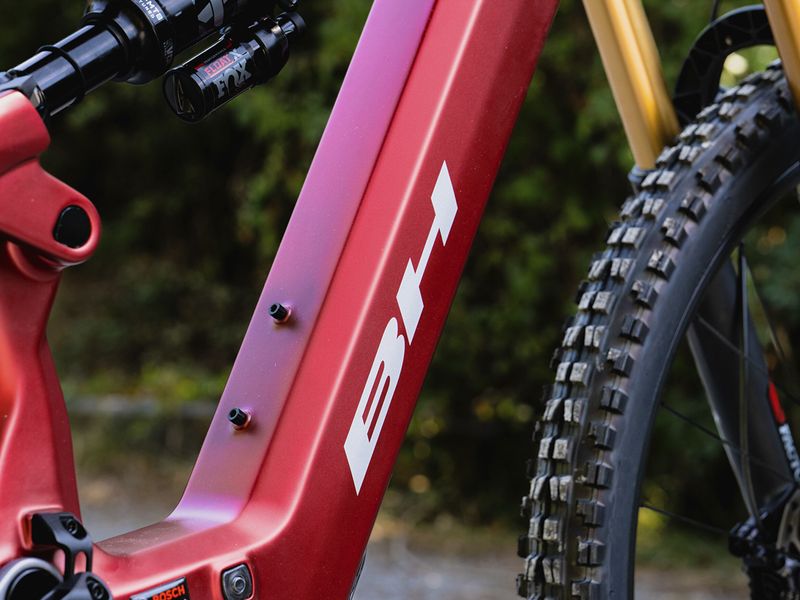

Gallery
Photos: BH Bikes
Full specifications
Frame & suspension
- Frame
- iLynx+NX, BCL Carbon Layup, 140 mm FS Carbon 29", ICR
- Rear shock
- FOX FLOAT X Performance
- Fork
- FOX 36 FLOAT Performance 150mm 15QR
E-system
- Battery system
- Non Removable
- Battery
- 800Wh
- Motor
- Bosch CX Gen 5
- Display

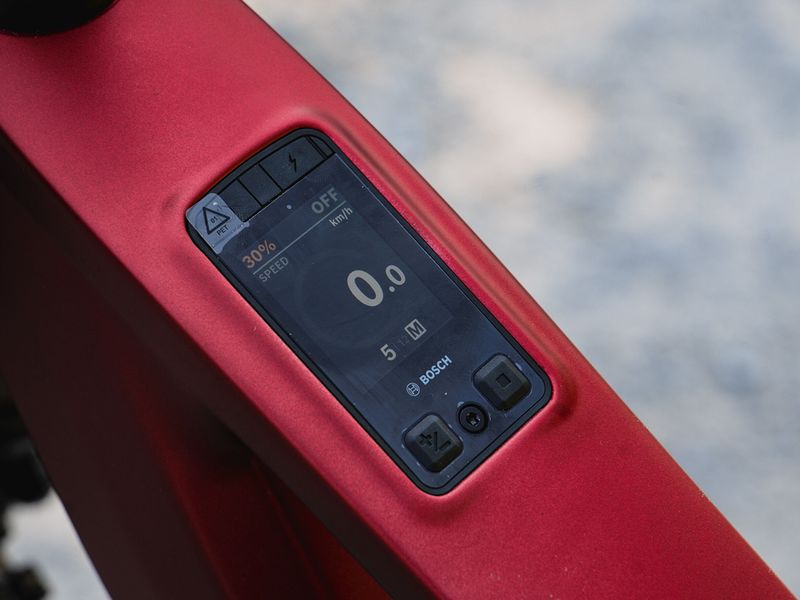

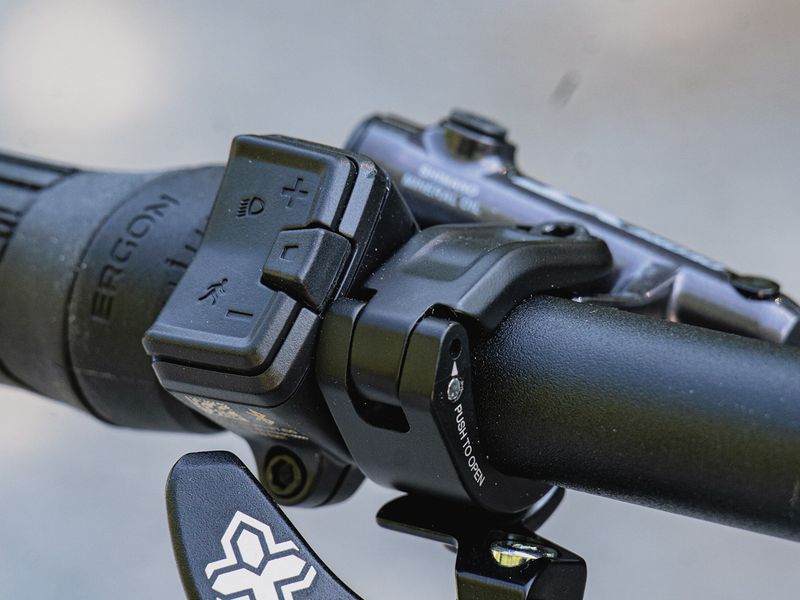

- Bosch Kiox 400C + Mini Remote
Drivetrain
- Shifters
- Shimano Deore DI2
- Rear derailleur
- Shimano XT DI2 12sp
- Crankset
- EThirteen Helix Core 34T 160mm
- Cassette
- Shimano CSM6100 12sp (1051T)
- Chain
- Shimano CNM6100
Brakes
- Front brake
- Shimano XT 4 Piston, 203mm
- Rear brake
- Shimano XT 4 Piston, 203mm
Wheels & tyres
- Wheelset
- DT Swiss H1900 TR
- Tyres
- Maxxis Minion TPI120 Terra EXO TR 29"X2,5/2,4
- Hubs
- DT Swiss
- Spokes
- Stainless Steel
Cockpit
- Saddle
- Prologo Proxim W450 Stn
- Seat clamp
- Integrated
- Seatpost
- Race Face DP Aeffect 31,6
- Handlebar
- Race Face Aeffect Riser 35, 780mm
- Stem
- Satori URSA 35
- Headset
- Acros AIX327 ICR BL.
- Grips
- Ergon GE10 EVO
Other
- Chainstay protector
- Double Integrated
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
iLYNX+ NX Trail geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| H1Seat tube length | 400 mm | 420 mm | 440 mm | 480 mm |
| H2Head tube length | 90 mm | 100 mm | 110 mm | 125 mm |
| H3Fork length | 551 mm | 551 mm | 551 mm | 551 mm |
| H4Top tube length | 580 mm | 598 mm | 613 mm | 640 mm |
| H5Front centre | 750 mm | 770 mm | 794 mm | 818 mm |
| H6Chainstay length | 440 mm | 440 mm | 440 mm | 440 mm |
| H7Wheelbase | 1190 mm | 1210 mm | 1243 mm | 1258 mm |
| H8BB drop | 34 mm | 34 mm | 34 mm | 34 mm |
| H9Bb Height | 340 mm | 340 mm | 340 mm | 340 mm |
| A1Seat tube angle | 78° | 78° | 78° | 78° |
| A2Head tube angle | 66° | 66° | 66° | 66° |
| Standover | 749 mm | 765 mm | 782 mm | 807 mm |
| Reach | 449 mm | 466 mm | 485 mm | 502 mm |
| Stack | 600 mm | 610 mm | 618 mm | 632 mm |
Source: BH.
iLYNX+ NX Trail: builds compared
iLYNX+ NX Trail range →| iLYNX+ NX Trail 7.9 | iLYNX+ NX Trail 8.0 | iLYNX+ NX Trail Carbon 8.4 | iLYNX+ NX Trail Carbon 8.5 | iLYNX+ NX Trail Carbon 8.6 | |
|---|---|---|---|---|---|
| Price | €4,399.90 | €4,999.90 | €6,499.90 | €7,499.90 | €8,299.90 |
| Frame | Alloy | Alloy | Carbon main frame, alloy rear | Carbon | Carbon |
| Fork | SR Suntour XCR34 Air 140mm 15QR | Rock Shock Recon RL Air 150mm | FOX 36 FLOAT Performance 150mm 15QR | FOX 36 FLOAT Performance 150mm 15QR | FOX 36 FLOAT Factory 150mm 15QR |
| Shock | Rock Shox Deluxe Debonair | Rock Shox Deluxe Debonair | FOX FLOAT X Performance | FOX FLOAT X Performance | FOX FLOAT X Performance |
| Derailleur | Shimano Deore 10sp | Shimano Deore 12sp | Shimano XT 12sp | Shimano XT DI2 12sp | Shimano XT DI2 12sp |
| Brakes | Shimano MT420 4 Piston | Shimano MT520 4 Piston | Shimano MT520 4 Piston | Shimano XT 4 Piston | Shimano XT 4 Piston |
| Display | Bosch Purion 200 | Bosch Purion 200 | Bosch Kiox 400C + Mini Remote | Bosch Kiox 400C + Mini Remote | Bosch Kiox 400C + Mini Remote |
iLYNX+ NX Trail Carbon 8.5: FAQ
How much does the BH iLYNX+ NX Trail Carbon 8.5 cost?
€7,499.90 (RRP Spain, VAT incl.). The iLYNX+ NX Trail range runs from €4,399.90 (iLYNX+ NX Trail 7.9) to €8,299.90 (iLYNX+ NX Trail Carbon 8.6). Prices vary by country and dealer.
What motor and battery does the BH iLYNX+ NX Trail Carbon 8.5 have?
Bosch Performance Line CX (100 Nm). 800 Wh battery — integrated, non-removable.
How much suspension travel does the BH iLYNX+ NX Trail Carbon 8.5 have?
150 mm at the fork and 140 mm at the rear, on 29" wheels.
What sizes does the BH iLYNX+ NX Trail Carbon 8.5 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the iLYNX+ NX Trail Carbon 8.5 and the iLYNX+ NX Trail Carbon 8.6?
They share the iLYNX+ NX Trail frame platform and motor; the differences are in the parts — fork: FOX 36 FLOAT Performance 150mm 15QR vs FOX 36 FLOAT Factory 150mm 15QR; price: €7,499.90 vs €8,299.90.
