Bafang M560RS: 150 Nm, 1,700 W motor joins the power race

Bafang has announced the M560RS and M510RS mid-drive motors, with the M560RS rated at 150 Nm and 1,700 W peak.

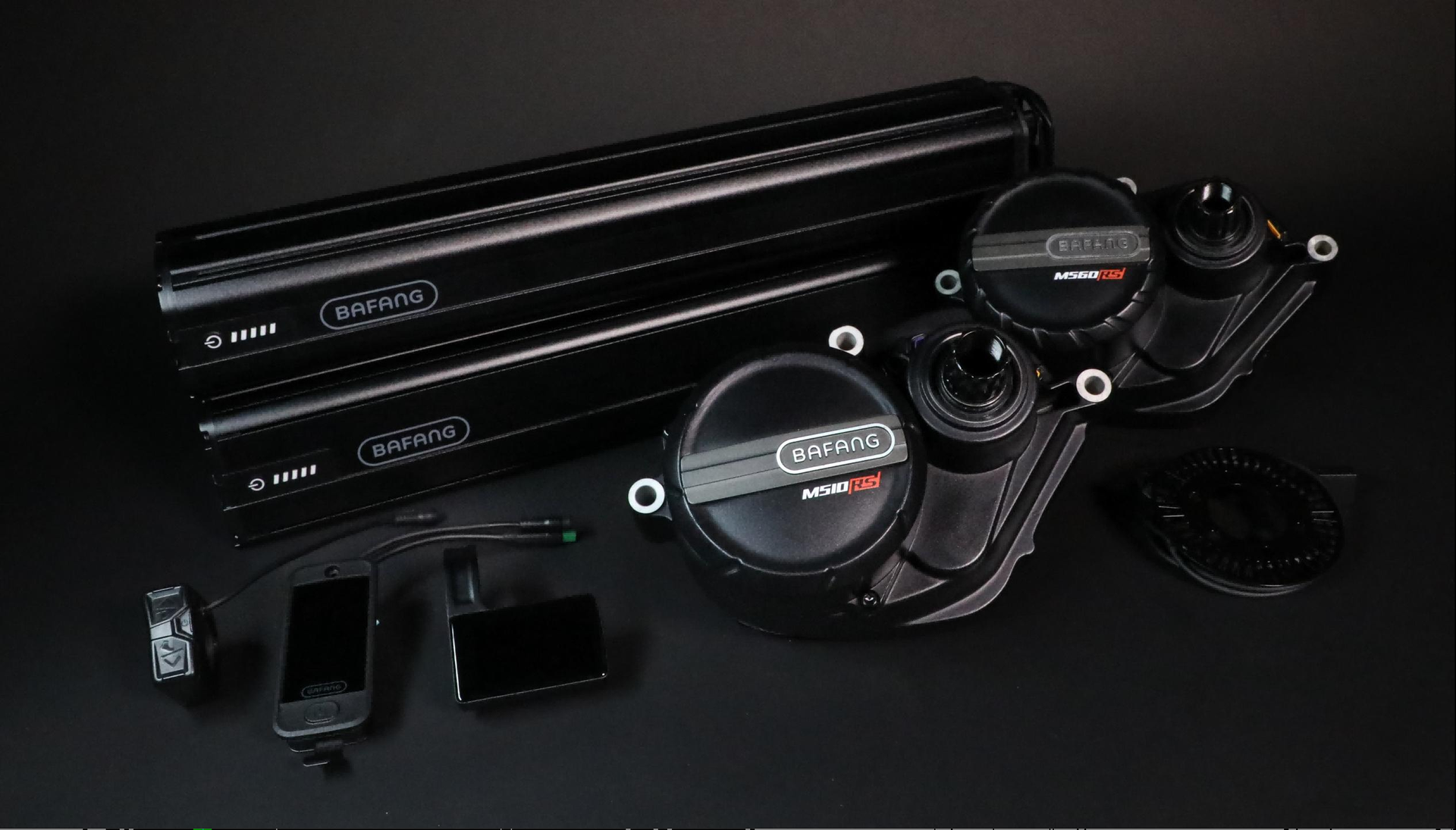

Bafang M510 and M560 mid-drive motors with batteries and displays
Photo: Bafang

Bafang has two new mid-drive motors. The M560RS and M510RS were shown at a bike festival in early September 2026, and the bigger one puts the Chinese brand right next to the most powerful eMTB motors you can buy.

M560RS

The M560RS runs on 48 V and is rated at 1,700 W peak and 150 Nm. That's the same territory as the DJI Avinox. Assistance goes up to 500% in Sport+ and 800% in a mode Bafang calls Boost-to-Limit. A six-axis IMU reads the terrain and adjusts the power. There will be a 25 km/h version for Europe and a 45 km/h Class 3 version for the US.

M560RS at a glance

Peak power
1,700 W
Torque
150 Nm
Voltage
48 V
Sensors
6-axis IMU
Assist
500 % Sport+, 800 % Boost-to-Limit
Mounting
Same as M510/M560

M510RS, and why the mount matters

The M510RS gets the same IMU and assist modes with less output. Bafang hasn't published its full numbers in the launch coverage we've seen, and neither motor has a published weight yet.

The useful bit for brands is the mount. Both motors bolt into the same interface as the existing M510 and M560, so a frame built for those takes the new units without changes. For companies already on Bafang, that's an easy upgrade, and it could mean more bikes with this motor quite soon.

Bafang is also working on semi-solid-state batteries through its subsidiary T&D. You can compare current eMTB drive units on our motor pages.
