FormulaMod DH
No RRP published on rideformula.com
- Type
- Coil
- Sizes
- 250 mm standard, 225 mm trunnion
- Adjustments
- 17-click compression, 13-click rebound, preload
- Spring rates
- 250–550 lbs/in
- Weight
- 826 gTrunnion 225x75 with 300 lbs/in spring, claimed
Overview

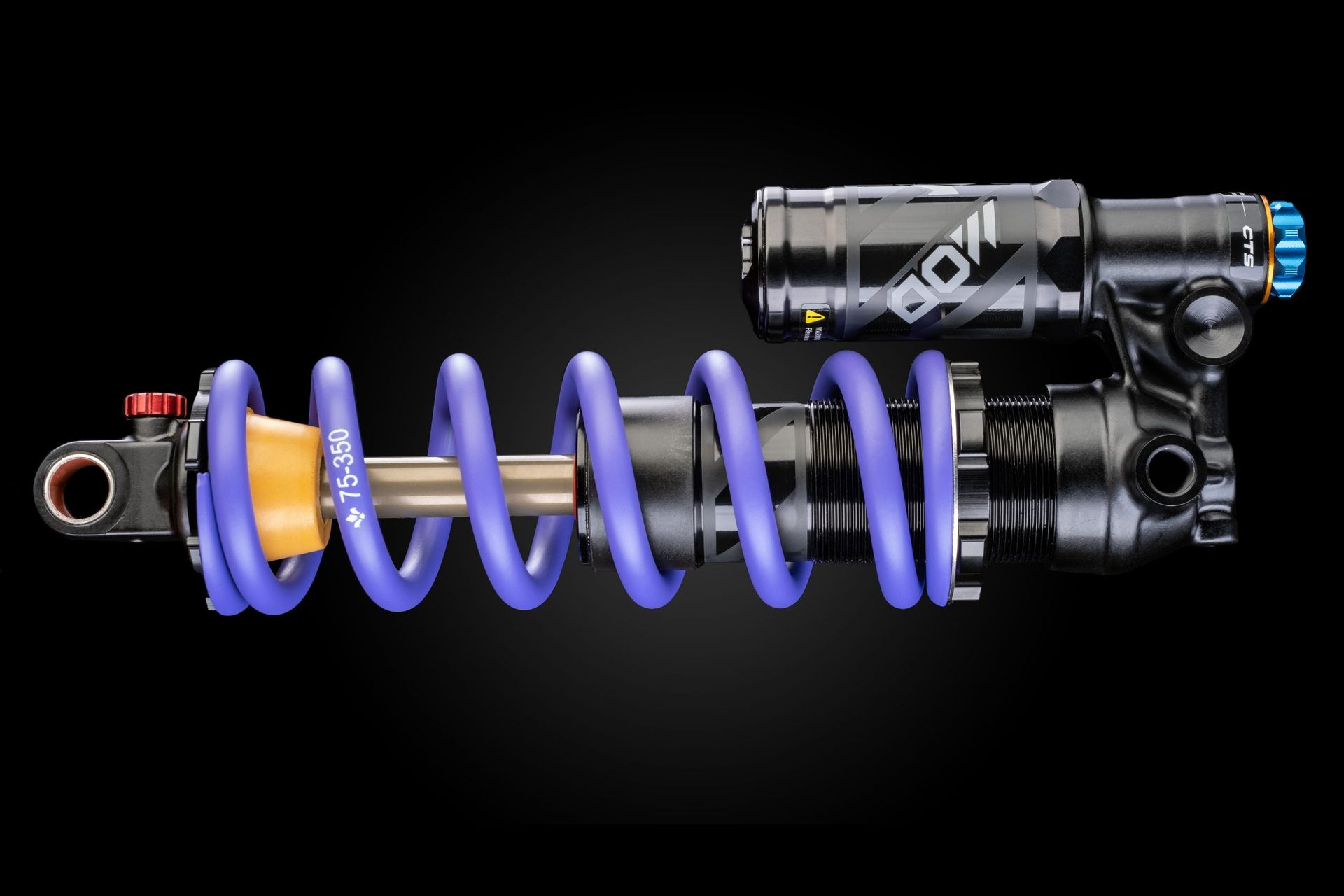

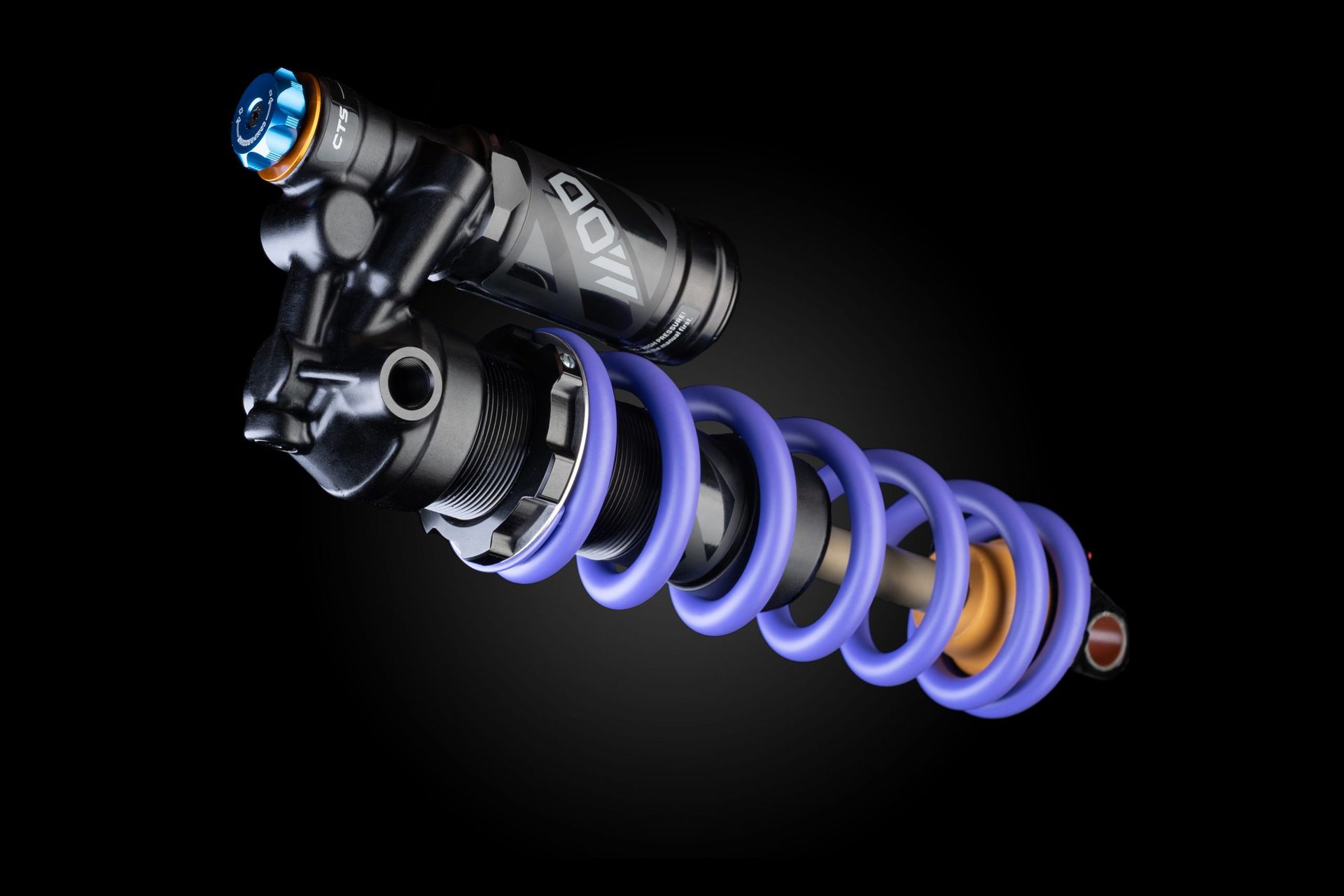

The Mod DH is Formula's downhill-specific coil shock with CTS tuning, in 250 mm and 225 mm trunnion sizes, claimed at 826 g.
The Mod is Formula's coil rear shock family, built around a high-oil-flow damping circuit and a large-volume bladder reservoir for sensitivity and a consistent feel as the shock heats up. Compression character is set with Formula's rider-changeable CTS valves, and a simple polyurethane bump stop handles bottom-outs.
The Mod DH is the downhill-specific version raced from World Cup DH to Red Bull Hardline. It comes in 250 mm standard and 225 mm trunnion lengths, has major service intervals of 200 hours and can be serviced in the pits.
- Downhill-specific coil shock

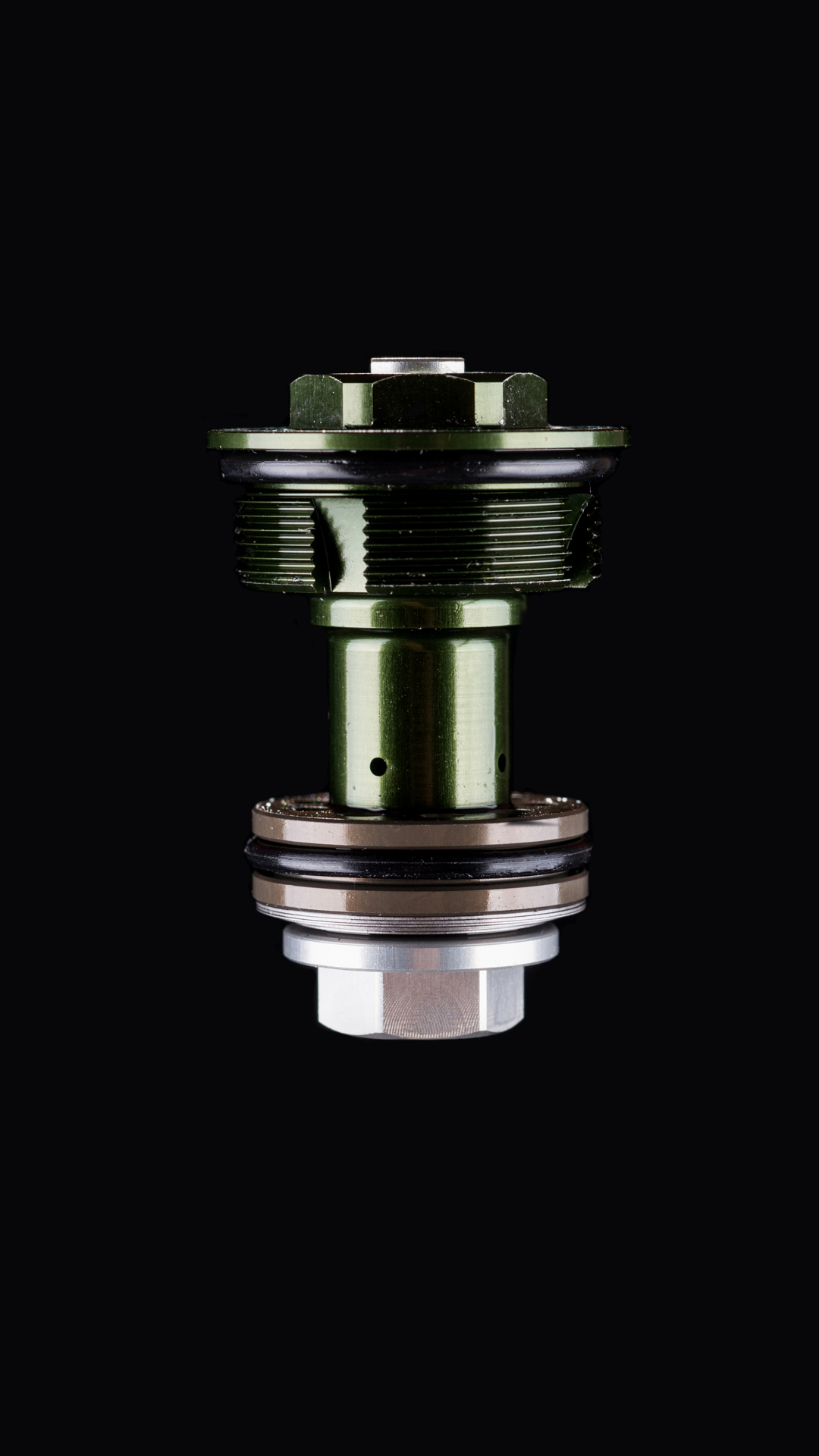

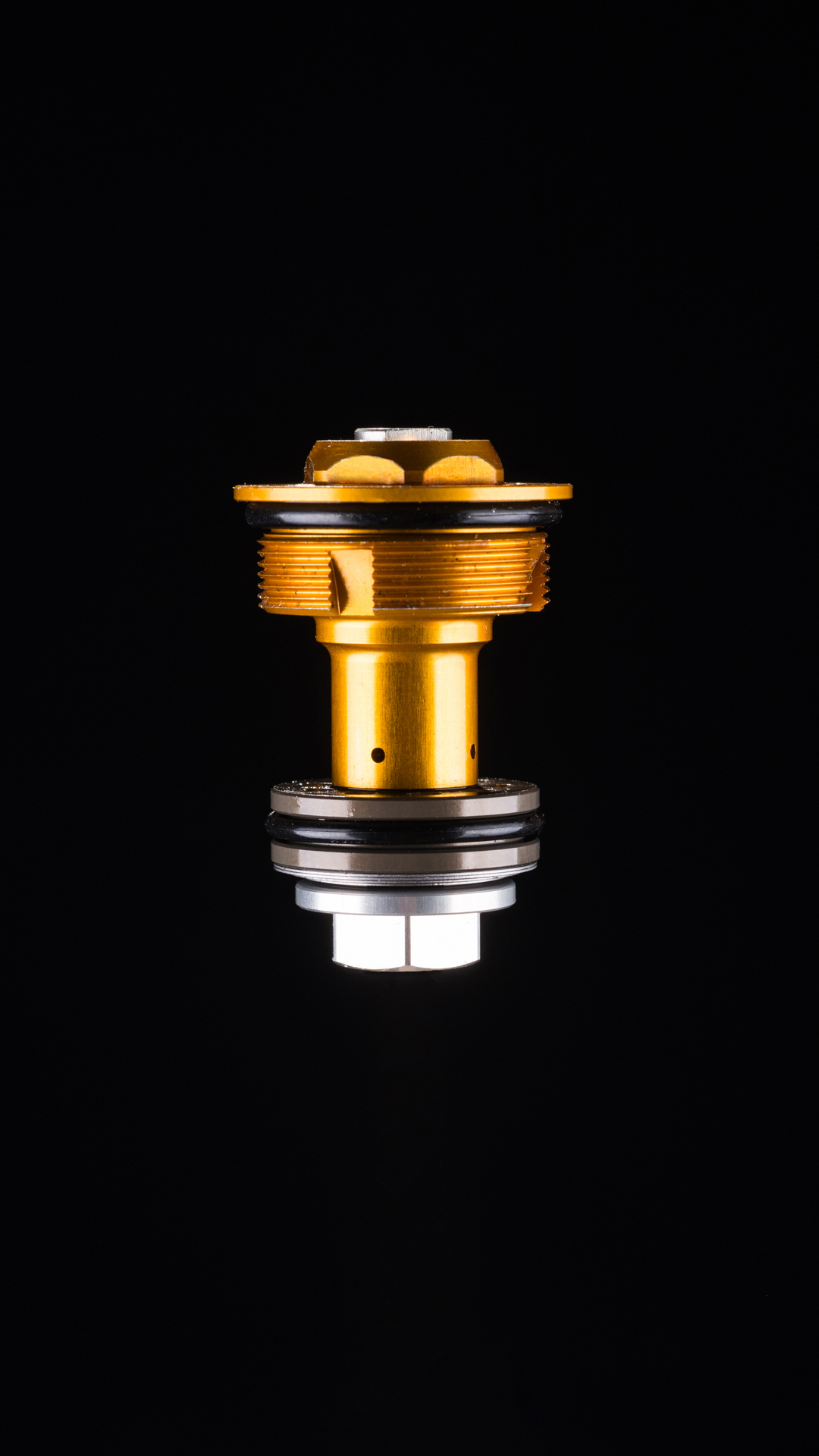

- CTS valves: gold, orange and green included
- 250 mm standard / 225 mm trunnion lengths
- Springs 250–550 lbs/in
- Covered by the 10 Year Support Promise
Gallery
Full specifications
Sizes
- Standard
- 250 x 75,72.5,70,67.5 mm
- Trunnion
- 225 x 75,72.5,70,67.5 mm
Adjustments
- Compression
- 17 Click Adjustment

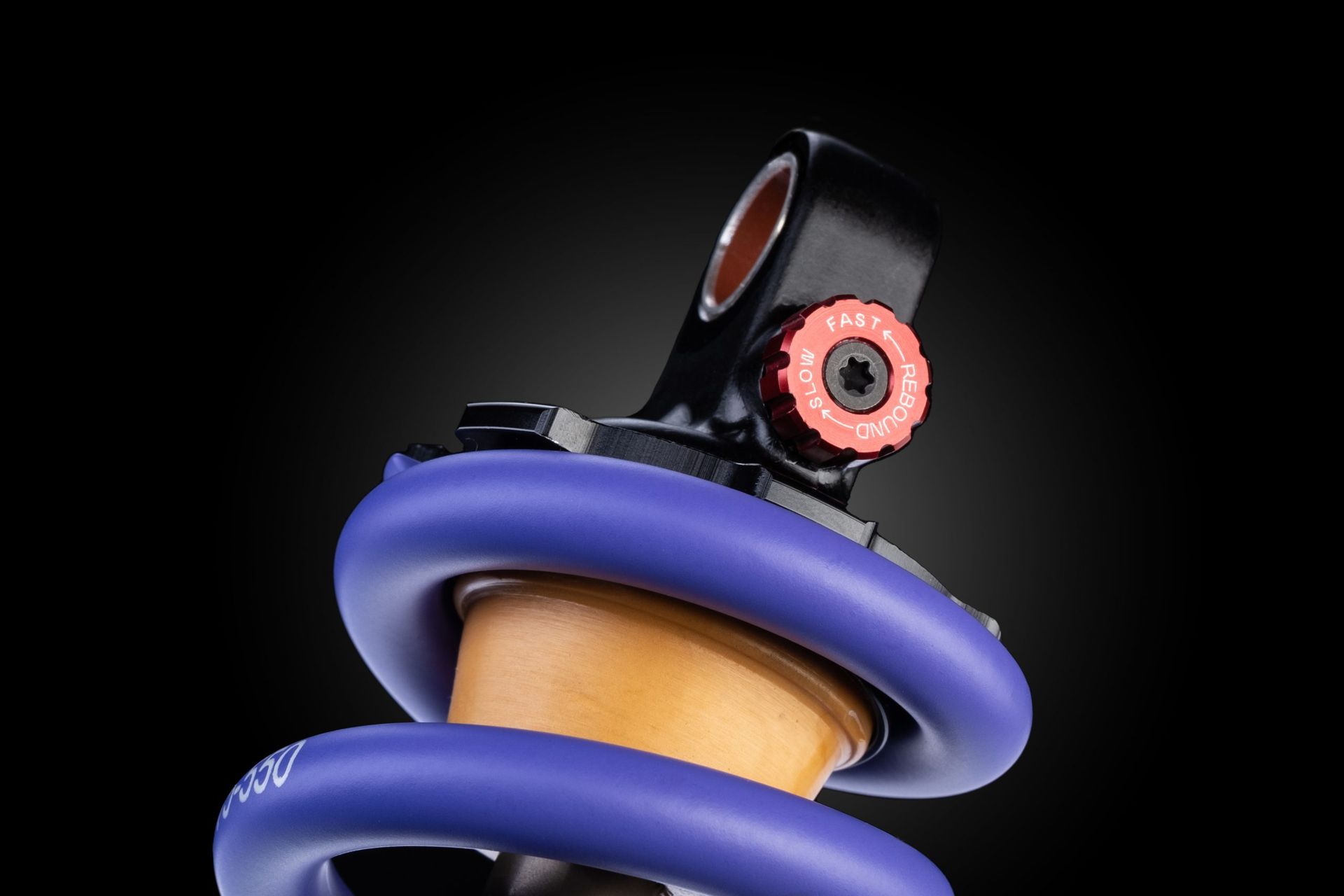

- Rebound
- 13 Click Adjustment

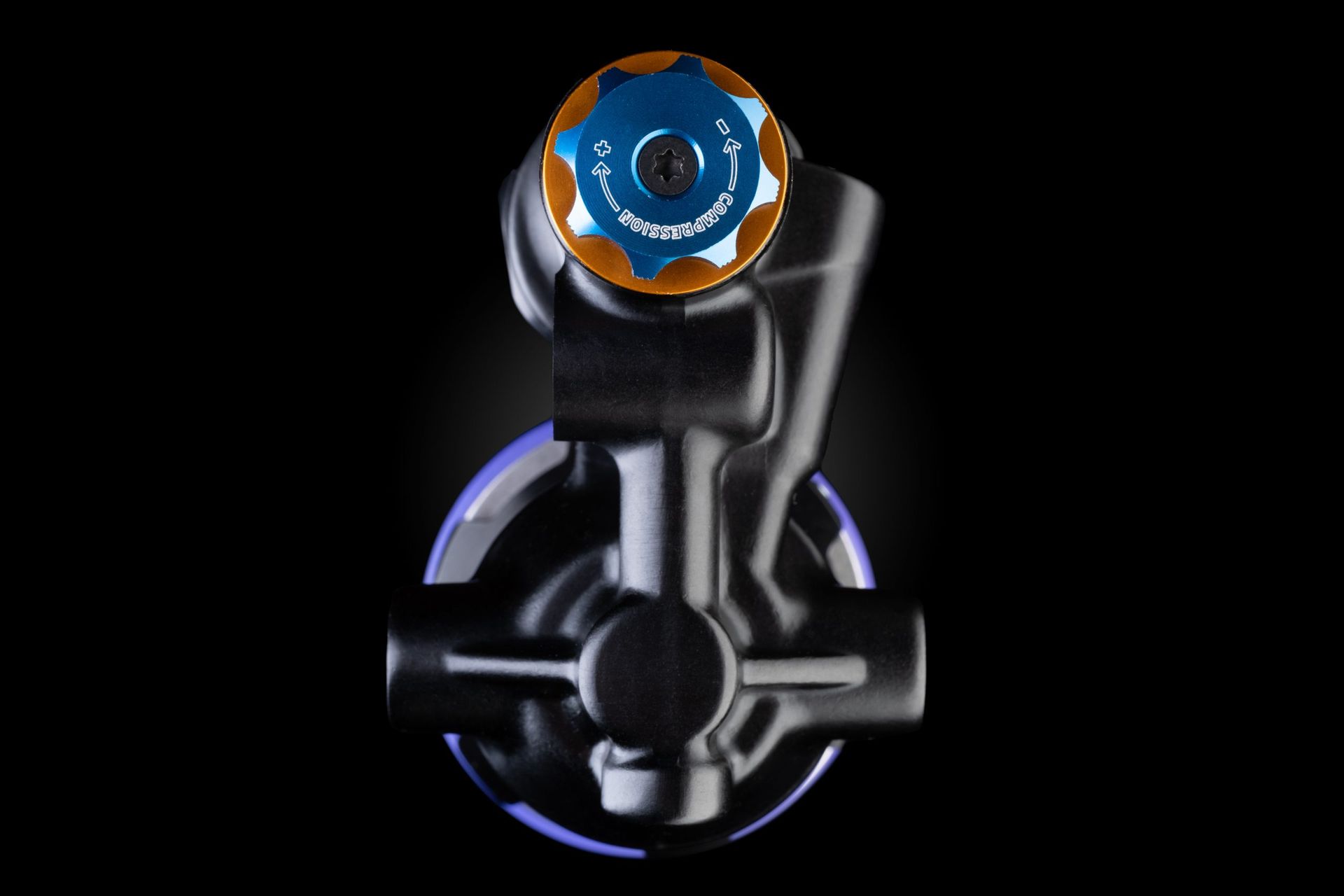

- CTS
- Gold, Orange and Green valves included
- Coil spring
- Preload
Colors
- Shock body
- Glossy black
- Coil springs
- Ultraviolet, Graphite
Coil Spring
- Sizes (lbs/in)
- 250, 300, 350, 400, 450, 500, 550
- Material
- Ultralight steel
Hardware
- Sizes (mm)
- 20x8, 22x8, 25x8, 30x8, 35x8, 40x8, 22x10, 25x10, 30x10
Weight
- trunnion 225x75 with 300 lbs/in spring
- 826 g
Manufacturer specification — Formula. Specs and prices can change; check with the brand or your dealer.
Formula Mod versions compared
| Mod | Mod DH | |
|---|---|---|
| Price | — | — |
| Type | Coil | Coil |
| Sizes | 210/230 mm standard, 185/205 mm trunnion | 250 mm standard, 225 mm trunnion |
| Adjustments | 17-click compression, 13-click rebound, preload | 17-click compression, 13-click rebound, preload |
| Switch | Open / Firm | — |
| Spring rates | 300–700 lbs/in | 250–550 lbs/in |
| Weight | 670 g | 826 g |
| E-bike rated | — | — |
Formula Mod DH: FAQ
How much does the Formula Mod DH weigh?
Formula quotes 826 g (Trunnion 225x75 with 300 lbs/in spring, claimed).
Is the Formula Mod DH suitable for e-bikes?
Formula does not specifically rate it for e-bikes. Check the manufacturer’s approval and your bike maker’s recommendations before fitting it to an eMTB.
What are the key specs of the Formula Mod DH?
Type: Coil; Sizes: 250 mm standard, 225 mm trunnion; Adjustments: 17-click compression, 13-click rebound, preload; Spring rates: 250–550 lbs/in.
What other versions of the Formula Mod are there?
Mod.
