FormulaMod
No RRP published on rideformula.com
- Type
- Coil
- Sizes
- 210/230 mm standard, 185/205 mm trunnion
- Adjustments
- 17-click compression, 13-click rebound, preload
- Switch
- Open / Firm
- Spring rates
- 300–700 lbs/in
- Weight
- 670 g210x55 with 300 lbs/in spring, claimed
Overview
The Mod is Formula's enduro and all-mountain coil shock with CTS tuning valves and a two-position switch, claimed at 670 g with a 300 lbs/in spring.
The Mod is Formula's coil rear shock family, built around a high-oil-flow damping circuit and a large-volume bladder reservoir for sensitivity and a consistent feel as the shock heats up. Compression character is set with Formula's rider-changeable CTS valves, and a simple polyurethane bump stop handles bottom-outs.
The standard Mod is the enduro and all-mountain version, with a two-position compression switch, major service intervals of 200 hours and home serviceability. A yoke-mount compatible version is available.
- Coil shock with bladder reservoir and high-flow damper

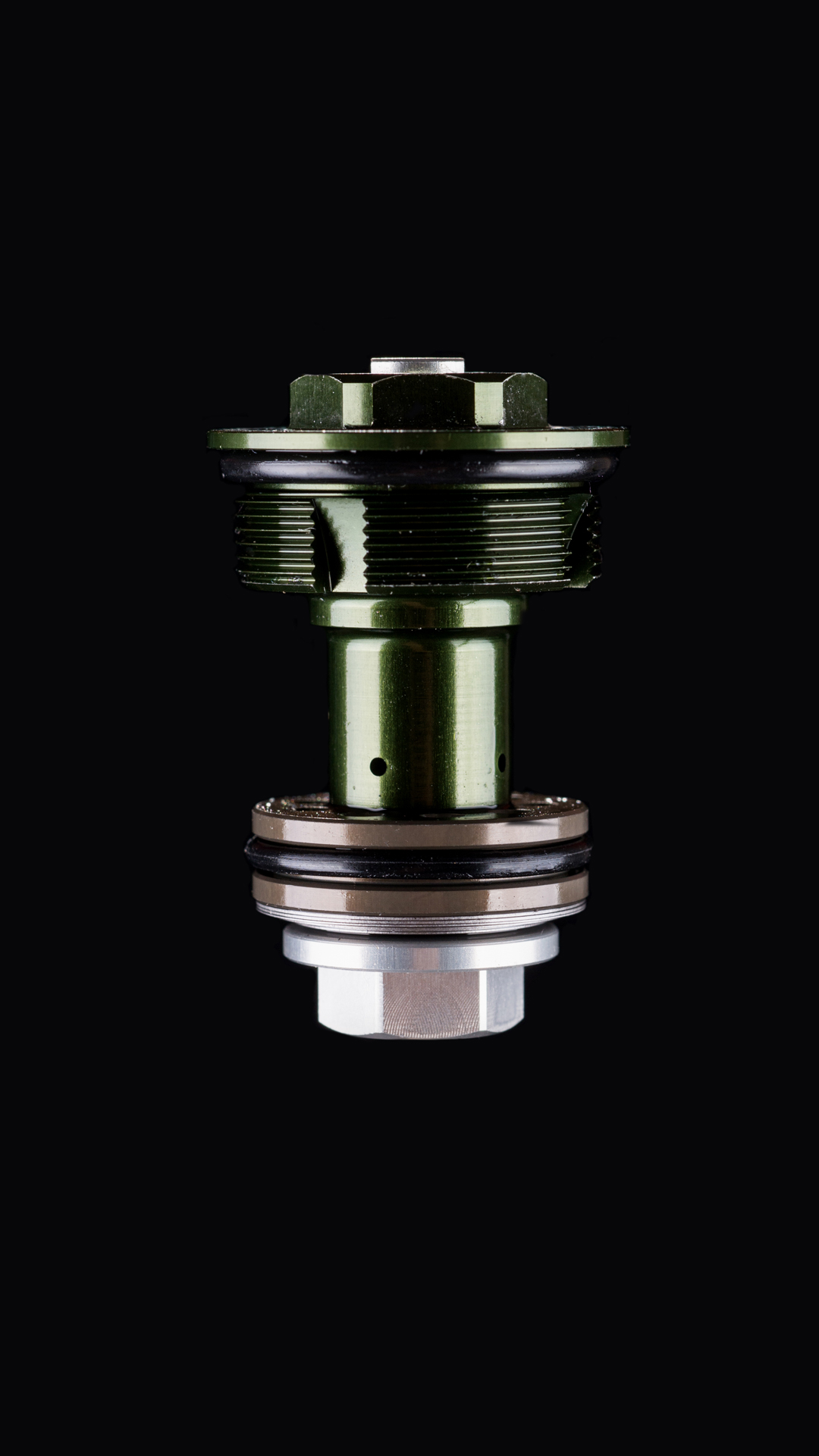

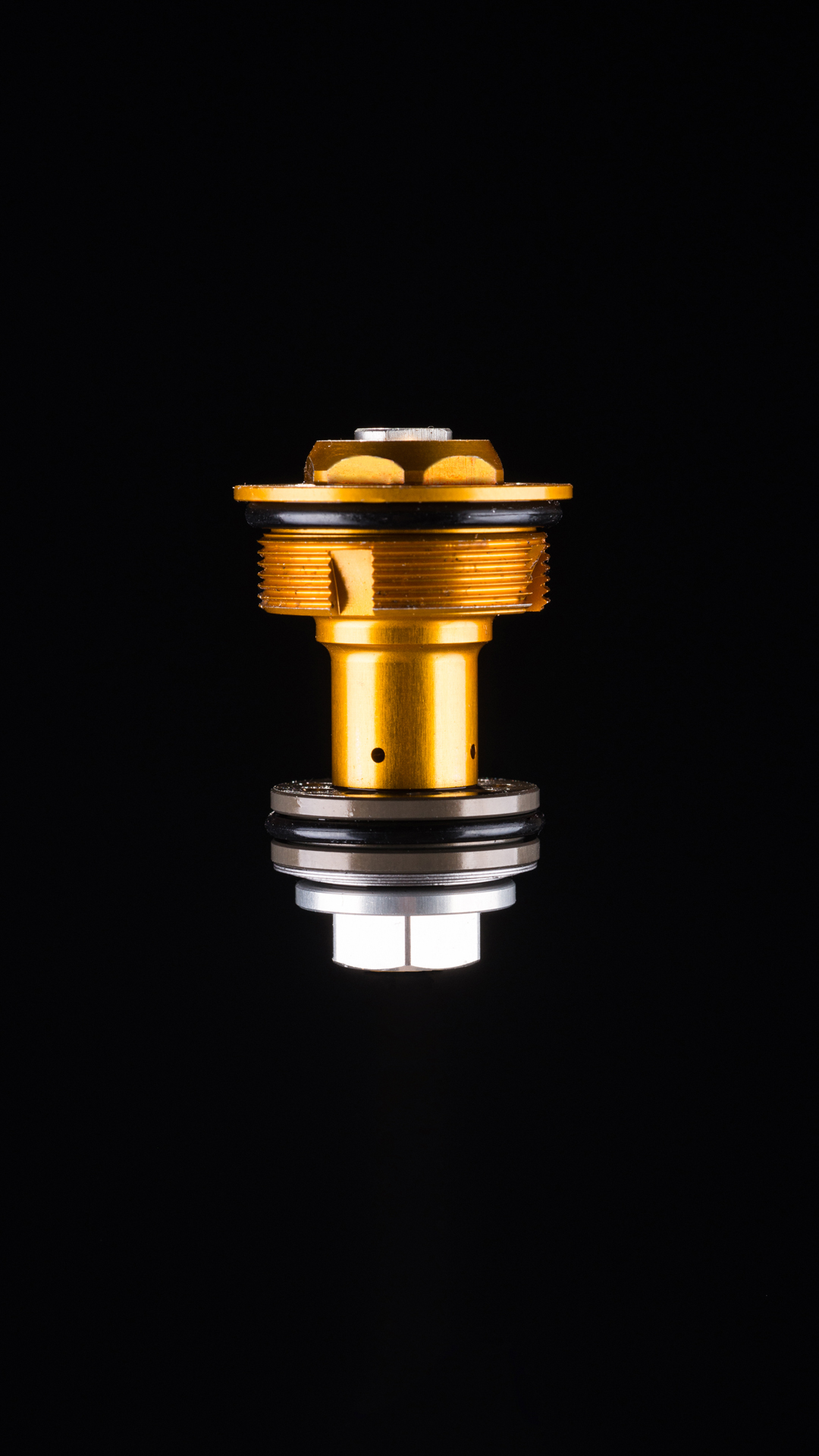

- CTS valves included (gold, orange, green)
- Two-position switch: Open / Firm
- Standard 210/230 mm and trunnion 185/205 mm lengths
- 200-hour major service interval; yoke-mount version available

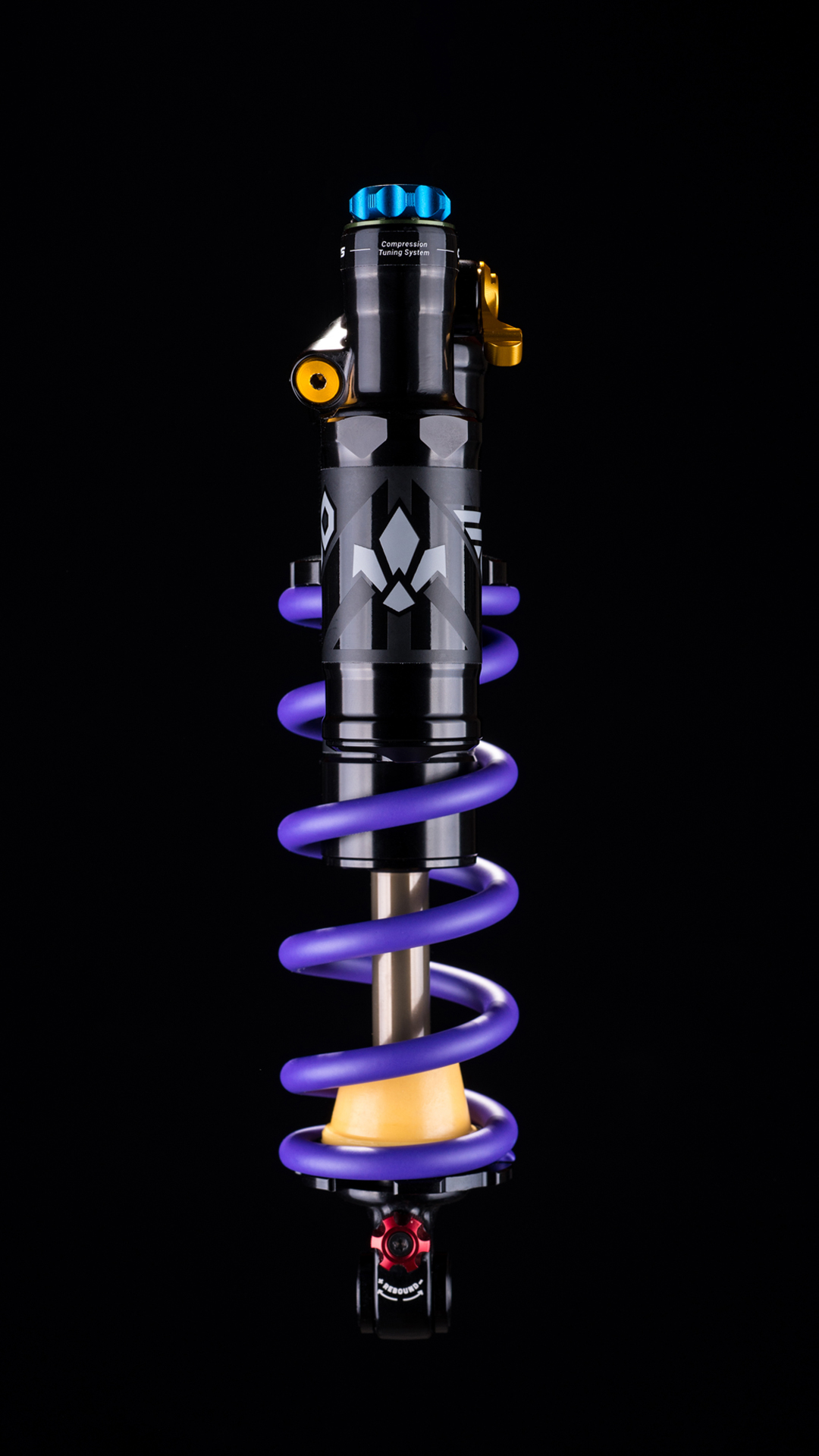

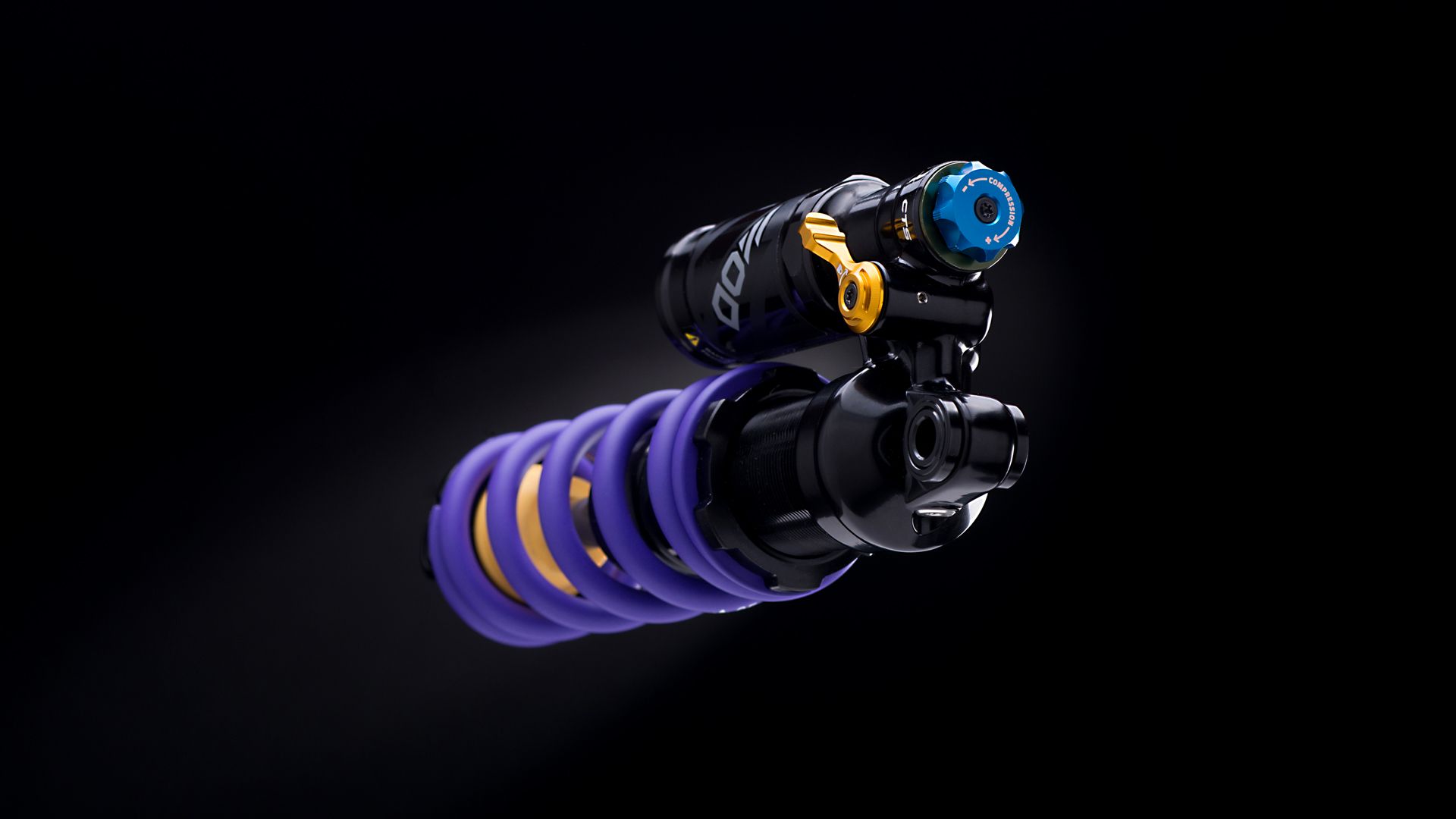

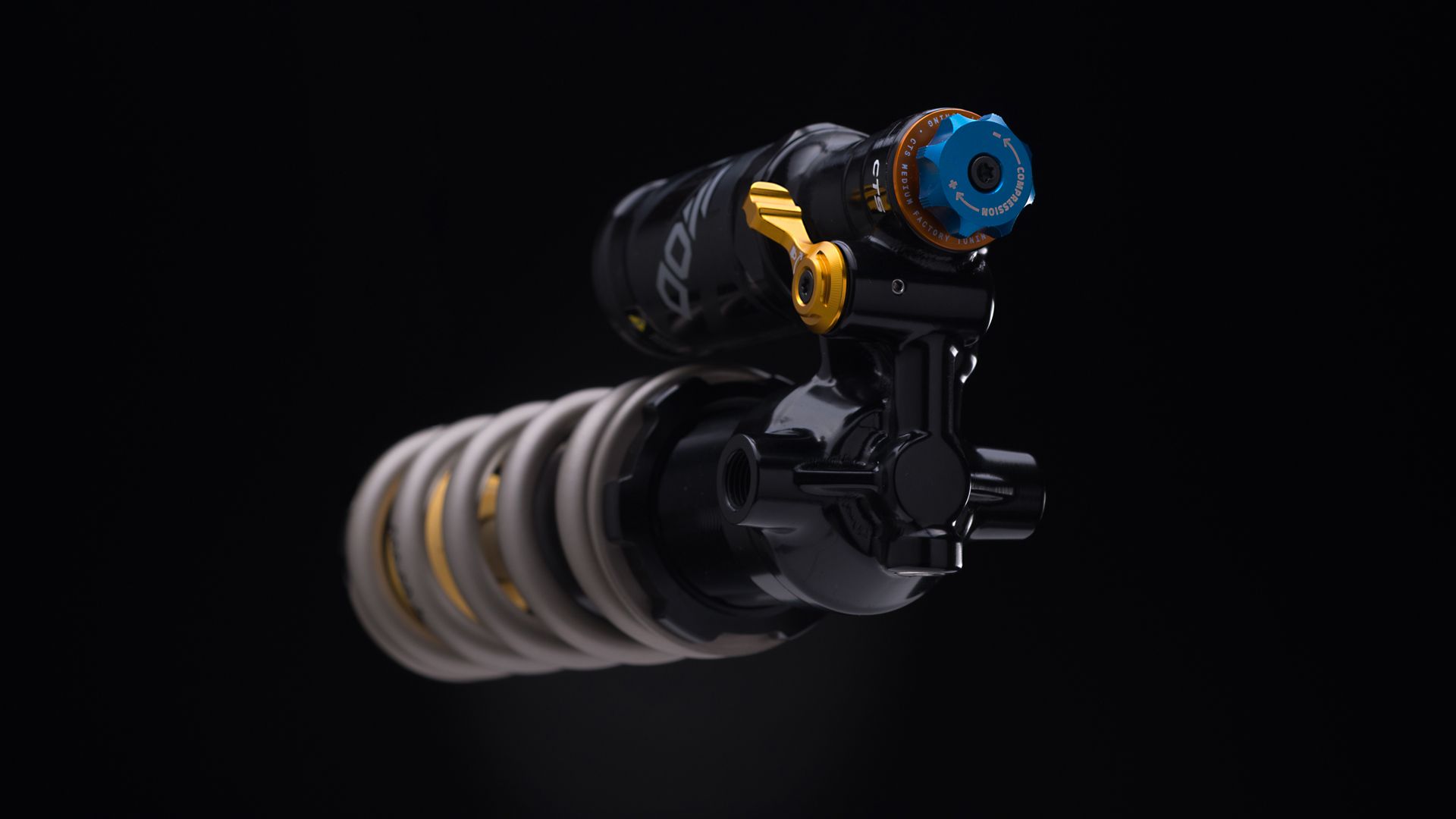

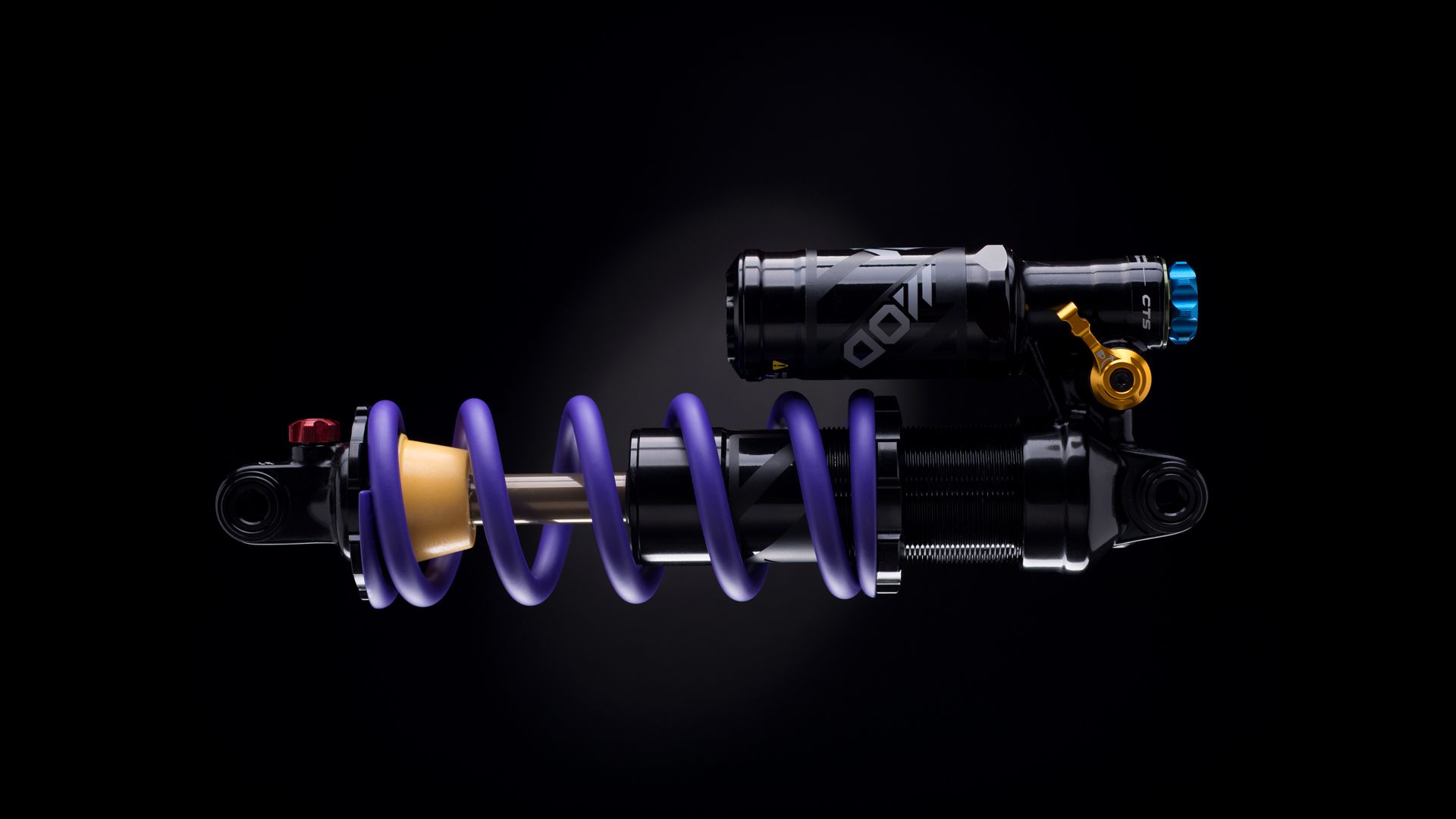

Gallery
Full specifications
Sizes
- Standard
- 210x 55, 52.5, 50, 47.5 - 230x 65, 62.5, 60, 57.5
- Trunnion
- 185x 55, 52.5, 50, 47.5 - 205x 65, 62.5, 60, 57.5
Adjustments
- Compression
- 17 Click Adjustment
- Rebound
- 13 Click Adjustment
- CTS
- Gold, Orange and Green valves included
- Compression Switch
- Two position - Open, Firm
- Coil spring
- Preload
Colors
- Shock body
- Glossy black
- Coil springs
- Ultraviolet, Graphite
Coil Spring
- Sizes (lbs/in)
- 300, 350, 400, 450, 500, 550, 600, 650, 700
- Material
- Ultralight steel
Hardware
- Sizes (mm)
- 20x8, 22x8, 25x8, 30x8, 35x8, 40x8, 22x10, 25x10, 30x10
Weight
- 210x55 with 300 coil spring
- 670g
Manufacturer specification — Formula. Specs and prices can change; check with the brand or your dealer.
Formula Mod versions compared
| Mod | Mod DH | |
|---|---|---|
| Price | — | — |
| Type | Coil | Coil |
| Sizes | 210/230 mm standard, 185/205 mm trunnion | 250 mm standard, 225 mm trunnion |
| Adjustments | 17-click compression, 13-click rebound, preload | 17-click compression, 13-click rebound, preload |
| Switch | Open / Firm | — |
| Spring rates | 300–700 lbs/in | 250–550 lbs/in |
| Weight | 670 g | 826 g |
| E-bike rated | — | — |
Formula Mod: FAQ
How much does the Formula Mod weigh?
Formula quotes 670 g (210x55 with 300 lbs/in spring, claimed).
Is the Formula Mod suitable for e-bikes?
Formula does not specifically rate it for e-bikes. Check the manufacturer’s approval and your bike maker’s recommendations before fitting it to an eMTB.
What are the key specs of the Formula Mod?
Type: Coil; Sizes: 210/230 mm standard, 185/205 mm trunnion; Adjustments: 17-click compression, 13-click rebound, preload; Switch: Open / Firm; Spring rates: 300–700 lbs/in.
What other versions of the Formula Mod are there?
Mod DH.
