Cane CreekInvert Enduro
No EUR/GBP RRP published (canecreek.com sells in USD/Americas only); official US store price USD 1,599.99 (listed as out of stock / preview at time of scraping).
- Travel
- 160 / 170 / 180 mm
- Wheel size
- 29"
- Stanchions
- 38 mm (45 mm uppers), inverted
- Damper
- Helm MKII monotube bladder, HSC/LSC/LSR
- Spring
- Air, self-equalizing
- E-bike rated
- Yes (designed for heavy e-bike use)
- Weight
- 2,795 g180 mm travel, complete with guards, hardware and full steerer; actual weight
Overview
Invert Enduro is Cane Creek's upside-down 29" enduro/e-MTB fork with 160–180 mm travel, 38 mm stanchions and 2795 g (180 mm) actual weight; USD 1,599.99 in the US store.
Invert Enduro is Cane Creek's inverted (upside-down), moto-inspired single-crown fork for long-travel trail, enduro, bike park and electric mountain bikes. Cane Creek says the overbuilt chassis is built to handle the weight, power and speed of modern e-MTBs, and much of its development was done on full-power e-bikes in bike parks.
It uses 38 mm stanchions with 45 mm upper tubes, the second-generation Helm MKII monotube bladder damper with independent high/low-speed compression, and a self-equalizing air spring with onboard volume adjustment. SquareLoc dropouts accept 15 or 20 mm axles, SideSwipe guards are included, and the fork is 29" only.
- Designed for heavy e-bike use, developed on full-power e-MTBs
- 160, 170 or 180 mm travel, 29" only
- 38 mm stanchions, 45 mm upper tubes
- Helm MKII damper: HSC, LSC, LSR (10 clicks each)

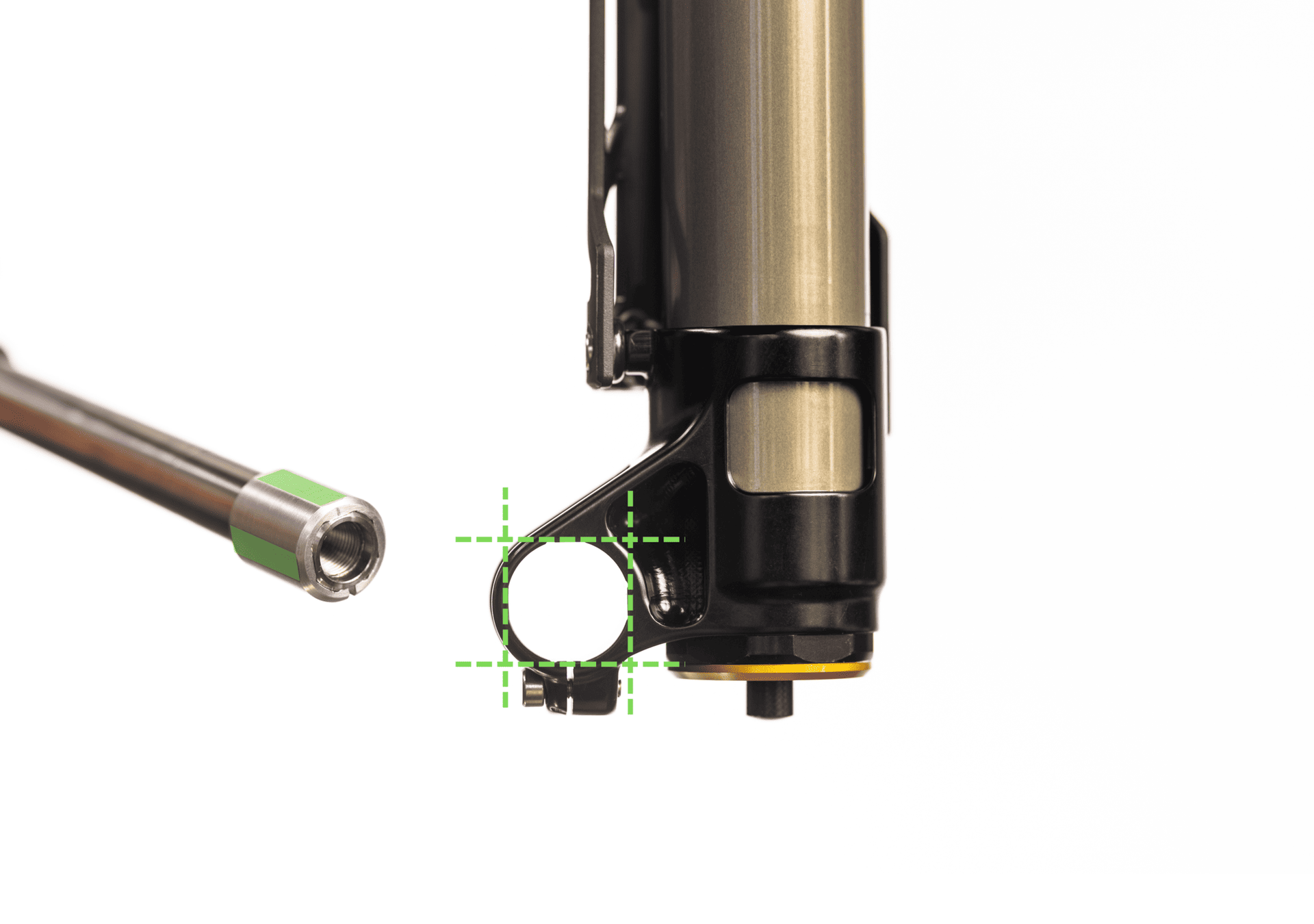

- SquareLoc 15/20 mm axle compatibility, 200 mm native post mount
Gallery
Full specifications
Chassis
- Travel
- 160, 170 or 180 mm (different air spring required for travel change)
- Upper tube diameter
- 45 mm
- Stanchion diameter
- 38 mm
- Steerer
- 1 1/8"–1 1/2", extra wall thickness
- Axle-to-crown
- 586.5 mm (170 mm travel); ±10 mm per travel step
- Offset
- 44 mm
- Hub spacing
- 15 or 20 x 110 Boost
- Axle
- 15 mm included; 20 mm via adapter / separate axle
- Axle material
- 17-4 pre-hardened stainless steel
- Axle keys
- SquareLoc keys with pinch bolts
- Brake rotor
- 200 mm native post mount (220 mm with adapter)
- Wheel size / tyre clearance
- 29" only / 29 x 2.6 on 30 mm internal rim
- Guards

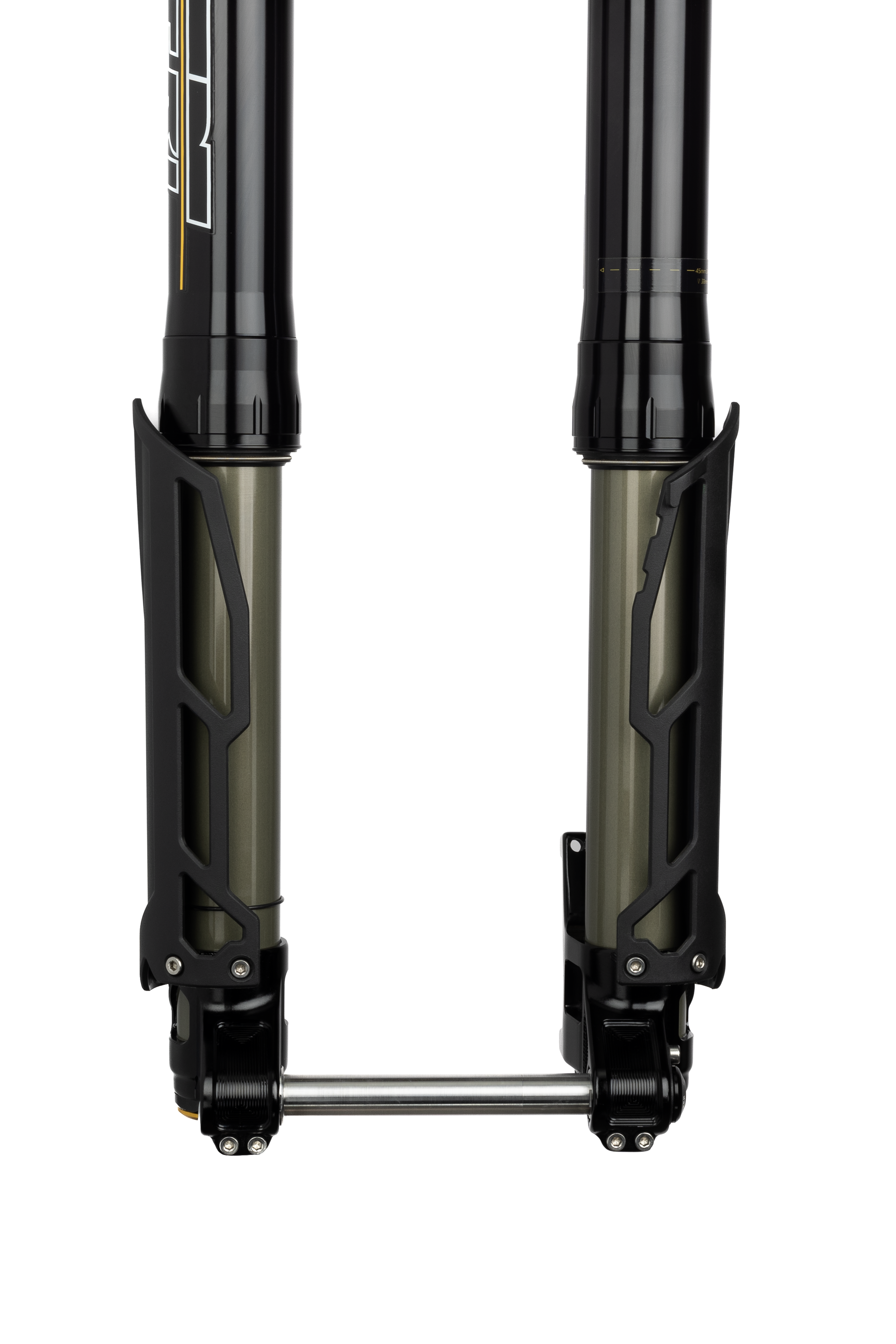

- SideSwipe guards included (required)
- Fender
- Not available at this time
Damper
- Damper
- 2nd-gen Helm MKII, monotube, bladder
- Adjustments
- HSC, LSC, LSR, air pressure and volume
- Bleed screws

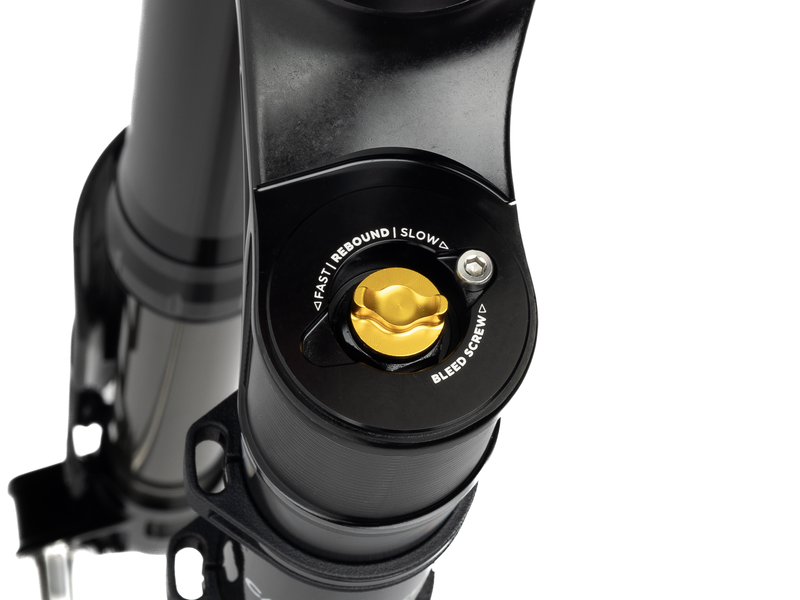

- In top caps
Spring
- Spring type
- Air only; cartridge style with self-equalizing charge port
General
- Weight
- 2795 g (180 mm, complete)
- Setup
- Sag marks on guard (25% recommended); ForkTuner app
Manufacturer specification — Cane Creek. Specs and prices can change; check with the brand or your dealer.
Cane Creek Invert Enduro: FAQ
How much does the Cane Creek Invert Enduro weigh?
Cane Creek quotes 2,795 g (180 mm travel, complete with guards, hardware and full steerer; actual weight).
Is the Cane Creek Invert Enduro suitable for e-bikes?
Yes — Cane Creek lists it as e-bike rated or e-bike specific.
What are the key specs of the Cane Creek Invert Enduro?
Travel: 160 / 170 / 180 mm; Wheel size: 29"; Stanchions: 38 mm (45 mm uppers), inverted; Damper: Helm MKII monotube bladder, HSC/LSC/LSR; Spring: Air, self-equalizing; E-bike rated: Yes (designed for heavy e-bike use).
