BikeYokeRevive 3.0
€350 RRP from bikeyoke.com (Germany), VAT incl.; €350 (100–160 mm), €380 (185 mm), €400 (213 mm)
- Drop
- 100 / 125 / 160 / 185 / 213 mm
- Diameters
- 30.9 / 31.6 mm
- Travel adjust
- 5 mm steps (4 × 5 mm spacers)
- Stack height
- 137–250 mm (B, by drop)
- Weight
- 460–650 g
- Rider limit
- 115 kg
- Weight
- 540 g31.6 mm, 160 mm drop, claimed
Overview
BikeYoke's Revive 3.0 is a hydraulic dropper in 100–213 mm drops for 30.9/31.6 mm seat tubes, with a quick-reset valve and 5 mm travel adjustment. RRP is €350–400 depending on length.
The Revive 3.0 is BikeYoke's flagship hydraulic dropper post and the latest version of a design the brand has refined over about ten years. It keeps the proven sealed hydraulic system, known for its smooth action even in the cold, and adds new saddle clamps for 5 mm less stack, a 360° rotatable foot unit that cuts overall length by another 10 mm, a slide-on cable barrel and a 3D-forged one-piece upper tube.
It comes in 100, 125, 160, 185 and 213 mm drops in 30.9 and 31.6 mm diameters, and travel can be reduced in 5 mm steps with the four included spacers. A quick-reset valve bleeds air out of the cartridge in seconds if the post develops vertical play. BikeYoke rates it for riders up to 115 kg including equipment.
- Drops of 100, 125, 160, 185 and 213 mm
- Travel reducible in 5 mm steps (4 spacers included)
- Quick-reset valve to bleed vertical play in seconds
- 360° rotatable foot unit and short overall length
- Rider weight limit 115 kg incl. equipment

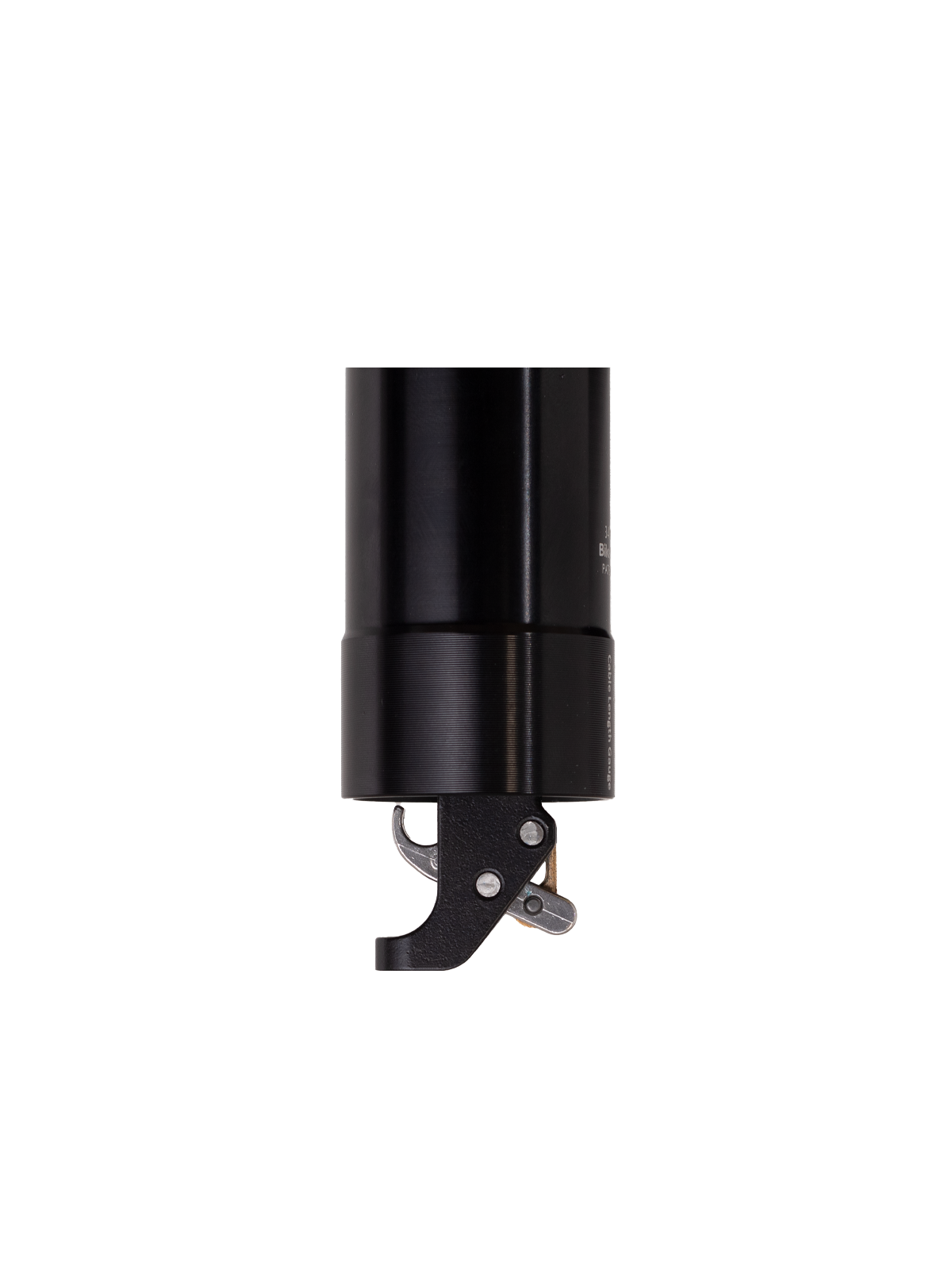

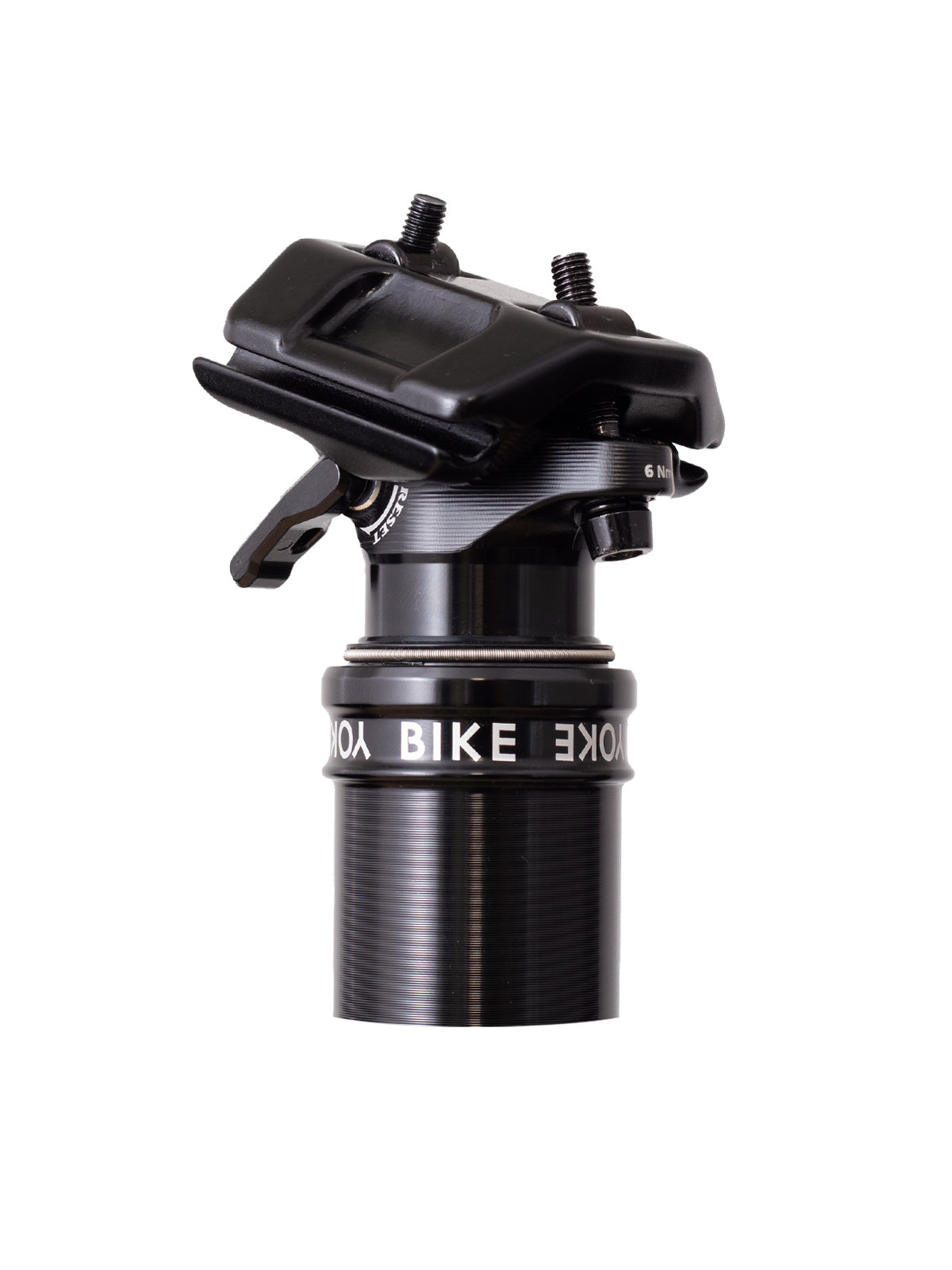

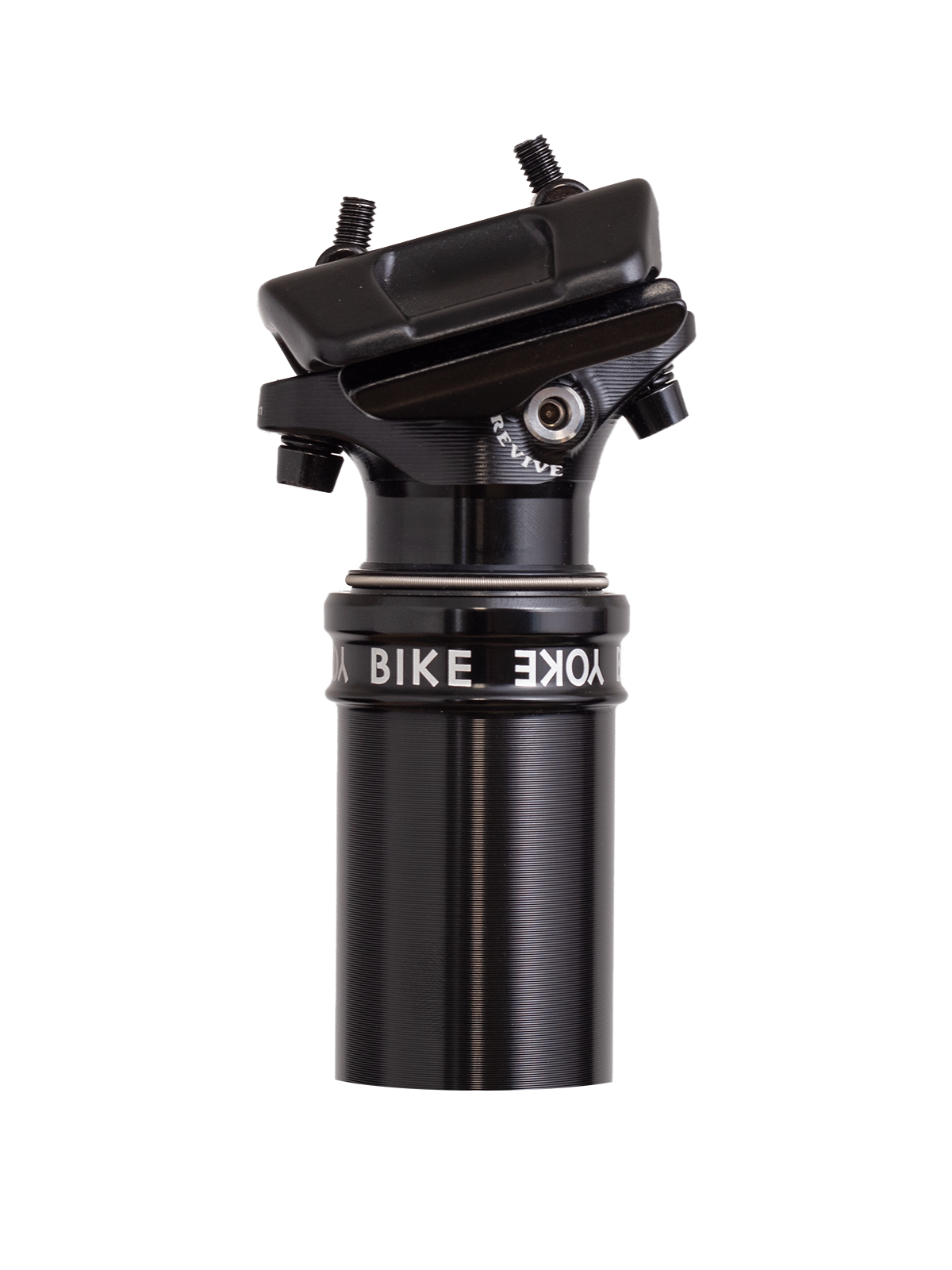

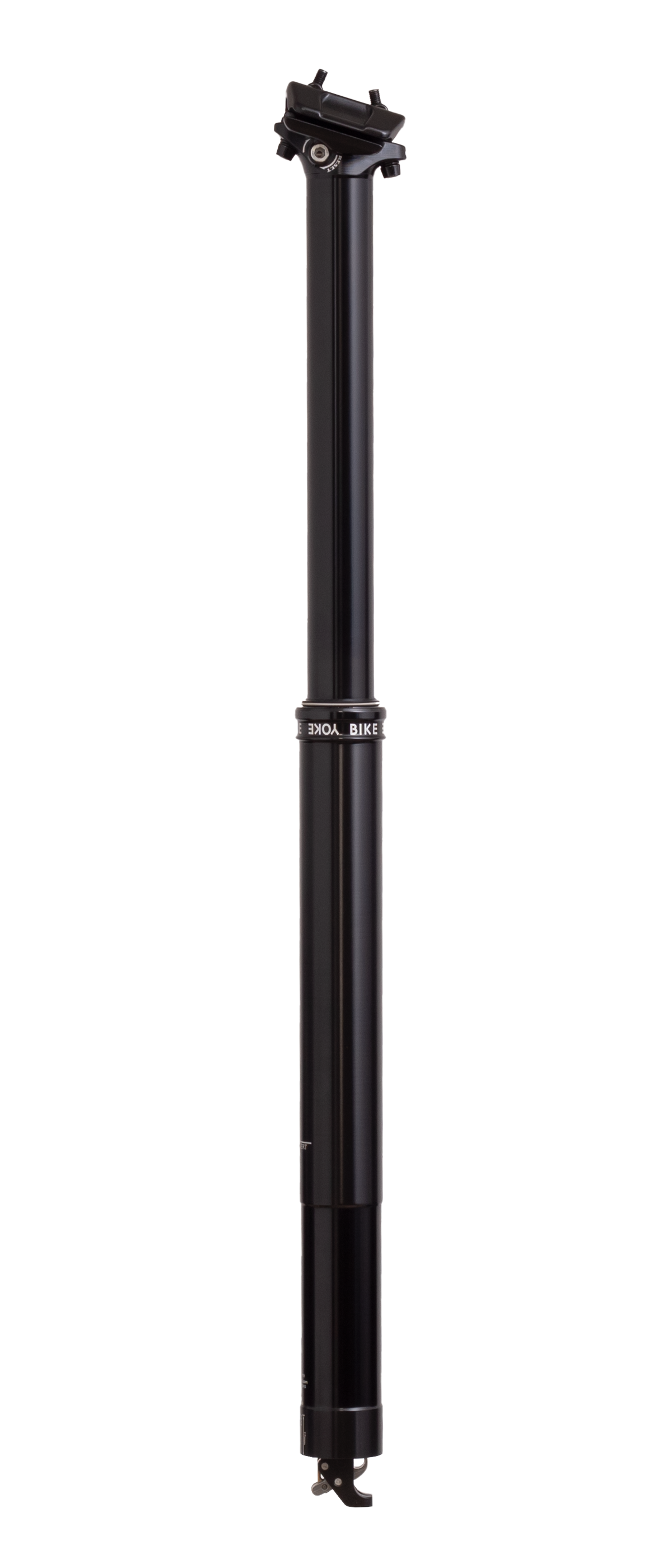

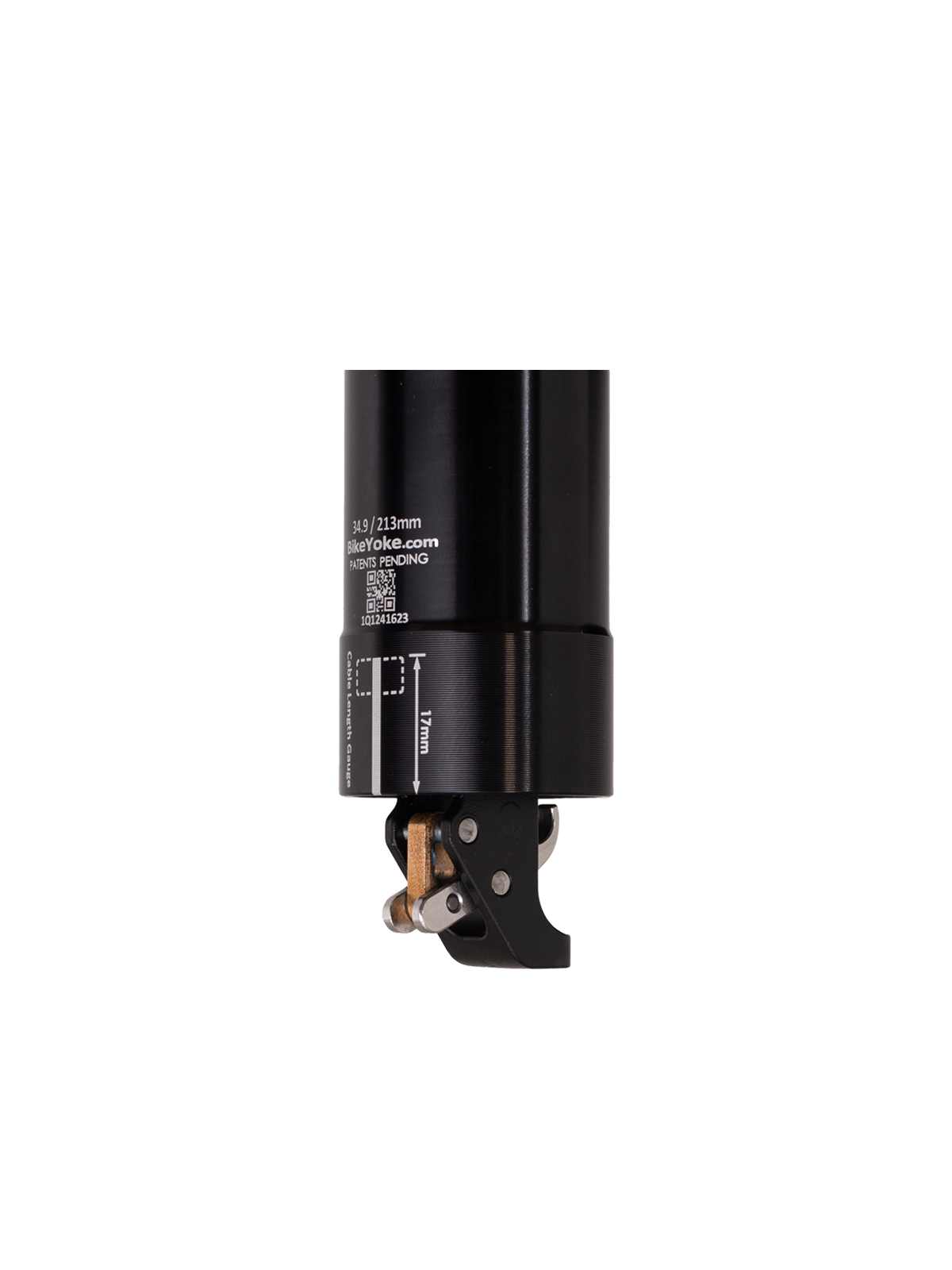

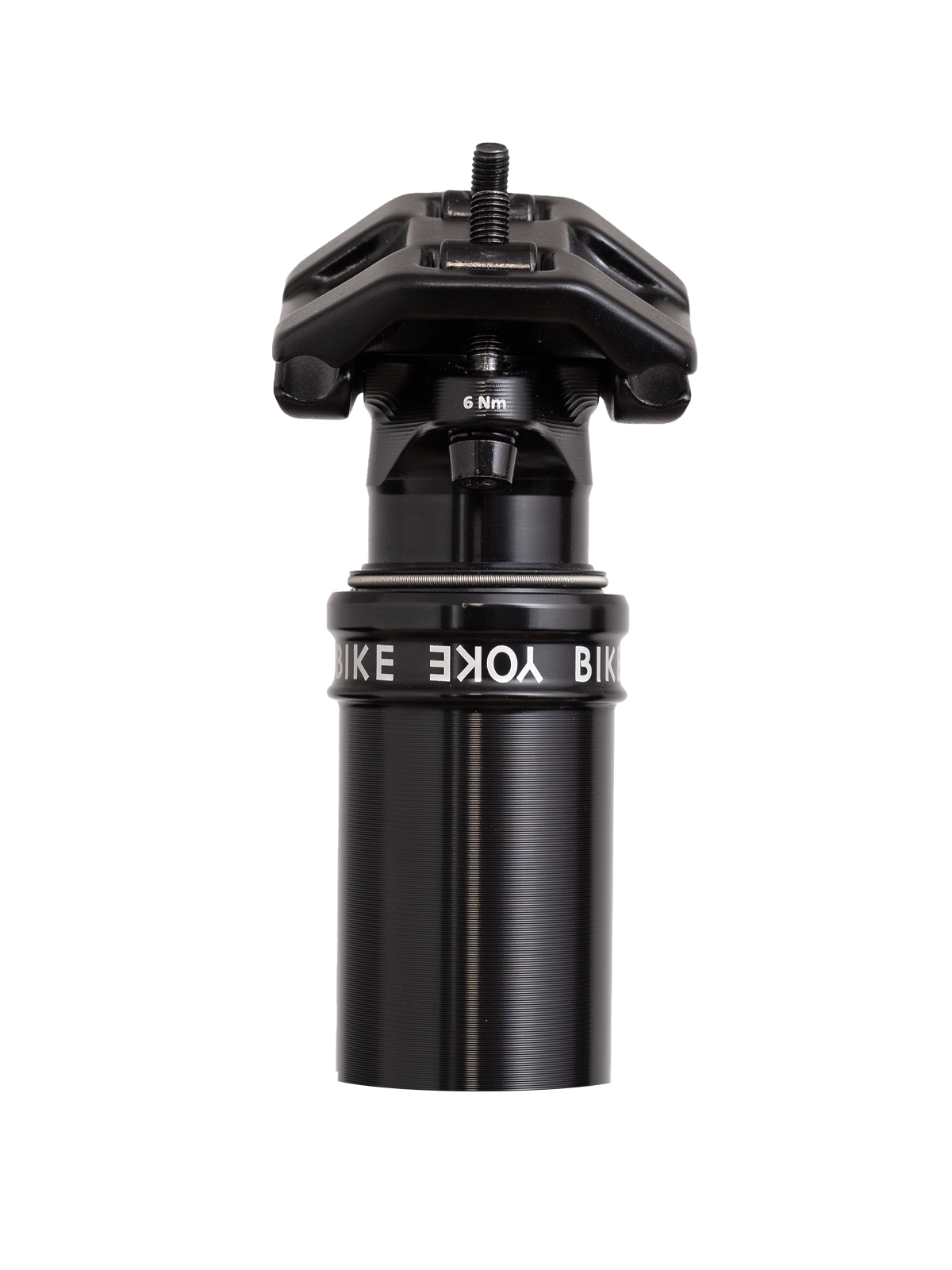

Gallery
Full specifications
Chassis
- Drop
- 100 / 125 / 160 / 185 / 213 mm (infinitely adjustable)
- Diameters
- 30.9 / 31.6 mm (lower tubes interchangeable)
- Upper tube diameter
- 25 mm
- Overall length (A)
- 356 / 381 / 451 / 501 / 566 mm
- Stack height (B)
- 137 / 162 / 197 / 222 / 250 mm
- Max. insertion (C)
- 198 / 198 / 233 / 258 / 295 mm
- Min. insertion (D)
- 80 / 80 / 100 / 100 / 130 mm
- Travel adjustment
- 5 mm increments, 4 × 5 mm spacers included
- Saddle clamp tilt
- 0–25°
Damper
- System
- Sealed hydraulic with quick-reset valve
- Air pressure
- 250–300 psi
General
- Weight 30.9 mm
- 460 g (100), 460 g (125), 520 g (160), 560 g (185), 620 g (213)
- Weight 31.6 mm
- 480 g (100), 480 g (125), 540 g (160), 580 g (185), 650 g (213)
- Rider weight limit
- 115 kg incl. equipment
- Actuation
- Cable, internal routing
- Warranty
- 24 months
- In the box
- Seatpost, 1600 mm housing, 1800 mm inner wire, cable barrel, 2 housing end caps, cable crimp, air valve adapter, 4x 5 mm travel spacers, Quick-Reset lever
Compatibility
- Remote
- Any cable remote with at least 10 mm cable pull; BikeYoke recommends Triggy Alpha long
- Saddle rails
- Round 7x7 mm and oval 7x9 / 7x10 mm
Manufacturer specification — BikeYoke. Specs and prices can change; check with the brand or your dealer.
BikeYoke Revive versions compared
| Revive 3.0 | Revive Max 3.0 34.9 | |
|---|---|---|
| Price | €350 | €370 |
| Drop | 100 / 125 / 160 / 185 / 213 mm | 125 / 160 / 185 / 213 mm |
| Diameters | 30.9 / 31.6 mm | — |
| Travel adjust | 5 mm steps (4 × 5 mm spacers) | 5 mm steps |
| Stack height | 137–250 mm (B, by drop) | — |
| Weight | 460–650 g | 525–690 g |
| Rider limit | 115 kg | — |
| Diameter | — | 34.9 mm |
| Upper tube | — | 28 mm |
| Weight | 540 g | 585 g |
| E-bike rated | — | — |
eMTBs that come with the BikeYoke Revive
BikeYoke Revive 3.0: FAQ
How much does the BikeYoke Revive 3.0 cost?
€350 (RRP from bikeyoke.com (Germany), VAT incl.; €350 (100–160 mm), €380 (185 mm), €400 (213 mm)). Prices vary by country and retailer.
How much does the BikeYoke Revive 3.0 weigh?
BikeYoke quotes 540 g (31.6 mm, 160 mm drop, claimed).
Is the BikeYoke Revive 3.0 suitable for e-bikes?
BikeYoke does not specifically rate it for e-bikes. Check the manufacturer’s approval and your bike maker’s recommendations before fitting it to an eMTB.
What are the key specs of the BikeYoke Revive 3.0?
Drop: 100 / 125 / 160 / 185 / 213 mm; Diameters: 30.9 / 31.6 mm; Travel adjust: 5 mm steps (4 × 5 mm spacers); Stack height: 137–250 mm (B, by drop); Weight: 460–650 g; Rider limit: 115 kg.
What other versions of the BikeYoke Revive are there?
Revive Max 3.0 34.9 (€370).
