OneUpWave Pedals
€174.99 RRP from OneUp EU store (eu.oneupcomponents.com), VAT incl.; on sale from €139.99 at time of capture
- Platform
- 107 × 110 mm
- Thickness
- 14.2 mm axle / 11.5 mm edges
- Pins
- 10 × M4 hollow per side
- Weight
- 355 g / pair
- Weight
- 355 gpair, claimed
Overview
OneUp's Wave Pedals are a 107 × 110 mm forged alloy flat pedal with a concave-to-sloped profile and angled pins, weighing 355 g per pair. EU RRP is €174.99.

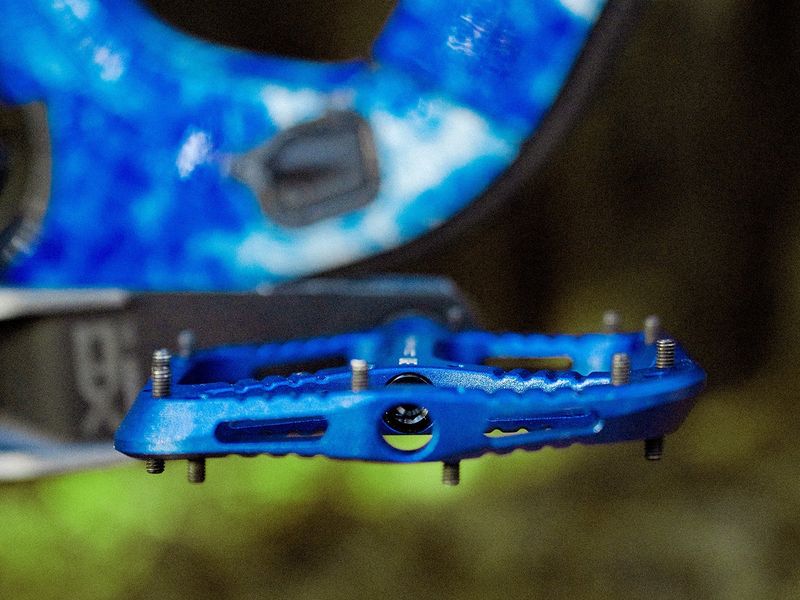

The Wave Pedal is OneUp's forged and CNC-machined 6061 aluminium flat pedal with a convex/concave profile. The front half is concave to hold the ball of the foot, while the back half slopes to encourage a heels-down position, and the pins are installed at an angle so they stand vertical while riding.

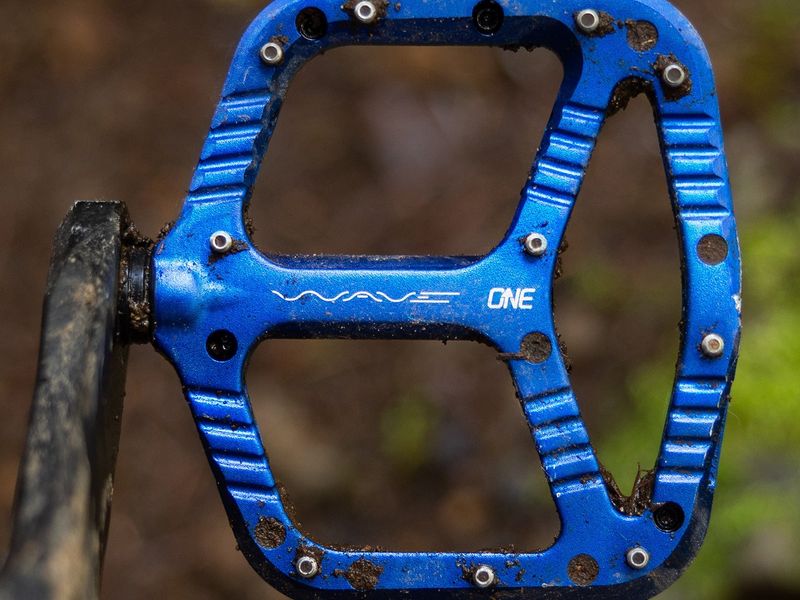

The 107 x 110 mm body is 14.2 mm thick at the axle and 11.5 mm at the edges, with 10 M4 hollow pins per side. It uses an inboard igus bushing and three outboard cartridge bearings on a DH-rated chromoly axle, and a pair weighs a claimed 355 g.
- Convex/concave 'Wave' profile for a heels-down stance
- Angled M4 hollow pins, 10 per side
- DH-rated chromoly axle; igus bushing + 3 bearings
- 355 g per pair claimed
- 2-year warranty
Gallery
Full specifications
General
- Weight
- 355g (Pair)
- Thickness
- Axle 14.2mm / Edges 11.5mm
- Size
- 107mm x 110mm (W x L)
- Bearing configuration
- Inboard igus™ Bushing and 3x outboard cartridge bearings
- Body
- Forged and CNC’d 6061 Aluminum Body
- Axle
- Chromoly Steel with Black ED coating
- Pins
- M4 Hollow Pin 10 x pins per side (self-cleaning hex through hole)
- Colours
- Black, Red, Dark Green, Dark Blue, Orange, Purple, Grey, Bronze
Manufacturer specification — OneUp. Specs and prices can change; check with the brand or your dealer.
OneUp Flat Pedals versions compared
| Aluminum Pedals | Composite Pedals | Wave Pedals | |
|---|---|---|---|
| Price | €194.99 | €54.99 | €174.99 |
| Platform | 115 × 105 mm | 115 × 105 mm | 107 × 110 mm |
| Thickness | 8.3–12 mm | 13.3–18.5 mm | 14.2 mm axle / 11.5 mm edges |
| Pins | 10 per side | — | 10 × M4 hollow per side |
| Weight | 386 g / pair | 355 g / pair | 355 g / pair |
| Material | — | Nylon composite | — |
| Weight | 386 g | 355 g | 355 g |
| E-bike rated | — | — | — |
OneUp Wave Pedals: FAQ
How much does the OneUp Wave Pedals cost?
€174.99 (RRP from OneUp EU store (eu.oneupcomponents.com), VAT incl.; on sale from €139.99 at time of capture). Prices vary by country and retailer.
How much does the OneUp Wave Pedals weigh?
OneUp quotes 355 g (pair, claimed).
Is the OneUp Wave Pedals suitable for e-bikes?
OneUp does not specifically rate it for e-bikes. Check the manufacturer’s approval and your bike maker’s recommendations before fitting it to an eMTB.
What are the key specs of the OneUp Wave Pedals?
Platform: 107 × 110 mm; Thickness: 14.2 mm axle / 11.5 mm edges; Pins: 10 × M4 hollow per side; Weight: 355 g / pair.
What other versions of the OneUp Flat Pedals are there?
Aluminum Pedals (€194.99), Composite Pedals (€54.99).
