SimplonRift AL:e Core+
- Motor
- Bosch Performance Line CX Gen585 Nm (up to 120 Nm via eBike Flow app)
- Battery

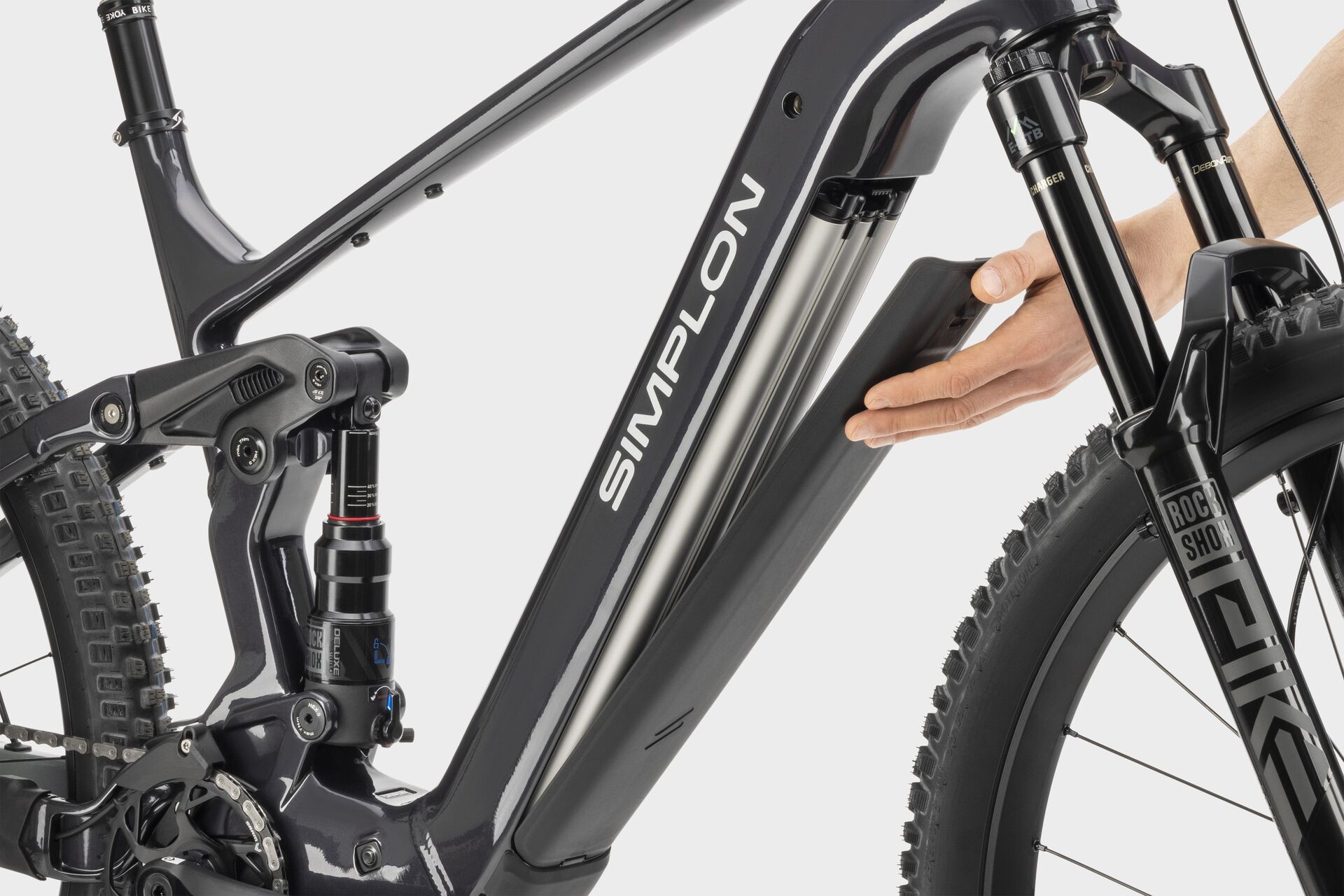

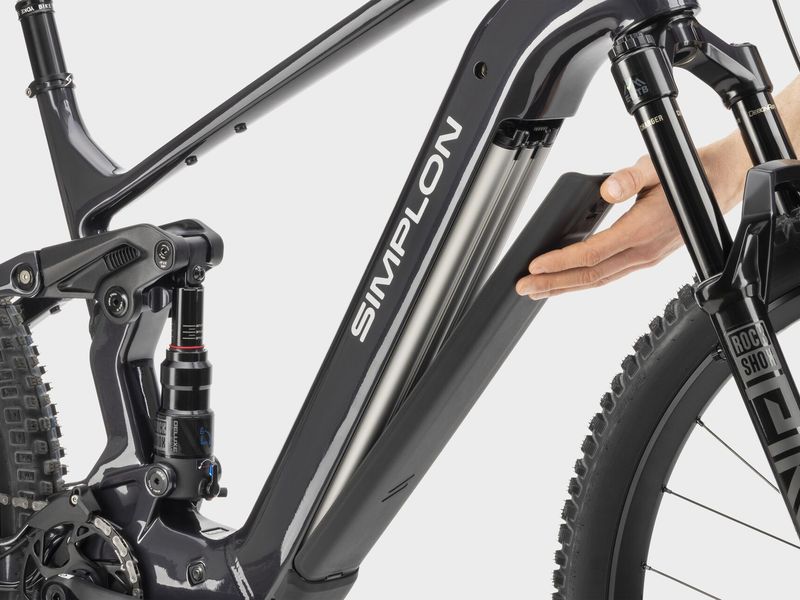

- 800 WhBosch PowerPack, removable; 250 Wh range extender optional
- Travel F / R
- 140 / 140 mm
- Wheels
- 29"
- Frame
- Alloy
- Weight
- 26.5 kgManufacturer figure (size M, Core Selection spec sheet)
Overview
The Simplon Rift AL:e Core+ (€5,594) is a mid-range build of the Rift AL:e: Bosch Performance Line CX Gen5 (85 Nm) with 800 Wh, RockShox Psylo Gold RC fork, RockShox Deluxe Select shock, SRAM Eagle 70 transmission and Magura Louise Elite brakes. Claimed weight is 26.5 kg.

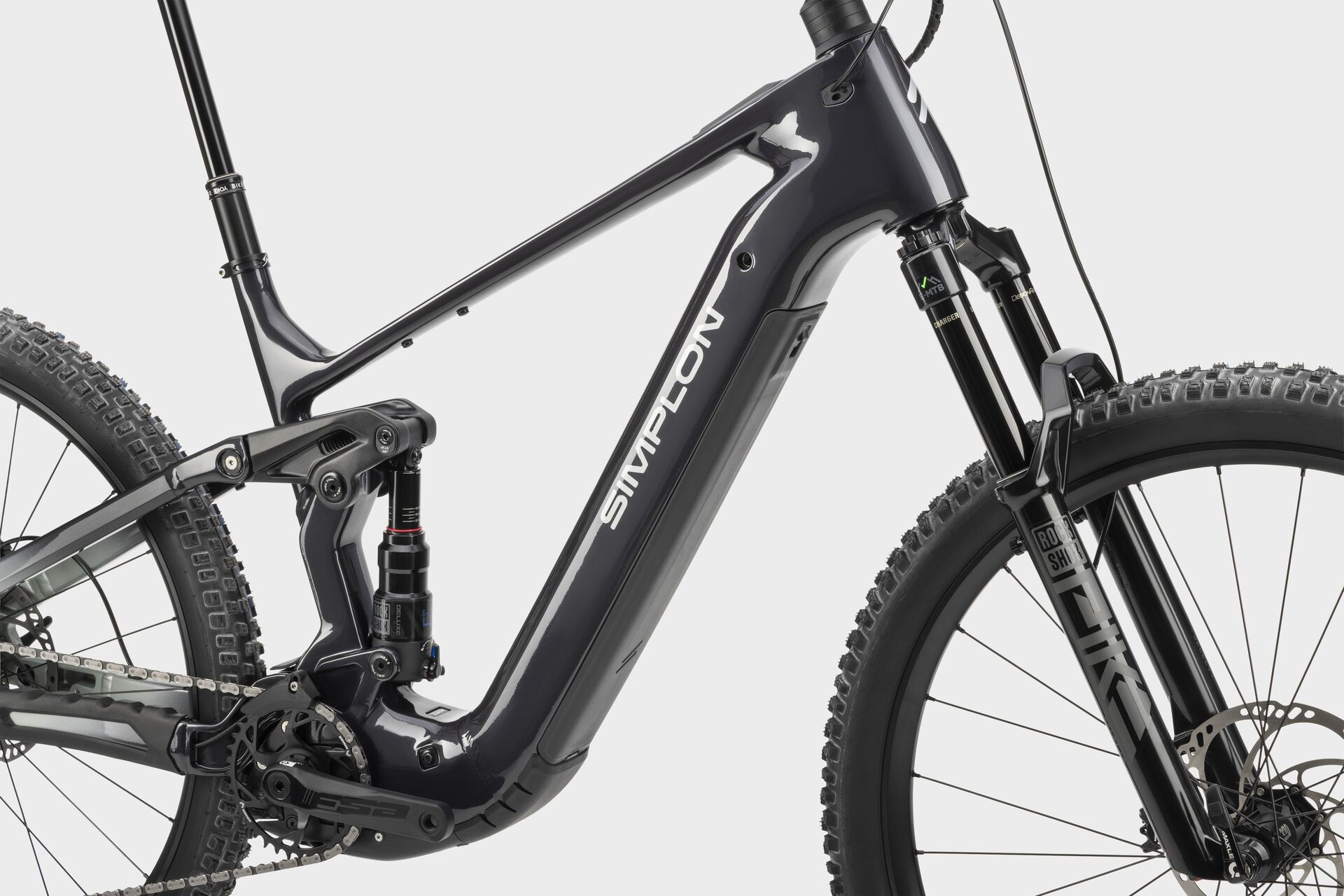

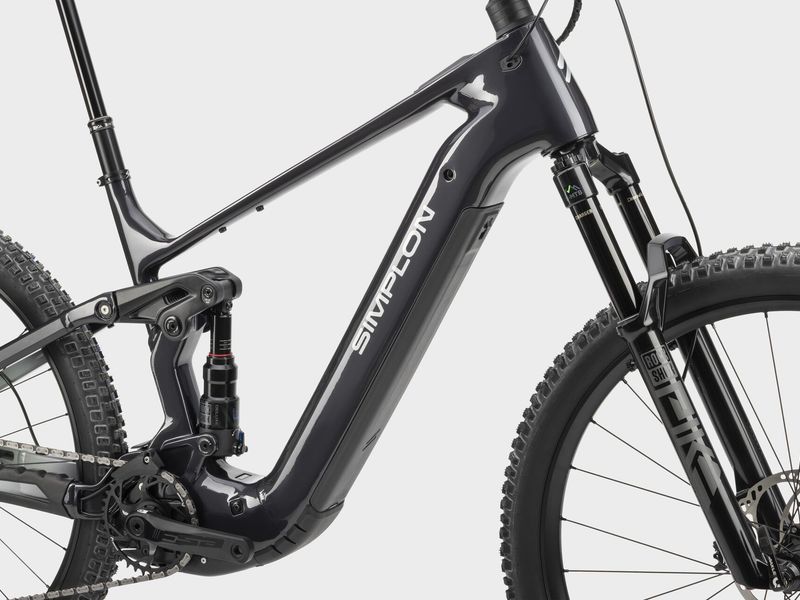

The Rift AL:e is the aluminium version of the Rift :e: a 140/140 mm trail and all-mountain e-MTB with a gravity-cast three-piece main frame, 29-inch wheels, a 65° head angle and a 150 kg system weight rating. Hidden mounts take fenders, a kickstand and a rack.
The Core build uses the Bosch Performance Line PX Gen5 with 600 Wh; Core+ and Expert use the Performance Line CX Gen5 with 800 Wh. A DualBattery setup gives up to 1,345 Wh.
- Aluminium frame, 140 mm travel
- Bosch CX or PX Gen5
- 600 or 800 Wh, up to 1,345 Wh

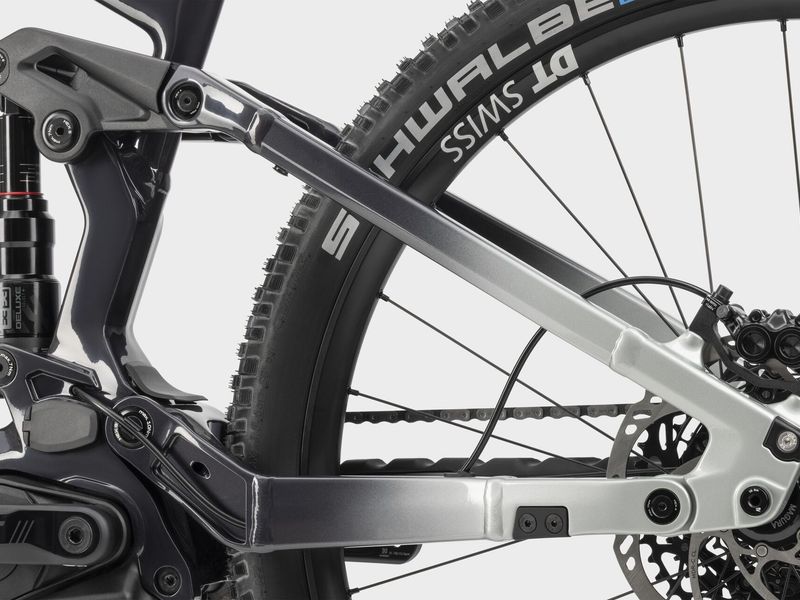

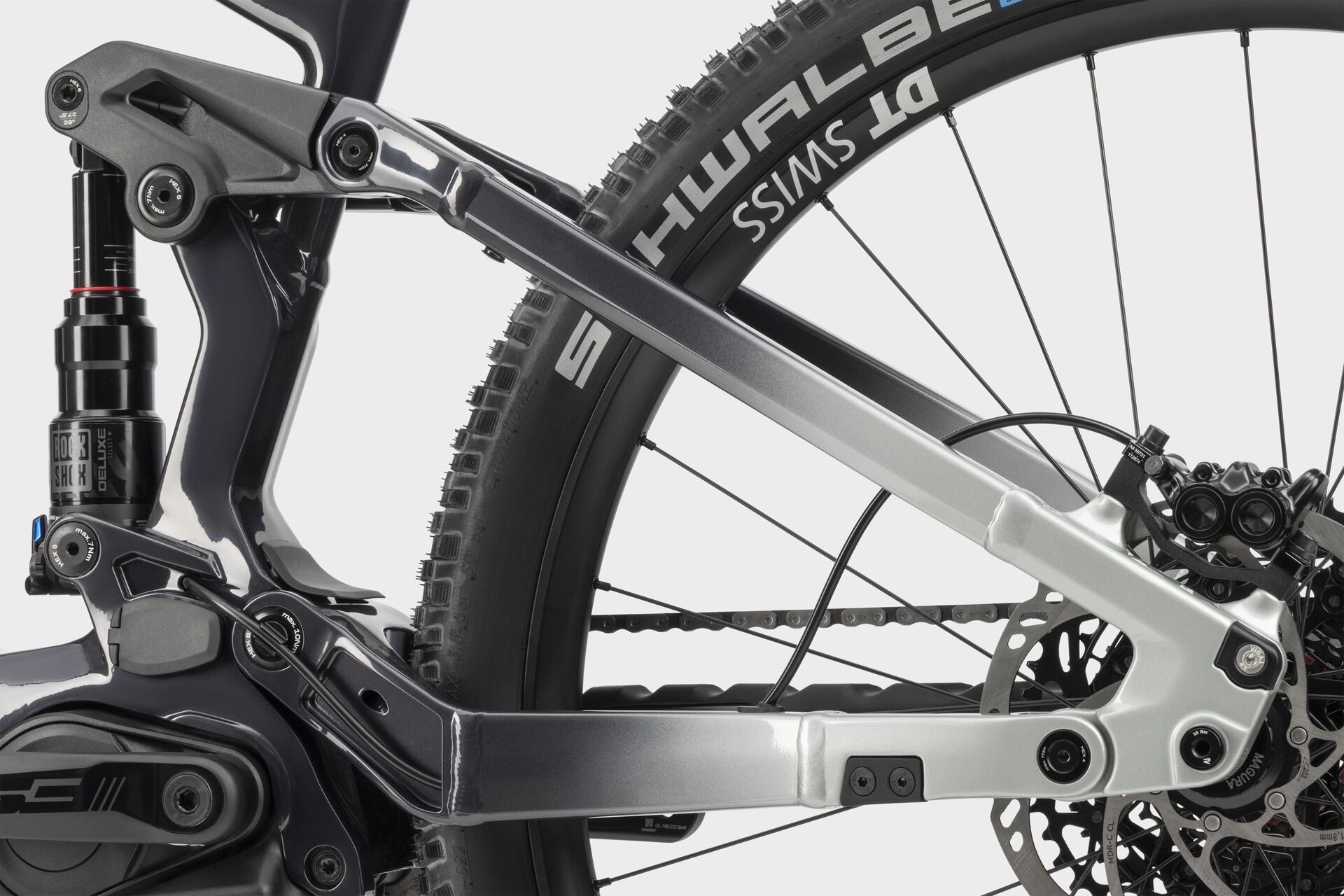

- Mounts for fenders, rack, kickstand
Gallery
Photos: Simplon
Full specifications
Frame & suspension
- Fork
- Rock Shox Psylo Gold RC | 29 | Isolator RC | 140mm
- Rear shock
- Rockshox Deluxe Select | 185x55 | 140mm
- Frame
- RIFT AL :e, alloy
- Headset
- Acros AZA-639
E-system
- Battery
- Bosch Powerpack 800 Wh
- Motor
- Bosch Performance Line CX BDU 38
- Display

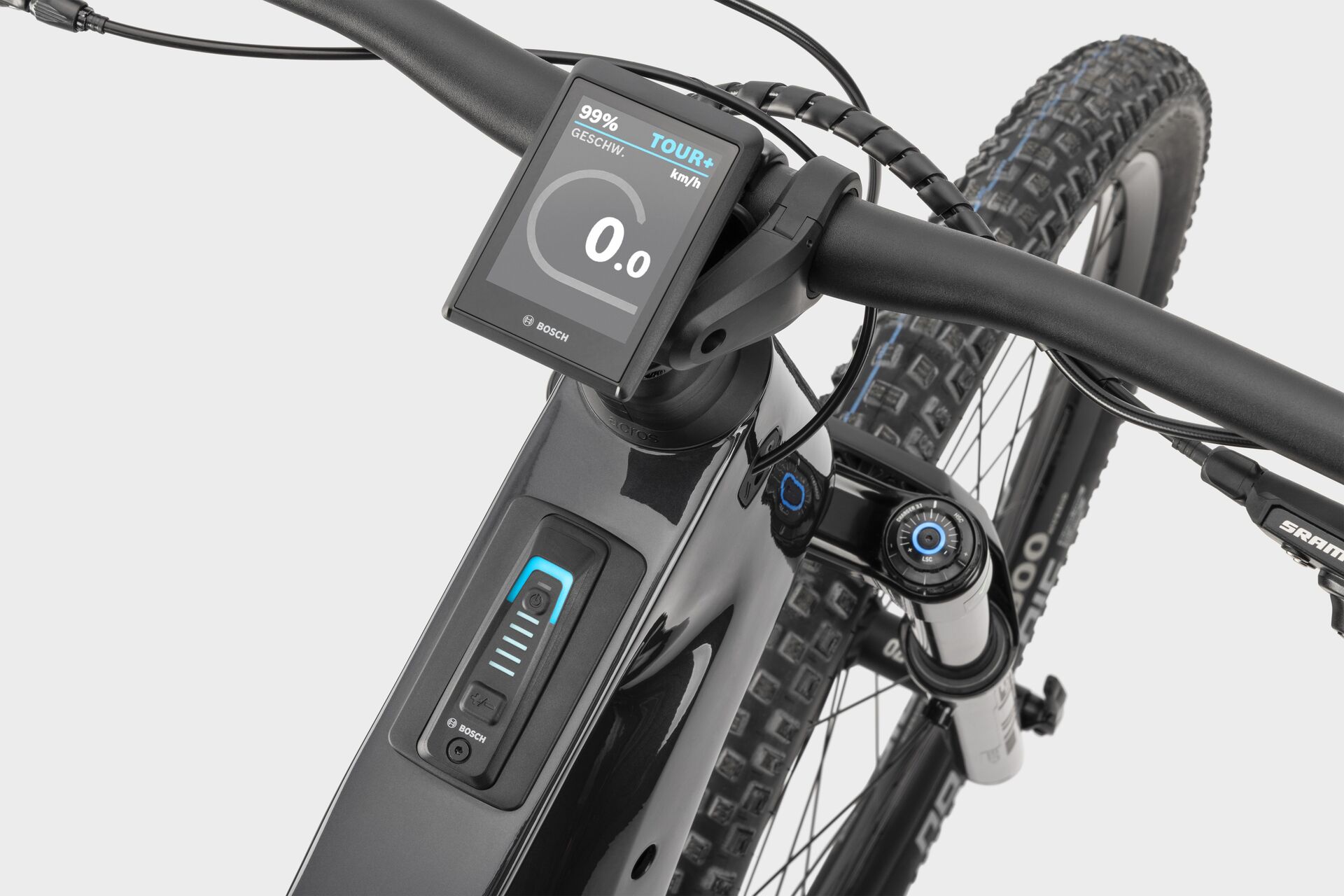

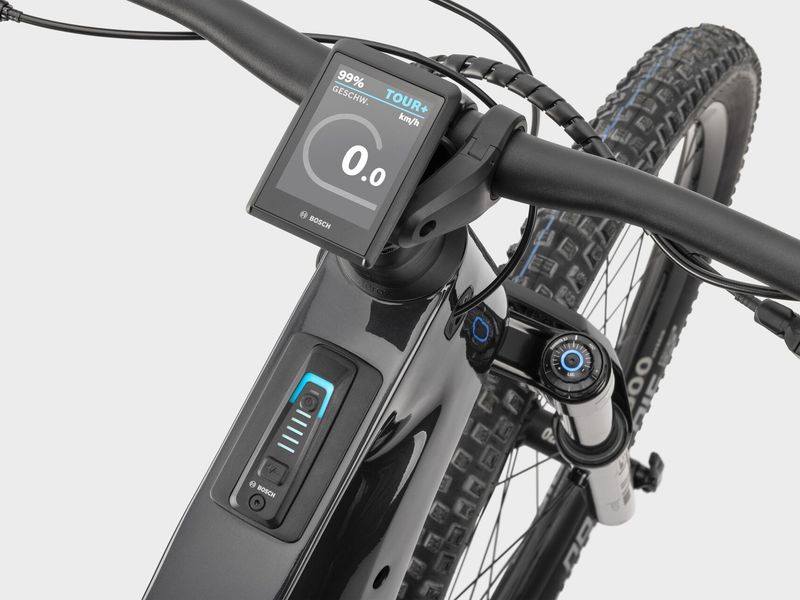

- Bosch System Controller+mini remote+Purion 400
Drivetrain
- Crankset
- FSA CK-745 alloy | 160mm
- Rear derailleur
- Sram Eagle 70 transmission
Brakes
- Brakes
- Magura Louise Elite, 4/4 pistons, 203mm, 203mm
Wheels & tyres
- Tyres
- Schwalbe, Nobby Nic, black, Speed grip, 62-622
- Wheelset
- DT Swiss | Hybrid LN | IW:30
Cockpit
- Spacers
- 30mm Spacers Alloy
- Handlebar
- Simplon Riser BAR | AL | R.15 | 800 mm
- Stem
- Simplon Zero III 35mm x 0°
- Grips
- Ergon GE10 EVO
- Saddle
- Selle Italia X-BOW 145 boost | manganese rail
- Seatpost
- BikeYoke Divine | 31.6 | 160 mm
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Rift AL:e geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat tube length | 400 mm | 420 mm | 440 mm | 460 mm |
| BTop tube (horizontal) | 568 mm | 595 mm | 617 mm | 637 mm |
| CHead tube angle | 65° | 65° | 65° | 65° |
| DSeat tube angle (effective) | 78° | 78° | 78° | 78° |
| D1Seat tube angle (actual) | 73° | 73° | 73° | 73° |
| D2Saddle rail height (reference) | 665 mm | 705 mm | 750 mm | 795 mm |
| EHead tube length | 116 mm | 129 mm | 136 mm | 146 mm |
| FChainstay length | 446 mm | 446 mm | 446 mm | 446 mm |
| GWheelbase | 1214 mm | 1243 mm | 1278 mm | 1302 mm |
| HBottom bracket drop | 32 mm | 32 mm | 32 mm | 32 mm |
| IFork length | 556 mm | 556 mm | 556 mm | 556 mm |
| KFork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| MStandover | 732 mm | 750 mm | 750 mm | 743 mm |
| RReach | 446 mm | 468 mm | 488 mm | 508 mm |
| SStack | 620 mm | 629 mm | 638 mm | 647 mm |
| STRStack to reach | 1.39 | 1.34 | 1.31 | 1.27 |
| HtRider height | 155-174 cm | 170-184 cm | 180-194 cm | – |
| ISInseam | 75-83 cm | 78-87 cm | 81-91 cm | 86-99 cm |
Source: Simplon. Rider height and inseam in cm.
Rift AL:e: builds compared
Rift AL:e range →| Rift AL:e Core | Rift AL:e Core+ | Rift AL:e Expert | |
|---|---|---|---|
| Price | €5,114 | €5,594 | €6,954 |
| Frame | Alloy | Alloy | Alloy |
| Fork | Rock Shox Psylo Gold RC | 29 | Isolator RC | 140mm | Rock Shox Psylo Gold RC | 29 | Isolator RC | 140mm | Rock Shox Pike Select + | 29 | Charger 3.1 RC2 | 140mm |
| Shock | Rockshox Deluxe Select | 185x55 | 140mm | Rockshox Deluxe Select | 185x55 | 140mm | Rockshox Deluxe Select+ | 185x55 | 140mm |
| Derailleur | Sram Eagle 70 transmission | Sram Eagle 70 transmission | Sram Eagle 90 transmission |
| Brakes | Magura Louise Elite | Magura Louise Elite | Magura Louise Elite |
| Display | Bosch System Controller+mini remote+Purion 400 | Bosch System Controller+mini remote+Purion 400 | Bosch System Controller+mini remote+Kiox 500 |
| Weight | 25.7 kg | 26.5 kg | 26.2 kg |
Rift AL:e Core+: FAQ
How much does the Simplon Rift AL:e Core+ cost?
€5,594 (RRP Germany (EUR), VAT incl.; Simplon Core Selection fixed price). The Rift AL:e range runs from €5,114 (Rift AL:e Core) to €6,954 (Rift AL:e Expert). Prices vary by country and dealer.
How much does the Simplon Rift AL:e Core+ weigh?
Simplon quotes 26.5 kg. The lightest Rift AL:e build is the Rift AL:e Core at 25.7 kg.
What motor and battery does the Simplon Rift AL:e Core+ have?
Bosch Performance Line CX Gen5 (85 Nm (up to 120 Nm via eBike Flow app)). 800 Wh battery — bosch PowerPack, removable; 250 Wh range extender optional.
How much suspension travel does the Simplon Rift AL:e Core+ have?
140 mm at the fork and 140 mm at the rear, on 29" wheels.
What sizes does the Simplon Rift AL:e Core+ come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Rift AL:e Core+ and the Rift AL:e Expert?
They share the Rift AL:e frame platform and motor; the differences are in the parts — fork: Rock Shox Psylo Gold RC | 29 | Isolator RC | 140mm vs Rock Shox Pike Select + | 29 | Charger 3.1 RC2 | 140mm; shock: Rockshox Deluxe Select | 185x55 | 140mm vs Rockshox Deluxe Select+ | 185x55 | 140mm; derailleur: Sram Eagle 70 transmission vs Sram Eagle 90 transmission; claimed weight: 26.5 kg vs 26.2 kg; price: €5,594 vs €6,954.
