Rocky MountainAltitude Powerplay Carbon 70
- Motor
- Rocky Mountain Dyname S4 Pro110 Nm; 1000 W peak
- Battery
- 720 WhRemovable (two-bolt); optional 314 Wh Overtimepack 2.0 range extender
- Travel F / R
- 170 / 160 mm
- Wheels
- 29" (S: 27.5")
- Frame
- Carbon
Overview

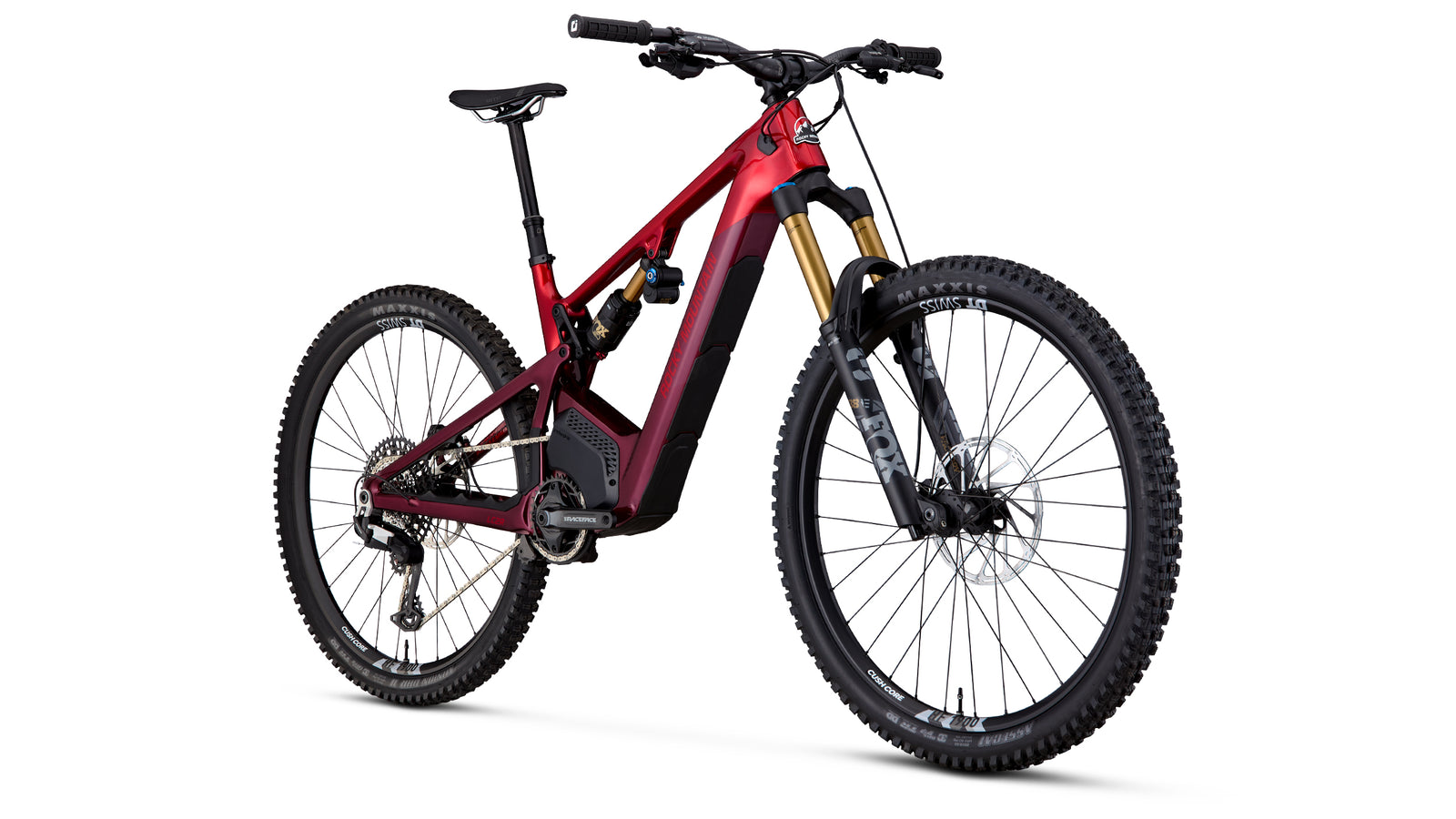

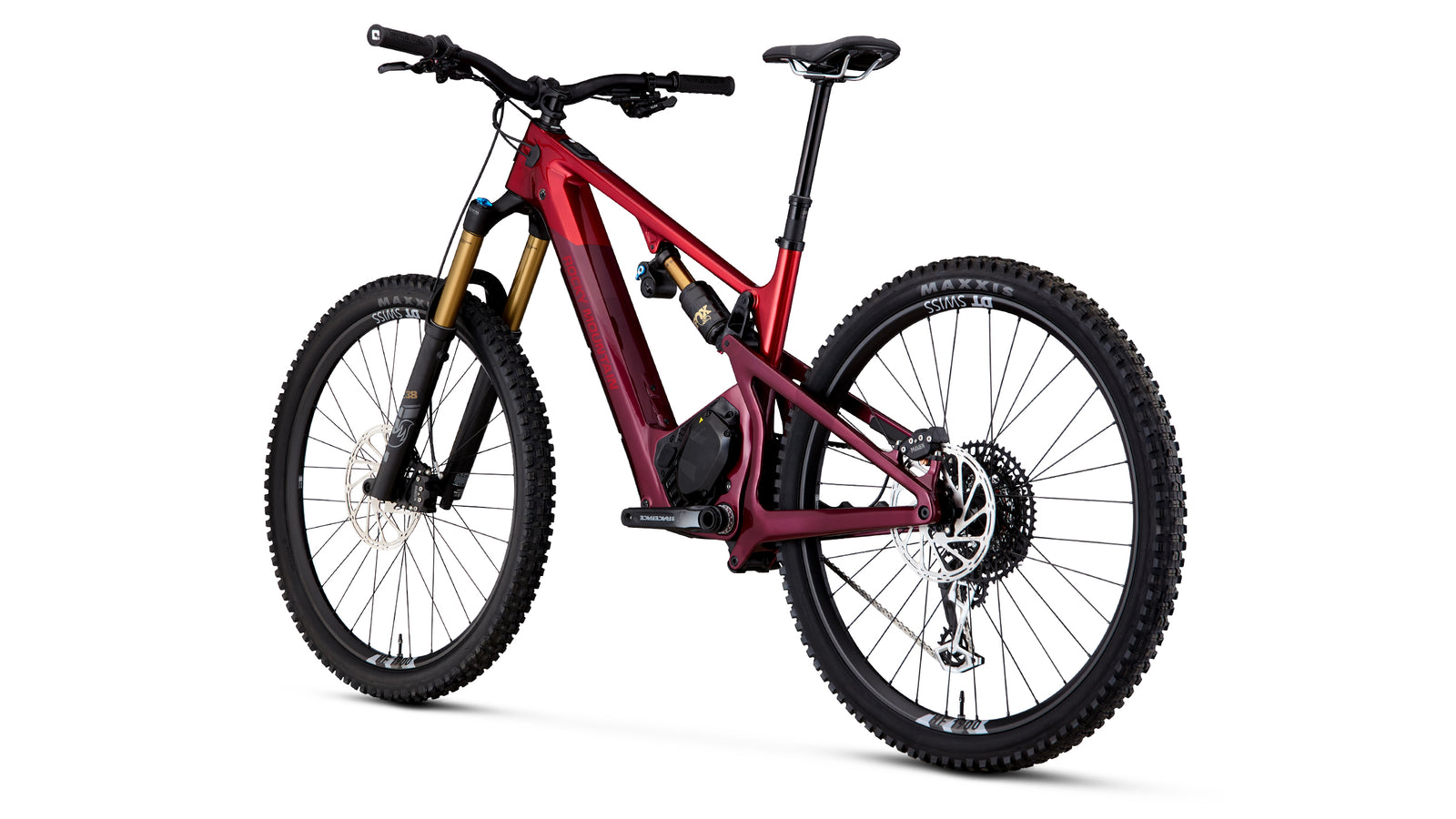

The Rocky Mountain Altitude Powerplay Carbon 70 (€9,499) is the top build of the Altitude Powerplay: Rocky Mountain Dyname S4 Pro (110 Nm) with 720 Wh, Fox 38 Float EVOL GRIP X2 Factory Series fork, Fox Float X2 Factory shock, SRAM Eagle 90 Transmission and SRAM Maven Silver Stealth 4 Piston brakes.
The 2026 Altitude Powerplay is Rocky Mountain's enduro e-MTB, built around the in-house Dyname S4 Pro drive system (250 W nominal, 1000 W peak, 110 Nm per the spec sheets) and a 720 Wh two-bolt removable battery. The optional Overtimepack 2.0 adds 314 Wh on the down tube, and the Jumbotron display is integrated into the top tube; no app is required.
The LC2R suspension gives 160 mm of rear travel with a 170 mm fork (frame designed for 170–180 mm). Size SM rolls on 27.5-inch wheels, MD–XL on 29-inch, with an optional MX link for mixed wheels on MD–XL. The RIDE-4 chip offers four geometry positions; frames are SMOOTHWALL carbon (Carbon 70) or FORM alloy (Alloy 30, Alloy 50), all with a threaded BSA bottom bracket and coil-shock compatibility.
- Dyname S4 Pro: 110 Nm, 1000 W peak
- 720 Wh removable battery (+314 Wh extender option)
- 160 mm rear / 170 mm fork
- 29" (SM 27.5"), RIDE-4 geometry chip
Gallery
Photos: Rocky Mountain
Full specifications
Frame & suspension
- Sizes
- S, M, L, XL
- Colours

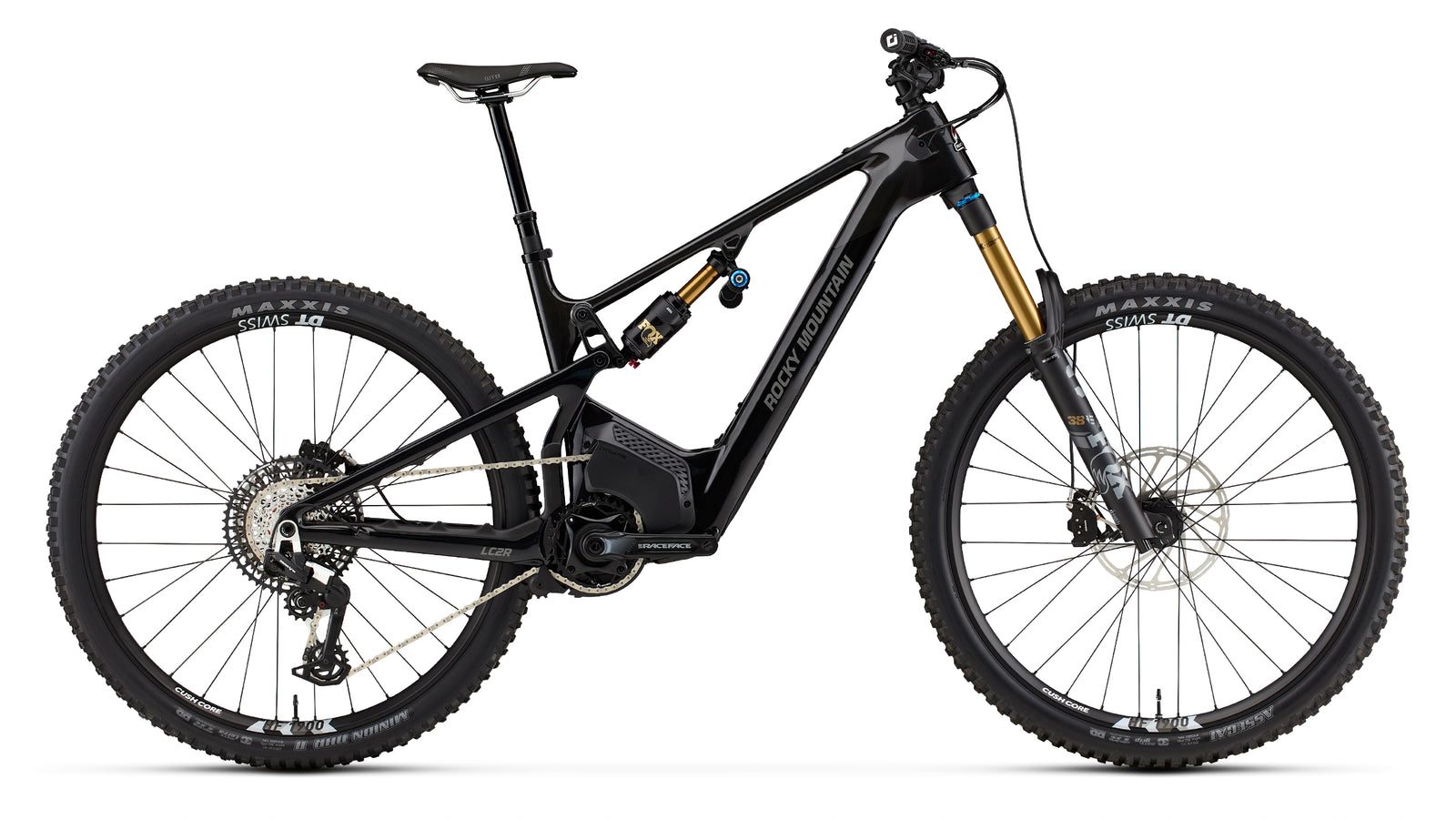

- Grey/Black/Grey or Red/Purple
- Frame
- SMOOTHWALL™ Carbon; Integrated Display; LC2R Suspension System; Threaded BB; RIDE-4™ Adjustable Geometry + Suspension Rate; 160mm Travel; SMOOTHWALL™ Carbon Rear Triangle
- Fork

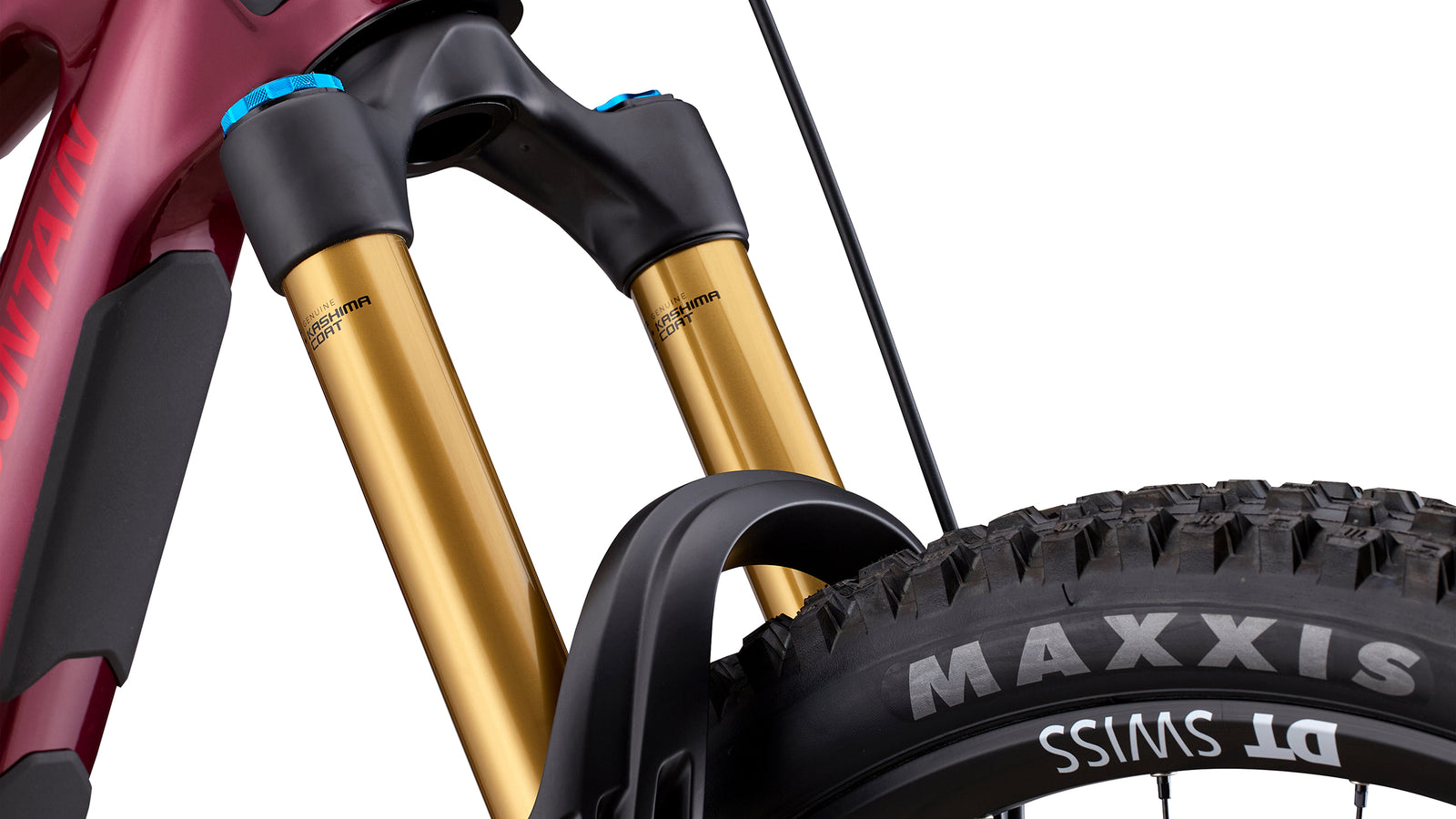

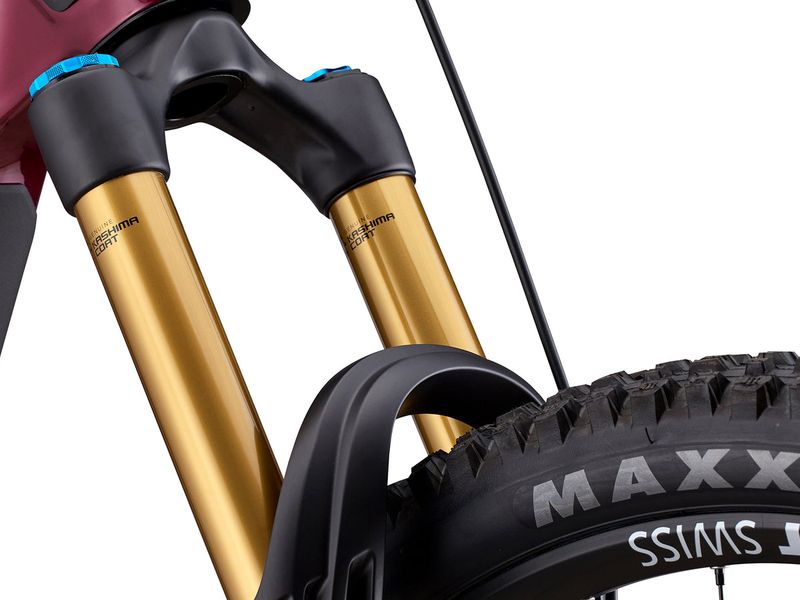

- Fox 38 Float EVOL GRIP X2 Factory Series 170mm; 27.5 = 37mm Offset; 29 = 44mm Offset
- Fork travel
- 170 mm
- Rear shock

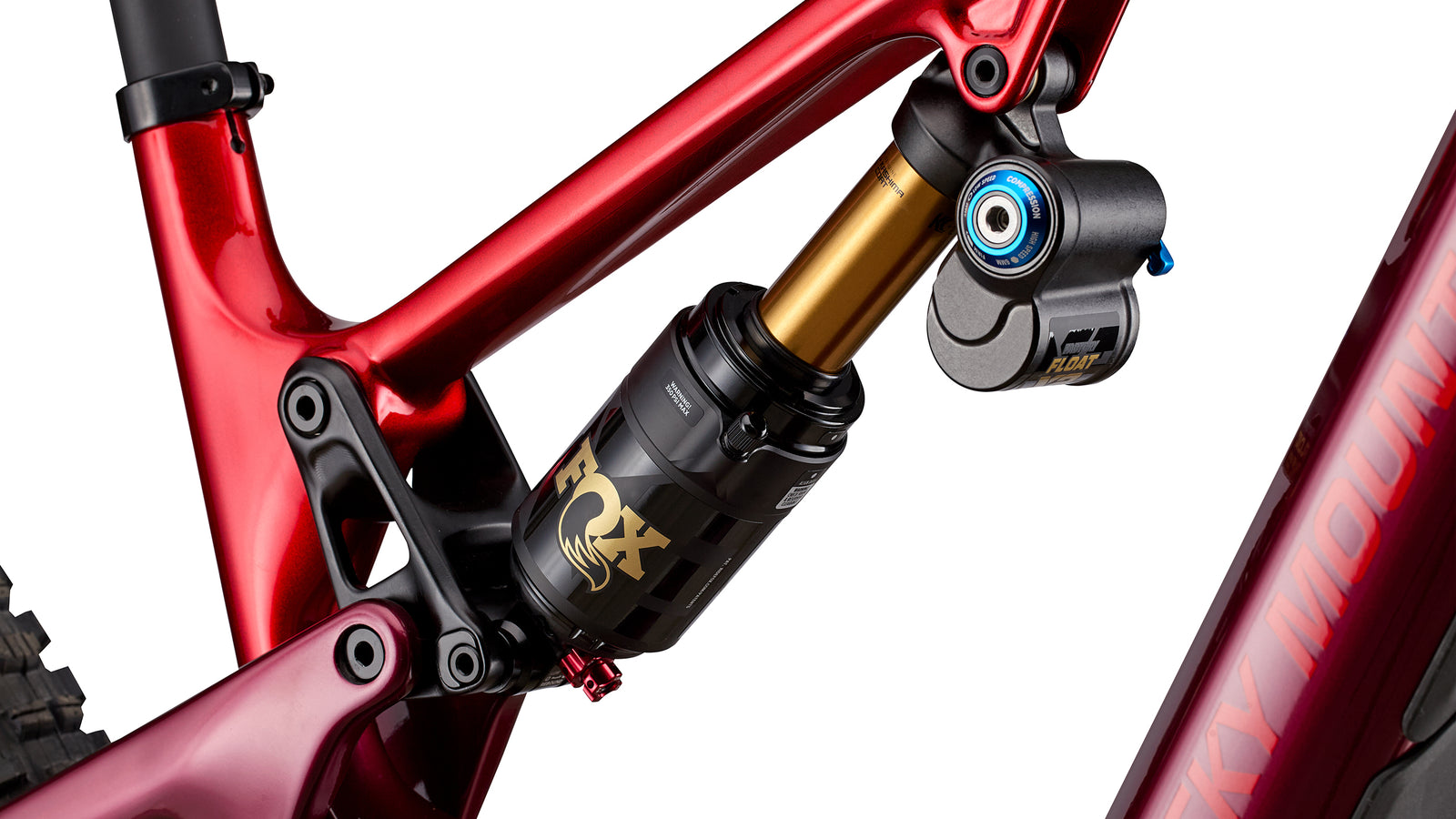

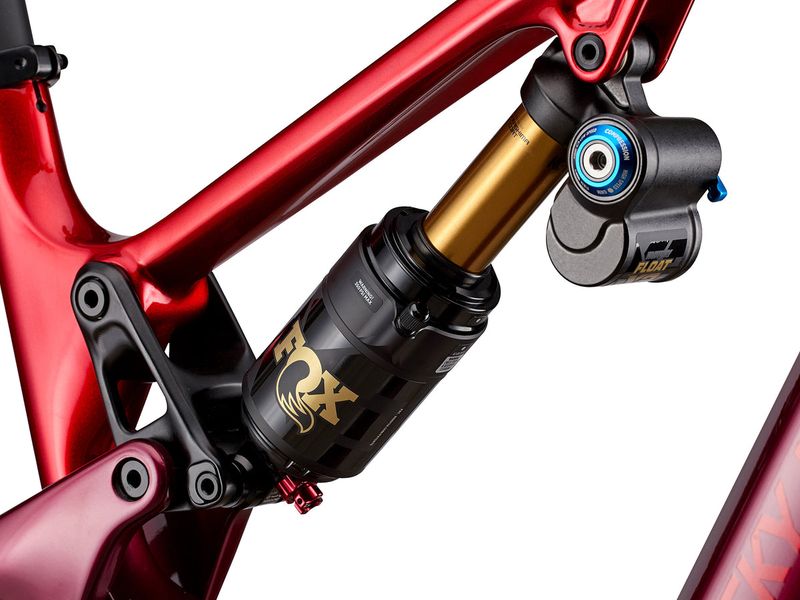

- Fox Float X2 Factory; Sealed Bearing Eyelet; 25x8mm F Hardware; SM = 210 x 55mm; MD - LG - XL = 230 x 65mm; Size-Specific tune in FAQ
- Rear travel
- 160 mm
E-system
- Motor

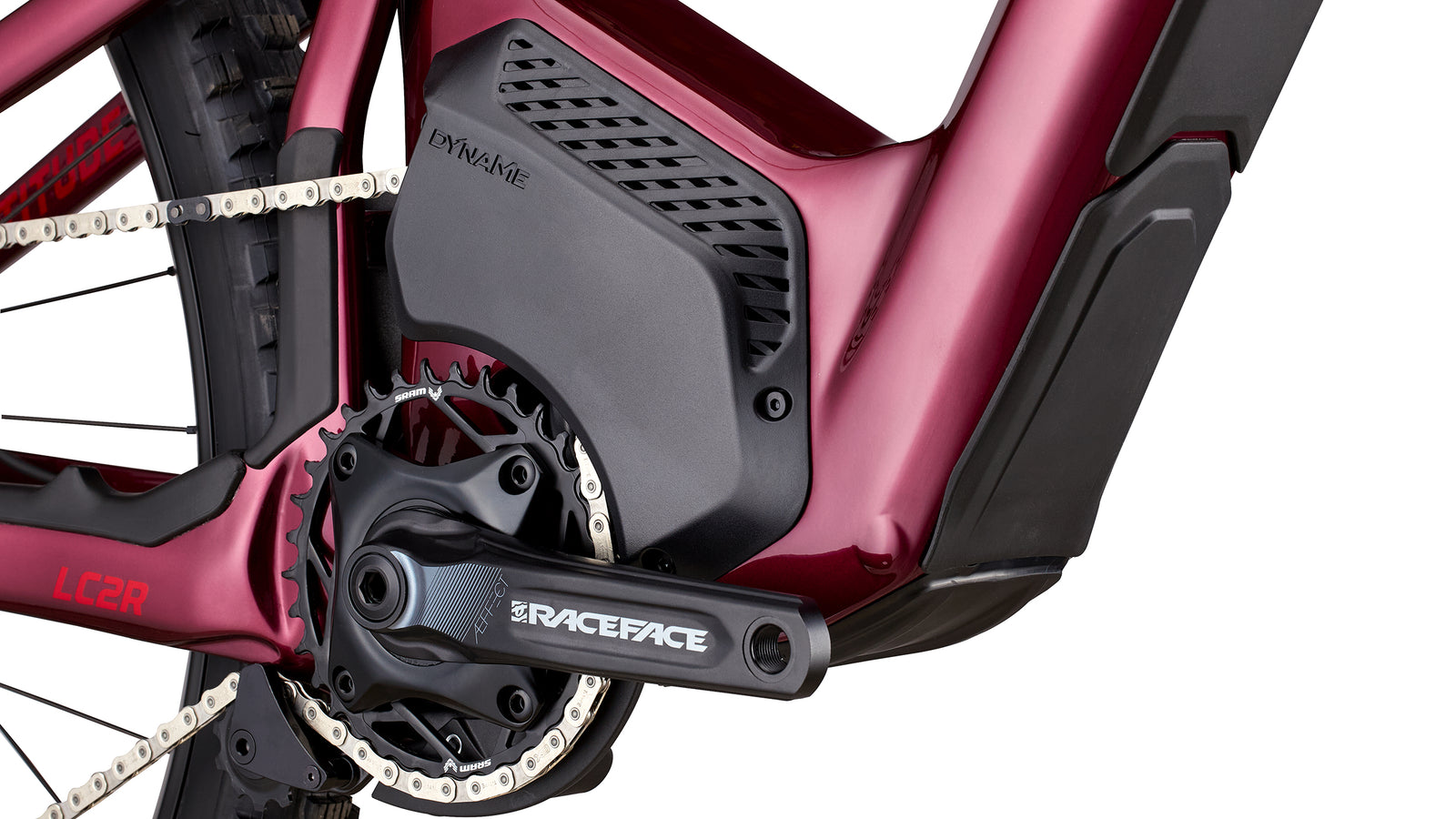

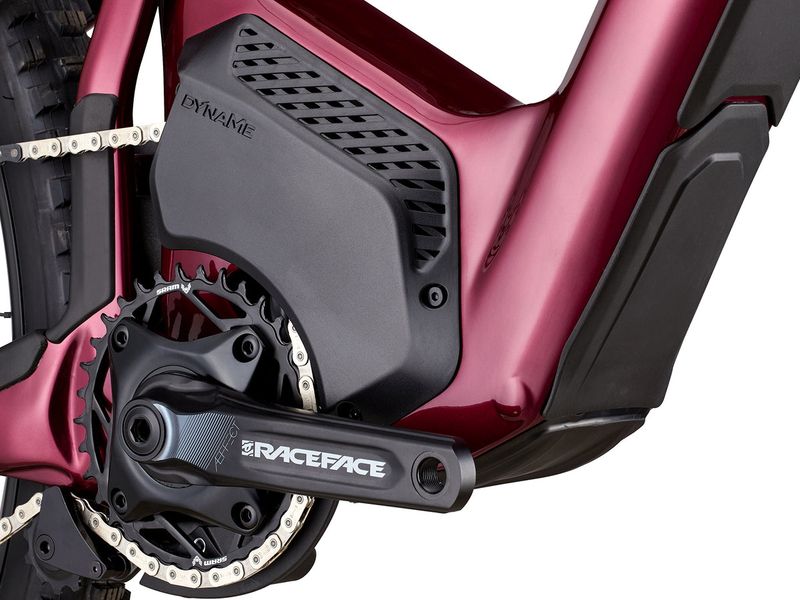

- Dyname S4 Pro Mountain Bike Drive; 250w Nominal Power; 1000W Max Power; 110Nm; Rocky Mountain Micro Remote; Low RPM - High Efficiency class 1 eMTB System; Designed in Canada
- Battery
- 720 Wh Removable Integrated Li-Ion; 100% Charged in 3:55 (4A) / 7:35 (2A); 80% Charged in 2:55 (4A) / 6:05 (2A)
- Display
- Rocky Mountain Jumbotron; Drive System Customization; Battery & Assist Level; Trip; Speed; Cadence; Top Tube Integration
- Charger
- Rocky Mountain Powerplay FAST Charger; 4A; 48V; Higo Deep Socket Connector
Drivetrain
- Shifters
- Sram Eagle 90 Transmission Single Click
- Rear derailleur

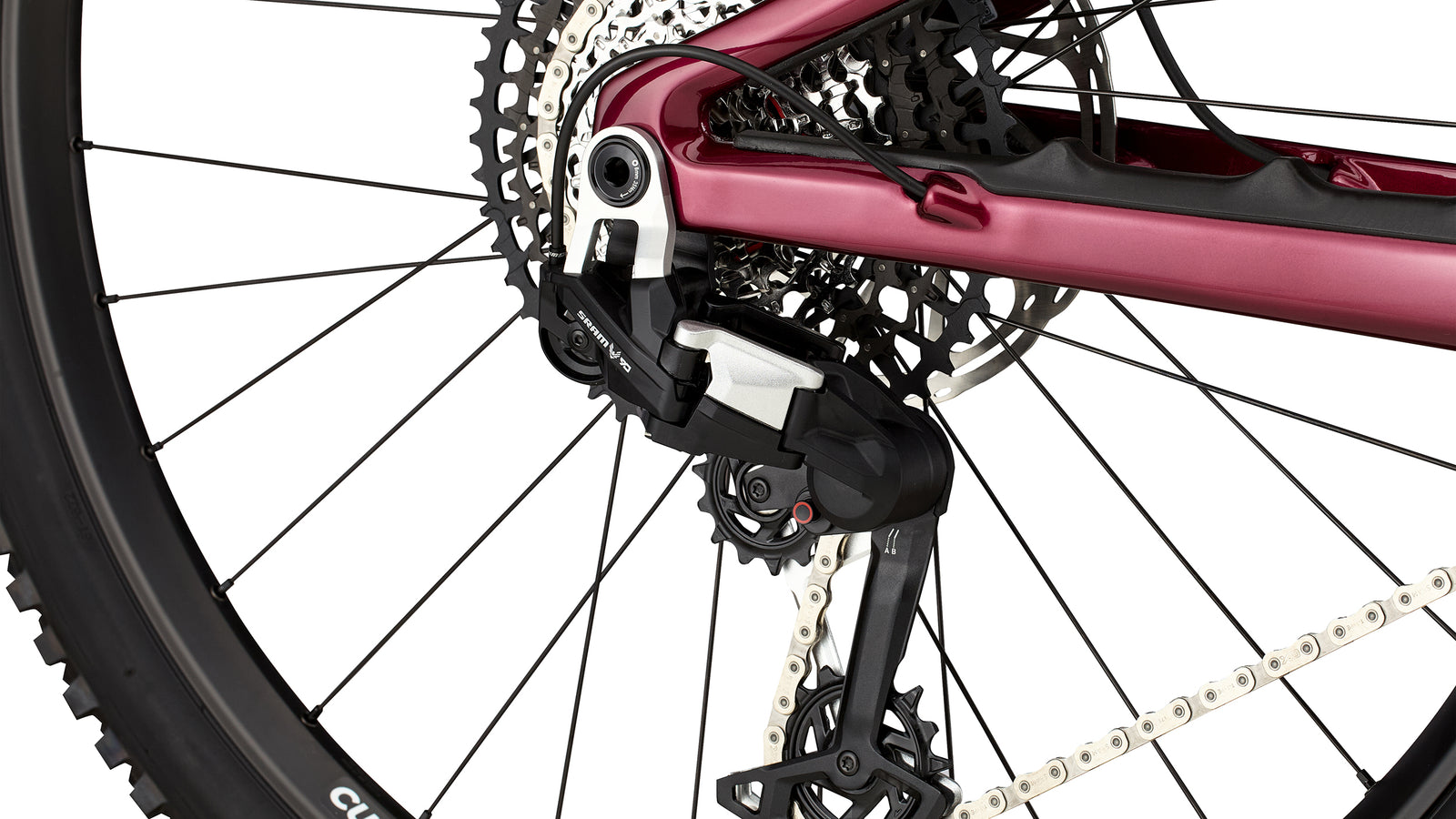

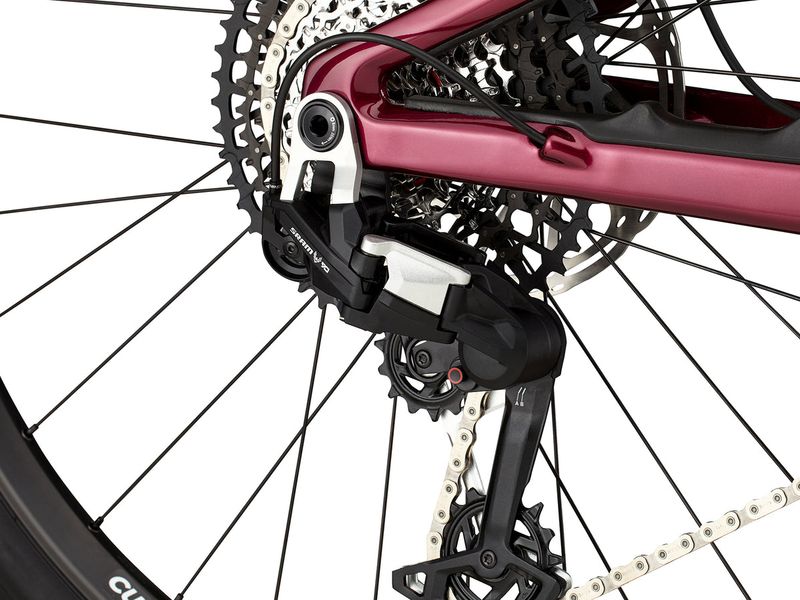

- Sram Eagle 90 Transmission
- Crankset
- Race Face Aeffect Cinch; 34T Transmission Ring; 24mm Spindle; SM - XL = 165mm
- Bottom bracket
- Race Face BSA 73 24mm
- Cassette
- Sram GX Eagle Transmission 10-52T
- Chain
- Sram GX Eagle Transmission
Brakes
- Brakes

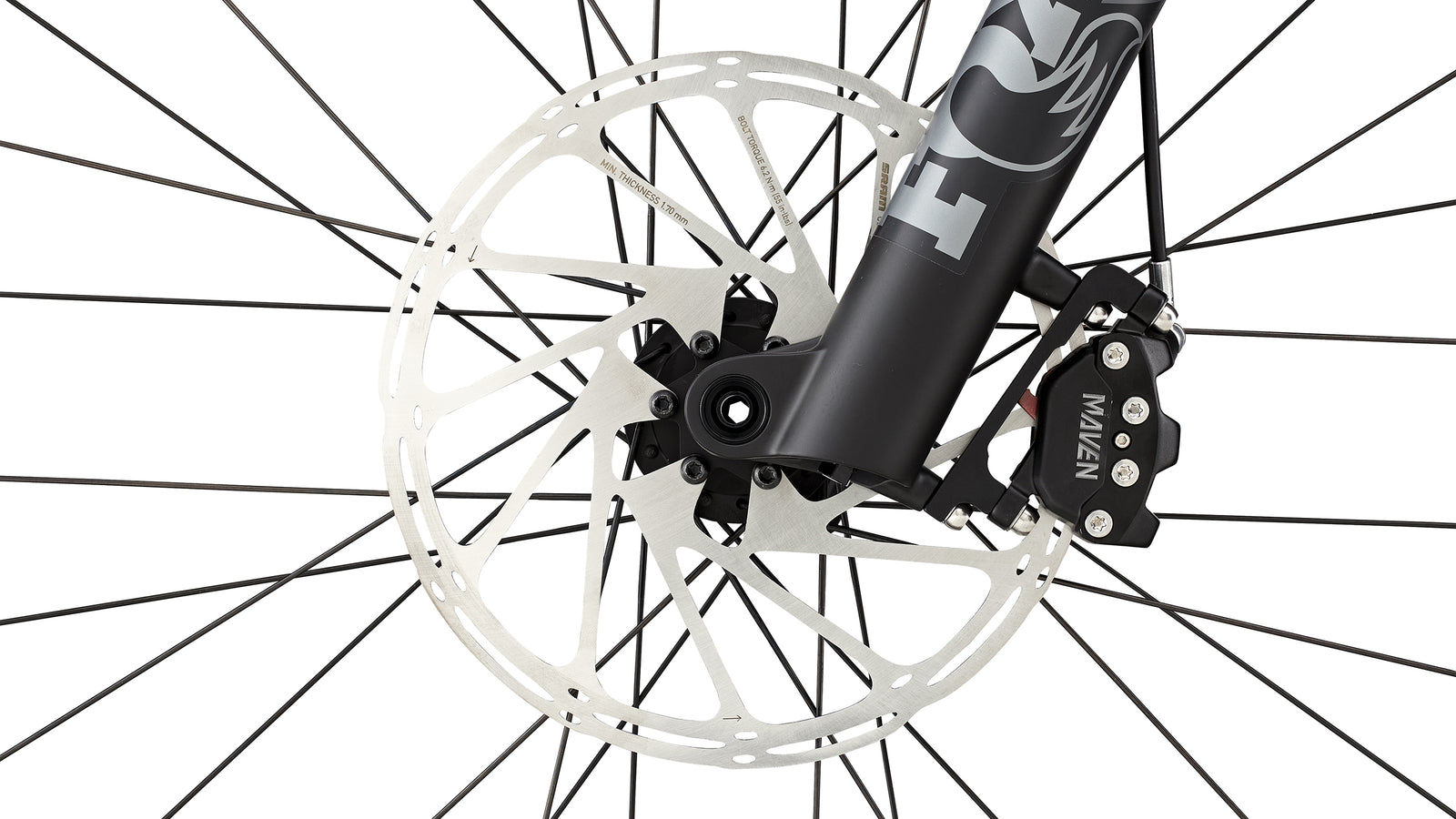

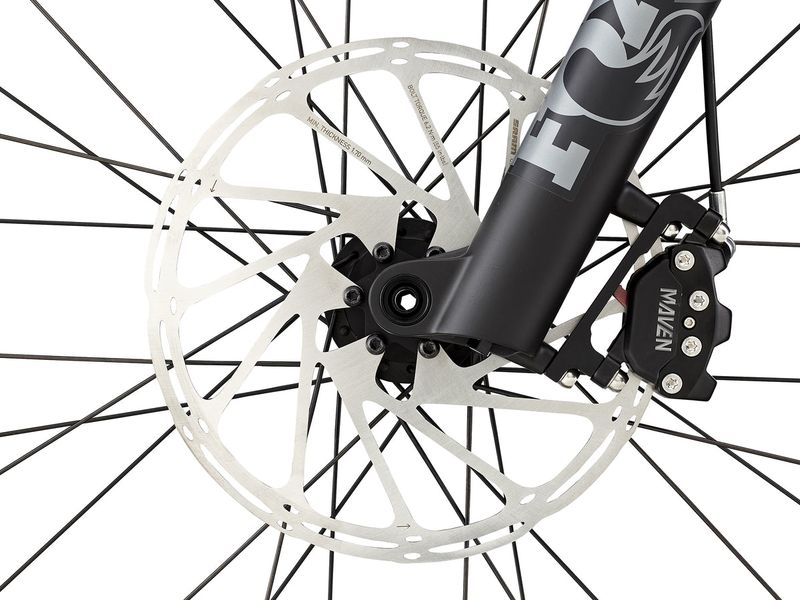

- Sram Maven Silver Stealth 4 Piston; Metal Pads
Wheels & tyres
- Tyres
- F: Maxxis Assegai 2.5 WT 3C MaxxGrip DD Tubeless Ready; R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready
Cockpit
- Headset
- FSA Orbit NO.85 Reach Adjust; 0mm Cups Installed; +/- 5mm Cups Included; Sealed Stainless 36°x45° Bearings; 30.2mm x 41mm x 6.5mm Upper; 40mm x 51.8mm x 8.0mm Lower; 1.5" Crown Race
- Stem
- Rocky Mountain 35 AM; 0° Rise; All Sizes = 40mm
- Handlebar
- Race Face Turbine; 780mm Width; 40mm Rise; 8° Backsweep; 5° Upsweep; 35mm Clamp
- Grips
- ODI Elite Pro Lock On
- Seatpost
- OneUp V3 Dropper 30.9mm; SM = 150mm; MD = 180mm; LG = 210mm; XL = 240mm
- Saddle
- WTB Solano Fusion Form 142; Cromoly Rails
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Altitude Powerplay geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| Top Tube Horizontal | 552 / 552 / 551 / 551 mm | 584 / 583 / 583 / 583 mm | 623 / 622 / 621 / 621 mm | 655 / 654 / 653 / 653 mm |
| Head Tube Angle | 63° / 63.2° / 63.5° / 63.8° | 63° / 63.3° / 63.5° / 63.7° | 63.1° / 63.3° / 63.5° / 63.7° | 63.1° / 63.3° / 63.5° / 63.7° |
| Head Tube Length | 105 mm | 110 mm | 120 mm | 130 mm |
| Seat Tube Angle | 78° / 78.2° / 78.5° / 78.8° | 77.3° / 78.3° / 78.5° / 78.7° | 77.3° / 77.4° / 77.5° / 77.6° | 77.3° / 77.3° / 77.5° / 77.7° |
| Seat Tube Length | 380 mm | 420 mm | 440 mm | 470 mm |
| Rear Centre | 443 / 442 / 440 / 438 mm | 452 / 451 / 450 / 449 mm | 452 / 451 / 450 / 449 mm | 462 / 461 / 460 / 459 mm |
| Bottom Bracket Drop | 17.4 / 13.9 / 10 / 6.1 mm | 31.4 / 28.4 / 25 / 21.7 mm | 31.5 / 28.4 / 25 / 21.6 mm | 31.7 / 28.5 / 25 / 21.5 mm |
| Reach | 424 / 427 / 430 / 433 mm | 450 / 452 / 455 / 458 mm | 475 / 477 / 480 / 483 mm | 505 / 507 / 510 / 513 mm |
| Stack | 600 / 599 / 596 / 594 mm | 632 / 631 / 629 / 627 mm | 642 / 640 / 638 / 636 mm | 651 / 649 / 647 / 645 mm |
| Standover Height | 811 / 812 / 814 / 815 mm | 830 / 831 / 832 / 834 mm | 830 / 831 / 833 / 834 mm | 828 / 830 / 832 / 833 mm |
| Wheelbase | 1207 / 1205 / 1204 / 1202 mm | 1257 / 1256 / 1255 / 1254 mm | 1287 / 1286 / 1285 / 1284 mm | 1331 / 1330 / 1329 / 1328 mm |
Where several values are given: RIDE-4 position 1 (slack) / 2 / 3 / 4 (steep). Size S uses 27.5" wheels, other sizes 29" (stock wheel setup; MX-link figures not shown). Source: Rocky Mountain.
Altitude Powerplay: builds compared
Altitude Powerplay range →| Altitude Powerplay Alloy 30 | Altitude Powerplay Alloy 50 | Altitude Powerplay Carbon 70 | |
|---|---|---|---|
| Price | €5,499 | €6,999 | €9,499 |
| Frame | Alloy | Alloy | Carbon |
| Fork | RockShox Domain Gold RC 170mm; 27.5 = 38mm Offset; 29 = 44mm Offset | RockShox Zeb Select RC 170mm; 27.5 = 38mm Offset; 29 = 44mm Offset | Fox 38 Float EVOL GRIP X2 Factory Series 170mm; 27.5 = 37mm Offset; 29 = 44mm Offset |
| Shock | Marzocchi Bomber Air; Sealed Bearing Eyelet; 25x8mm F Hardware; SM = 210 x 55mm; MD - LG - XL = 230 x 65mm; Size-Specific tune in FAQ | Fox Float X Performance; Sealed Bearing Eyelet; 25x8mm F Hardware; SM = 210 x 55mm; MD - LG - XL = 230 x 65mm; Size-Specific tune in FAQ | Fox Float X2 Factory; Sealed Bearing Eyelet; 25x8mm F Hardware; SM = 210 x 55mm; MD - LG - XL = 230 x 65mm; Size-Specific tune in FAQ |
| Derailleur | Shimano Deore 12spd | Sram Eagle 90 Transmission | Sram Eagle 90 Transmission |
| Brakes | Tektro HD-M535; Shimano Pad Compatible | Sram Maven Stealth 4 Piston; Metal Pads | Sram Maven Silver Stealth 4 Piston; Metal Pads |
| Wheels | Rocky Mountain TR30; 32H; Tubeless Compatible | WTB ST i30 TOUGH TCS 2.0; 32H | — |
| Display | Rocky Mountain Jumbotron; Drive System Customization; Battery & Assist Level; Trip; Speed; Cadence; Top Tube Integration | Rocky Mountain Jumbotron; Drive System Customization; Battery & Assist Level; Trip; Speed; Cadence; Top Tube Integration | Rocky Mountain Jumbotron; Drive System Customization; Battery & Assist Level; Trip; Speed; Cadence; Top Tube Integration |
Altitude Powerplay Carbon 70: FAQ
How much does the Rocky Mountain Altitude Powerplay Carbon 70 cost?
€9,499 (RRP Germany (bikes.com DE store), VAT incl.). The Altitude Powerplay range runs from €5,499 (Altitude Powerplay Alloy 30) to €9,499 (Altitude Powerplay Carbon 70). Prices vary by country and dealer.
What motor and battery does the Rocky Mountain Altitude Powerplay Carbon 70 have?
Rocky Mountain Dyname S4 Pro (110 Nm; 1000 W peak). 720 Wh battery — removable (two-bolt); optional 314 Wh Overtimepack 2.0 range extender.
How much suspension travel does the Rocky Mountain Altitude Powerplay Carbon 70 have?
170 mm at the fork and 160 mm at the rear, on 29" (S: 27.5") wheels.
What sizes does the Rocky Mountain Altitude Powerplay Carbon 70 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Altitude Powerplay Carbon 70 and the Altitude Powerplay Alloy 50?
They share the Altitude Powerplay frame platform and motor; the differences are in the parts — frame: carbon vs alloy; fork: Fox 38 Float EVOL GRIP X2 Factory Series 170mm; 27.5 = 37mm Offset; 29 = 44mm Offset vs RockShox Zeb Select RC 170mm; 27.5 = 38mm Offset; 29 = 44mm Offset; shock: Fox Float X2 Factory; Sealed Bearing Eyelet; 25x8mm F Hardware; SM = 210 x 55mm; MD - LG - XL = 230 x 65mm; Size-Specific tune in FAQ vs Fox Float X Performance; Sealed Bearing Eyelet; 25x8mm F Hardware; SM = 210 x 55mm; MD - LG - XL = 230 x 65mm; Size-Specific tune in FAQ; price: €9,499 vs €6,999.
