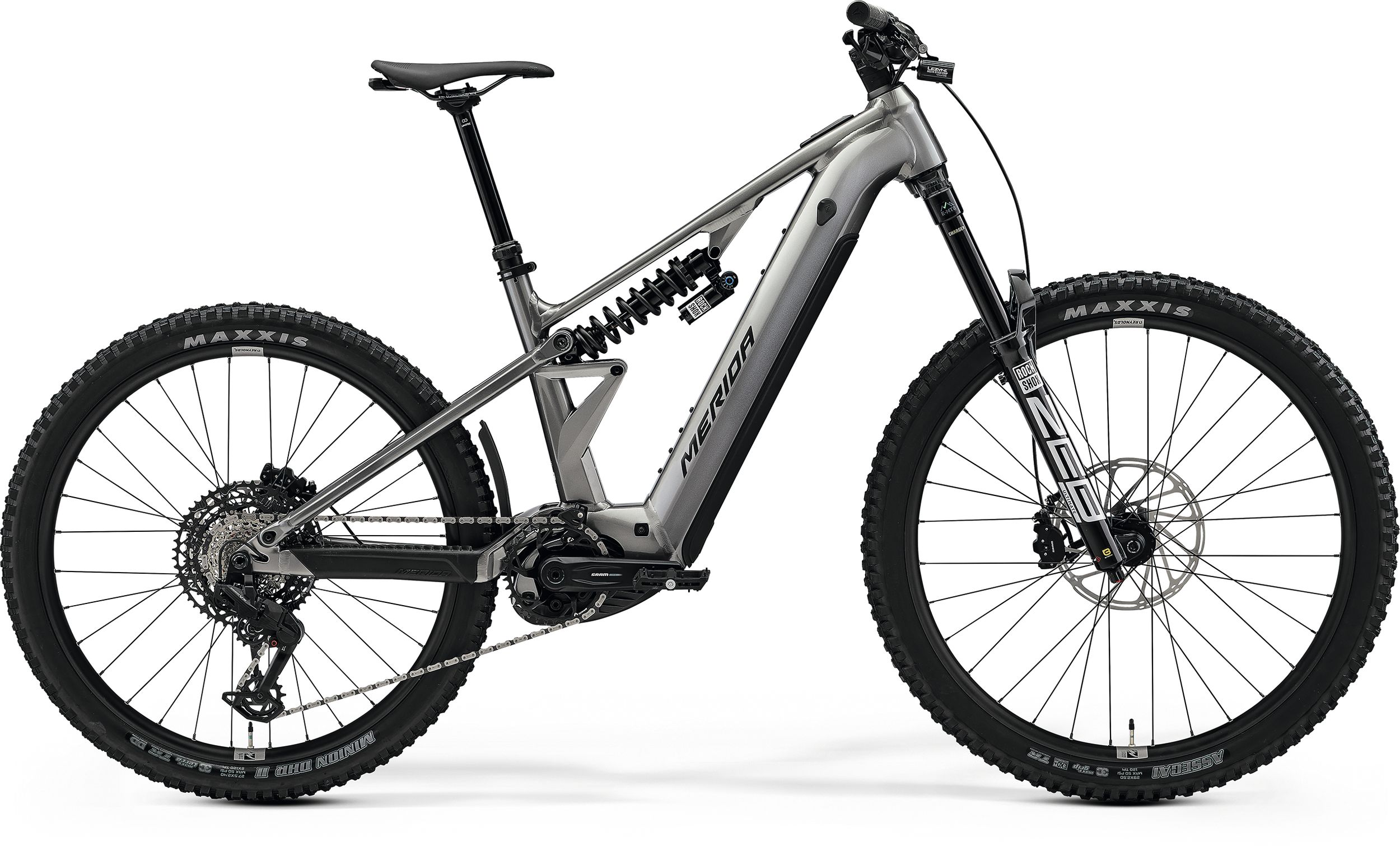

MeridaeONE-EIGHTY FR 800
- Motor
- Bosch Performance Line CX120 Nm
- Battery
- 800 WhBosch PowerTube 800 horizontal, removable; optional 250 Wh range extender
- Travel F / R
- 180 / 180 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Alloy
Overview

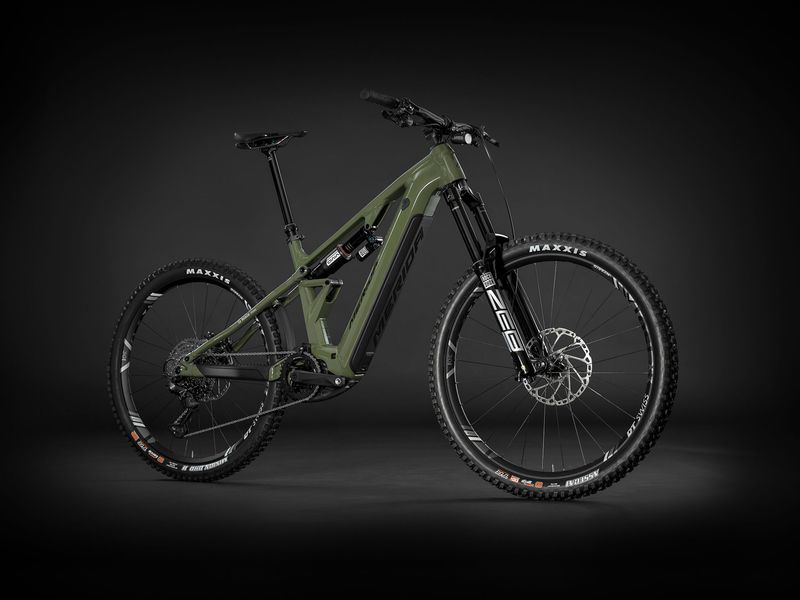

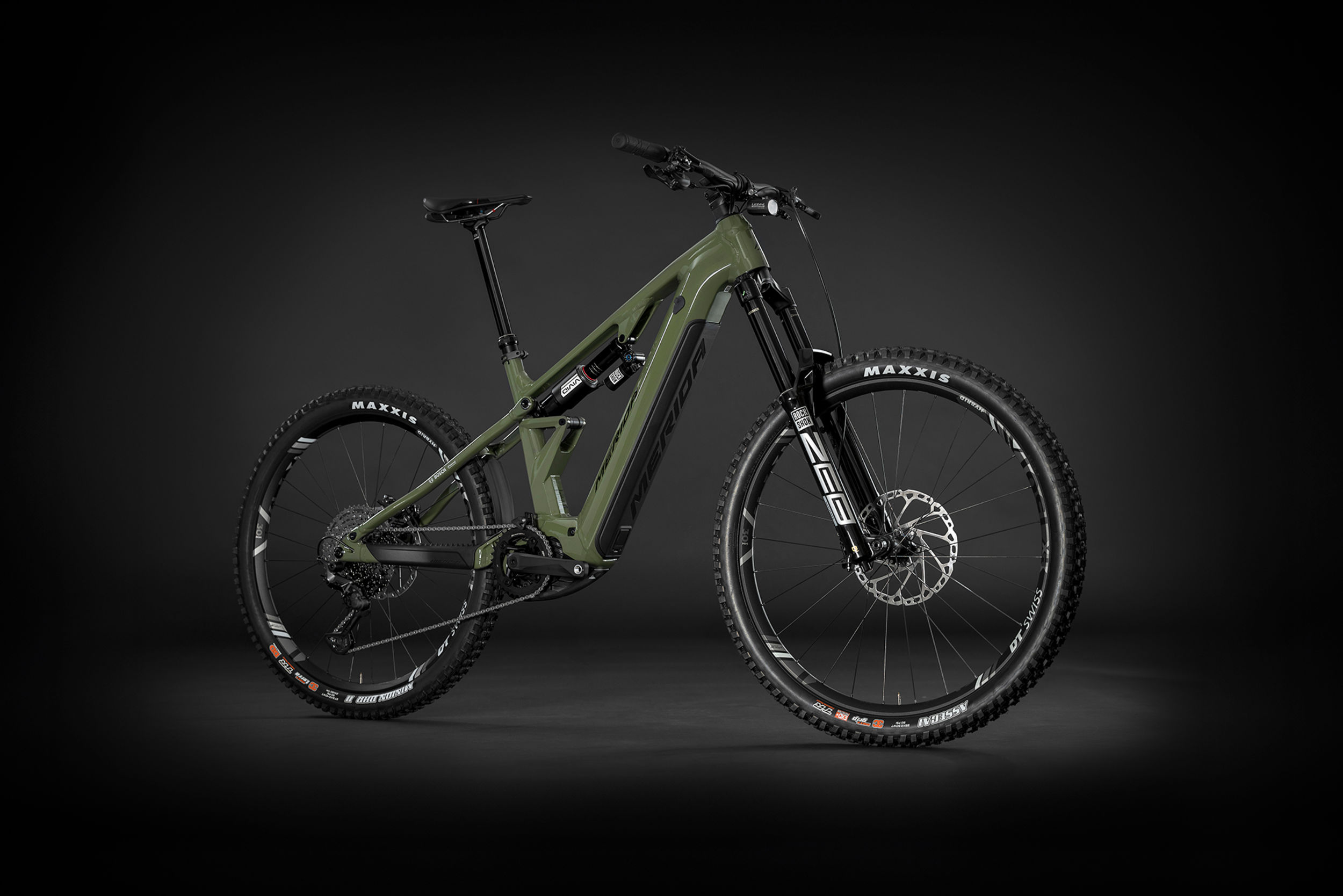

The Merida eONE-EIGHTY FR 800 is a mid-range build of the eONE-EIGHTY: Bosch Performance Line CX (120 Nm) with 800 Wh, RockShox Zeb Ultimate eMTB fork, RockShox Vivid Coil Ultimate shock, SRAM Eagle 70 Transmission and SRAM Maven Base brakes.
The eONE-EIGHTY is Merida's longest-travel e-MTB: an aluminium frame with 180 mm of travel front and rear, mixed 29/27.5-inch wheels only and coil-shock compatibility. Its suspension builds on the FAST kinematic of the eONE-SIXTY, and the frame is rated for Category 5 (downhill/bike park) riding under the 5-year warranty.
All builds use the Bosch Performance Line CX (120 Nm) with an 800 Wh PowerTube battery; a 250 Wh range extender is optional. The FR 800 and FR 600 are bike-park-focused builds with coil shocks (RockShox Vivid Coil and DVO Jade X respectively).
- Aluminium frame, 180 mm travel front and rear
- Bosch Performance Line CX, 120 Nm
- 800 Wh battery, optional 250 Wh range extender
- Category 5 rating, mixed wheels
Gallery
Photos: Merida
Full specifications
Frame & suspension
- Frame
- eONE-EIGHTY LITE, material: Aluminum, 180mm suspension travel, 650B x 2.60 max wheelsize, 148x12mm axle standard, intube
- Sizes
- XShort, Short, Mid, Long, XLong
- Colour
- HALO GREEN (GREY)
- Fork
- RockShox Zeb Ultimate eMTB, Air, 180mm suspension travel, Tapered, 44mm fork offset, 29x2.6" max wheelsize

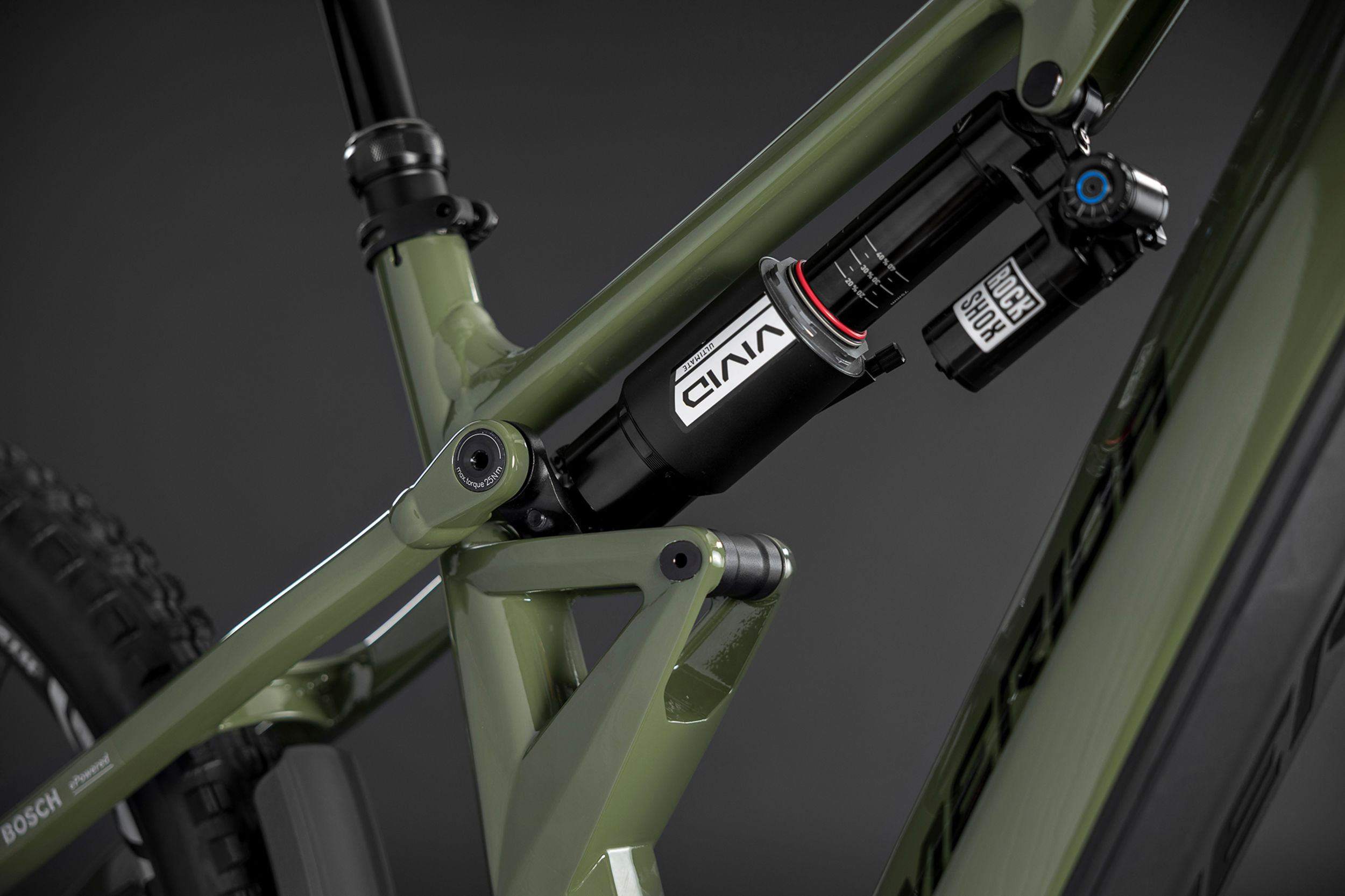

- Rear shock

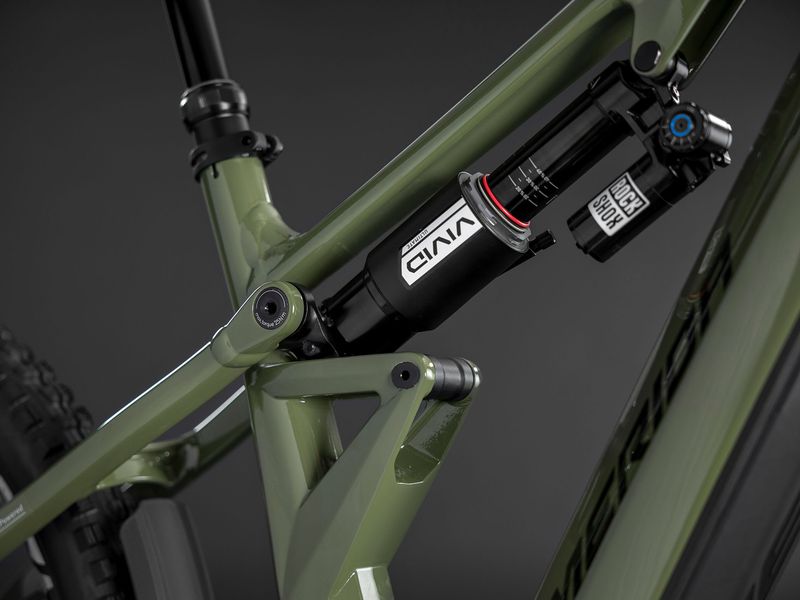

- RockShox Vivid Coil Ultimate, coil spring rates: XSHORT and SHORT: 300lbs - MID: 350 lbs - LONG: 400 lbs - XLONG: 450 lbs
- Headset
- Acros ICR MERIDA EXTERNAL neck w/ Blocklock
E-system
- Motor
- Bosch Performance Line CX, 120Nm, 750W
- Battery
- Bosch PowerTube 800 horizontal, 800Wh, removable
- Battery lock
- Abus Key
- Display
- Bosch Purion 400
Drivetrain
- Rear derailleur
- SRAM Eagle 70 Transmission, 12 speed
- Shifter
- SRAM Dropper Lever MMX / SRAM Eagle 70 Transmission
- Chain
- SRAM Eagle 70, Flattop
- Chainring
- SRAM Eagle Transmission E-MTB for BOSCH, 36 teeth
- Crankset
- SRAM S1000 Eagle E-MTB Crank, 160mm all sizes
- Cassette
- SRAM XS-1270 T-TYPE, 10-52 teeth, 12 speed
Brakes
- Brakes
- SRAM Maven Base, 4 piston, hydraulic
- Rotors
- SRAM CenterLine, 220mm, 200mm
Wheels & tyres
- Hubs
- Novatec SL-ELITE D041SB-B15 / Novatec SL-TEAM D462SB-S3S-B12-11S, 110x15mm width front hub, 32 spoke holes, 6 bolt, 148x12mm width rear hub, 32 spoke holes, 6 bolt
- Rims
- Reynolds 309 Enduro Comp, 30mm inner width, material: aluminium, Tubeless ready (tubeless tape installed), front 29", rear 27.5"
- Front tyre
- Maxxis Assegai, 29x2.5", fold, TR EXO+ 3C MaxxGrip
- Rear tyre
- Maxxis Minion DHR II, 27.5x2.4", fold, 3C DD TR MaxxTerra
- Axles
- MERIDA EXPERT TR, including removeable lever, 6/4mm allen key
- Spokes
- Black stainless, black nipples

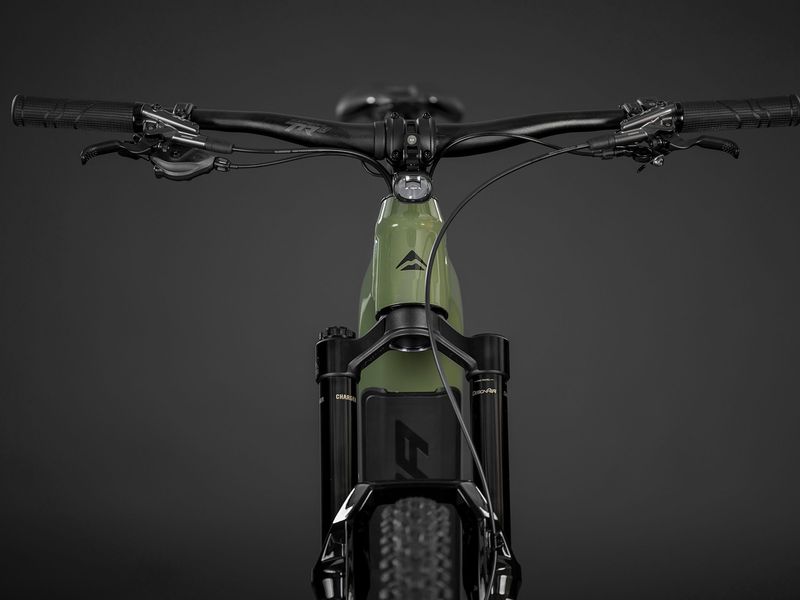

Cockpit
- Handlebar
- MERIDA EXPERT eTR, 780mm width
- Stem
- MERIDA EXPERT eTR II, material: aluminium, 35mm diameter, 0° stem angle, GoPro mount, 40 mm
- Grips
- MERIDA EXPERT TR
- Seatpost
- MERIDA TEAM TR II, 34.9mm diameter, 0mm setback, SHORT, MID, LONG and XLONG 30-230mm travel seatpost, XSHORT 30-200mm travel seatpost
- Seat clamp
- MERIDA EXPERT
- Saddle
- MERIDA COMP SL, V-mount, incl. MERIDA minitool
- Pedals
- VP VP-532
Other
- Front light
- Litemove SC160
- Rear light
- Chance Good CG-214RG
- Fender
- RF-001 mini fender
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
eONE-EIGHTY geometry
| Size | XShort | Short | Mid | Long | XLong |
|---|---|---|---|---|---|
| Wheel size | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" |
| STSeat tube | 400 mm | 410 mm | 425 mm | 445 mm | 465 mm |
| TTTop tube | 556 mm | 577 mm | 604 mm | 630 mm | 652 mm |
| CSChainstay | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| HTAHead angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| STASeat angle | 78.5° | 78.5° | 78.5° | 78.5° | 78.5° |
| BDBB drop | 12 mm | 12 mm | 12 mm | 12 mm | 12 mm |
| HTHead tube | 110 mm | 115 mm | 120 mm | 125 mm | 130 mm |
| FLFork length | 600 mm | 600 mm | 600 mm | 600 mm | 600 mm |
| RReach | 415 mm | 435 mm | 460 mm | 485 mm | 505 mm |
| SStack | 652 mm | 657 mm | 661 mm | 666 mm | 670 mm |
| WBWheelbase | 1195 mm | 1218 mm | 1245 mm | 1272 mm | 1294 mm |
| StrStack-to-reach ratio | 1.57 | 1.51 | 1.44 | 1.37 | 1.33 |
Source: Merida. Values for the stock mixed-wheel (29"/27.5") setup.
eONE-EIGHTY: builds compared
eONE-EIGHTY range →| eONE-EIGHTY 500 | eONE-EIGHTY FR 600 | eONE-EIGHTY 700 | eONE-EIGHTY FR 800 | eONE-EIGHTY 900 | |
|---|---|---|---|---|---|
| Frame | Alloy | Alloy | Alloy | Alloy | Alloy |
| Fork | RockShox Zeb eMTB, Air | DVO Onyx 38 D3, Air | RockShox Zeb Select eMTB, Air | RockShox Zeb Ultimate eMTB, Air | RockShox Zeb Ultimate eMTB, Air |
| Shock | RockShox Vivid Base | DVO Jade X Core | RockShox Vivid Select | RockShox Vivid Coil Ultimate | RockShox Vivid Ultimate |
| Derailleur | Shimano CUES U6000 | Shimano CUES U6000 | SRAM Eagle 70 Transmission | SRAM Eagle 70 Transmission | Shimano XT M8230 |
| Brakes | SRAM DB4 stealth | SRAM DB4 stealth | SRAM DB8 stealth | SRAM Maven Base | Shimano XT |
| Wheels | MERIDA EXPERT TR II, 110x15mm width front hub | Reynolds 309 Enduro Comp, 30mm inner width | Reynolds 309 Enduro Comp, 30mm inner width | Reynolds 309 Enduro Comp, 30mm inner width | — |
| Display | Bosch Purion 200 | Bosch Purion 200 | Bosch Purion 400 | Bosch Purion 400 | Bosch Purion 400 |
eONE-EIGHTY FR 800: FAQ
What motor and battery does the Merida eONE-EIGHTY FR 800 have?
Bosch Performance Line CX (120 Nm). 800 Wh battery — bosch PowerTube 800 horizontal, removable; optional 250 Wh range extender.
How much suspension travel does the Merida eONE-EIGHTY FR 800 have?
180 mm at the fork and 180 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Merida eONE-EIGHTY FR 800 come in?
XShort, Short, Mid, Long, XLong. Check the geometry table to compare reach and stack between sizes.
What is the difference between the eONE-EIGHTY FR 800 and the eONE-EIGHTY 900?
They share the eONE-EIGHTY frame platform and motor; the differences are in the parts — shock: RockShox Vivid Coil Ultimate vs RockShox Vivid Ultimate; derailleur: SRAM Eagle 70 Transmission vs Shimano XT M8230.
