MeridaeONE-SIXTY 400
- Motor
- Shimano EP80185 Nm
- Battery
- 630 WhShimano EN806 630, removable; optional 360 Wh range extender
- Travel F / R
- 160 / 174 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Alloy
Overview

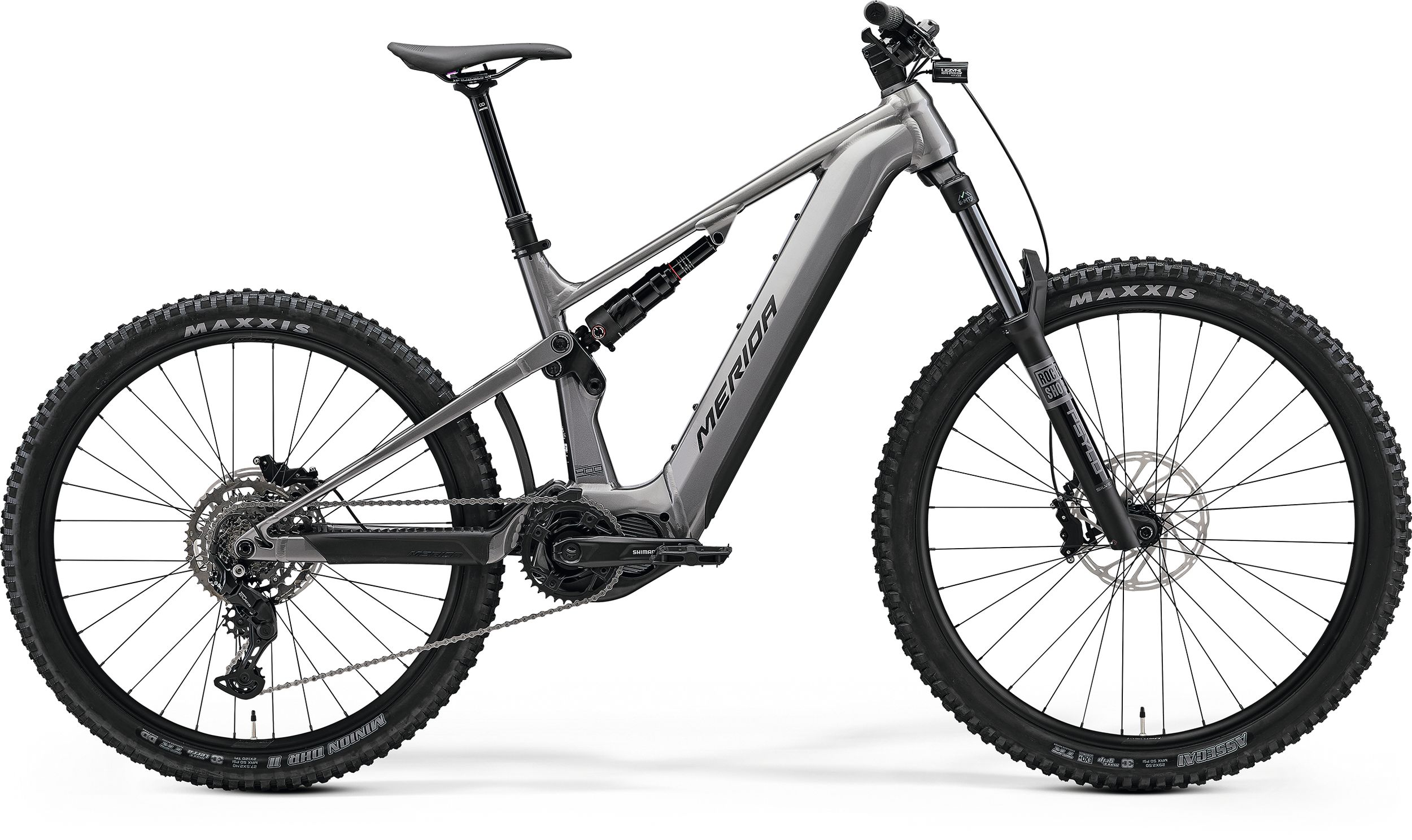

The Merida eONE-SIXTY 400 is the only build of the eONE-SIXTY: Shimano EP801 (85 Nm) with 630 Wh, RockShox Psylo Silver RC fork, RockShox Deluxe shock, Shimano CUES U4000 and SRAM DB4 stealth brakes.
The eONE-SIXTY is Merida's aluminium e-enduro bike, now on its fourth-generation LITE frame. It uses Merida's FAST flex-stay kinematic with 174 mm of rear travel (with the 27.5-inch rear wheel) and a 160 mm fork; mixed 29/27.5-inch wheels are standard and a flip chip allows a full 29-inch setup.
The current range is the single eONE-SIXTY 400 build with a Shimano EP801 drive unit (85 Nm) and a user-removable 630 Wh battery; Merida lists an optional 360 Wh range extender. Coil shocks are compatible and all sizes get long-travel dropper posts.
- Aluminium frame, 174 mm rear / 160 mm fork
- Shimano EP801, 85 Nm
- 630 Wh removable battery, optional 360 Wh extender
- Mixed wheels, flip chip for full 29"
Gallery
Photos: Merida
Full specifications
Frame & suspension
- Frame
- eONE-SIXTY LITE IV, material: aluminium, 160mm suspension travel, 29x2.6" max. wheelsize, 148x12mm axle standard, intube, 750 Wh
- Sizes
- XShort, Short, Mid, Long, XLong
- Colour
- DEEP FOREST GREEN (LIGHT EARTH)
- Fork
- RockShox Psylo Silver RC, AIR, 160mm suspension travel, 44mm fork offset, 29x2.6" max wheelsize
- Rear shock
- RockShox Deluxe
- Headset
- Acros ICR MERIDA EXTERNAL neck w/ Blocklock
E-system
- Motor
- Shimano EP801, 85Nm, 600W
- Battery
- Shimano EN806 630, 630Wh, removable
- Battery lock
- Abus key
- Display
- Shimano SC-EN500
Drivetrain
- Rear derailleur
- Shimano CUES U4000, GS, 9 speed
- Shifter
- Shimano SL -MT500-L / Shimano CUES U4000-9
- Chain
- Shimano LG500
- Chainring
- FSA 1x Steel Chainring, 36 teeth
- Crankset
- Shimano FC-EM600, 165 mm for all sizes
- Cassette
- Shimano LG400-9, 11-46 teeth, 9 speed
Brakes
- Brakes
- SRAM DB4 stealth, 4 piston, hydraulic
- Rotors
- SRAM CenterLine, 200mm
Wheels & tyres
- Hubs
- Shimano TC500-B / Shimano TC500, 15x100mm width front hub, 32 spoke holes, Centerlock, 12x148mm width rear hub, 32 spoke holes, Centerlock
- Rims
- MERIDA EXPERT TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), front 29", rear 27.5"
- Front tyre
- Maxxis Assegai, 29x2.5", fold, TR EXO+ 3C MaxxGrip
- Rear tyre
- Maxxis Minion DHR II, 27.5x2.4", fold, 3C DD TR MaxxTerra
- Axles
- MERIDA EXPERT TR, including removeable lever, 6/4mm allen key
- Spokes
- Black stainless, black nipples
Cockpit
- Handlebar
- MERIDA EXPERT eTR, 780mm width
- Stem
- MERIDA EXPERT eTR II, material: aluminium, 35mm diameter, 0° stem angle, Supernova mount, 40 mm all sizes
- Grips
- MERIDA EXPERT EC
- Seatpost
- MERIDA EXPERT TR II, 34.9mm diameter, 0mm setback, XS: 125mm travel seatpost - S: 150mm travel seatpost - M: 170mm travel seatpost - L: 200mm travel seatpost - XL: 230mm travel seatpost
- Seat clamp
- MERIDA EXPERT
- Saddle
- MERIDA COMP SL, V-mount, incl. MERIDA minitool
- Pedals
- VP VPE-533
Other
- Front light
- Lezyne Hekto StVZO E350+ Reverse, reverse MERIDA Custom Mount
- Rear light
- Chance Good CG-404RG-BLK
- Fender
- EOF-204
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
eONE-SIXTY geometry
| Size | XShort | Short | Mid | Long | XLong |
|---|---|---|---|---|---|
| Wheel size | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" |
| STSeat tube | 400 mm | 410 mm | 425 mm | 445 mm | 465 mm |
| TTTop tube | 546 mm | 567 mm | 589 mm | 610 mm | 632 mm |
| CSChainstay | 446 mm | 446 mm | 446 mm | 446 mm | 446 mm |
| HTAHead angle | 64.4° | 64.4° | 64.4° | 64.4° | 64.4° |
| STASeat angle | 78.5°° | 78.5°° | 78.4°° | 78.4°° | 78.3°° |
| BDBB drop | 9 mm | 9 mm | 9 mm | 9 mm | 9 mm |
| HTHead tube | 100 mm | 105 mm | 110 mm | 115 mm | 120 mm |
| FLFork length | 581 mm | 581 mm | 581 mm | 581 mm | 581 mm |
| RReach | 419 mm | 439 mm | 459 mm | 479 mm | 499 mm |
| SStack | 624 mm | 628 mm | 633 mm | 637 mm | 642 mm |
| WBWheelbase | 1199 mm | 1221 mm | 1244 mm | 1266 mm | 1288 mm |
| SHStandover | 763 mm | 757 mm | 751 mm | 749 mm | 744 mm |
Source: Merida. Values for the stock mixed-wheel (29"/27.5") setup.
eONE-SIXTY 400: FAQ
What motor and battery does the Merida eONE-SIXTY 400 have?
Shimano EP801 (85 Nm). 630 Wh battery — shimano EN806 630, removable; optional 360 Wh range extender.
How much suspension travel does the Merida eONE-SIXTY 400 have?
160 mm at the fork and 174 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Merida eONE-SIXTY 400 come in?
XShort, Short, Mid, Long, XLong. Check the geometry table to compare reach and stack between sizes.
