IntenseTazer Legacy
- Motor
- Bosch Performance Line CX120 Nm; 750 W peak
- Battery
- 800 WhBosch PowerTube; PowerMore 250 compatible (M-XL)
- Travel F / R
- 160 / 150 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
All Bosch Performance Line CX eMTBs →
Watching this bike? Get new models and updates on Telegram →
Overview
$9,999 for the Tazer Legacy with Fox Factory 38 and Float X, SRAM XX AXS Transmission and Maven Silver brakes. Bosch CX Gen 5, 800 Wh.
The Tazer Legacy is one of 3 builds of the Intense Tazer. About the Tazer range and all its builds →

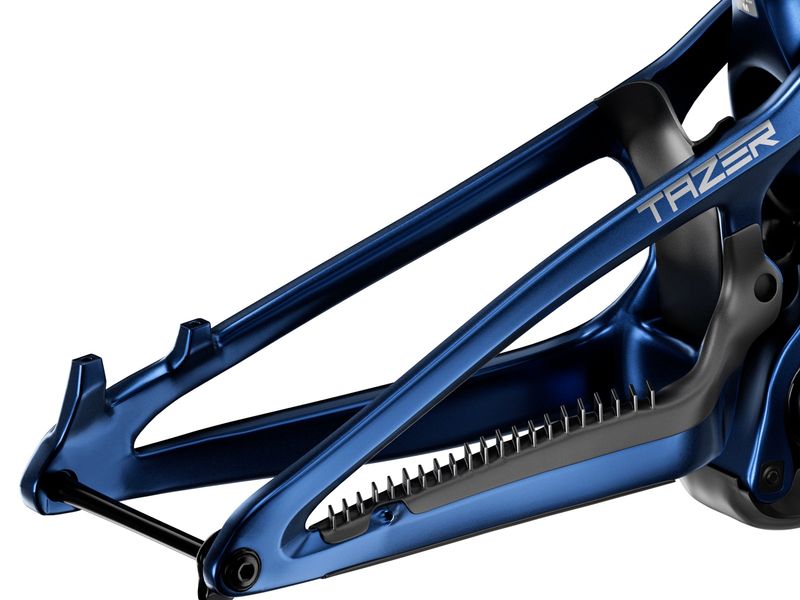

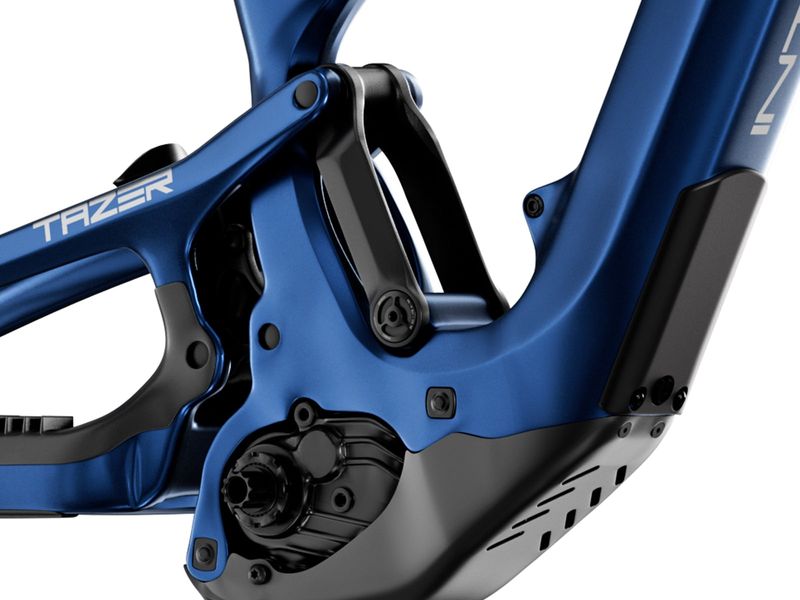

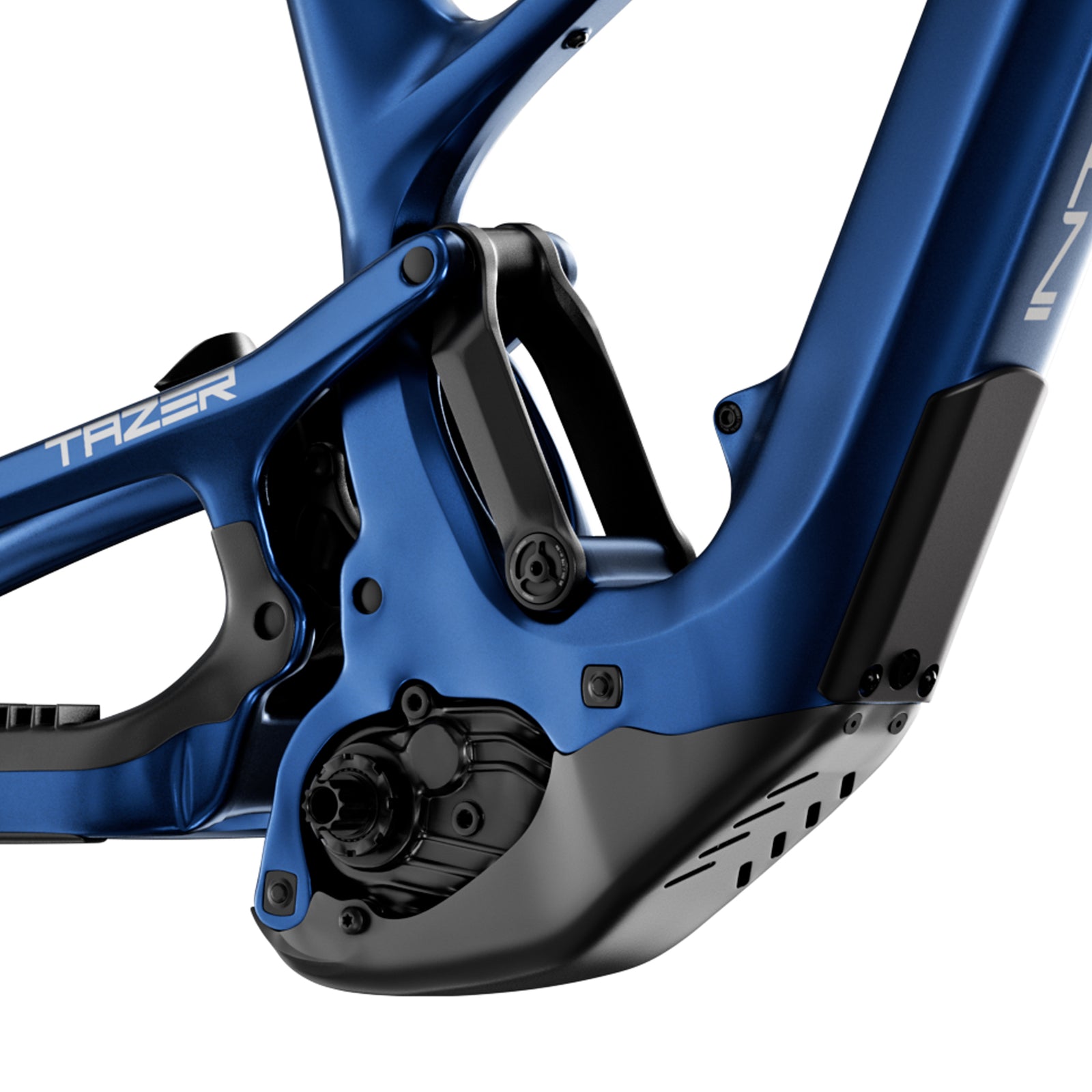

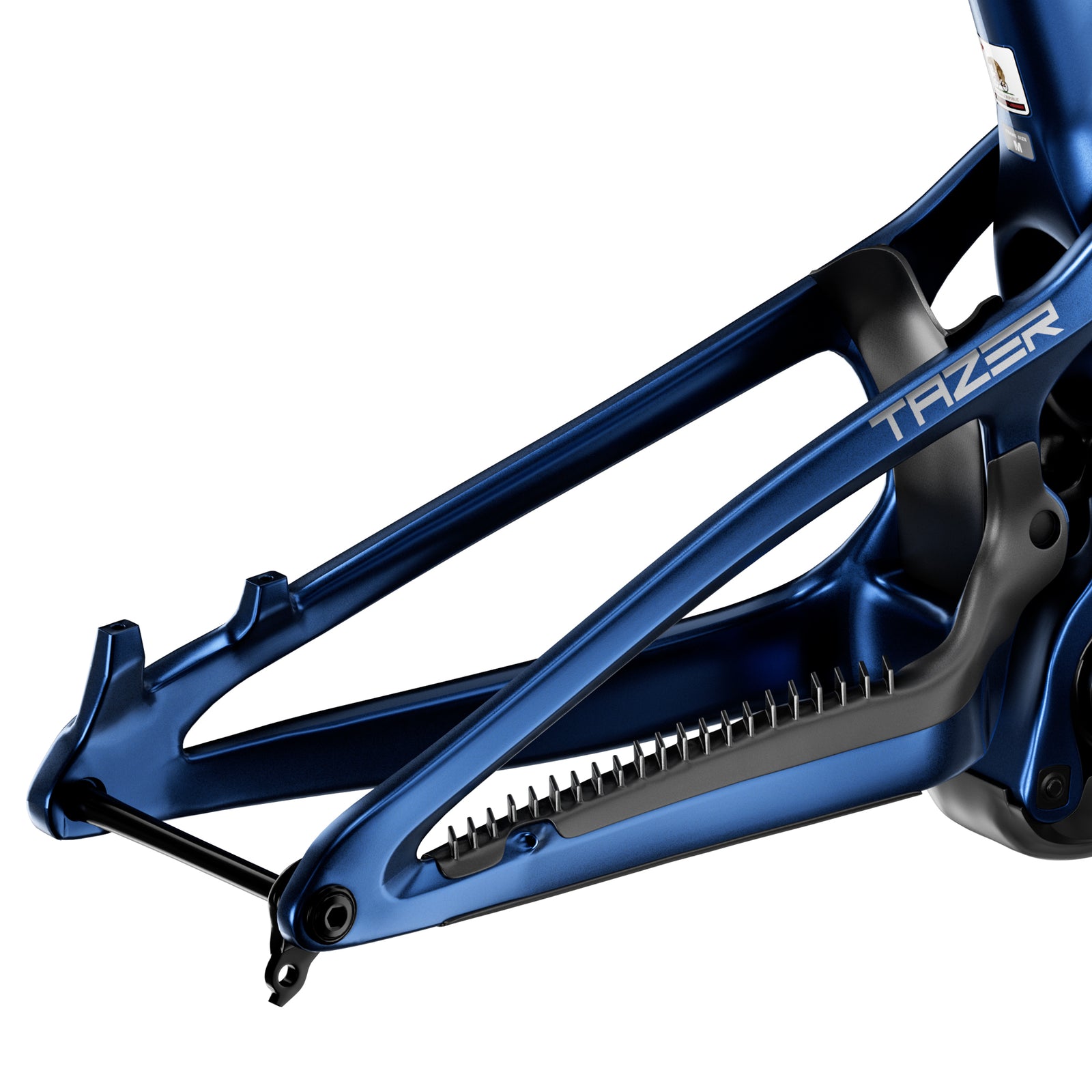

Gallery
Photos: INTENSE
Full specifications
Frame & suspension
- Frame

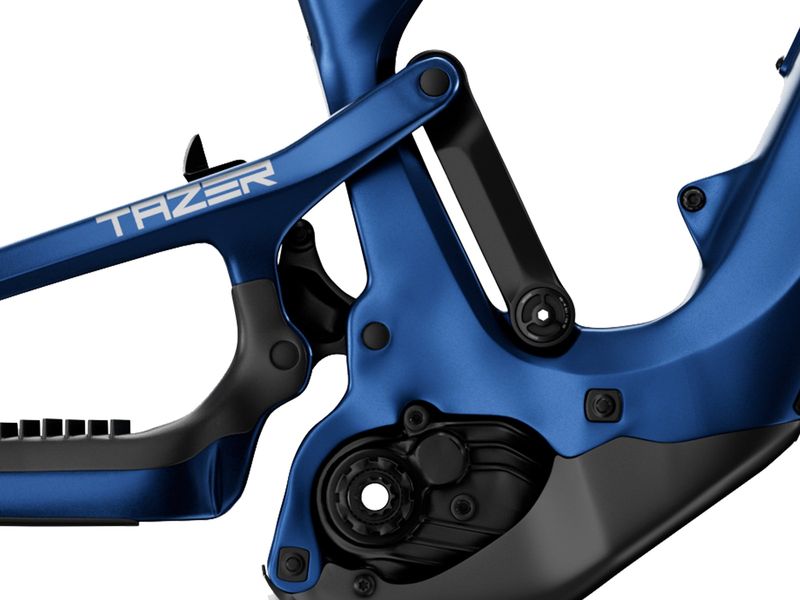

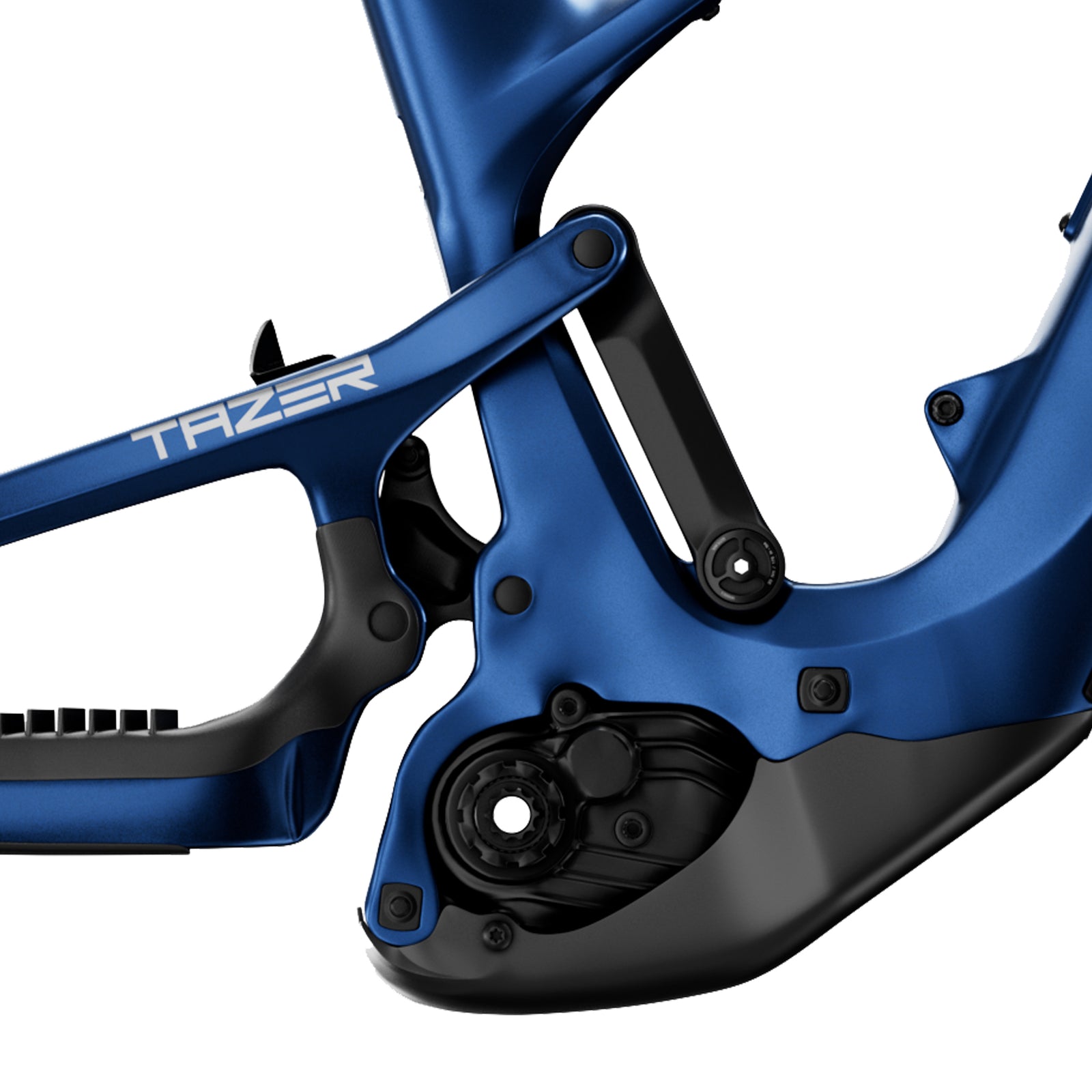

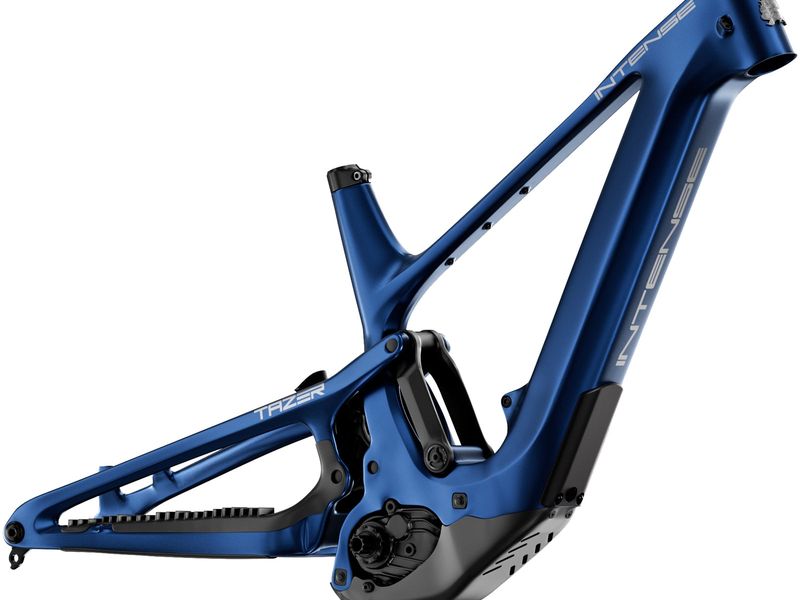

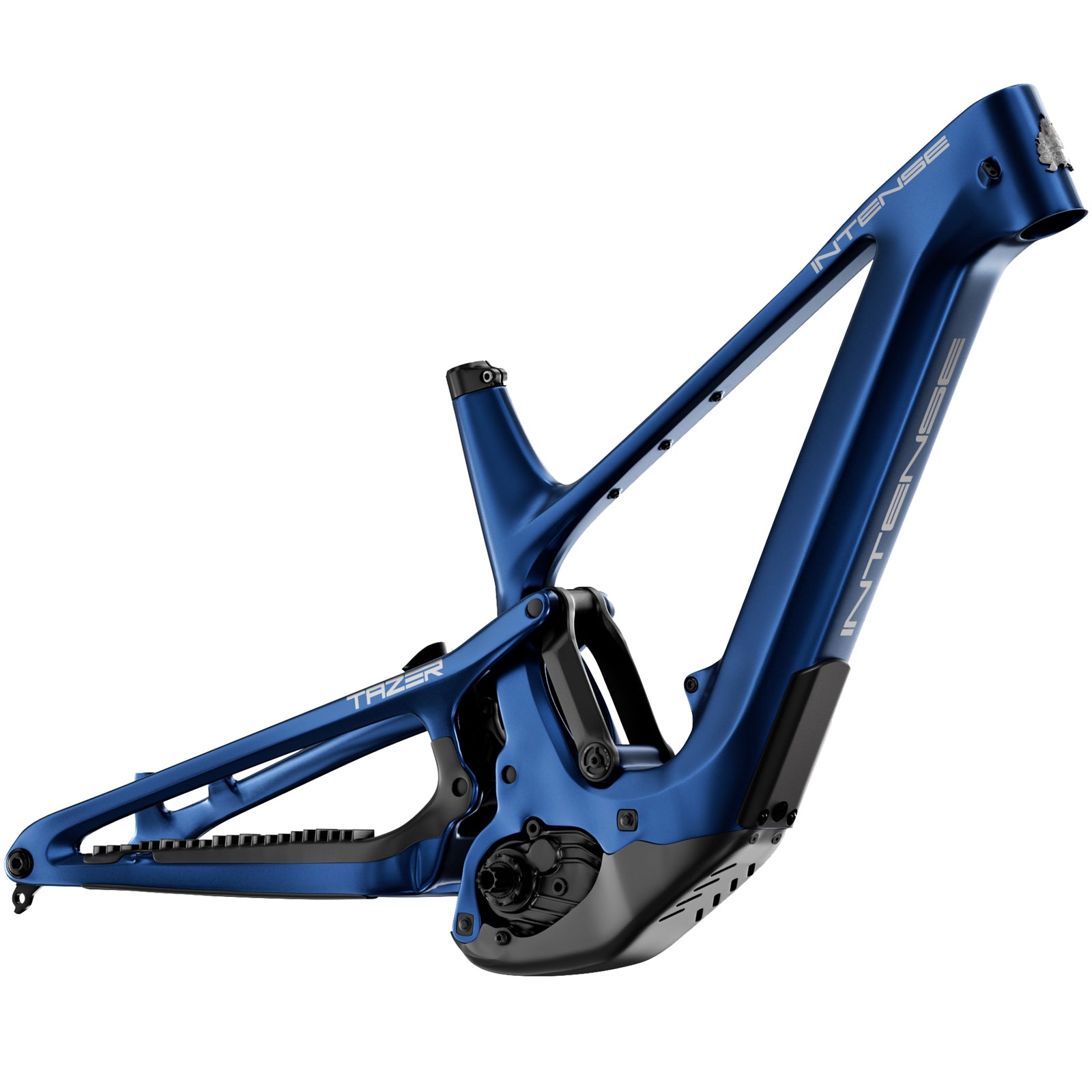

- INTENSE Tazer full carbon, DCR Link, 150 mm travel
- Rear shock
- Fox Float X Factory (MY27)
- Fork
- Fox 38 160 mm Factory (MY27)
- Rear hub
- 12 x 148 mm Boost, UDH
E-system

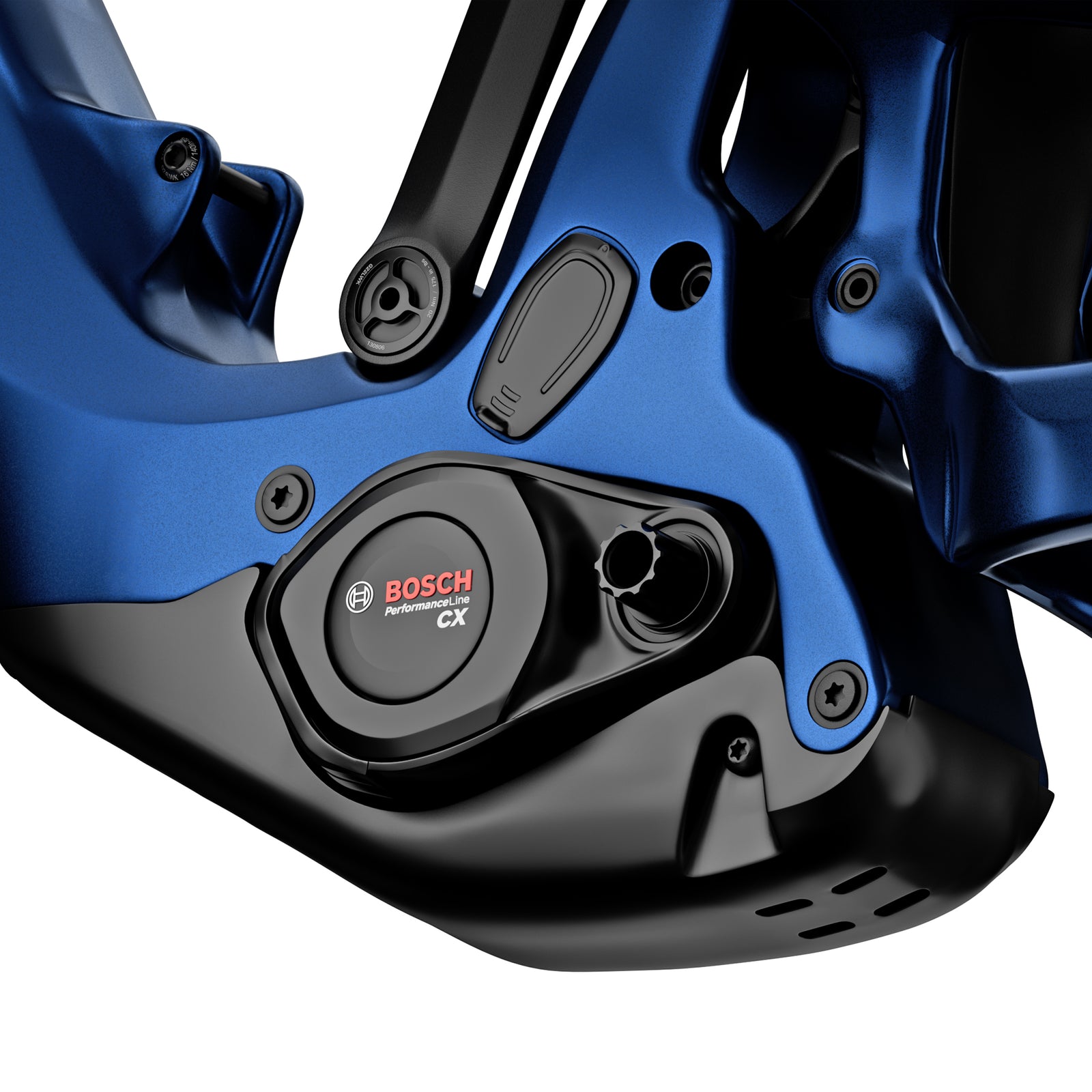

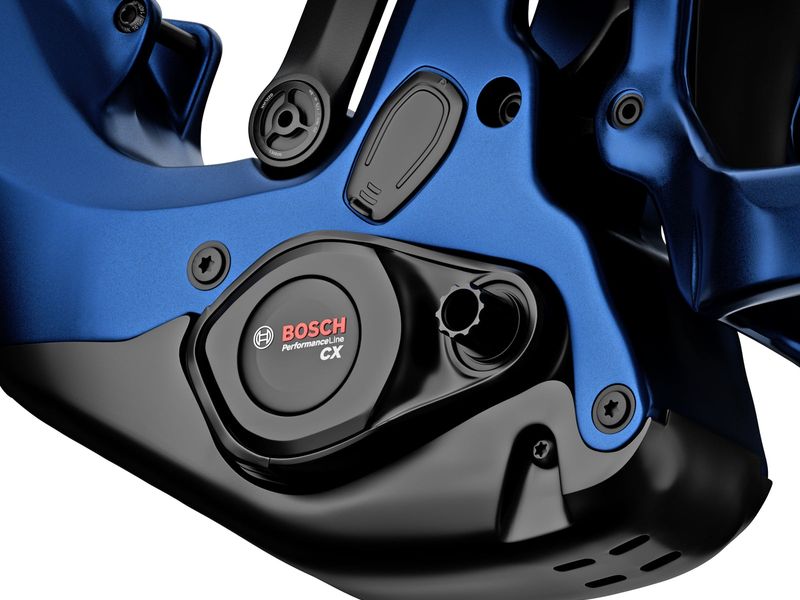

- Motor
- Bosch Performance Line CX Gen 5, 120 Nm, 750 W peak
- Remote
- Bosch Mini Remote
- Range extender
- Bosch PowerMore 250 compatible (M, L, XL)
- Display
- Bosch Kiox 400c Display
- Battery
- Bosch PowerTube (800 Wh)
Drivetrain
- Drivetrain
- SRAM XX AXS Transmission eMTB
Brakes
- Brakes
- SRAM Maven Silver B1 HS2 200
Wheels & tyres
- Tyres
- Continental Kryptotal F 29x2.4 Enduro Supersoft | Kryptotal R 27.5x2.4 Enduro Soft
- Wheelset
- DT Swiss EXC 1700 MX DF Wheelset
- Wheel size
- MX: 29" front / 27.5" rear
Cockpit
- Seatpost
- OneUp V3 Dropper 31.6 mm (150 mm S, 180 mm M/L, 210 mm XL)
- Saddle
- WTB Solano Chromoly
- Handlebar / stem
- Renthal Fatbar 35/30 Carbon
- Grips
- ODI Elite Flow Black
Manufacturer specification (source). Specs and prices can change; check with the brand or your dealer.
Tazer geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| Reach | 430 mm | 460 mm | 480 mm | 505 mm |
| Stack | 614.3 mm | 627.8 mm | 636.8 mm | 641.4 mm |
| Head tube angle | 64.5° | 64.5° | 64.5° | 64.5° |
| Seat tube angle (effective) | 77.9° | 77.9° | 77.9° | 77.9° |
| Seat tube angle (actual) | 72.8° | 72.8° | 72.8° | 72.8° |
| Top tube length | 560.9 mm | 595 mm | 617.8 mm | 644.2 mm |
| Head tube length | 100 mm | 115 mm | 125 mm | 130 mm |
| Seat tube length | 405 mm | 415 mm | 445 mm | 470 mm |
| Chainstay length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1205.4 mm | 1241.9 mm | 1266.1 mm | 1293.3 mm |
| Front centre | 756 mm | 792.5 mm | 816.8 mm | 843.9 mm |
| BB height | 342 mm | 342 mm | 342 mm | 342 mm |
| BB drop (front wheel) | 33 mm | 33 mm | 33 mm | 33 mm |
| BB drop (rear wheel) | 13 mm | 13 mm | 13 mm | 13 mm |
| Max seatpost insertion | 220 mm | 230 mm | 250 mm | 280 mm |
Source: INTENSE. MX (27.5" rear) configuration; full 29" version has 450 mm chainstays and ~0.6 mm longer wheelbase.
Tazer: builds compared
Tazer range →| Tazer Foundation | Tazer Pro | Tazer Legacy | |
|---|---|---|---|
| Price | $6,999 | $8,799 | $9,999 |
| Frame | Carbon | Carbon | Carbon |
| Fork | Fox 38 160 mm Performance | RockShox Zeb 160 mm Ultimate A3 | Fox 38 160 mm Factory (MY27) |
| Shock | Fox Float X Performance | RockShox Super Deluxe Ultimate D1 | Fox Float X Factory (MY27) |
| Brakes | SRAM Maven Base HS2 200 | SRAM Maven Silver B1 HS2 200 | SRAM Maven Silver B1 HS2 200 |
| Display | Bosch System Controller | Bosch Kiox 400c Display | Bosch Kiox 400c Display |
Tazer Legacy: FAQ
What is the difference between the Tazer Legacy and the Tazer Pro?
They share the Tazer frame platform and motor; the differences are in the parts: fork: Fox 38 160 mm Factory (MY27) vs RockShox Zeb 160 mm Ultimate A3; shock: Fox Float X Factory (MY27) vs RockShox Super Deluxe Ultimate D1; price: $9,999 vs $8,799.
