INTENSE Tazer Foundation e-MTB, side view
Photo: INTENSE
Full-power eMTBTrail2027
Tazer range · 3 builds

IntenseTazer Foundation

$6,999US RRP, excl. sales tax (intensecycles.com)
Motor
Bosch Performance Line CX120 Nm; 750 W peak
Battery
600 WhBosch PowerTube; PowerMore 250 compatible (M-XL)
Travel F / R
160 / 150 mm
Wheels
Mullet 29" / 27.5"
Frame
Carbon

All Bosch Performance Line CX eMTBs →

Watching this bike? Get new models and updates on Telegram →

Overview

$6,999 gets you into the Intense Tazer with the Bosch CX Gen 5 and 600 Wh, a Fox 38 Performance fork, Float X Performance shock and SRAM Maven Base brakes. Intense doesn't quote a weight.

The Tazer Foundation is one of 3 builds of the Intense Tazer. About the Tazer range and all its builds →

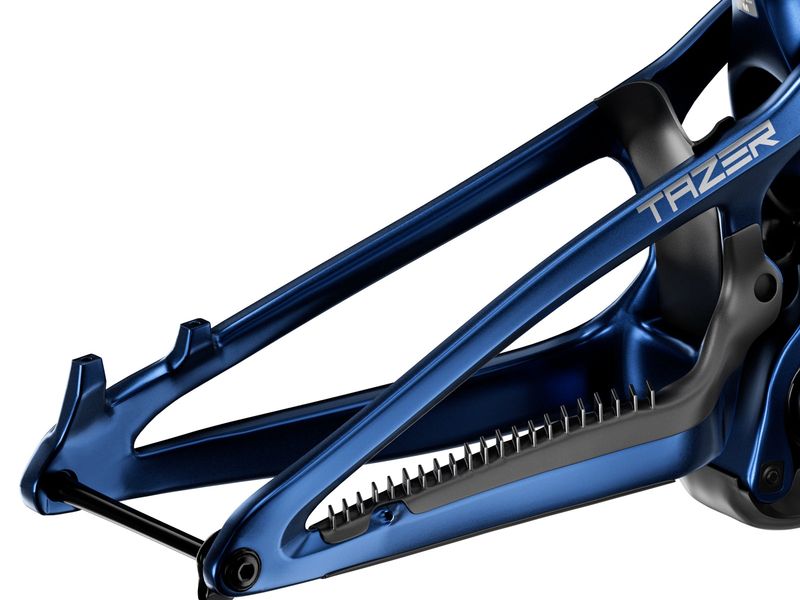

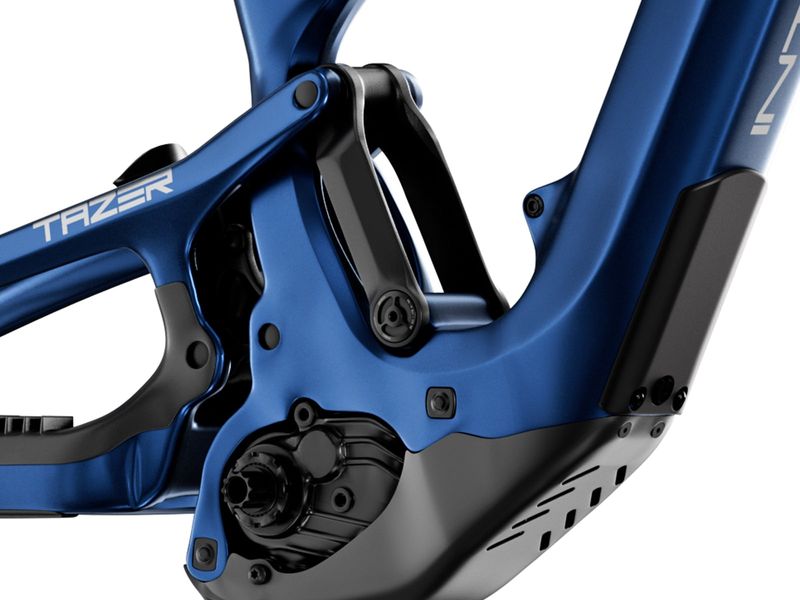

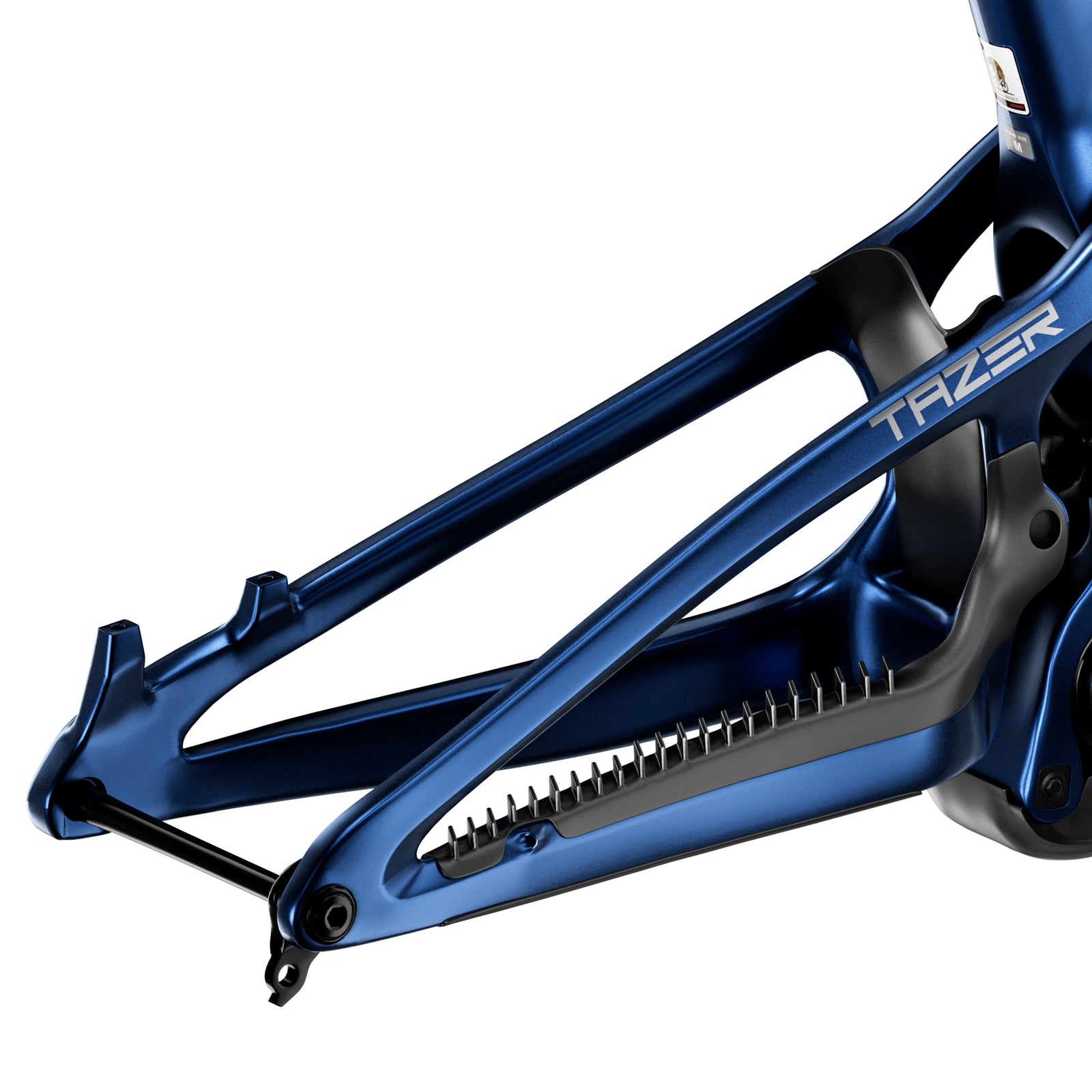

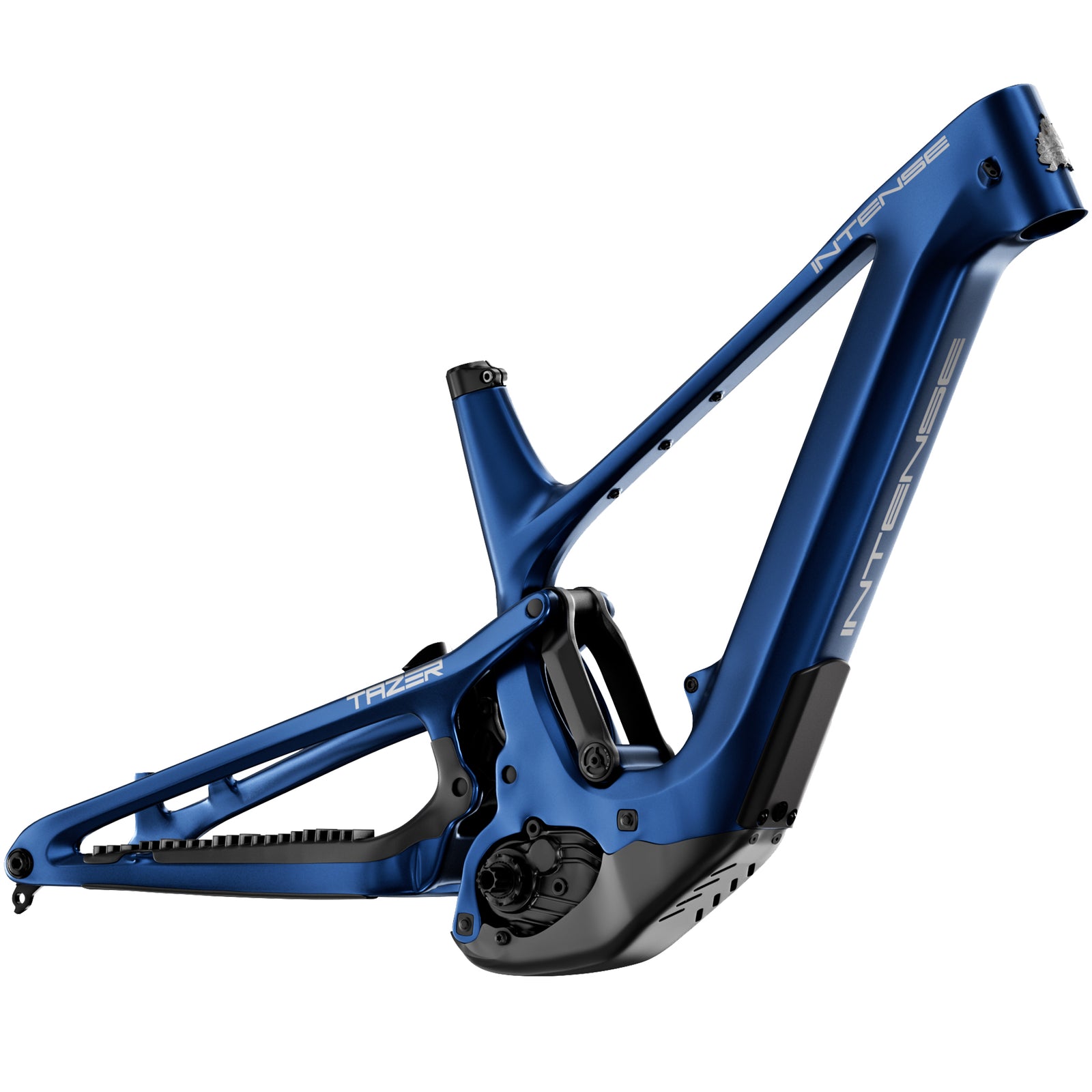

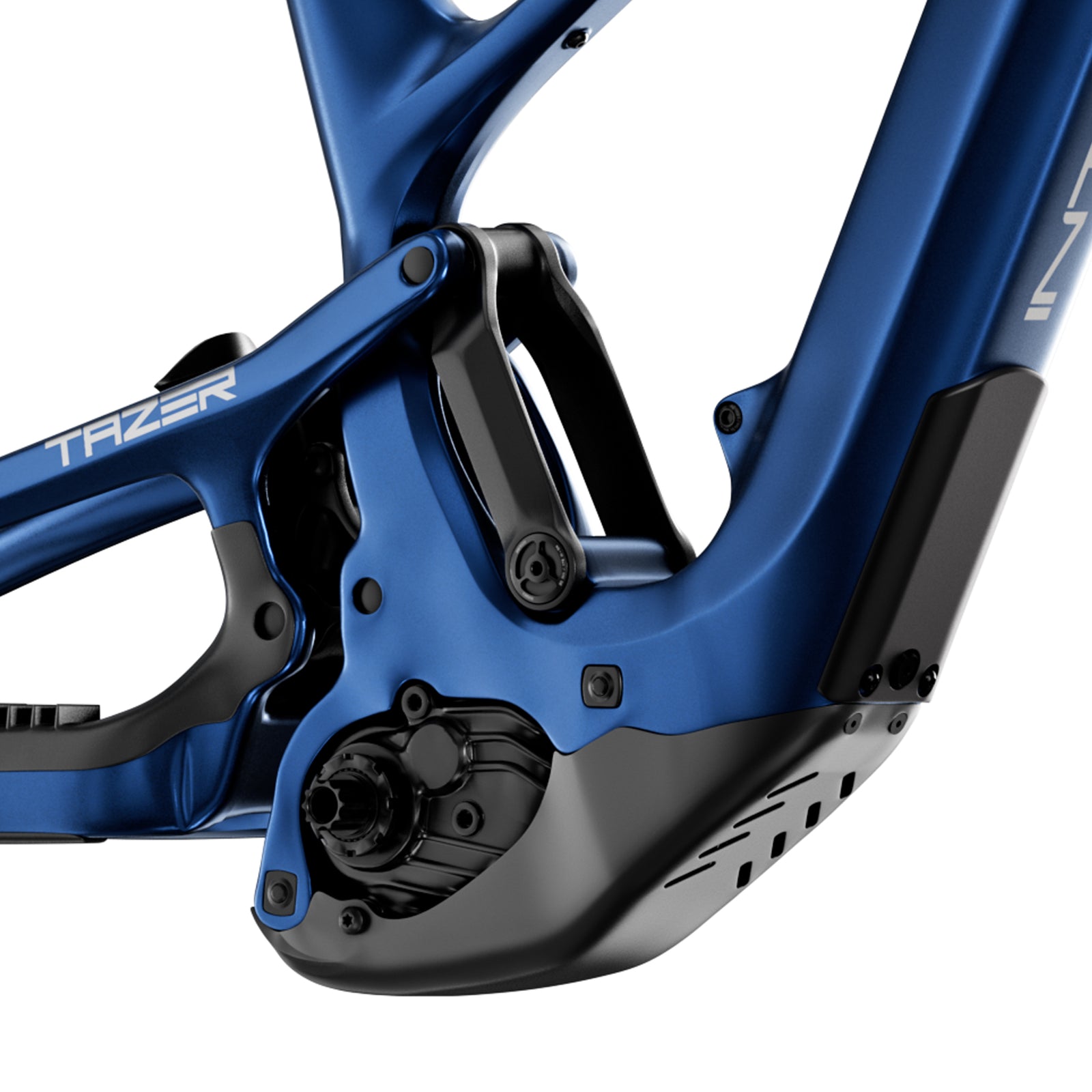

Gallery

Photos: INTENSE

Full specifications

Frame & suspension

Frame

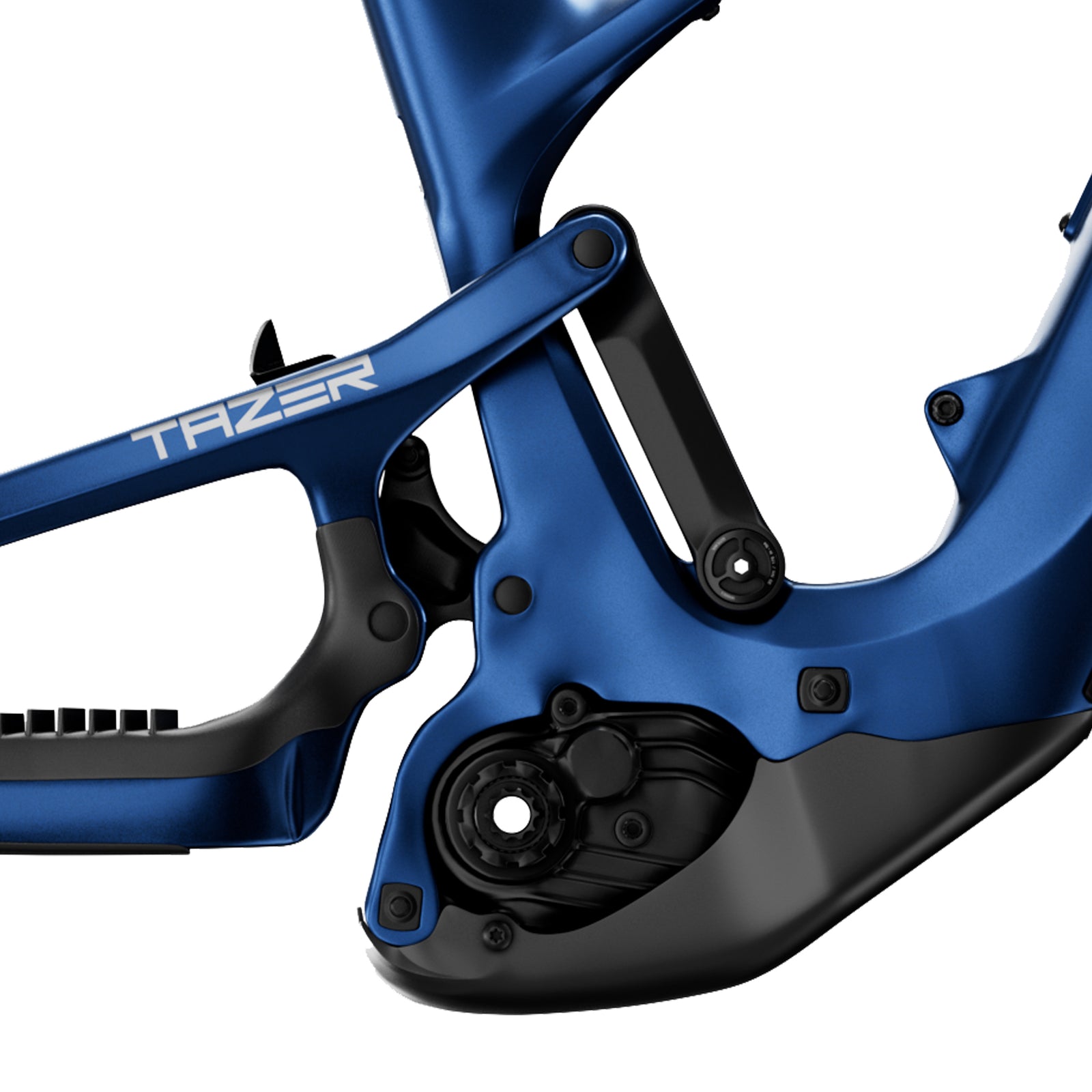

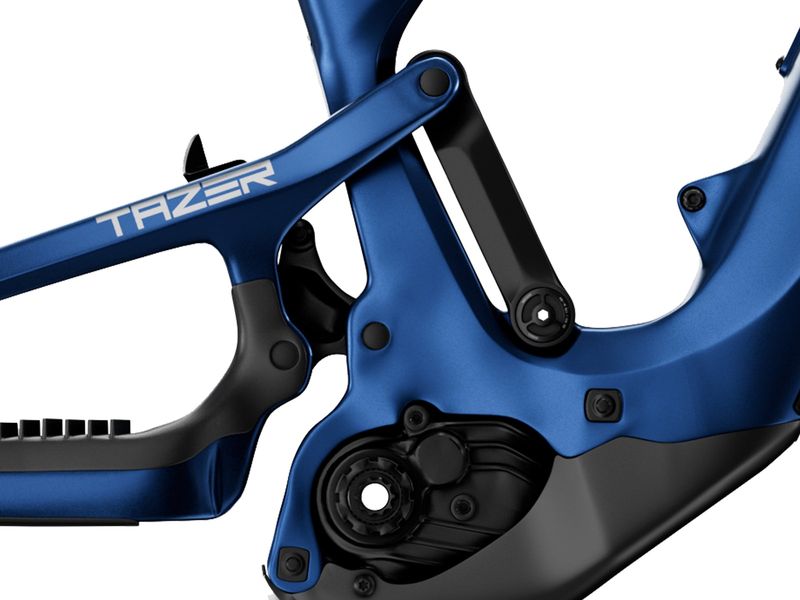

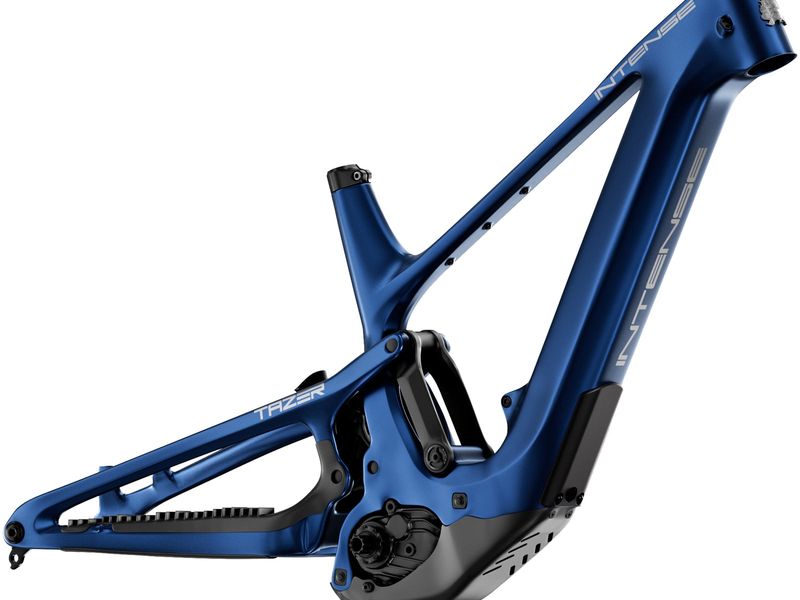

INTENSE Tazer full carbon, DCR Link, 150 mm travel
Rear shock
Fox Float X Performance
Fork
Fox 38 160 mm Performance
Rear hub
12 x 148 mm Boost, UDH

E-system

Motor

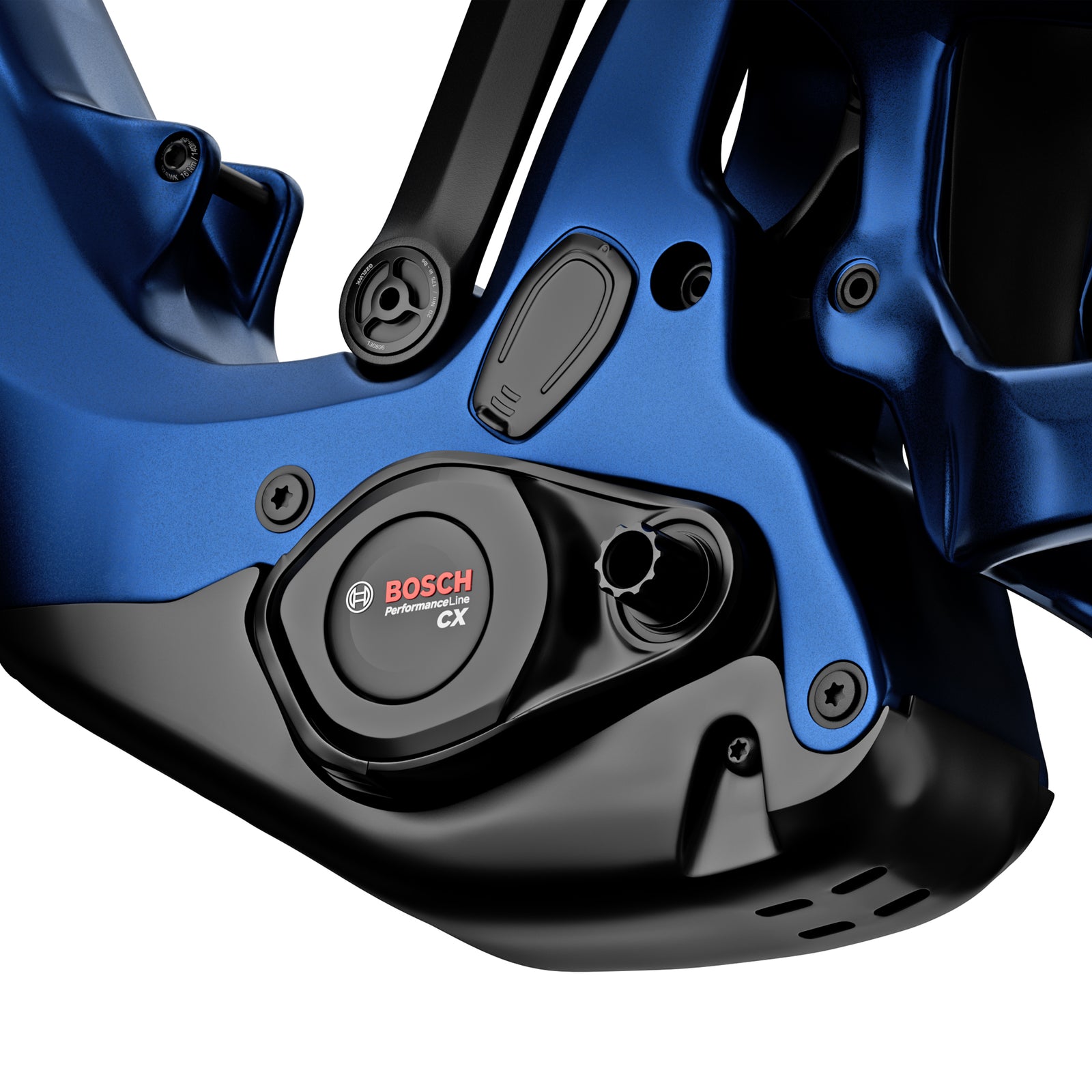

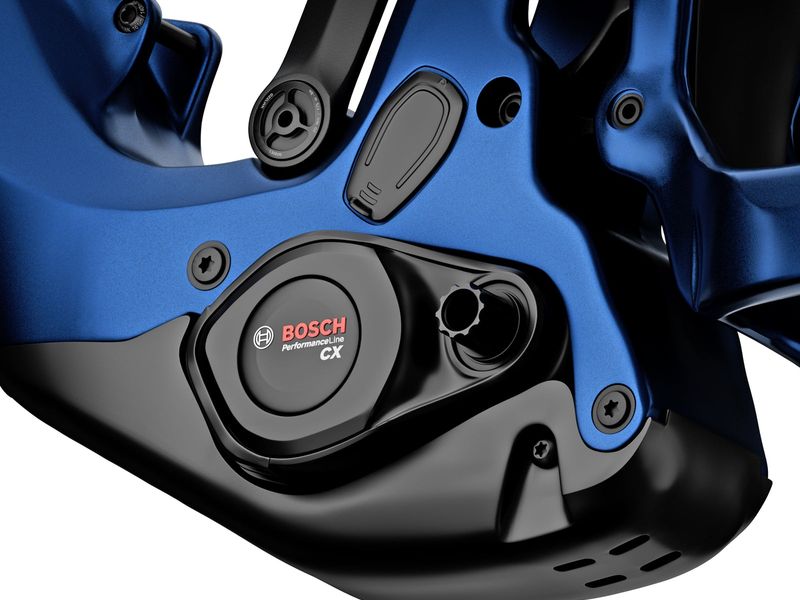

Bosch Performance Line CX Gen 5, 120 Nm, 750 W peak
Remote
Bosch Mini Remote
Range extender
Bosch PowerMore 250 compatible (M, L, XL)
Display
Bosch System Controller
Battery
Bosch PowerTube (600 Wh)

Drivetrain

Drivetrain
SRAM Eagle 70/90 eMTB

Brakes

Brakes
SRAM Maven Base HS2 200

Wheels & tyres

Tyres
Continental Kryptotal F 29x2.4 Enduro Supersoft | Kryptotal R 27.5x2.4 Enduro Soft
Wheelset
DT Swiss H 1900 MX Wheelset
Wheel size
MX: 29" front / 27.5" rear

Cockpit

Seatpost
OneUp V3 Dropper 31.6 mm (150 mm S, 180 mm M/L, 210 mm XL)
Saddle
WTB Solano Chromoly
Handlebar / stem
RaceFace Chester 35/35 Alloy
Grips
ODI Elite Flow Black

Manufacturer specification (source). Specs and prices can change; check with the brand or your dealer.

Tazer geometry

SizeSMLXL
Reach430 mm460 mm480 mm505 mm
Stack614.3 mm627.8 mm636.8 mm641.4 mm
Head tube angle64.5°64.5°64.5°64.5°
Seat tube angle (effective)77.9°77.9°77.9°77.9°
Seat tube angle (actual)72.8°72.8°72.8°72.8°
Top tube length560.9 mm595 mm617.8 mm644.2 mm
Head tube length100 mm115 mm125 mm130 mm
Seat tube length405 mm415 mm445 mm470 mm
Chainstay length445 mm445 mm445 mm445 mm
Wheelbase1205.4 mm1241.9 mm1266.1 mm1293.3 mm
Front centre756 mm792.5 mm816.8 mm843.9 mm
BB height342 mm342 mm342 mm342 mm
BB drop (front wheel)33 mm33 mm33 mm33 mm
BB drop (rear wheel)13 mm13 mm13 mm13 mm
Max seatpost insertion220 mm230 mm250 mm280 mm

Source: INTENSE. MX (27.5" rear) configuration; full 29" version has 450 mm chainstays and ~0.6 mm longer wheelbase.

Tazer: builds compared

Tazer range →
Tazer FoundationTazer ProTazer Legacy
Price$6,999$8,799$9,999
FrameCarbonCarbonCarbon
ForkFox 38 160 mm PerformanceRockShox Zeb 160 mm Ultimate A3Fox 38 160 mm Factory (MY27)
ShockFox Float X PerformanceRockShox Super Deluxe Ultimate D1Fox Float X Factory (MY27)
BrakesSRAM Maven Base HS2 200SRAM Maven Silver B1 HS2 200SRAM Maven Silver B1 HS2 200
DisplayBosch System ControllerBosch Kiox 400c DisplayBosch Kiox 400c Display

Tazer Foundation: FAQ

What is the difference between the Tazer Foundation and the Tazer Pro?

They share the Tazer frame platform and motor; the differences are in the parts: fork: Fox 38 160 mm Performance vs RockShox Zeb 160 mm Ultimate A3; shock: Fox Float X Performance vs RockShox Super Deluxe Ultimate D1; price: $6,999 vs $8,799.
