HusqvarnaLight Cross LC3
- Motor
- Shimano EP685 Nm
- Battery
- 630 WhCore S1+, integrated
- Travel F / R
- 120 / 120 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Alloy
- Weight
- 24.4 kgManufacturer figure (size not stated)
Overview

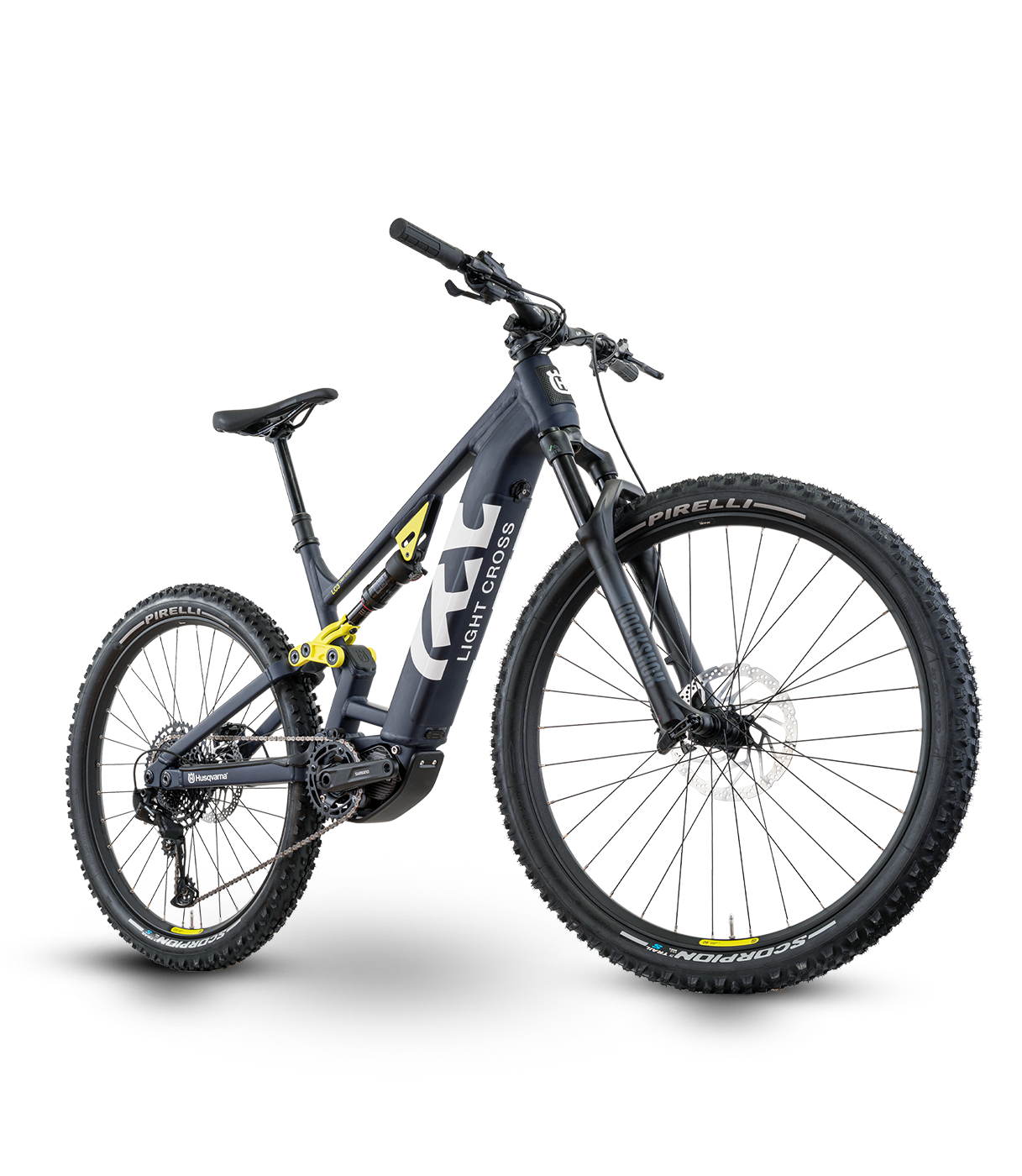

The Husqvarna Light Cross LC3 (€3,499) is a mid-range build of the Light Cross: Shimano EP6 (EP600) with 630 Wh, RockShox 35 Gold RL fork, RockShox Deluxe Select shock, SRAM SX Eagle and Shimano BR-MT410 brakes. Claimed weight is 24.4 kg.
The Light Cross is Husqvarna's short-travel trail e-MTB with 120 mm of rear travel, a 120–130 mm fork and mixed wheels (29-inch front, 27.5-inch rear). Husqvarna positions the LC1 as an entry point into e-MTB riding.
LC1 to LC3 use an aluminium (6061) frame with the Shimano EP6 (DU-EP600, 85 Nm) and a 504 Wh (LC1) or 630 Wh battery; LC4 to LC6 use a carbon/aluminium frame with the Shimano EP8 (DU-EP801, 85 Nm) and a 720 Wh Core S3+ battery. Claimed weights range from 23.2 to 24.5 kg.
- 120 mm rear travel, 120–130 mm fork
- Mixed wheels 29" / 27.5"
- Shimano EP6 or EP801, 85 Nm
- 504, 630 or 720 Wh integrated battery
Gallery
Photos: Husqvarna
Full specifications
Frame & suspension
- Frame
- 29/27.5", Alloy 6061, Integrated battery, Boost, New HQV Alloy, 120 mm
- Fork
- RockShox 35 Gold RL, DebonAir, Air, 120 mm, tapered
- Rear shock
- RockShox Deluxe Select, Air, 190x45 mm
- Headset
- Acros ICR, blocklock, ZS56/ZS56
E-system
- Motor
- Shimano EP6, DU-EP600, 250 W, 85 Nm
- Battery
- Core S1+, 630 Wh, 36 V, 17.5 Ah
- Charger
- Charger S, 4 A
- Mode Switch
- Shimano SW-EN600-L
- Display
- Shimano SC-EN600, LCD-Display, Bluetooth
Drivetrain
- Rear derailleur
- SRAM SX Eagle, 12-S
- Cassette
- SRAM PG-1210, 11-50 T
- Chain
- SRAM SX Eagle
- Chainring
- SRAM X-Sync Eagle, 34 T
- Cranks
- Shimano FC-EM600, Aluminum forged, Shimano EP24
- Shift lever
- SRAM SX Eagle, Single Click
- Chain guide
- Husqvarna CGU
Brakes
- Front brake
- Shimano BR-MT410, 2-piston, Hydraulic disc brake
- Front brake rotor
- Shimano SM-RT30, 203 mm, Center lock
- Rear brake
- Shimano BR-MT410, 2-piston, Hydraulic disc brake
- Rear brake rotor
- Shimano RT-EM300, 180 mm, Center lock
Wheels & tyres
- Front wheel
- Rim: Ryde Disc30, With eyelets, Tubeless ready / Hub: Husqvarna DA210F, Center lock, 15x110 mm, thru axle
- Rear wheel
- Rim: Ryde Disc30, With eyelets, Tubeless ready / Hub: Husqvarna DA210R, Center lock, 12x148 mm, thru axle
- Front tyre
- Maxxis Rekon, 62-622, 29 x 2.4, Tubeless ready
- Rear tyre
- Maxxis Rekon, 62-584, 27.5 x 2.4, Tubeless ready
Cockpit
- Stem
- Husqvarna 35, 0 °, Ahead
- Handlebar
- Husqvarna Riser 35 mm, 780 mm, Sweep: 9 °, Rise: 20 mm
- Grips
- Husqvarna MTB, Lock-on grips
- Saddle
- Husqvarna MTB
- Seatpost
- Husqvarna Pro, 31.6 mm, Dropper post
Other
- Pedals
- Husqvarna, aluminum
- Max. system weight
- 130 kg
- Weight
- 24.4 kg (manufacturer figure)
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Light Cross geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ATop tube length | 572 mm | 609 mm | 638 mm | 666 mm |
| BSeat tube length | 410 mm | 435 mm | 460 mm | 485 mm |
| CSeat tube angle | 75.3° | 75.1° | 75° | 74.9° |
| DHead tube length | 130 mm | 130 mm | 145 mm | 155 mm |
| EHead angle | 66.5° | 66.5° | 66.5° | 66.5° |
| FChainstay length | 445 mm | 445 mm | 445 mm | 445 mm |
| GWheelbase | 1158 mm | 1190 mm | 1221 mm | 1250 mm |
| IBB drop | 23 mm | 23 mm | 23 mm | 23 mm |
| JStack | 599 mm | 633 mm | 646 mm | 656 mm |
| KReach | 415 mm | 440 mm | 465 mm | 490 mm |
| LStem length | 50 mm | 50 mm | 50 mm | 50 mm |
| MCrank length | 165 mm | 165 mm | 165 mm | 165 mm |
Source: Husqvarna E-Bicycles.
Light Cross: builds compared
Light Cross range →| Light Cross LC1 | Light Cross LC2 | Light Cross LC3 | Light Cross LC4 | Light Cross LC5 | Light Cross LC6 | |
|---|---|---|---|---|---|---|
| Price | €2,999 | €3,199 | €3,499 | €3,999 | €4,399 | €4,899 |
| Frame | Alloy | Alloy | Alloy | Carbon main frame, alloy rear | Carbon main frame, alloy rear | Carbon main frame, alloy rear |
| Fork | SR SUNTOUR XCR34 Boost LOR, remote lockout | RockShox 35 Silver TK, Solo Air | RockShox 35 Gold RL, DebonAir | SR SUNTOUR Raidon34 Boost LOR, Air | RockShox 35 Gold RL, DebonAir | RockShox Pike Select, DebonAir |
| Shock | SR SUNTOUR Raidon R | SR SUNTOUR Raidon R | RockShox Deluxe Select | SR SUNTOUR Raidon R | RockShox Deluxe Select+ | RockShox SIDLuxe Select+ |
| Derailleur | Tektro RD-M350 | Tektro RD-M350 | SRAM SX Eagle | SRAM SX Eagle | SRAM GX Eagle | SRAM X01 Eagle |
| Brakes | Tektro Draco | Tektro Draco | Shimano BR-MT410 | Shimano BR-MT410 | SRAM G2 R | SRAM G2 R |
| Wheels | Rim: Ryde Disc30 | Rim: Ryde Disc30 | Rim: Ryde Disc30 | Rim: Ryde Disc30 | Rim: Ryde Disc30 | Rim: Ryde Disc30 |
| Display | Shimano SC-EN600 | Shimano SC-EN600 | Shimano SC-EN600 | Shimano SC-EN600 | Shimano SC-EN600 | Shimano SC-EN600 |
| Weight | 24.5 kg | 24.5 kg | 24.4 kg | 24.5 kg | 23.8 kg | 23.2 kg |
Light Cross LC3: FAQ
How much does the Husqvarna Light Cross LC3 cost?
€3,499 (RRP Germany, VAT incl.). The Light Cross range runs from €2,999 (Light Cross LC1) to €4,899 (Light Cross LC6). Prices vary by country and dealer.
How much does the Husqvarna Light Cross LC3 weigh?
Husqvarna quotes 24.4 kg. The lightest Light Cross build is the Light Cross LC6 at 23.2 kg.
What motor and battery does the Husqvarna Light Cross LC3 have?
Shimano EP6 (85 Nm). 630 Wh battery — core S1+, integrated.
How much suspension travel does the Husqvarna Light Cross LC3 have?
120 mm at the fork and 120 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Husqvarna Light Cross LC3 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Light Cross LC3 and the Light Cross LC4?
They share the Light Cross frame platform; the differences are in the parts — frame: alloy vs carbon main frame, alloy rear; fork: RockShox 35 Gold RL vs SR SUNTOUR Raidon34 Boost LOR; shock: RockShox Deluxe Select vs SR SUNTOUR Raidon R; claimed weight: 24.4 kg vs 24.5 kg; price: €3,499 vs €3,999.
