GiantStance E+ 1
- Motor
- Giant SyncDrive Pro 3X100 Nm
- Battery
- 800 WhEnergyPak
- Travel F / R
- 150 / 140 mm
- Wheels
- 29"
- Frame
- Alloy
Overview
The Giant Stance E+ 1 (£3,999) is a mid-range build of the Stance E+: Giant SyncDrive Pro 3X (100 Nm) with 800 Wh, Giant STL 36 Air fork, Giant Crest FloTrac shock, Shimano Cues LinkGlide and Shimano Deore brakes.
The Stance E+ is Giant's aluminium full-suspension e-MTB for everyday trail riding: 140 mm of FlexPoint rear travel, a 150 mm fork and 29-inch wheels.
The E+ 0 and E+ 1 use the SyncDrive Pro 3X (100 Nm) with an 800 Wh battery; the E+ 2 steps down to the SyncDrive Sport 3 (85 Nm) and 625 Wh.
- Aluminium frame, 140 mm travel
- 150 mm fork, 29-inch wheels
- SyncDrive Pro 3X or Sport 3
- 800 or 625 Wh battery

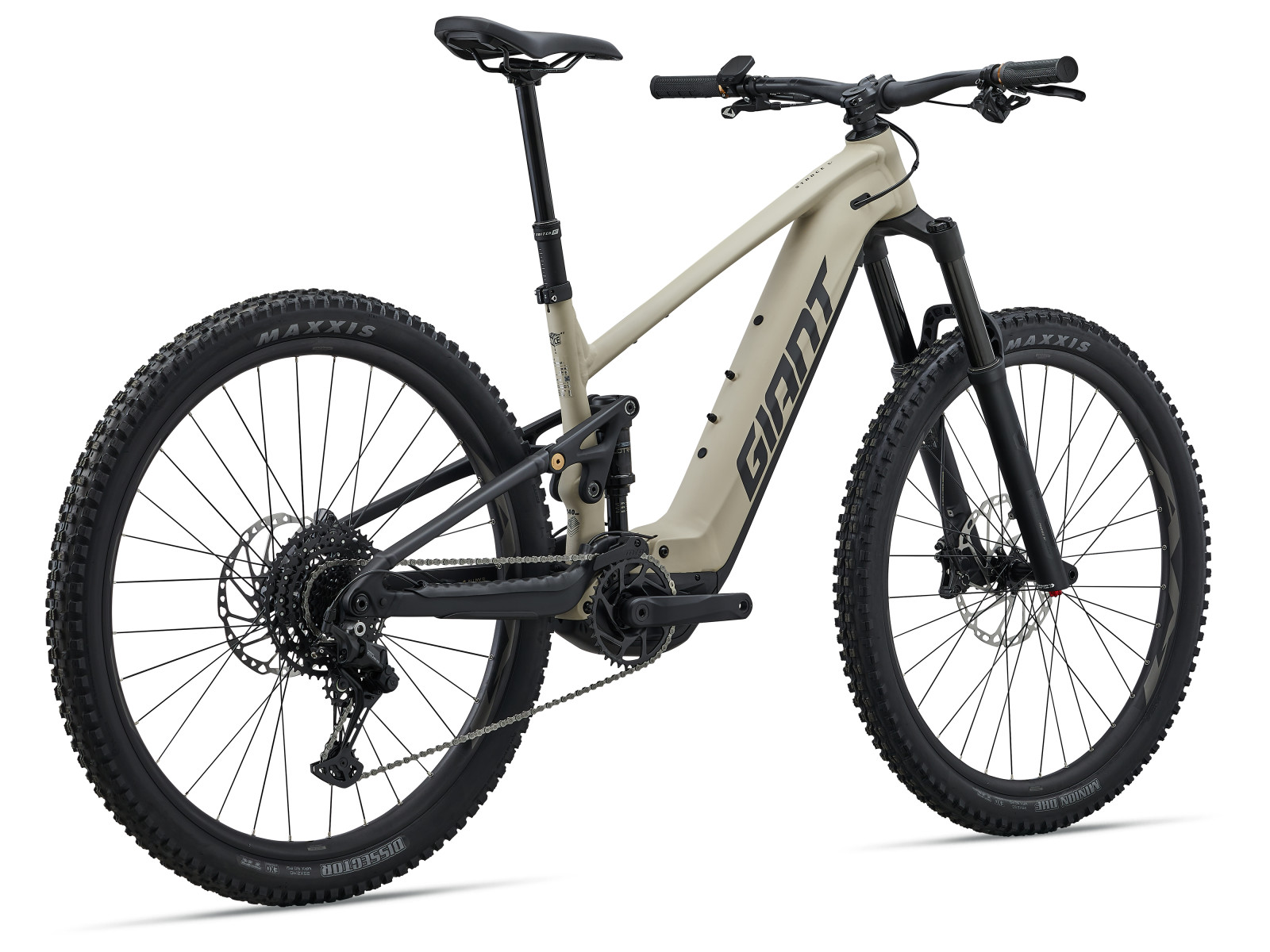

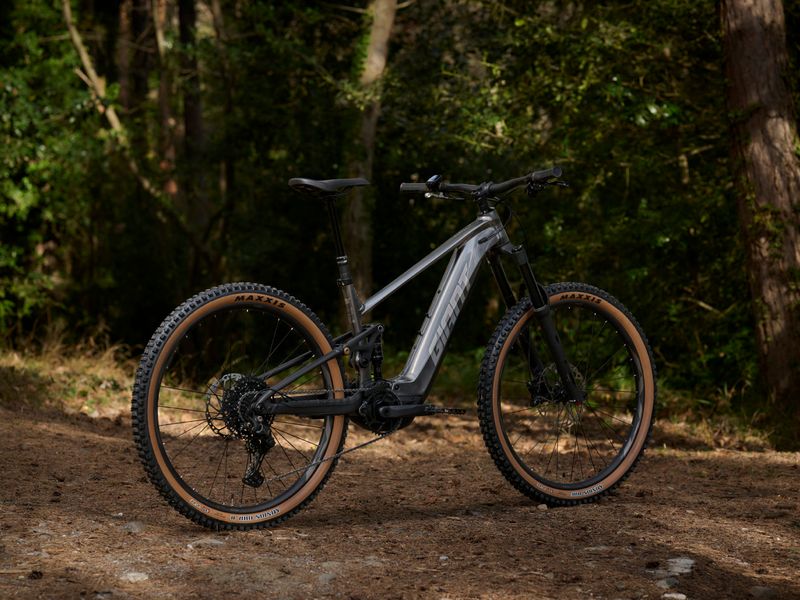

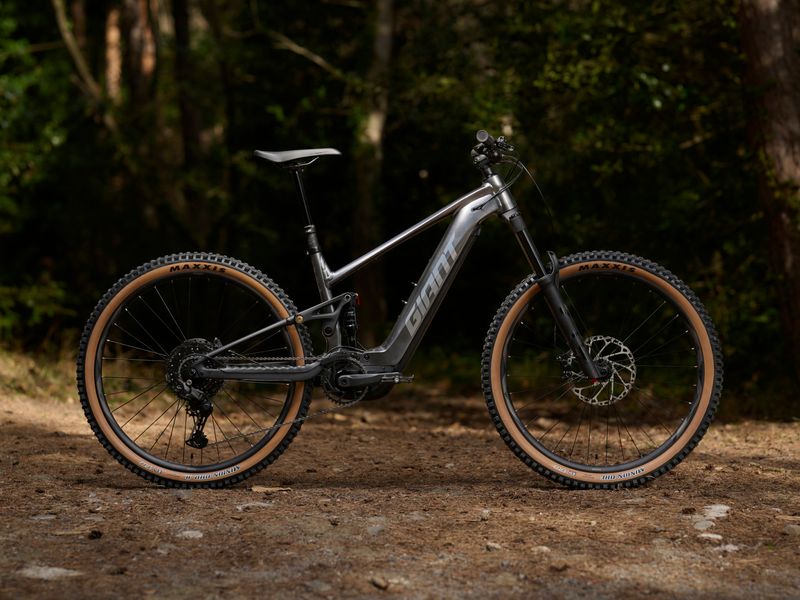

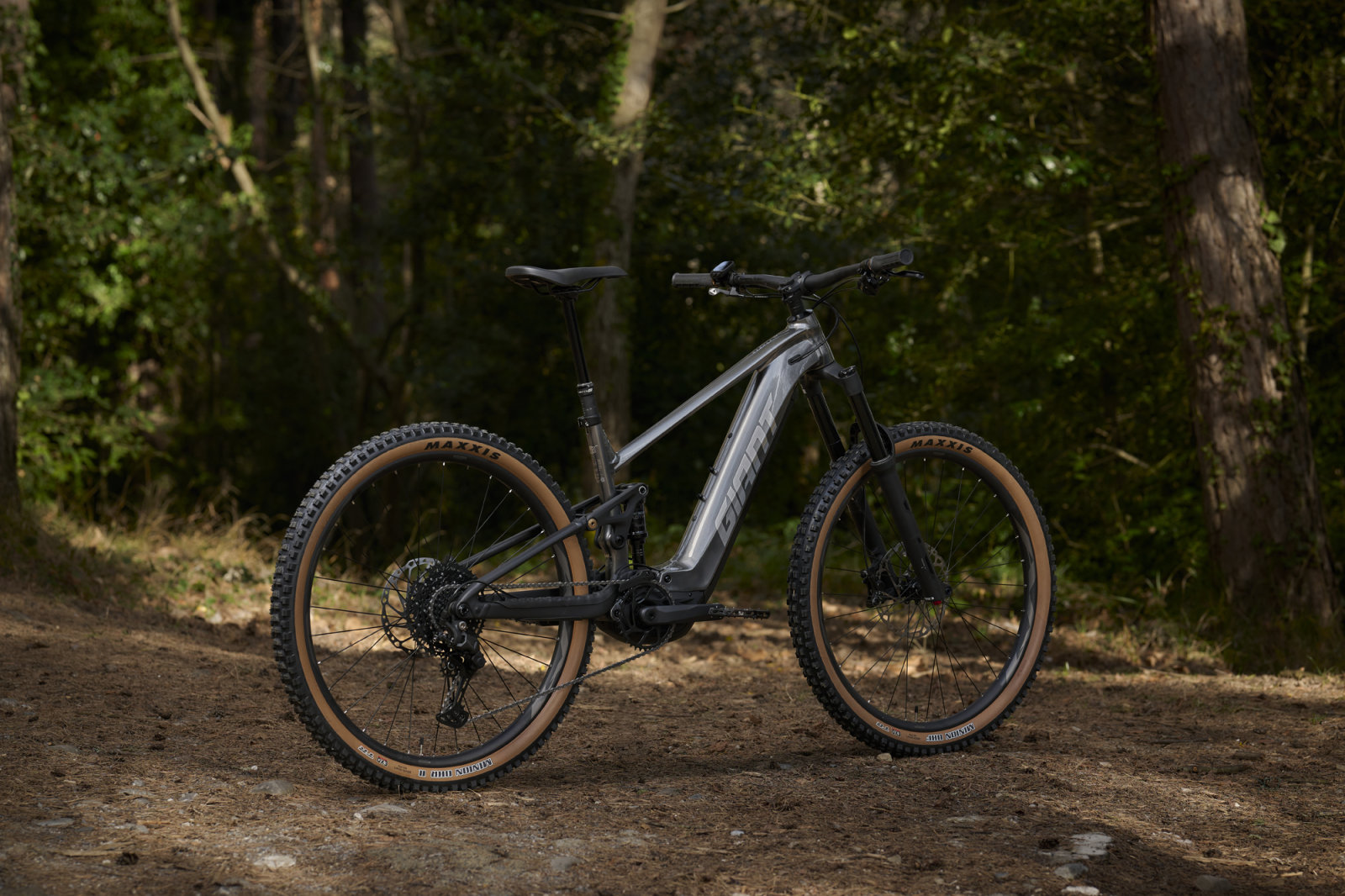

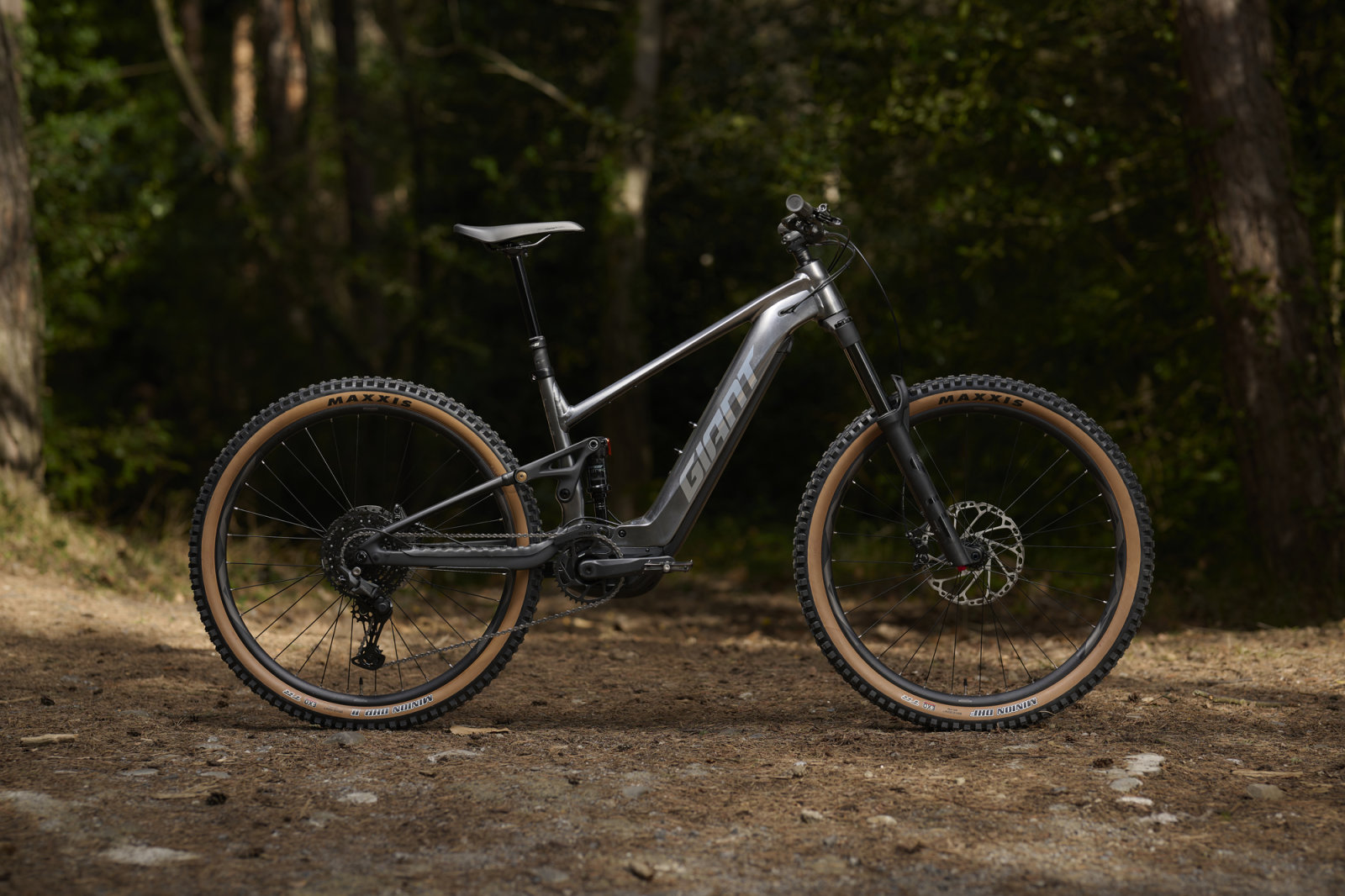

Gallery
Photos: Giant
Full specifications
Frame & suspension
- Sizes
- S, M, L, XL
- Frame
- ALUXX SL-grade aluminum, 140mm travel FlexPoint linkage driven suspension system, 148x12 Boost rear axle, UDHTM Universal Derailleur hanger, KSA40 compatible, 185x52.5mm shock, 1.5~1.8" headset (ZS62/ZS72)
- Fork

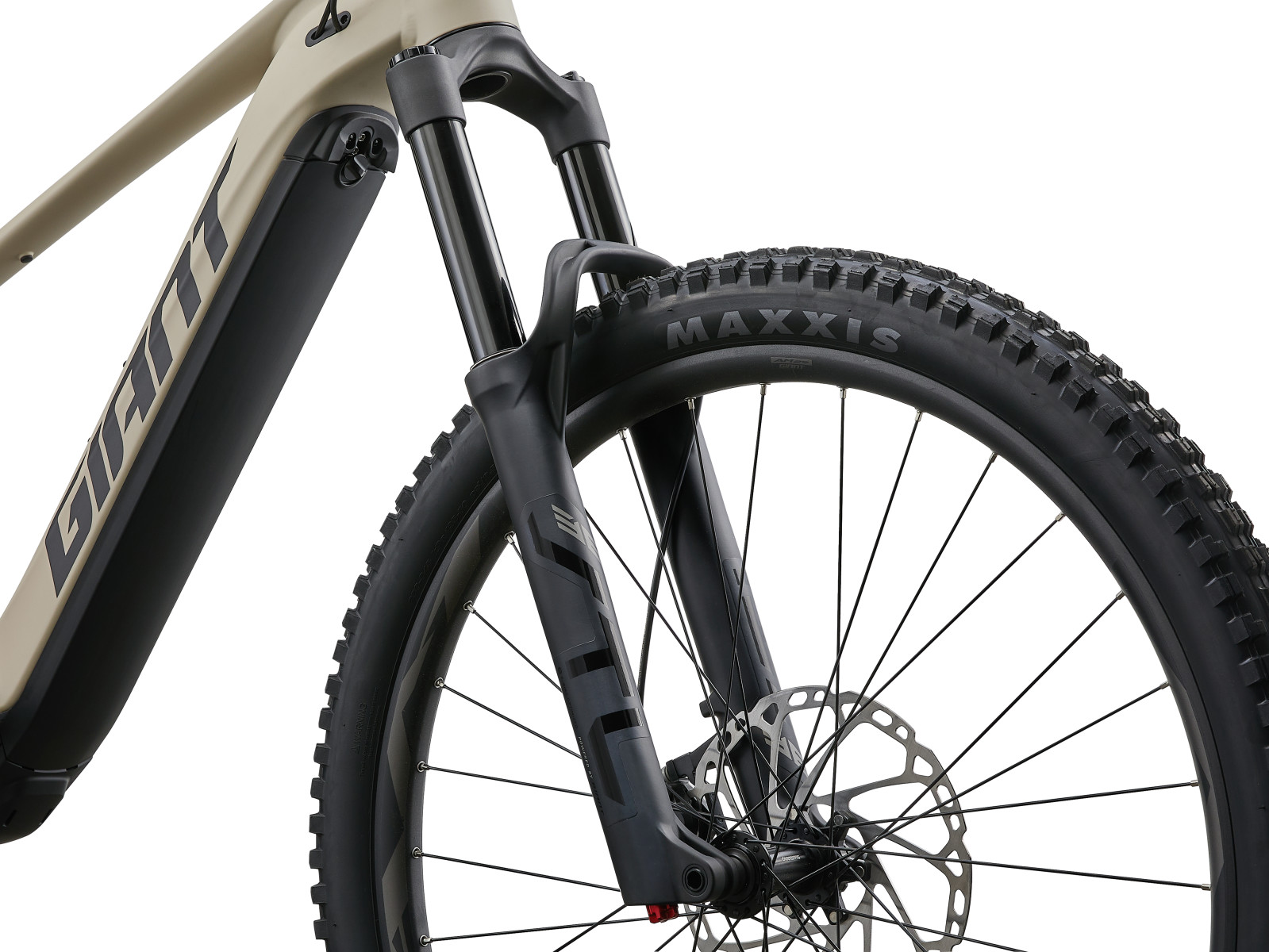

- Giant STL 36 Air, 150mm travel, 5-position compression adjust, tapered steerer, 72mm crown, e-bike optimized, 110x15mm Boost axle, full fender compatible
- Rear shock
- Giant Crest FloTrac, 3-position lever, e-bike optimized, 185x52.5mm Sag recommendation: 30% (15.75mm)
E-system
- Motor

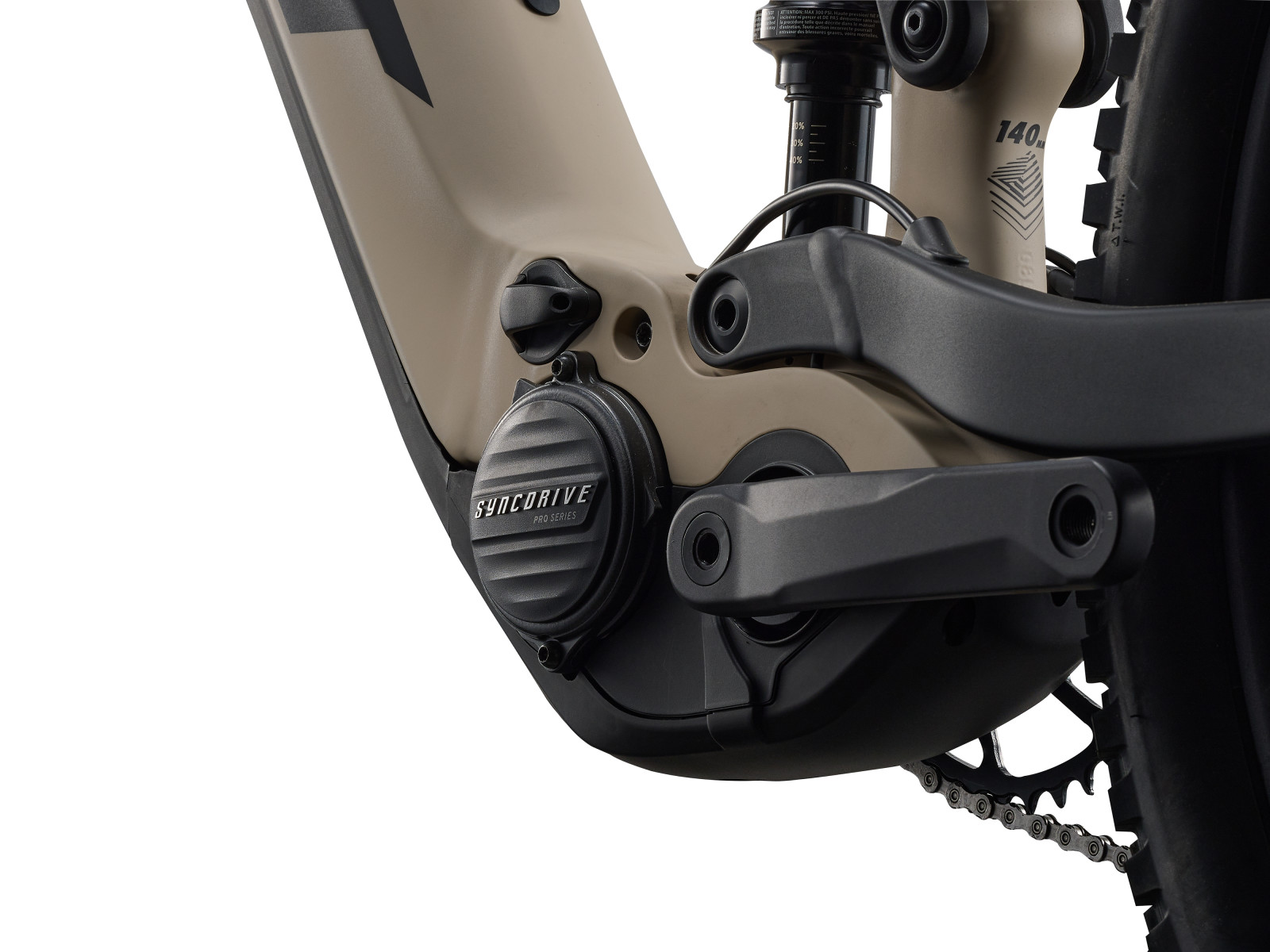

- Giant SyncDrive Pro3X 100Nm, PedalPlus 6-Sensor technology
- Controller

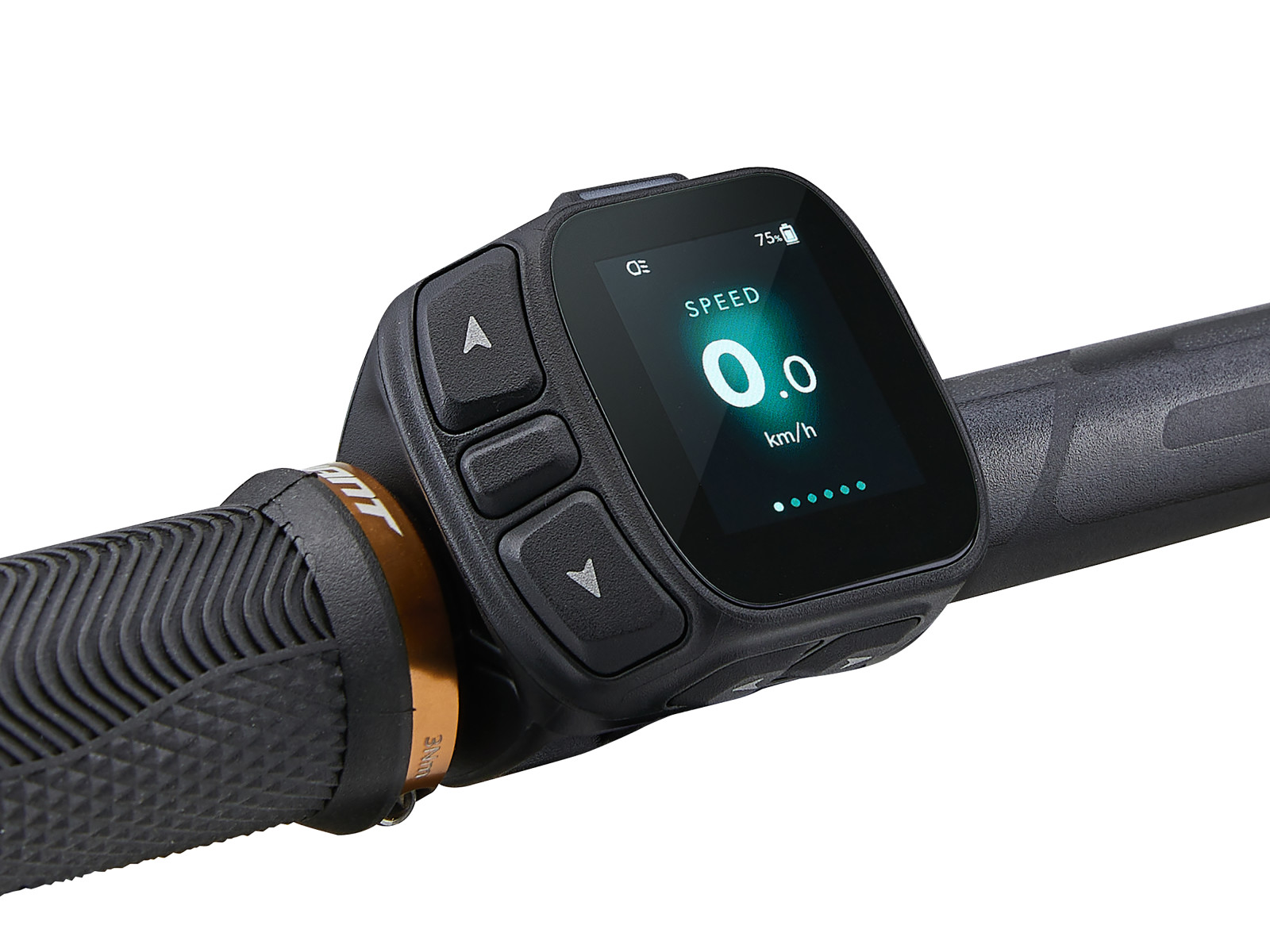

- Giant RideControl Dash 2, Smart Assist automatic mode, 5 support levels
- Display
- Giant RideControl Dash 2, full color LCD display
- Battery
- Giant EnergyPak 800Wh
- Charger
- Giant EnergyPak 4A smart charger
- Lock
- Torx 25 Battery Lock with built-in Torque limiter
Drivetrain
- Shifters
- Shimano Cues LinkGlide
- Rear derailleur
- Shimano Cues LinkGlide, 10-speed, Shadow+
- Cassette
- Shimano Cues LinkGlide, 10-speed, 11-48T
- Chain
- Shimano LinkGlide
- Crankset
- Forged aluminum crank arms
- Max chainring size
- Direct-mount steel 36T (maximum: 38T)
Brakes
- Brakes
- Shimano Deore, BR-M420, hydraulic disc, 4-piston, 220mm [F] 203mm [R]
- Brake levers
- Shimano Deore, BL-M401
Wheels & tyres
- Rims
- Giant AM30, Tubeless ready, 30mm inner width
- Hubs
- Shimano TC500 Boost, Center-Lock, 15x110mm [F] 12x148mm [R]
- Spokes
- Stainless Steel
- Tyres
- Maxxis Minion DHF 29X2.50" WT Foldable, TLR, EXO [F] Maxxis Dissector 29X2.40" WT Foldable TLR EXO [R]
Cockpit
- Handlebar
- Giant Connect TR35, 20mm Rise, 35x760mm [S], 35x780mm [M-XL]
- Grips
- Giant Tactal Pro single lock-on
- Stem
- Giant Contact SL 35
- Seatpost
- Giant Contact Switch AT travel adjust dropper seatpost (S:110~140mm, M:140~170m, L/XL: 170~200mm)
- Saddle
- Giant Contact Ergo Trail
- Pedals
- Large platform pedal, 28-pins, PP cage, Steel axle
Other
- Chainguard
- MRP 1x HD guide, CS e-Mount, 32~38T Adjustable
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Stance E+ geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat Tube Length | 400 mm | 425 mm | 450 mm | 475 mm |
| A1Seat Post Insertion Depth | 235 mm | 260 mm | 285 mm | 310 mm |
| BSeat Tube Angle | 76.5° | 76.5° | 76.5° | 76.5° |
| CTop Tube Length | 579 mm | 606 mm | 635 mm | 663 mm |
| DHead Tube Length | 100 mm | 115 mm | 130 mm | 145 mm |
| EHead Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| FFork Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| GTrail | 132 mm | 132 mm | 132 mm | 132 mm |
| HWheelbase | 1229 mm | 1259 mm | 1291 mm | 1322 mm |
| IChain Stay Length | 468 mm | 468 mm | 468 mm | 468 mm |
| JBottom Bracket Drop | 26 mm | 26 mm | 26 mm | 26 mm |
| KStack | 614 mm | 628 mm | 641 mm | 655 mm |
| LReach | 431 mm | 455 mm | 480 mm | 505 mm |
| MStand Over Height | 746 mm | 744 mm | 756 mm | 762 mm |
| NHandlebar Width | 780 mm | 780 mm | 780 mm | 780 mm |
| OStem Length | 40 mm | 40 mm | 40 mm | 40 mm |
| PCrank Length | 165 mm | 165 mm | 165 mm | 165 mm |
| QWheel Size | 29" | 29" | 29" | 29" |
Source: Giant.
Stance E+: builds compared
Stance E+ range →| Stance E+ 2 | Stance E+ 1 | Stance E+ 0 | |
|---|---|---|---|
| Price | £3,499 | £3,999 | £4,999 |
| Frame | Alloy | Alloy | Alloy |
| Fork | Giant STL 36 Air, 150mm travel | Giant STL 36 Air, 150mm travel | Fox 36 Rhythm Air, 150mm travel |
| Shock | Giant Crest FloTrac | Giant Crest FloTrac | Fox Float X |
| Derailleur | Shimano Cues LinkGlide | Shimano Cues LinkGlide | Shimano Deore XT 11-speed Shadow+ |
| Brakes | Tektro Orion | Shimano Deore | Shimano Deore XT |
| Wheels | Giant AM30, Tubeless ready | Giant AM30, Tubeless ready | Giant TRA2, Tubeless ready |
| Display | Giant RideControl Dash 2 | Giant RideControl Dash 2 | Giant RideControl Dash 2 |
Stance E+ 1: FAQ
How much does the Giant Stance E+ 1 cost?
£3,999 (UK RRP, VAT incl.). The Stance E+ range runs from £3,499 (Stance E+ 2) to £4,999 (Stance E+ 0). Prices vary by country and dealer.
What motor and battery does the Giant Stance E+ 1 have?
Giant SyncDrive Pro 3X (100 Nm). 800 Wh battery — energyPak.
How much suspension travel does the Giant Stance E+ 1 have?
150 mm at the fork and 140 mm at the rear, on 29" wheels.
What sizes does the Giant Stance E+ 1 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Stance E+ 1 and the Stance E+ 0?
They share the Stance E+ frame platform and motor; the differences are in the parts — fork: Giant STL 36 Air vs Fox 36 Rhythm Air; shock: Giant Crest FloTrac vs Fox Float X; derailleur: Shimano Cues LinkGlide vs Shimano Deore XT 11-speed Shadow+; price: £3,999 vs £4,999.
