DevinciE-Spartan GX AXS 12s
- Motor
- Bosch Performance Line CX Gen 5120 Nm; 750 W peak
- Battery
- 800 WhBosch PowerTube 800, integrated; PowerMore 250 compatible
- Travel F / R
- 170 / 165 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Alloy
- Weight
- 24.8 kgManufacturer figure (size M, approximate)
Overview

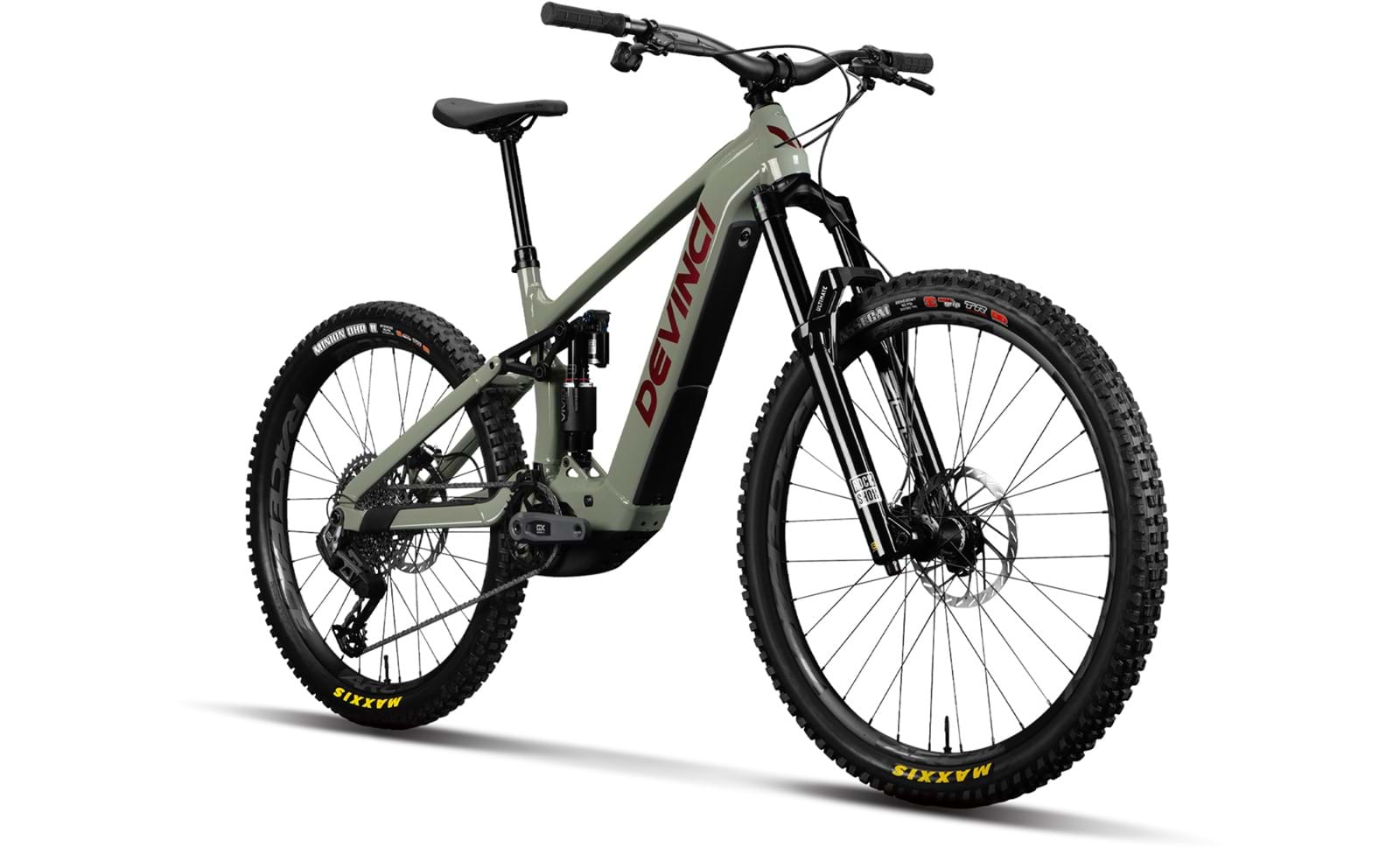

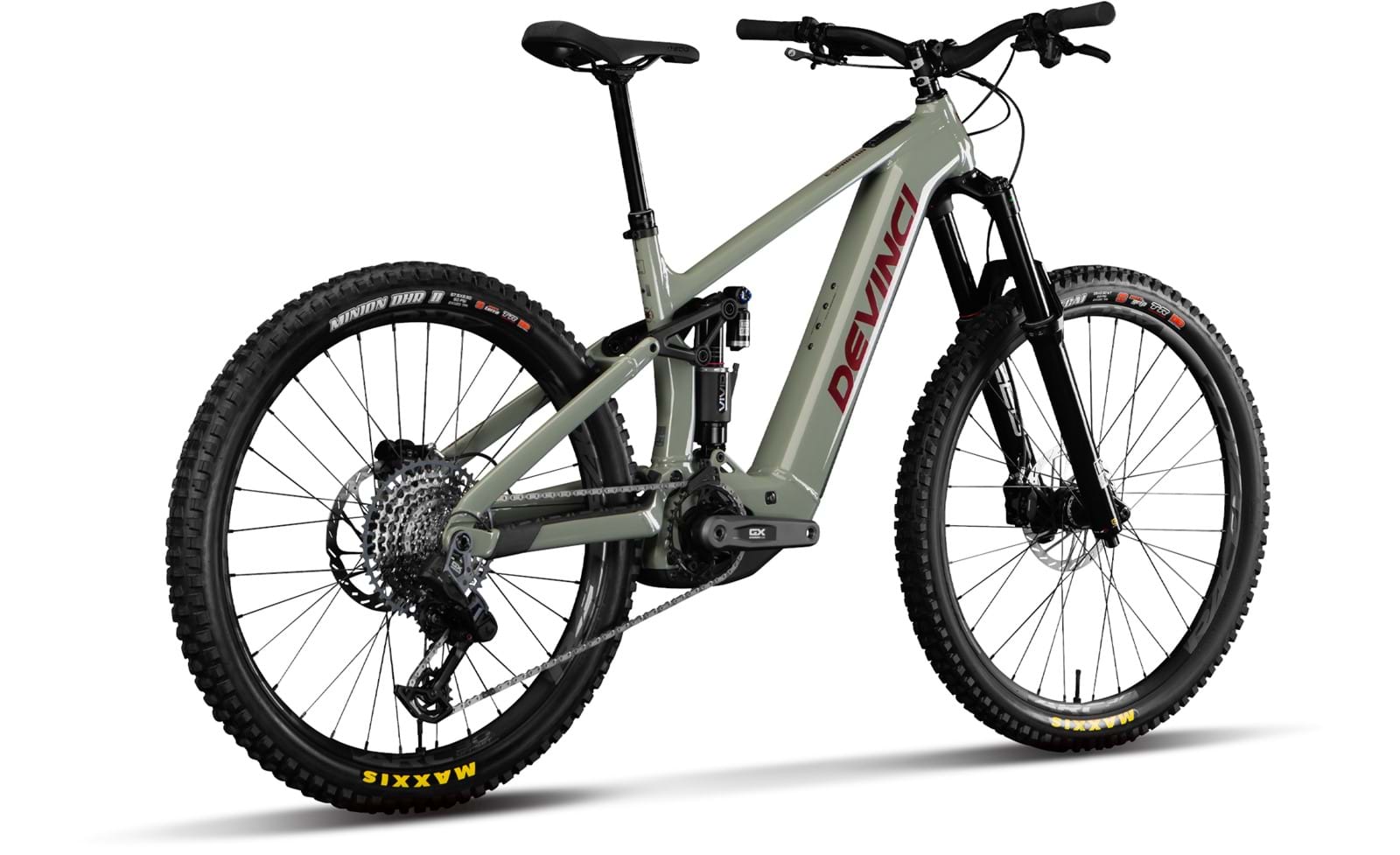

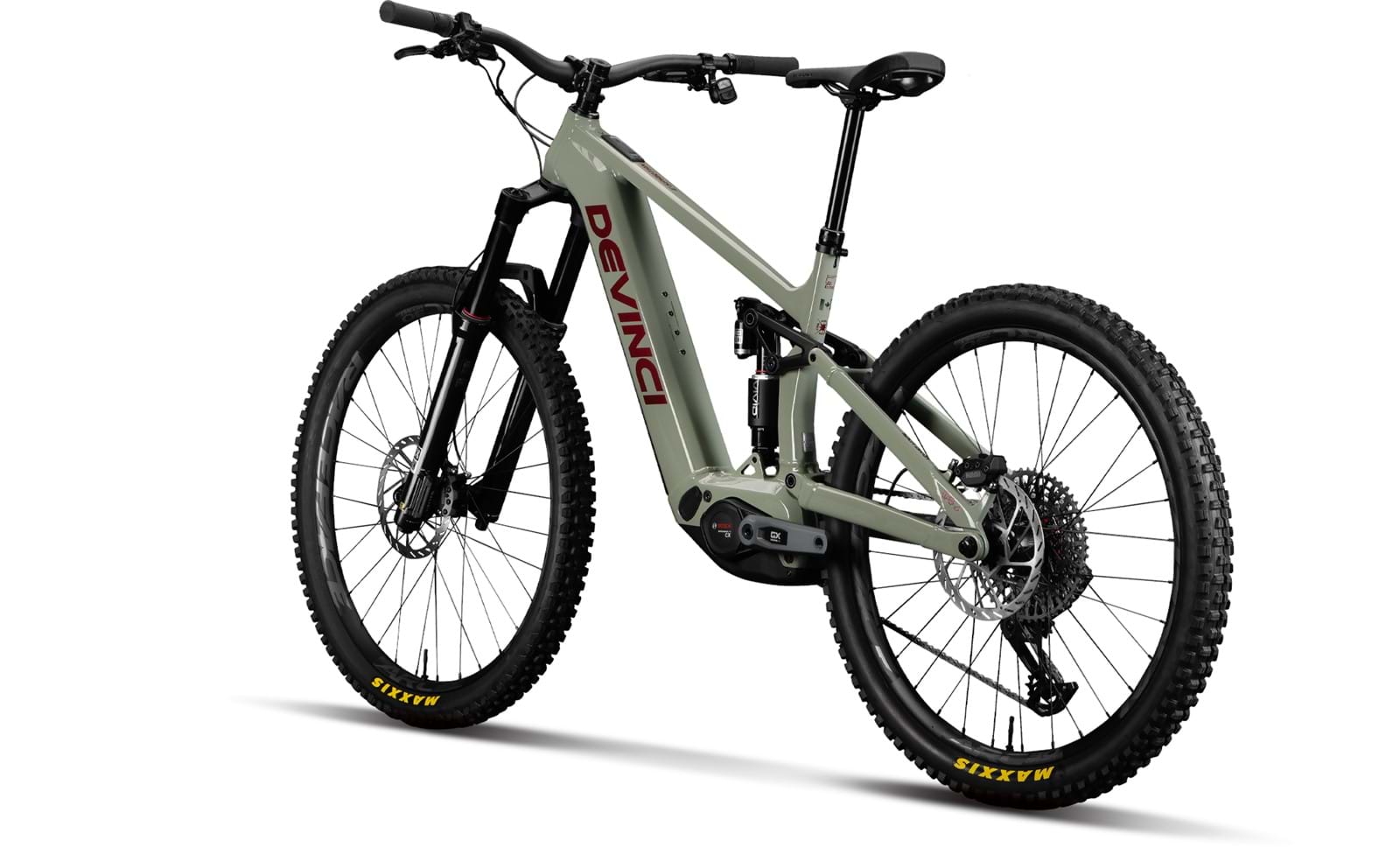

The Devinci E-Spartan GX AXS 12s is a build of the E-Spartan: Bosch Performance Line CX Gen 5 (120 Nm) with 800 Wh, Rockshox Zeb Ultimate DB fork, Rockshox Vivid Ultimate shock, SRAM GX Eagle AXS and SRAM Maven Silver brakes. Claimed weight is 24.8 kg.
The new E-Spartan is Devinci's full-power long-travel e-MTB, with a made-in-Canada Optimum G04 6061-T6 aluminium frame, 165 mm of rear travel, a 170 mm fork and mixed wheels (29-inch front, 27.5-inch rear). Its e-MTB-optimised Split Pivot places the main pivot 5 mm higher for anti-squat under motor assistance.
Power comes from the Bosch Performance Line CX Gen 5 (120 Nm, 750 W peak) with an integrated 800 Wh PowerTube battery; Devinci quotes 70-80 km of typical range and up to 100 km in ECO.
- Bosch Performance Line CX Gen 5: 120 Nm, 750 W peak
- 800 Wh PowerTube battery
- 165 mm rear / 170 mm fork, mixed wheels
- Made-in-Canada aluminium frame
Gallery
Photos: Devinci
Full specifications
Frame & suspension
- Sizes
- S, M, L, XL
- Frame
- Aluminum Optimum G04 | 165mm

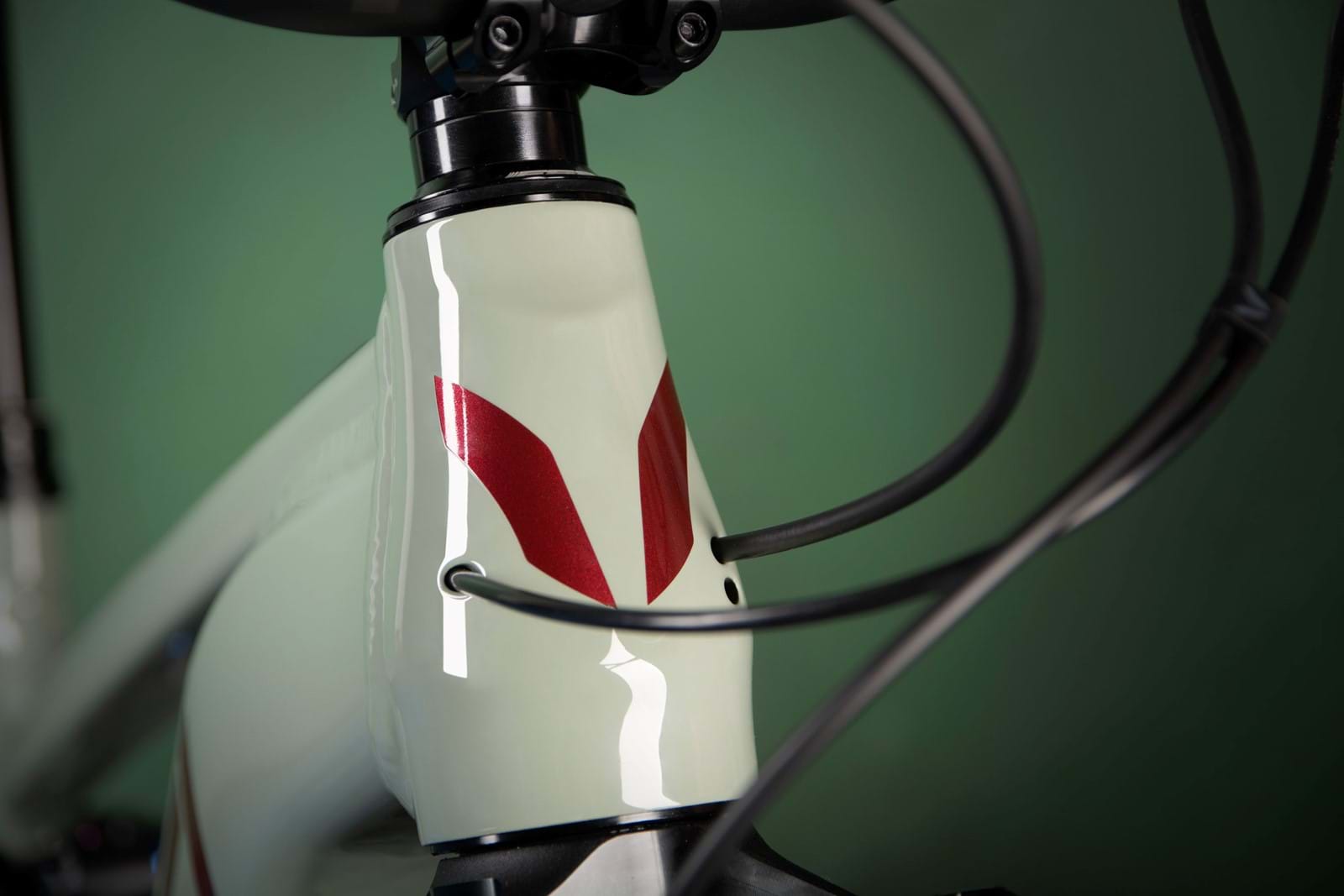

- Headset

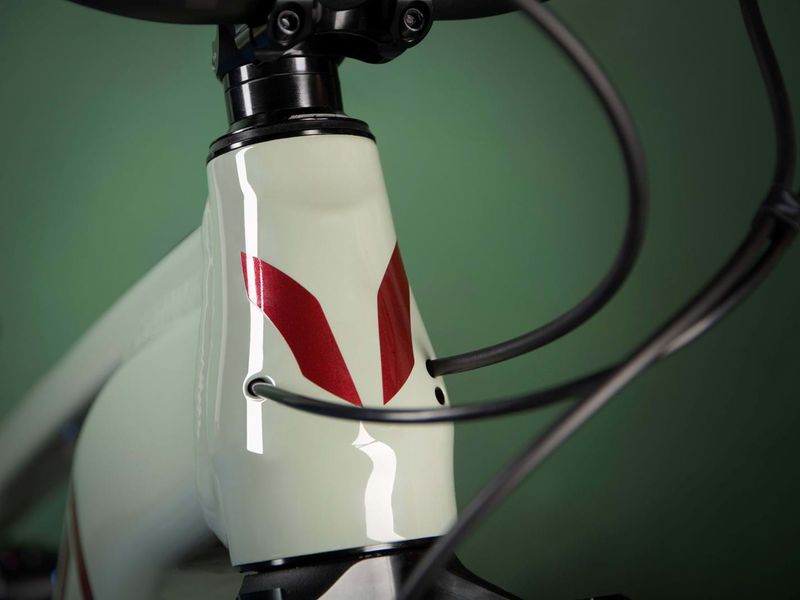

- FSA Orbit | 1.5 | Zero Stack
- Seat Clamp
- Alloy CNC | 34.9mm
- Fork
- Rockshox Zeb Ultimate DB | 29 | 170mm | 110x15 | 44 Offset

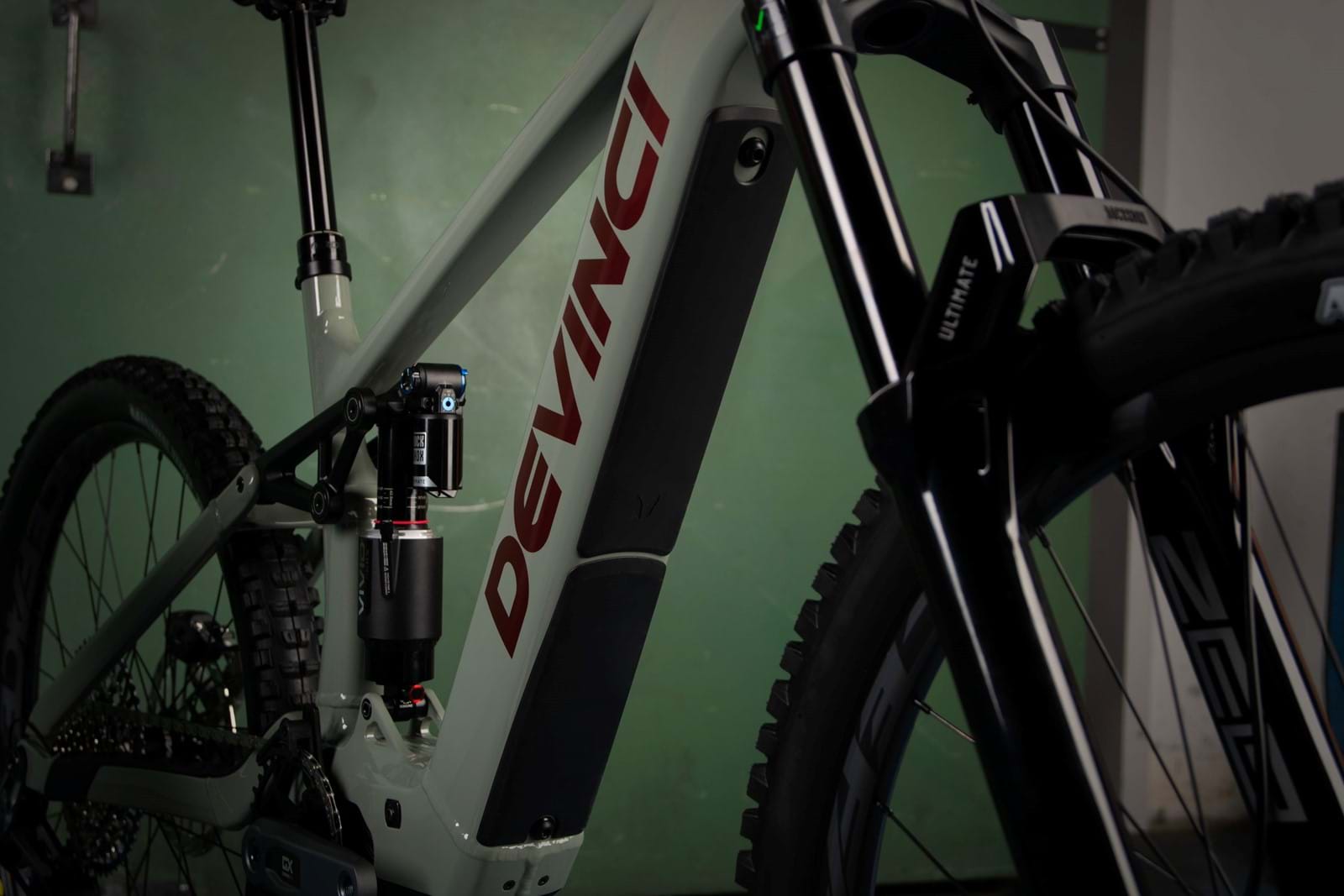

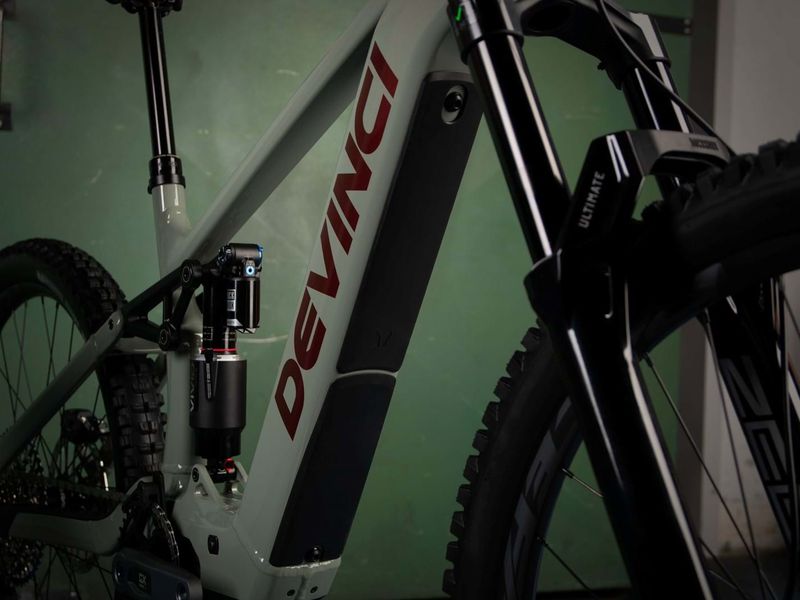

- Rear shock

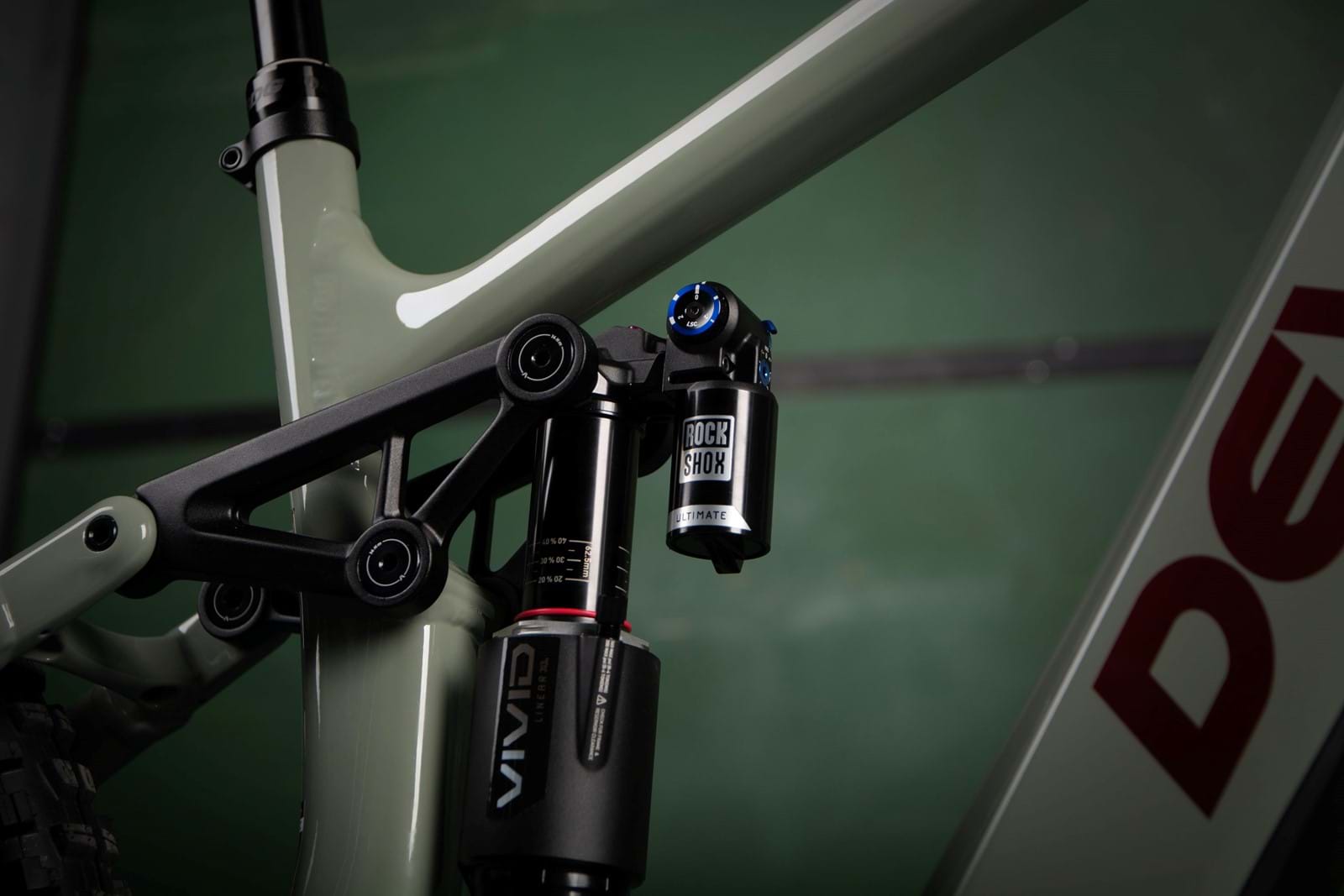

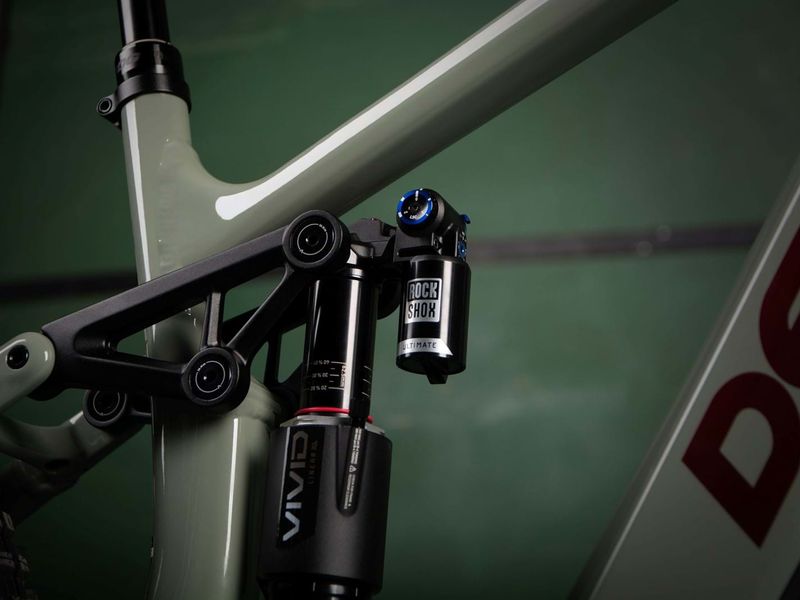

- Rockshox Vivid Ultimate | 205X65T
E-system

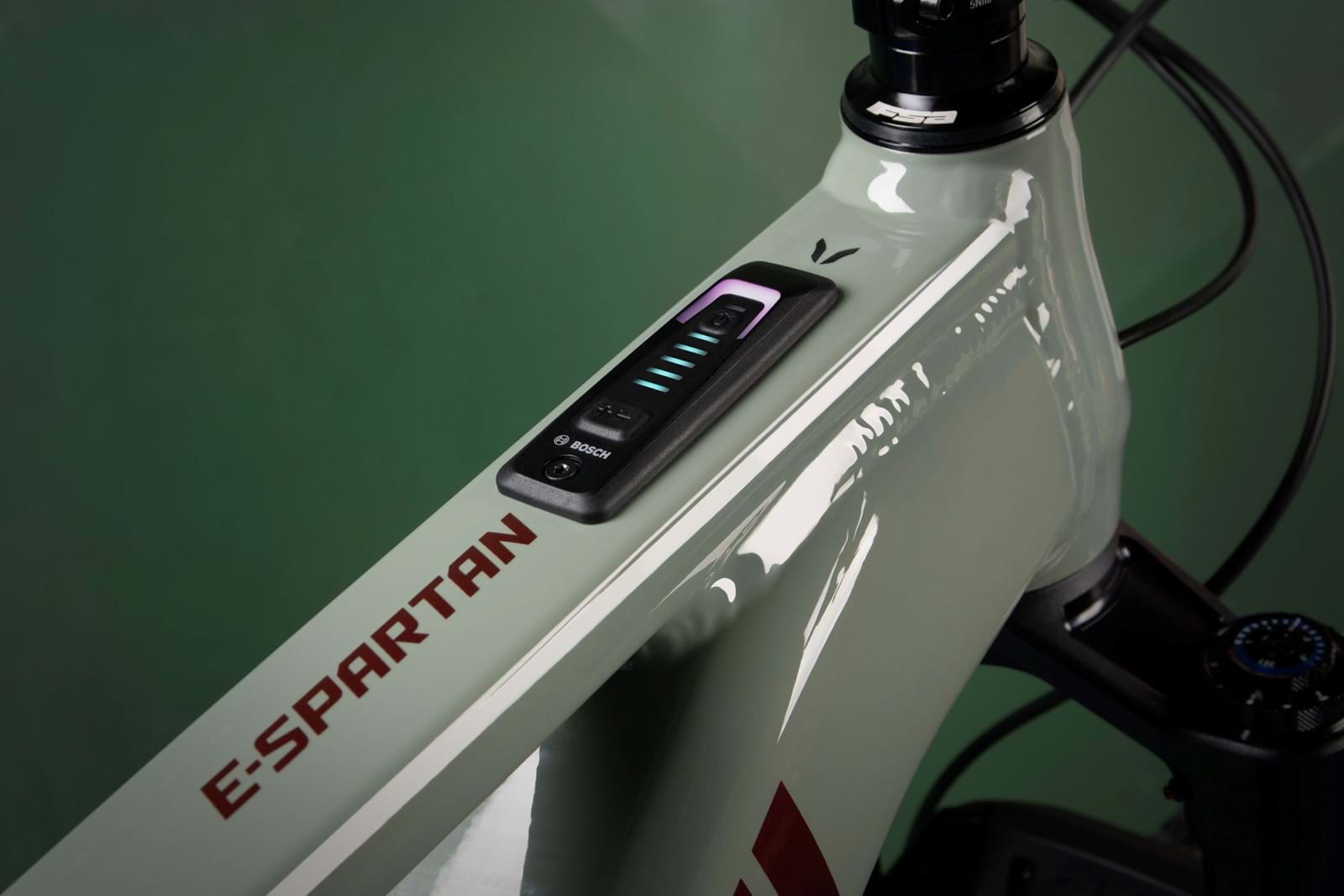

- Display

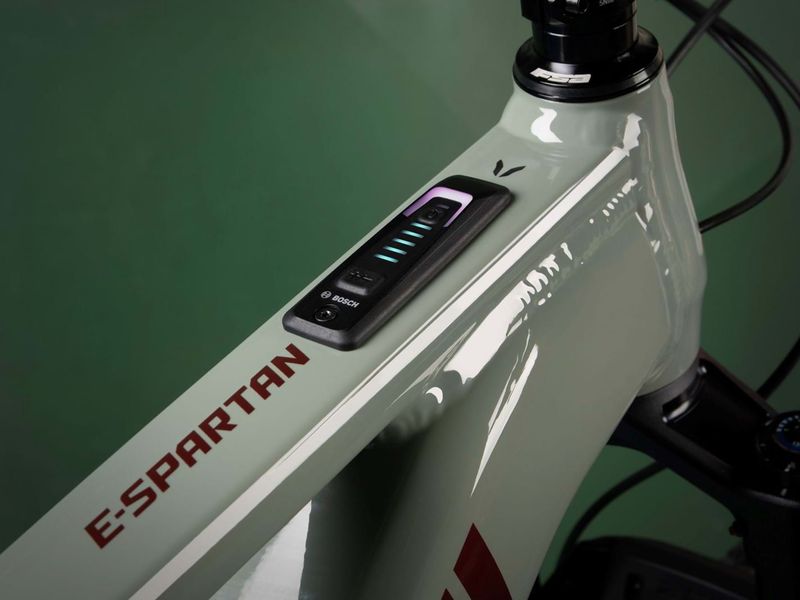

- BOSCH System controller BRC3100
- Motor
- BOSCH Performance Line CX G5 | 120Nm | BDU38
- Battery
- BOSCH PowerTube | 800Wh
Drivetrain
- Rear derailleur
- SRAM GX Eagle AXS | T-Type | 12s
- Rear Shifter
- SRAM AXS POD | 12s
- Crankarm
- SRAM GX Bosch | 155mm
- Chainring
- Sram Eagle Bosch EMTB | 34T
- Cassette
- SRAM XS1275 | T-TYPE | 12s | 10-52T
- Chain
- SRAM GX | T-Type | 12s
- Chain Guide
- GN5 Mini Guide
Brakes
- Front brake
- SRAM Maven Silver
- Rear brake
- SRAM Maven Silver
- Rotors
- SRAM HS2 | 200mm
Wheels & tyres
- Front rim
- RaceFace ARC30 29 | 30mm inner | TR
- Front Hub
- RaceFace Vault | TA 15x110mm | 6bolts
- Rear Hub
- RaceFace Vault | Boost 148x12 | XD | 6bolts
- Rear rim
- RaceFace ARC30 27.5 | 30mm inner | TR
- Spokes
- Sapim Stainless 14G w/Nylok
- Front Tire
- Maxxis Assegai | 29x2.5 | 3C | DD | TR | MaxxGrip
- Rear Tire
- Maxxis Minion DHR II | 27.5x2.5 | 3C | DD | TR | MaxxTerra
Cockpit
- Handlebar
- RaceFace ERA 35 | B:35mm | R:40mm | W:800mm
- Stem
- RaceFace Turbine | B:35mm | L:40mm | 0°
- Saddle
- SDG BELAIR Max eMTB
- Seatpost
- SDG Tellis 31.6mm
- Seatpost Lever
- SDG Tellis | Matchmaker | 1x Lever
- Grips
- Devinci | w/lock-on
Other
- Rear tire clearance
- 27,5'' x 2.6”
- Rear hub spacing
- 12 x 148 Boost
- Max rear rotor size
- 220 mm
- Seatpost max insertion
- S → 240 mm / M → 270 mm / L → 300 mm / XL → 340 mm
- Headset
- Haut ZS44 | Bas ZS56
- Rear shock dimension
- Trunnion | 205 x 65 mm
- Fork dimensions
- Axle-to-Crown measurement 586 mm / Offset 44 mm
- Frame material
- Aluminium 6061-T6 | Optimum G04
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
E-Spartan geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat tube | 400 mm | 420 mm | 460 mm | 495 mm |
| BSeat tube angle | 77.8° | 77.7° | 77.5° | 77.4° |
| CHead tube angle | 63.5° | 63.5° | 63.5° | 63.5° |
| DTop tube | 568 mm | 591 mm | 617 mm | 641 mm |
| EReach | 436 mm | 456 mm | 478 mm | 500 mm |
| FChainstay | 438 mm | 438 mm | 438 mm | 438 mm |
| GWheelbase | 1221 mm | 1245 mm | 1269 mm | 1294 mm |
| HBB height | 355 mm | 355 mm | 355 mm | 355 mm |
| IStandover height | 765 mm | 765 mm | 765 mm | 765 mm |
| JStack | 617 mm | 626 mm | 631 mm | 636 mm |
| KHead tube | 105 mm | 115 mm | 120 mm | 125 mm |
| Rider height | 160-170 cm | 169-179 cm | 178-188 cm | 187-198 cm |
Source: Devinci.
E-Spartan: builds compared
E-Spartan range →| E-Spartan Deore 12s | E-Spartan Eagle 90 12s | E-Spartan GX AXS 12s | |
|---|---|---|---|
| Frame | Alloy | Alloy | Alloy |
| Fork | Rockshox Zeb | Delta RC |170 | 1T | 44 Offset | Rockshox Zeb Select+ | Charger 3.1 RC2 |170 | 1T | 44 Offset | Rockshox Zeb Ultimate DB | 29 | 170mm | 110x15 | 44 Offset |
| Shock | Rockshox SuperDeluxe Select | 205x65T | Rockshox Vivid Select+ | 205x65T | Rockshox Vivid Ultimate | 205X65T |
| Derailleur | Shimano Deore M6200 | 12s | SRAM Eagle 90 | 12s | SRAM GX Eagle AXS | T-Type | 12s |
| Brakes | SRAM DB8 | SRAM Maven Bronze | SRAM Maven Silver |
| Wheels | — | RaceFace Aeffect R30 | 29 | Boost110x15 | 30mm inner | — |
| Display | BOSCH System controller BRC3100 | BOSCH System controller BRC3100 | BOSCH System controller BRC3100 |
| Weight | — | 25 kg | 24.8 kg |
E-Spartan GX AXS 12s: FAQ
How much does the Devinci E-Spartan GX AXS 12s weigh?
Devinci quotes 24.8 kg. It is the lightest build of the E-Spartan.
What motor and battery does the Devinci E-Spartan GX AXS 12s have?
Bosch Performance Line CX Gen 5 (120 Nm; 750 W peak). 800 Wh battery — bosch PowerTube 800, integrated; PowerMore 250 compatible.
How much suspension travel does the Devinci E-Spartan GX AXS 12s have?
170 mm at the fork and 165 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Devinci E-Spartan GX AXS 12s come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the E-Spartan GX AXS 12s and the E-Spartan Eagle 90 12s?
They share the E-Spartan frame platform and motor; the differences are in the parts — fork: Rockshox Zeb Ultimate DB | 29 | 170mm | 110x15 | 44 Offset vs Rockshox Zeb Select+ | Charger 3.1 RC2 |170 | 1T | 44 Offset; shock: Rockshox Vivid Ultimate | 205X65T vs Rockshox Vivid Select+ | 205x65T; derailleur: SRAM GX Eagle AXS | T-Type | 12s vs SRAM Eagle 90 | 12s; brakes: SRAM Maven Silver vs SRAM Maven Bronze; claimed weight: 24.8 kg vs 25 kg.
