Full-power eMTBEnduro2026

CommencalMeta Power SX 800 Signature

€9,500RRP France (commencal.com EU store), VAT incl.

Motor: Bosch Performance Line CX Gen5120 Nm
Battery: 800 WhBosch PowerTube 800; 250 Wh range extender compatible
Travel F / R: 180 / 180 mm
Wheels: Mullet 29" / 27.5"
Frame: Alloy
Weight: 25.5 kgManufacturer figure (minimum weight, size S, without pedals)

Compare 2 builds Compare with…Official page →

Overview

The Commencal Meta Power SX 800 Signature (€9,500) is the top build of the Meta Power SX 800: Bosch Performance Line CX Gen5 (120 Nm) with 800 Wh, Fox 38 Factory E-Bike fork, Fox Float X2 Factory shock, SRAM Eagle 90 and TRP DH-R EVO PRO brakes. Claimed weight is 25.5 kg.

The Meta Power SX 800 is Commencal's long-travel e-enduro bike for big days on natural trails: 180 mm of rear travel, a 180 mm fork and mixed 29/27.5-inch wheels on a triple-butted 6066 alloy frame (claimed 5.86 kg).

It uses the Bosch Performance Line CX Gen5 motor (120 Nm) with a fully integrated 800 Wh PowerTube, and Commencal lists a 250 Wh range extender option. Both builds come with RideWrap protective film and a claimed weight of 25.5 kg (size S).

Bosch Performance Line CX Gen5, 120 Nm
800 Wh battery, 250 Wh extender option
180 mm rear / 180 mm fork, mullet
Alloy frame, RideWrap protection

Gallery

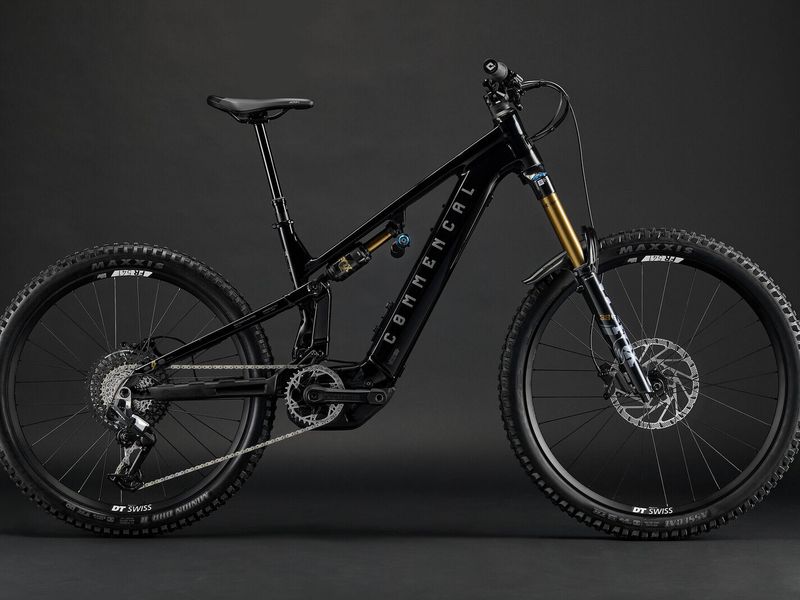

Commencal Meta Power SX 800 Signature e-MTB, detail 1

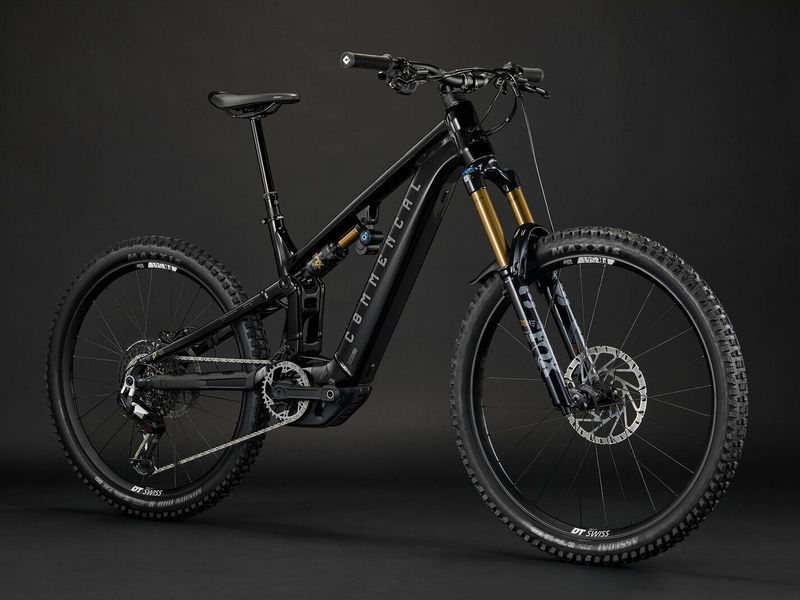

Commencal Meta Power SX 800 Signature e-MTB, detail 2

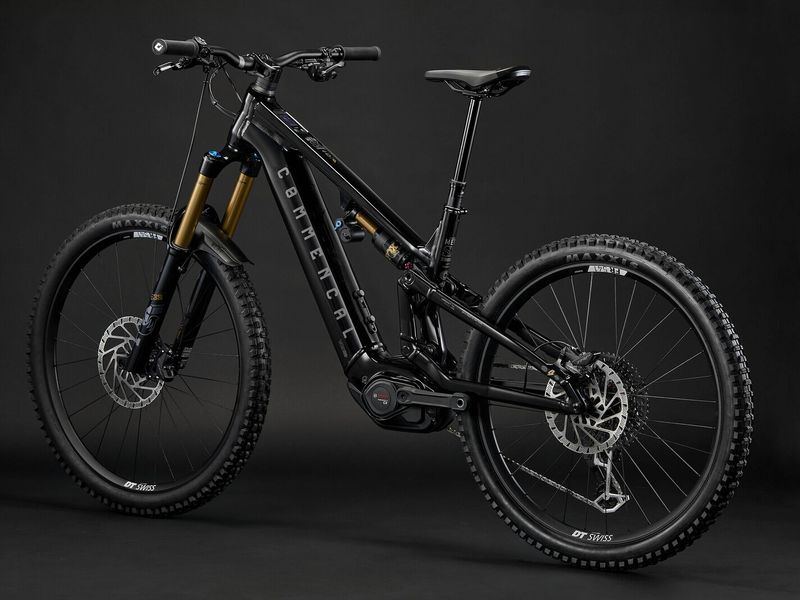

Commencal Meta Power SX 800 Signature e-MTB, detail 3

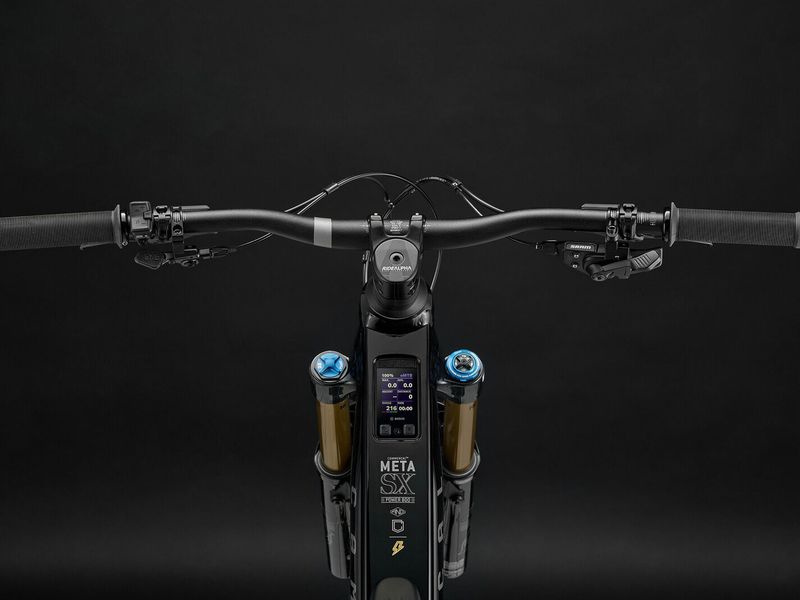

Commencal Meta Power SX 800 Signature e-MTB, detail 4

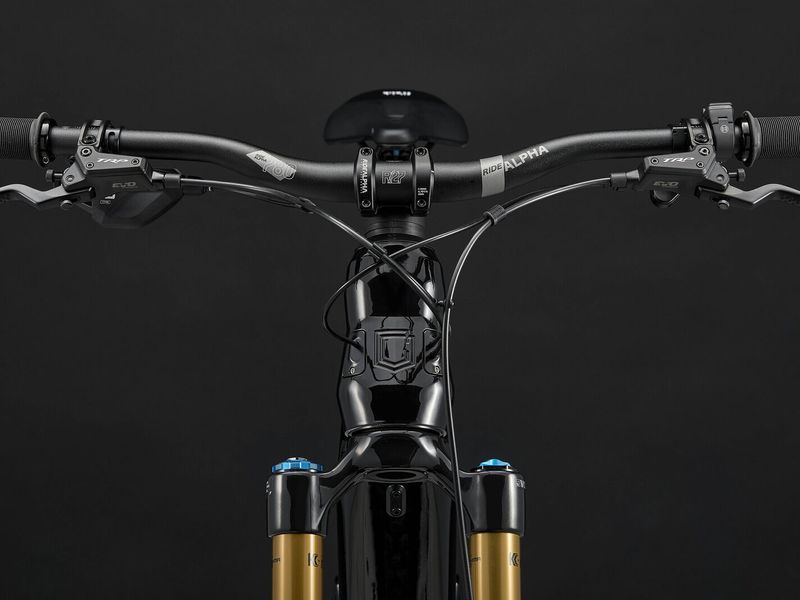

Commencal Meta Power SX 800 Signature e-MTB, detail 5

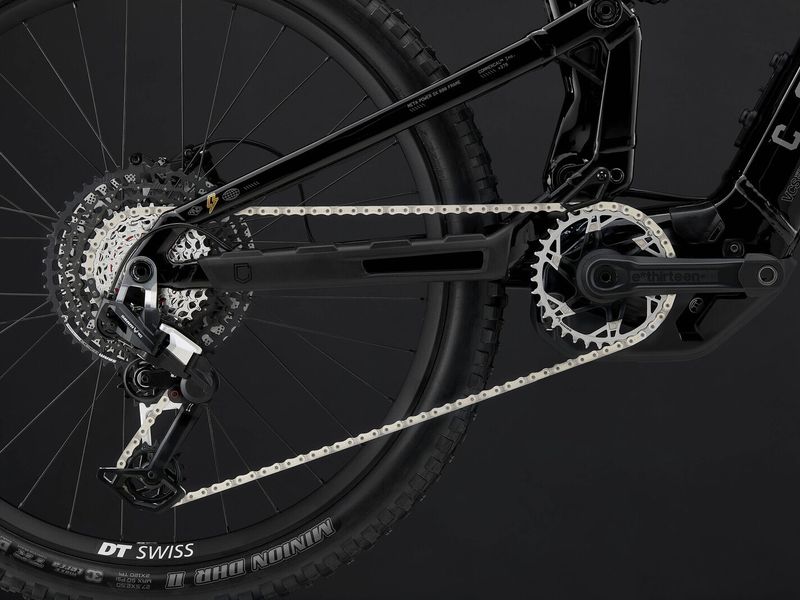

Commencal Meta Power SX 800 Signature e-MTB, detail 6

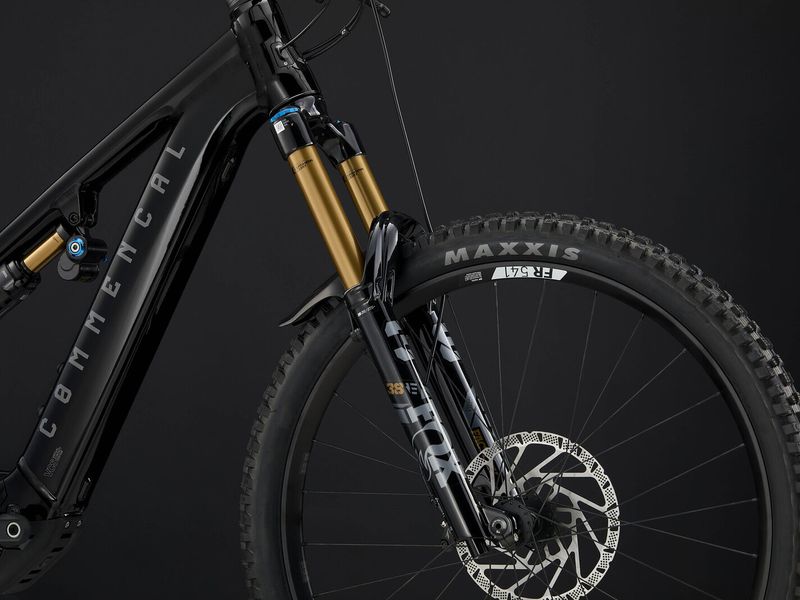

Commencal Meta Power SX 800 Signature e-MTB, detail 7

Photos: Commencal

Full specifications

Frame & suspension

Frame: Meta Power SX 800, 180 mm travel, 29"-27.5", Alloy 6066, triple butted tubes, T4, T6. Bolu bearings
Rear shock: Fox Float X2 Factory, 230 x 65 mm, 2-position (open/firm) lever, HSC, LSC, HSR, LSR
Fork: Fox 38 Factory E-Bike, 180 mm, 29", Grip X2 damper, HSR, LSR, HSC, LSC, Boost (15 x 110 mm), 44 mm offset, 3 spacers
Headset: Acros ZS56/ZS66, Alloy cups, stainless steel & sealed bearings
Frame weight: 5,86 kg / 12.91 lb

E-system

Motor: Bosch Performance Line CX Gen5, 120 Nm
Battery: Bosch Powertube 800, Fully integrated main battery, 800 Wh, Bosch 4A Battery Charger. Compact size & lightweight
Display: Bosch Kiox 400C : Integrated and colored display providing a large range of information : speed, ride mode, battery range, charge level, fitness data, elevation gain, altitude and even navigation., Bosch System Controller, ON/OFF switch, assist mode level, battery charge level, Switch: Bosch Mini Remote, mode switch, walk assist, light switch

Drivetrain

Shifters: SRAM Eagle 90, 12s
Chain guide: Ride Alpha, 32-34t
Rear derailleur: SRAM Eagle 90, 12s
Crankset: E13 Helix Core E*Spec, 155 mm crank arms, Bosch, Chainring: SRAM XX T-Type E-MTB, 34t for Bosch system, direct mount
Chain: SRAM GX T-Type, 12s, Flattop
Cassette: SRAM GX T-Type, 12s, 10-52t

Brakes

Brakes: TRP DH-R EVO PRO, 4 pistons, resin pads, Rear rotor: TRP RS05 203 mm - Front rotor: TRP RS05 220 mm, 6-bolt, 2.3 mm width

Wheels & tyres

Rims: DT Swiss FR541, Rear: 27.5", 28h, 30 mm inner width - Front: 29", 28h, 30 mm inner width
Hubs: Rear: DT Swiss 370 Hybrid - Front: DT Swiss 370, Rear: 28h, sealed bearings, 12 x 148 mm, 24t, SRAM XD - Front: 28h, sealed bearings, 15 x 110 mm
Spokes: Included with wheelset
Tyres: Rear: Maxxis Minion DHRII 27.5" - Front: Maxxis Assegai 29", Rear: 27.5x2.50 WT, 3C MaxxTerra, Double Down, TR - Front: 29x2.50 WT, 3C MaxxGrip, New EXO+, TR

Cockpit

Stem: Ride Alpha 40, 40 mm extension, 31.8 mm
Handlebar: Ride Alpha R20 760 on S - Ride Alpha R27 780 on M / L - Ride Alpha R27 800 on XL, 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
Grips: ODI Longneck 2.1, Soft compound, single clamp, black
Seatpost: ONE UP V3, 31.6 mm, 150 mm on S, 180 mm on M, 210 mm on L/XL
Saddle: Fizik Terra Aidon X5, 145 mm width, Kium Mobius rails
Pedals: Crankbrothers Stamp 1

Other

Colour: Pure Black, Shiny Finish
Accessories: RideWrap Lotus Pro™ protection film applied, motor protector, chain stay protector, seat stay protector, Fidlock base, fork fender, Crankbrothers Stamp 1 pedals
Weight: 25,5 kg / 56.22 lbs, Minimum weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.

Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.

Meta Power SX 800 geometry

Size	S	M	L	XL
1Seat Tube Length	380 mm	420 mm	440 mm	460 mm
2Seat Tube Angle	77.5°	77.5°	77.5°	77.5°
3Head Tube Angle	64.2°	64.2°	64.2°	64.2°
4Head Tube Length	135 mm	140 mm	140 mm	140 mm
5Wheelbase	1238.6 mm	1260.8 mm	1293 mm	1318 mm
6Top Tube Length	579.5 mm	600.5 mm	627.7 mm	652.7 mm
7Chainstay Length	445 mm	445 mm	450 mm	450 mm
8BB drop	3 mm	3 mm	3 mm	3 mm
9Fork Length	598 mm	598 mm	598 mm	598 mm
10Fork Offset	44 mm	44 mm	44 mm	44 mm
11Reach	433 mm	453 mm	480.2 mm	505.2 mm
12Stack	660.8 mm	665.3 mm	665.3 mm	665.3 mm

Source: Commencal.

Meta Power SX 800: builds compared

Meta Power SX 800 range →

	Meta Power SX 800 RockShox	Meta Power SX 800 Signature
Price	€8,500	€9,500
Frame	Alloy	Alloy
Fork	RockShox ZEB Ultimate, 180 mm	Fox 38 Factory E-Bike, 180 mm
Shock	RockShox Super Deluxe Select	Fox Float X2 Factory
Derailleur	SRAM Eagle 90	SRAM Eagle 90
Brakes	TRP DH-R EVO PRO	TRP DH-R EVO PRO
Wheels	DT Swiss H1900, Rear: 27.5"	DT Swiss FR541, Rear: 27.5"
Display	Bosch Kiox 400C : Integrated and colored display providing a large range of information : speed	Bosch Kiox 400C : Integrated and colored display providing a large range of information : speed
Weight	25.5 kg	25.5 kg

Meta Power SX 800 Signature: FAQ

How much does the Commencal Meta Power SX 800 Signature cost?

€9,500 (RRP France (commencal.com EU store), VAT incl.). The Meta Power SX 800 range runs from €8,500 (Meta Power SX 800 RockShox) to €9,500 (Meta Power SX 800 Signature). Prices vary by country and dealer.

How much does the Commencal Meta Power SX 800 Signature weigh?

Commencal quotes 25.5 kg. The lightest Meta Power SX 800 build is the Meta Power SX 800 RockShox at 25.5 kg.

What motor and battery does the Commencal Meta Power SX 800 Signature have?

Bosch Performance Line CX Gen5 (120 Nm). 800 Wh battery — bosch PowerTube 800; 250 Wh range extender compatible.

How much suspension travel does the Commencal Meta Power SX 800 Signature have?

180 mm at the fork and 180 mm at the rear, on mullet 29" / 27.5" wheels.

What sizes does the Commencal Meta Power SX 800 Signature come in?

S, M, L, XL. Check the geometry table to compare reach and stack between sizes.

What is the difference between the Meta Power SX 800 Signature and the Meta Power SX 800 RockShox?

They share the Meta Power SX 800 frame platform and motor; the differences are in the parts — fork: Fox 38 Factory E-Bike vs RockShox ZEB Ultimate; shock: Fox Float X2 Factory vs RockShox Super Deluxe Select; price: €9,500 vs €8,500.
