CannondaleMoterra 4+
- Motor
- Bosch Performance Line CX
- Battery
- 800 WhBosch PowerTube, removable
- Travel F / R
- 160 / 150 mm
- Wheels
- 29"
- Frame
- Alloy
Overview
The Cannondale Moterra 4+ (€4,299) is a mid-range build of the Moterra Neo: Bosch Performance Line CX with 800 Wh, SR Suntour Zeron 36-X Boost fork, RockShox Deluxe Select shock, Shimano CUES U6000 and Tektro Gemini SL 4-piston brakes. Cannondale does not publish a claimed weight.
The Moterra is Cannondale's full-power all-mountain e-MTB, built around the Bosch Performance Line CX motor and a removable Bosch PowerTube battery in the down tube (800 Wh on most builds, 600 Wh on the Moterra 4). It is compatible with the Bosch PowerMore range extender.
The top builds use a carbon frame, the others a SmartForm C1 alloy frame. All roll on 29-inch wheels with 150 mm of rear travel and a 160 mm fork; the Moterra EQ is an equipped variant with lights, rack and kickstand, 130 mm rear and 150 mm fork travel.
- Bosch Performance Line CX
- Removable PowerTube battery, up to 800 Wh
- 150 mm rear / 160 mm fork, 29" wheels
- Carbon or SmartForm C1 alloy frame

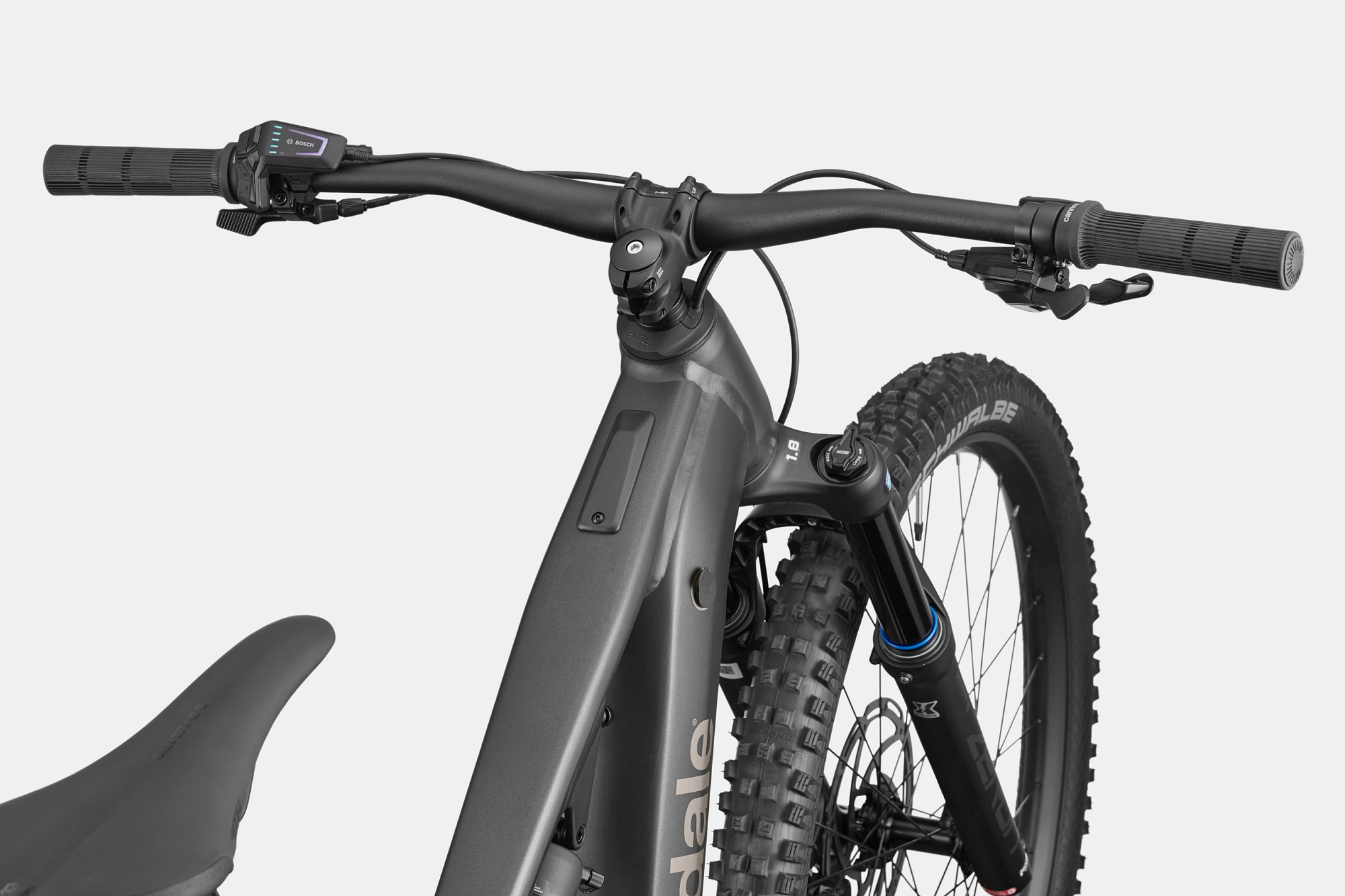

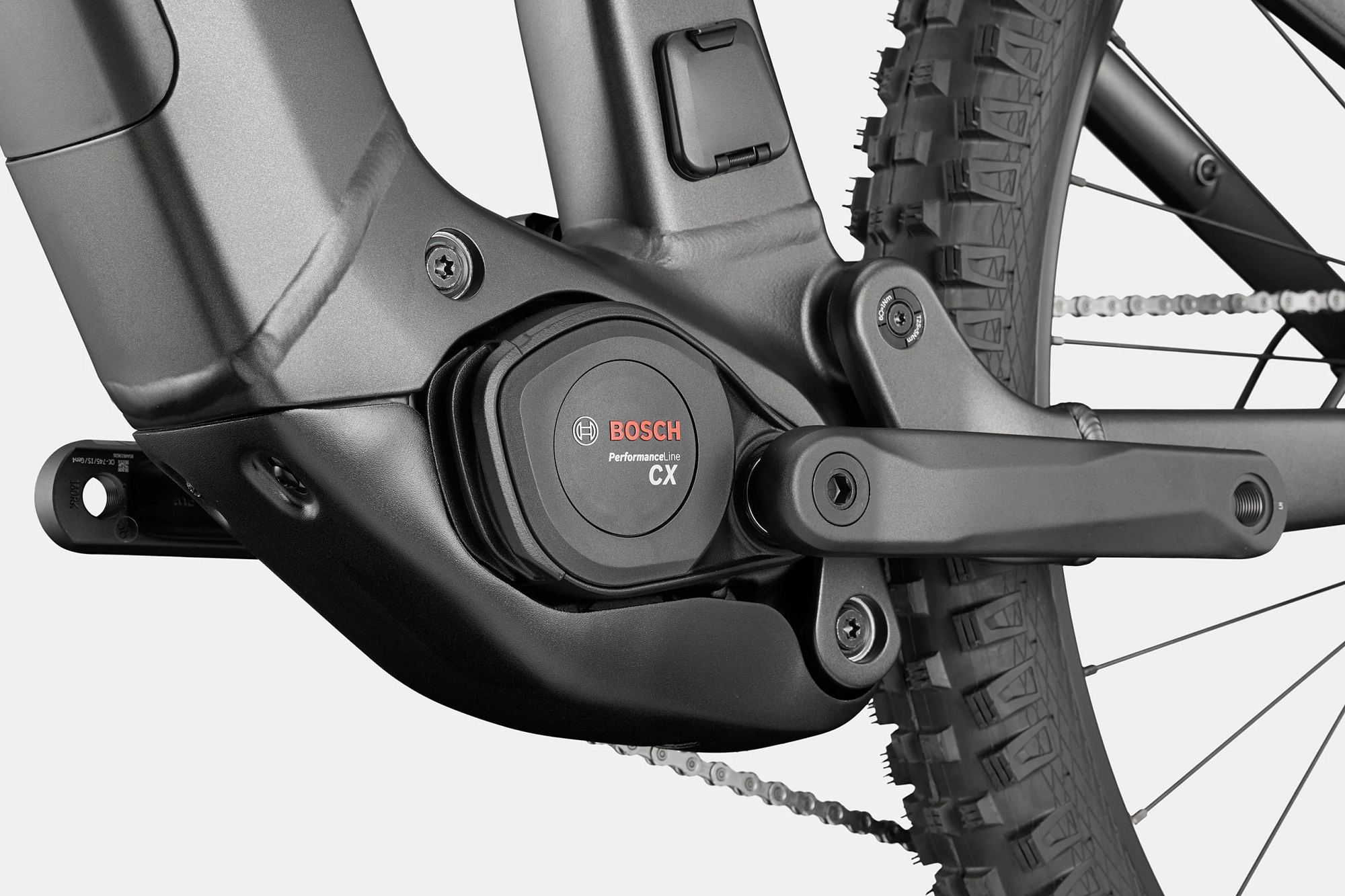

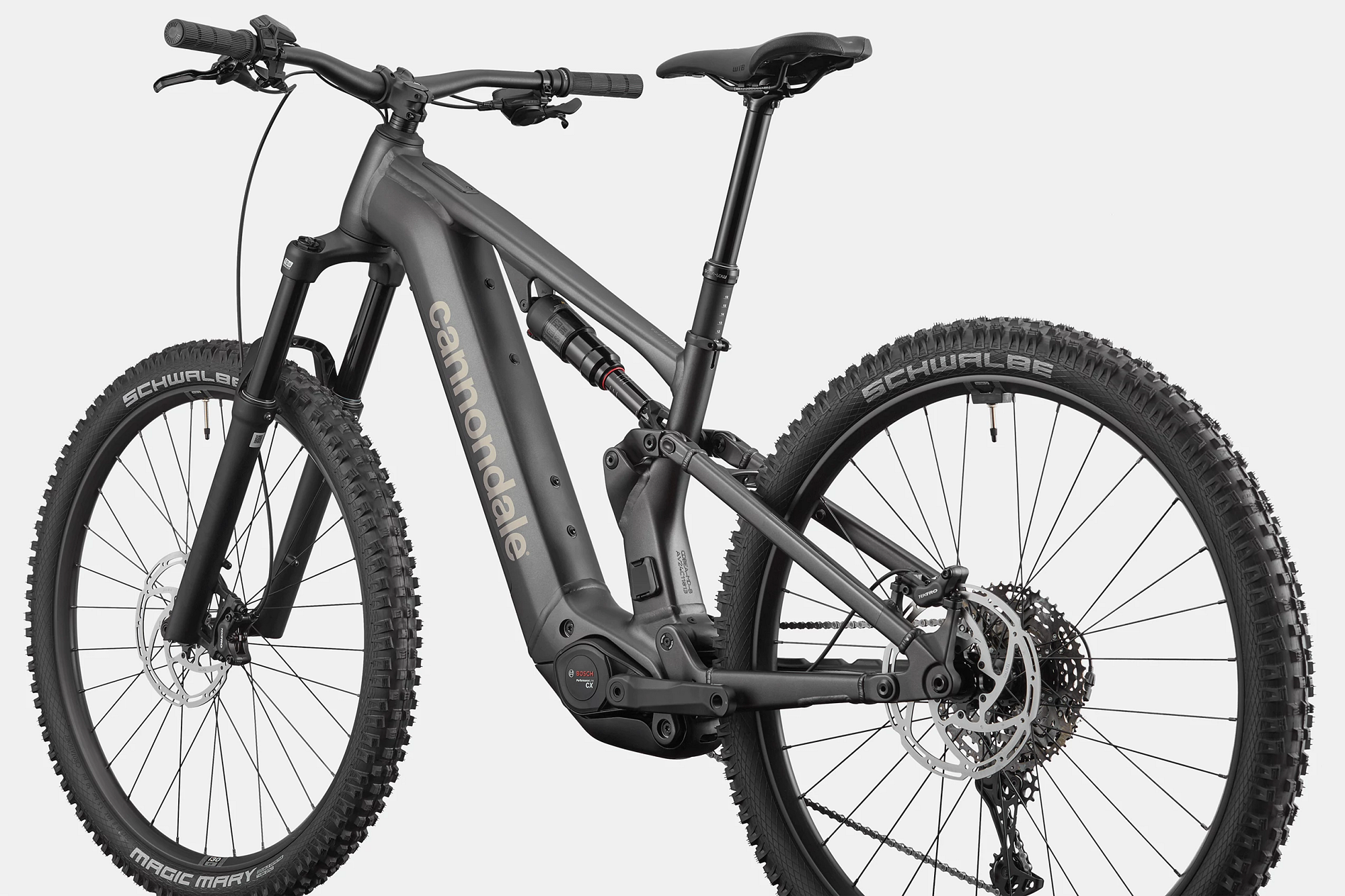

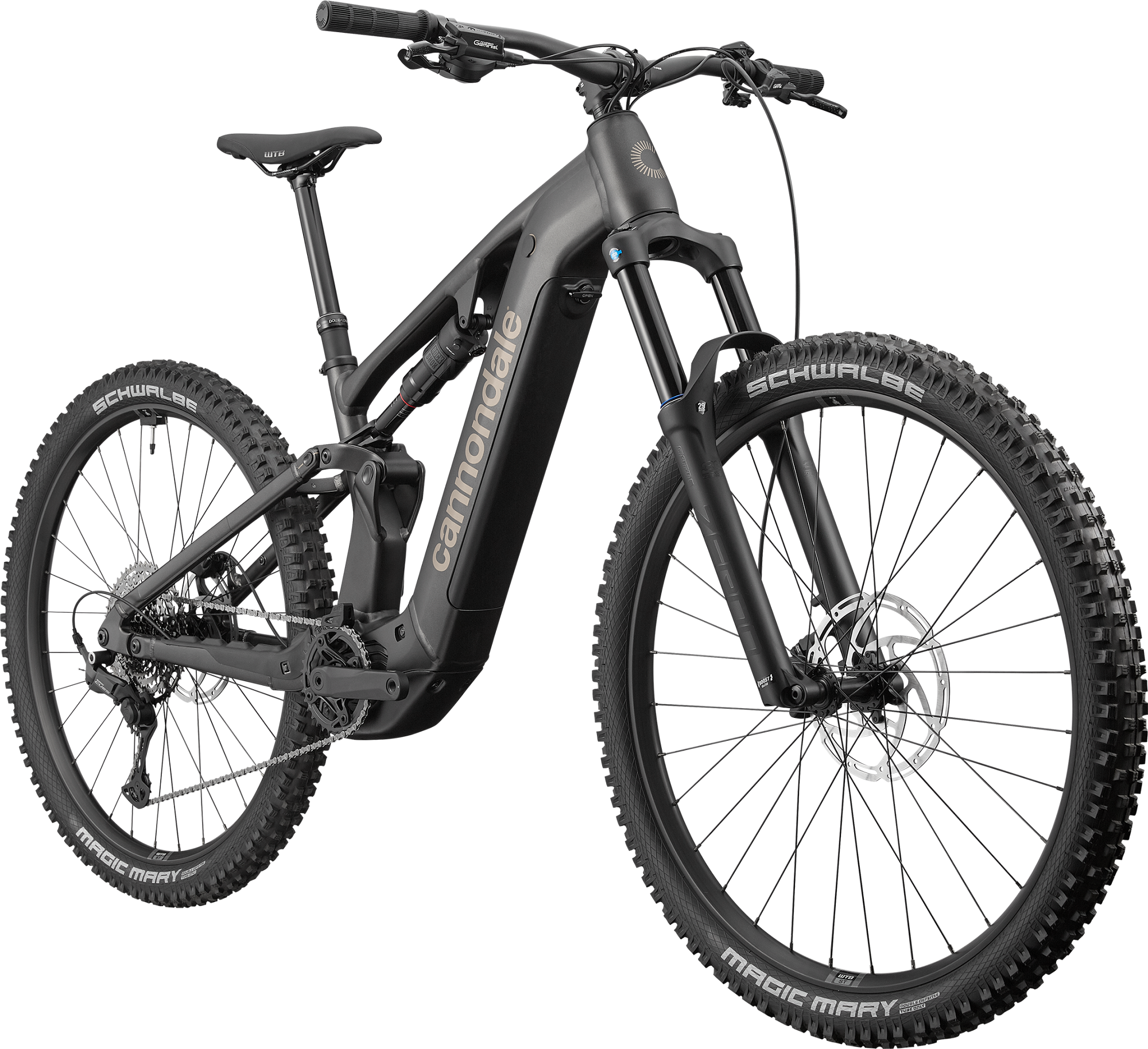

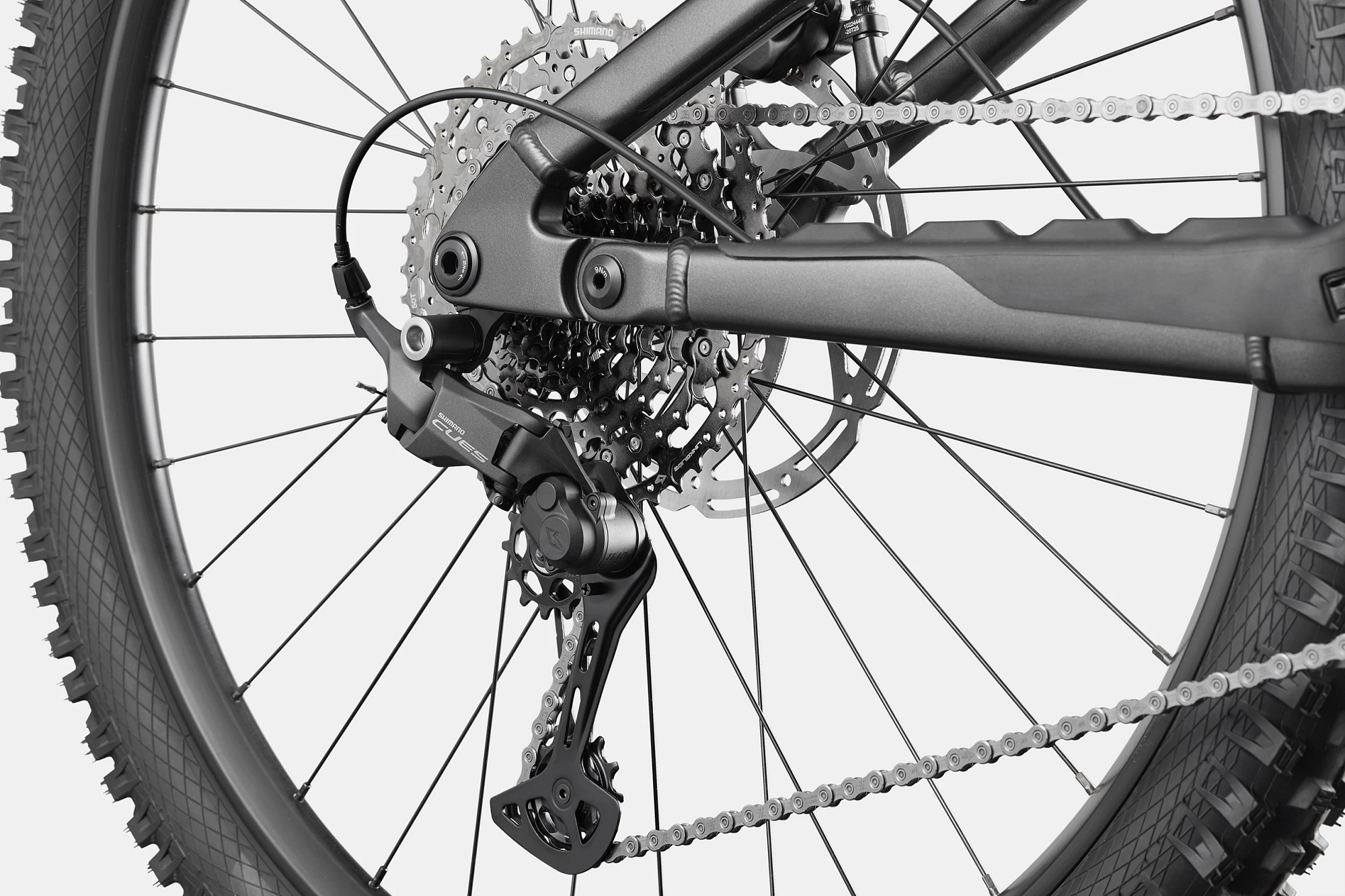

Gallery
Photos: Cannondale
Full specifications
Frame & suspension
- Frame
- Moterra, SmartForm C1 Alloy, 29" wheels, 150mm travel, Cannondale Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube, 40mm two-bolt kickstand compatible, integrated Moterra rear rack and fender mounts
- Fork
- SR Suntour Zeron 36-X Boost, 160mmm, EQ Air, compression & rebound adjust, 15x110mm thru-axle, tapered steerer, 44mm offset
- Headset
- Acros ICR, 1.5" to 1.8", sealed bearings
- Rear shock
- RockShox Deluxe Select, DebonAir+, adjustable rebound, 230x62.5mm
E-system
- Motor
- Bosch Performance Line CX
- Battery
- Bosch PowerTube, 800Wh
- Charger
- Bosch 4A
- Display
- Bosch LED Remote
- Certifications
- UL 2849
Drivetrain
- Rear derailleur
- Shimano CUES U6000, LinkGlide
- Shifters
- Shimano CUES U6000, 11-speed, LinkGlide
- Chain
- Shimano LG500, LinkGlide, 11-speed
- Crank
- FSA Bosch E-bike w/ 55mm chainline, 160mm, 34T
- Rear Cogs
- Shimano CUES LG400, LinkGlide, 11-50, 11-speed
Brakes
- Brakes
- Tektro Gemini SL 4-piston hydraulic disc, 203mm rotors
- Brake Levers
- Tektro Gemini SL hydraulic disc
Wheels & tyres
- Rims
- WTB ST i30 TCS, 30mm inner width, 32h, tubeless compatible
- Spokes
- DT Swiss Champion 2.0
- Wheel Size
- 29"
- Hubs
- (F) Shimano TC500, 15x110mm thru-axle / (R) Shimano TC600, 12x148mm thru-axle, centerlock
- Tires
- Schwalbe Magic Mary Performance, 29x2.4", Tube
Cockpit
- Handlebar
- Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
- Stem
- Cannondale 1, 6061 Alloy, 35.0, 40mm, 0°
- Grips
- Cannondale TaperRidge
- Saddle
- WTB Silverado Medium
- Seatpost
- Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)
Other
- Extras
- Bosch PowerMore range extender compatible
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Moterra Neo: builds compared
Moterra Neo range →| Moterra 4 | Moterra 4+ | Moterra 3 | Moterra EQ | Moterra 2 | Moterra 2 SMU | Moterra 1 | Moterra 1 SMU | |
|---|---|---|---|---|---|---|---|---|
| Price | €3,999 | €4,299 | €4,799 | €4,999 | €6,999 | €6,999 | €8,799 | €8,999 |
| Frame | Alloy | Alloy | Alloy | Alloy | Carbon | Carbon | Carbon | Carbon |
| Fork | SR Suntour Zeron 36-X Boost, 160mmm | SR Suntour Zeron 36-X Boost, 160mmm | RockShox Psylo Silver RC, 160mm | SR Suntour Zeron 36-X Boost, 150mmm | RockShox ZEB Select, 160mm | RockShox ZEB Select, 160mm | Fox Float Factory 38, 160mm | Fox Float Factory 38, 160mm |
| Shock | RockShox Deluxe Select | RockShox Deluxe Select | RockShox Deluxe Select | SR Suntour Edge Evo R | RockShox Deluxe Select+ | RockShox Deluxe Select+ | Fox Float X Factory | Fox Float X Factory |
| Derailleur | Shimano CUES U6000 | Shimano CUES U6000 | Shimano CUES U6000 | Shimano CUES U6000 | Shimano XT M8130 | Shimano Deore Di2 M6260 | SRAM XO Eagle AXS | Shimano XT Di2 M8260 |
| Brakes | Tektro Gemini SL 4-piston hydraulic disc | Tektro Gemini SL 4-piston hydraulic disc | Shimano MT520 4-piston hydraulic disc | Tektro Gemini SL 4-piston hydraulic disc | Magura MT5 4-piston hydraulic disc | Magura Louise Elite 4-piston hydraulic disc | Magura MT7 4-piston hydraulic disc | Magura Gustav Elite 4-piston hydraulic disc |
| Wheels | WTB ST i30 TCS, 30mm inner width | WTB ST i30 TCS, 30mm inner width | WTB ST i30 TCS, 30mm inner width | WTB ST i30 TCS, 30mm inner width | WTB ST i30 Tough TCS, 30mm inner width | WTB ST i30 Tough TCS, 30mm inner width | DT Swiss H 1900 Spline, 30mm inner width | Reserve 30|HD AL, 30mm inner width |
| Display | Bosch LED Remote | Bosch LED Remote | Bosch Purion 200 | Bosch Purion 200 | Top Tube System Controller w/ Bosch Kiox 300 & Mini Remote | Top Tube System Controller w/ Bosch Kiox 300 & Mini Remote | Top Tube System Controller w/ Bosch Kiox 500 & Mini Remote | Top Tube System Controller w/ Bosch Kiox 500 & Mini Remote |
Moterra 4+: FAQ
How much does the Cannondale Moterra 4+ cost?
€4,299 (RRP France/Germany (Cannondale EU), VAT incl.). The Moterra Neo range runs from €3,999 (Moterra 4) to €8,999 (Moterra 1 SMU). Prices vary by country and dealer.
What motor and battery does the Cannondale Moterra 4+ have?
Bosch Performance Line CX. 800 Wh battery — bosch PowerTube, removable.
How much suspension travel does the Cannondale Moterra 4+ have?
160 mm at the fork and 150 mm at the rear, on 29" wheels.
What sizes does the Cannondale Moterra 4+ come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Moterra 4+ and the Moterra 3?
They share the Moterra Neo frame platform and motor; the differences are in the parts — fork: SR Suntour Zeron 36-X Boost vs RockShox Psylo Silver RC; price: €4,299 vs €4,799.
