Crossworx Pace290 update: shaped top tube and ZS56 head tube

German frame maker Crossworx has reworked its Bosch-powered Pace290 e-enduro with a new shaped top tube, a ZS56/ZS56 head tube and cleaner routing. Frame kits start at €4,999.

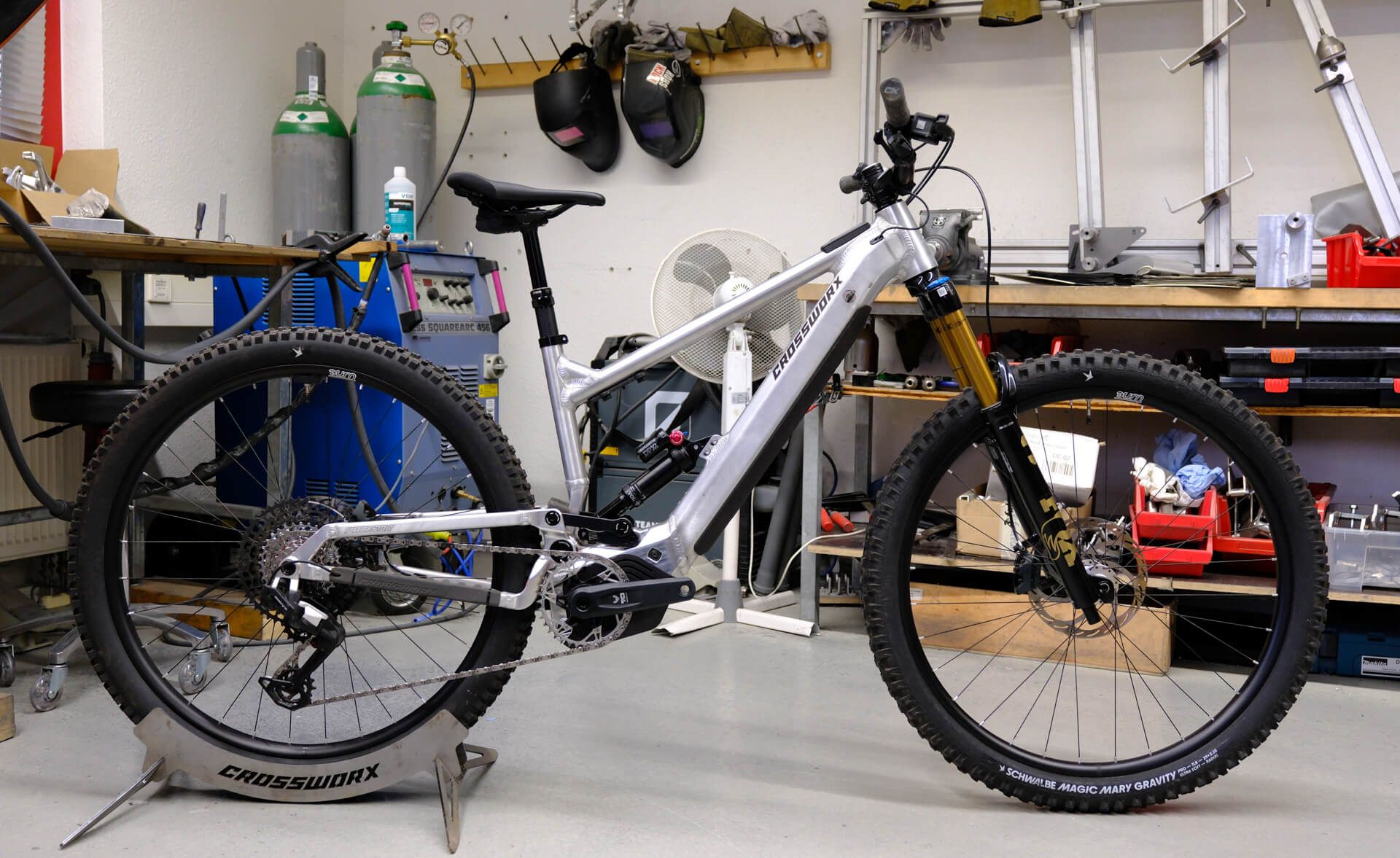

Crossworx Pace290 aluminium e-MTB in raw finish in the Crossworx workshop
Photo: Crossworx

Crossworx is a small aluminium frame builder from Thuringia, and its full-power Pace290 e-MTB has just had a mid-life update. Geometry, travel and the Bosch drive stay the same. The work went into stiffness, adjustability and the small things you notice every day.

The biggest visible change is the top tube. A new shaped tube replaces the round one from the first version, and eMTB-News.de says it adds stiffness and lets the Bosch system sit more neatly in the frame. The head tube moves from ZS44/ZS56 to ZS56 at both ends, which means you can now fit headsets that change the reach or the head angle. That's a useful bit of freedom on a bike you might keep for years.

Two smaller fixes complete the list. A moulded one-piece plastic motor cover replaces the old 3D-printed part, which should last longer. And the brake and gear lines now run straight through the motor area, so there are fewer places for them to rub.

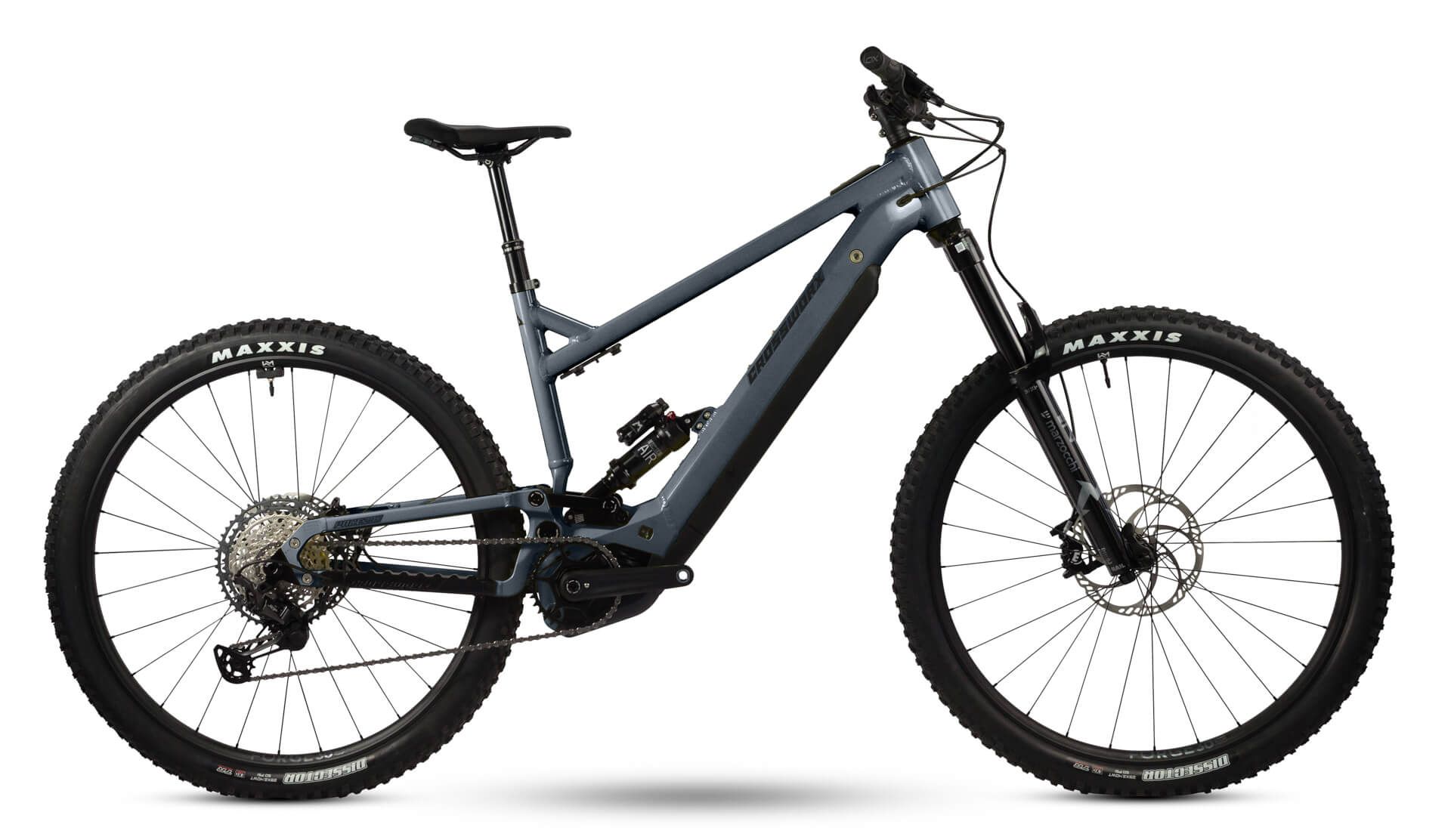

Crossworx Pace290 e-MTB in grey, drive side studio view
The Pace290 in grey. Crossworx sells it as a frame kit or a complete bike. · Photo: Crossworx

Same Bosch CX, same 160 mm

The frame is still 7020 aluminium with a supported single pivot, driven by a pushrod, and 160 mm of travel on a 230 x 65 mm shock. It takes a 160 or 170 mm fork and runs either full 29" wheels or a mullet. Crossworx says there's room for a coil shock, and there's a sag indicator on the rocker.

Power comes from the Bosch Performance Line CX. Crossworx quotes up to 750 W peak and 100 Nm, while eMTB-News.de lists 120 Nm with Bosch's performance upgrade. The standard battery is a 600 Wh PowerTube. An 800 Wh PowerTube adds €250, and a 250 Wh PowerMore range extender (€399) mounts in front of the shock. It doesn't fit size M, though.

Sizes are M, L and XL, with a 64.5° head angle, a 79° seat angle and reach of 450, 480 and 510 mm. A complete size L starts at 23.0 kg. The raw size L frame weighs 4.17 kg.

Price and delivery

The frame kit is €4,999 and complete bikes start at €7,499. eMTB-News.de reports about four weeks' lead time in raw and six weeks for custom paint. Besides Radiant Raw you can choose six colours or any RAL shade.

That looks like a fair price for a German alloy frame with a full-power Bosch. If you'd rather compare, our eMTB catalog has plenty of other Bosch-powered enduro bikes.

Crossworx Pace290 at a glance

Frame
7020 aluminium, supported single pivot with pushrod
Travel
160 mm rear; 160 or 170 mm fork
Wheels
29" or mullet 29"/27.5"
Motor
Bosch Performance Line CX, up to 750 W peak
Battery
600 Wh PowerTube; 800 Wh +€250; PowerMore 250 Wh +€399 (not size M)
Shock size
230 × 65 mm
Head tube
ZS56/ZS56 (new)
Head / seat angle
64.5° / 79°
Reach (M / L / XL)
450 / 480 / 510 mm
Weight
from 23.0 kg complete (L); frame 4.17 kg raw (L)
Price
Frame kit €4,999; complete from €7,499

Figures from Crossworx and eMTB-News.de.
