TrekFuel+ MX
- Price
- £7,625 – £10,300
- Motor
- TQ HPR6060 Nm, 350 W peak
- Battery
- 580 WhRemovable
- Travel F / R
- 160 / 150 mm
- Wheels
- Mullet 29" / 27.5"
Overview
The Fuel+ Gen 2 is Trek's mid-power trail e-MTB: TQ's HPR60 motor (60 Nm, 350 W peak) with a removable 580 Wh battery, in three configurations — EX (145 mm rear / 150 mm fork, mixed wheels), MX (150 mm rear, mixed wheels) and LX (160 mm rear / 170 mm fork, 29-inch wheels).
Most builds use an OCLV Mountain Carbon frame (the EX 8 is aluminium) with an angle-adjust headset, adjustable leverage rate and interchangeable rocker links and lower shock mount.
- TQ HPR60: 60 Nm, 350 W peak
- Removable 580 Wh battery
- EX, MX and LX travel/wheel configurations
- Angle-adjust headset, adjustable leverage rate
Trek Fuel+ MX builds
Fuel+ MX builds compared

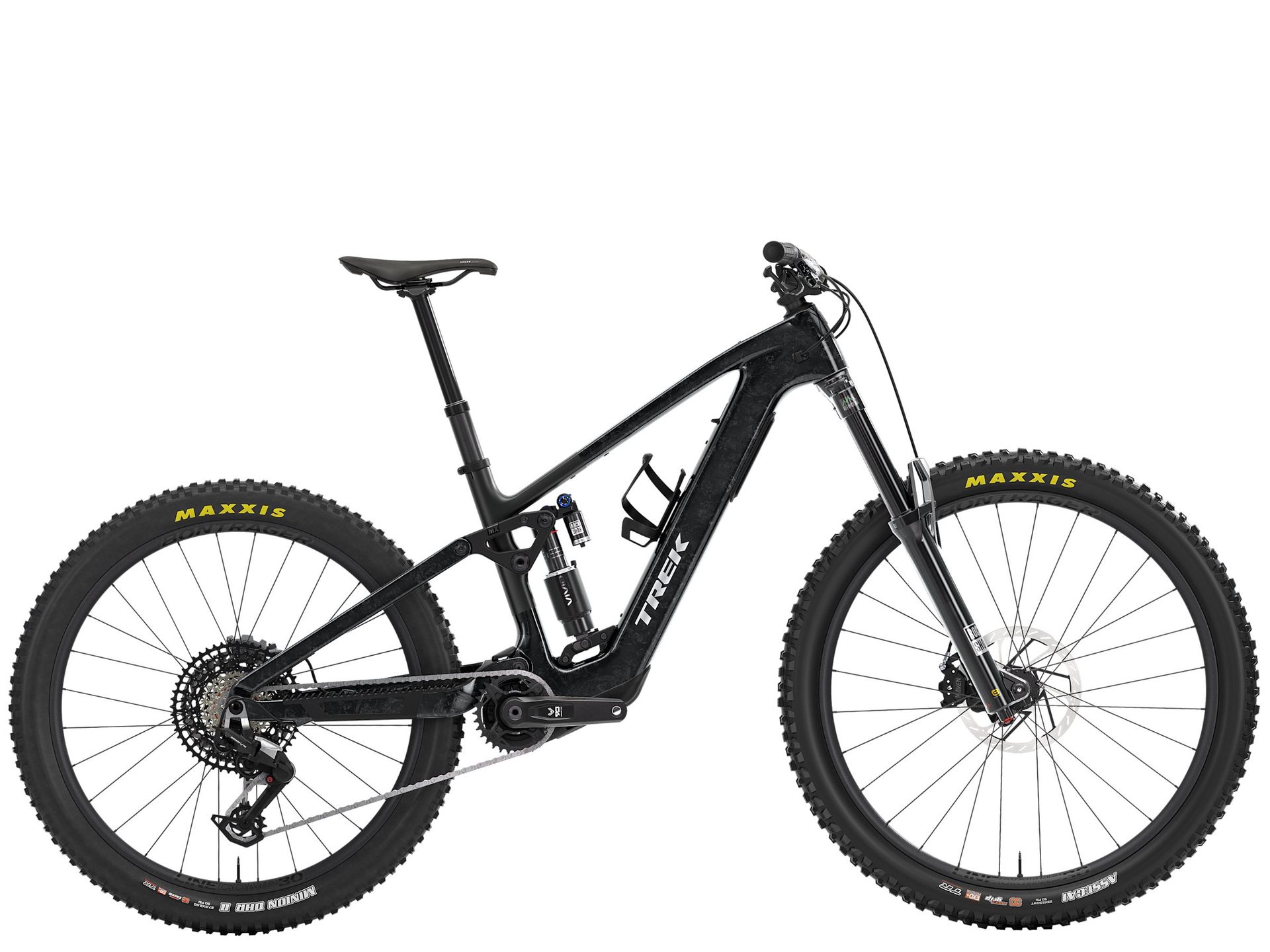

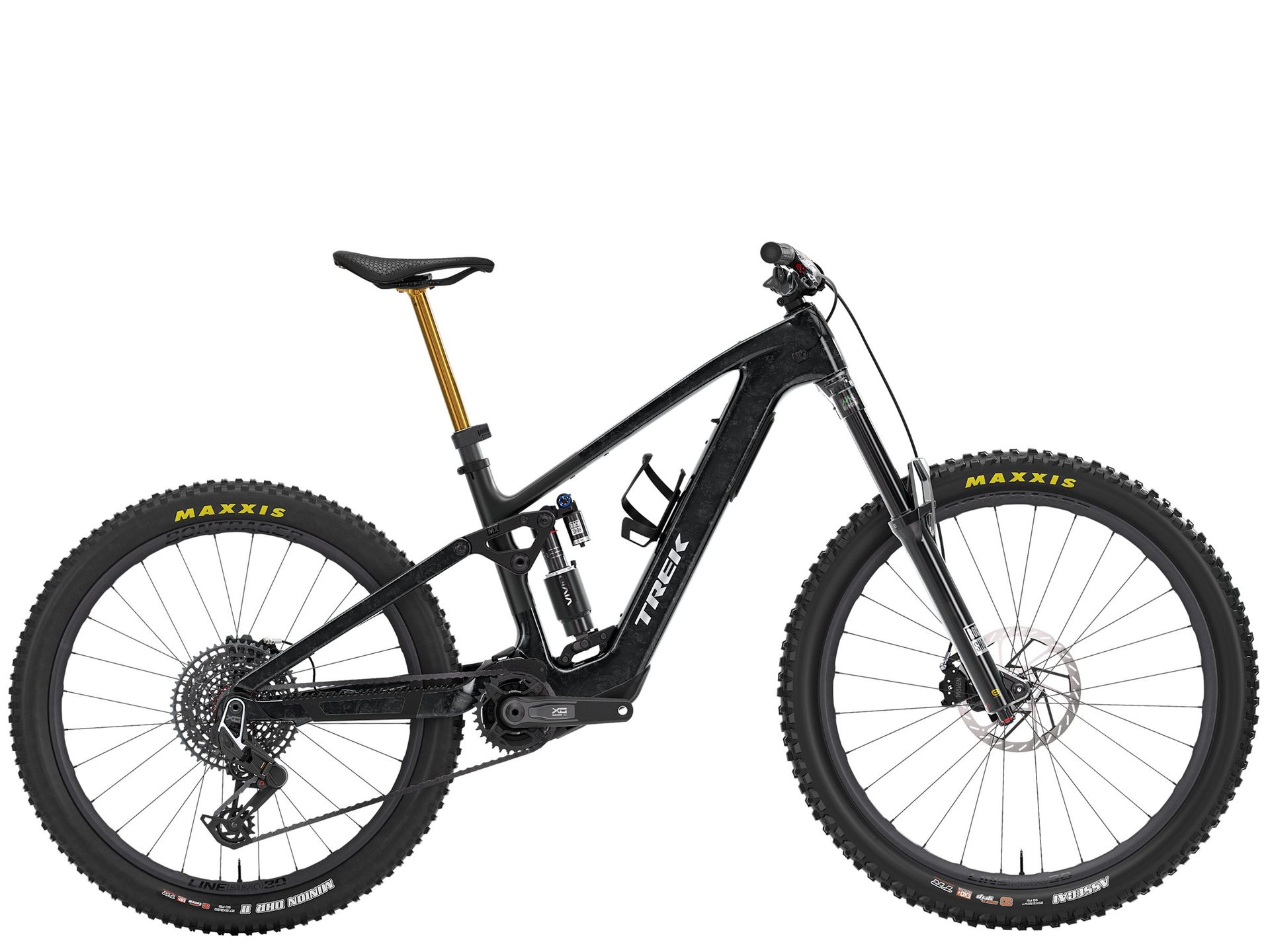

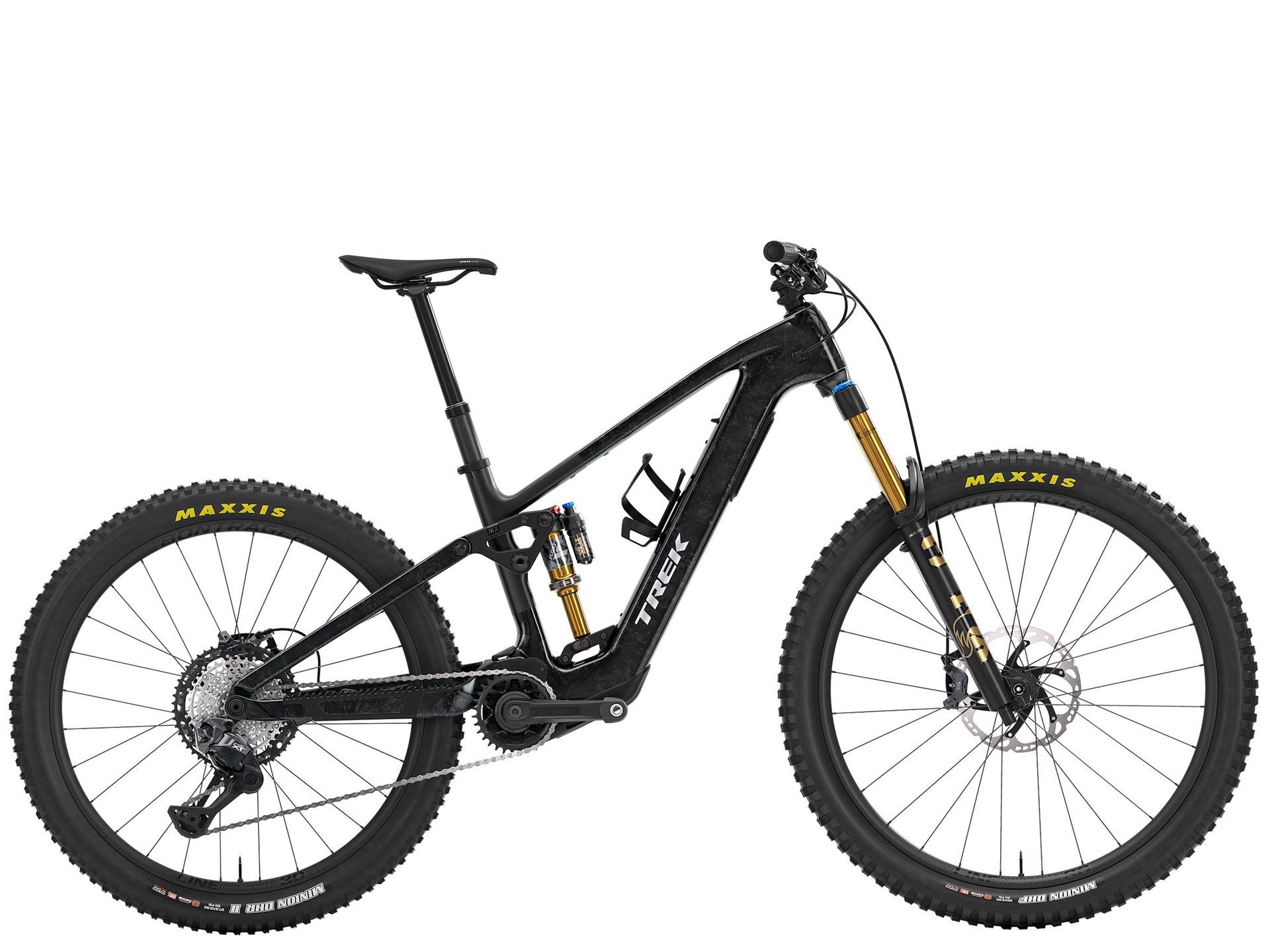

| Fuel+ MX 9.8 XT Gen 2 | Fuel+ MX 9.8 Eagle 90 Gen 2 | Fuel+ MX 9.8 XT Di2 Gen 2 | Fuel+ MX 9.9 X0 AXS Gen 2 | |
|---|---|---|---|---|
| Price | £7,625 | £7,625 | £8,075 | £10,300 |
| Frame | Carbon | Carbon | Carbon | Carbon |
| Fork | Fox Factory 36, Float EVOL air spring | Rockshox ZEB Ultimate B1, Linear XL w/ ButterCups | Fox Factory 36, Float EVOL air spring | Rockshox ZEB Ultimate B1, Linear XL w/ ButterCups |
| Shock | Fox Factory Float X | RockShox Vivid Ultimate D1 | Fox Factory Float X | RockShox Vivid Ultimate D1 |
| Derailleur | Shimano Deore M8200 | SRAM Eagle 90 | Shimano XT Di2 M8260 | SRAM X0 Eagle AXS |
| Brakes | Shimano XT M8220 4-piston hydraulic disc | SRAM Maven Bronze 4-piston hydraulic disc | Shimano XT M8220 4-piston hydraulic disc | SRAM Maven Silver 4-piston hydraulic disc |
| Wheels | Bontrager Line Comp 30 | Bontrager Line Comp 30 | Bontrager Line Comp 30 | Bontrager Line Pro 30 |
Fuel+ MX geometry
| Size | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| Wheel size | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" | 29"/27.5" |
| Seat tube length | 370 mm | 400 mm | 420 mm | 455 mm | 475 mm |
| Seat tube angle | 72.3° | 72.3° | 72.3° | 72.3° | 72.3° |
| Effective seat tube angle | 77.7° | 77.5° | 77.0° | 76.6° | 76.1° |
| Head tube length | 110 mm | 110 mm | 125 mm | 140 mm | 155 mm |
| Head angle | 64.2° | 64.2° | 64.2° | 64.2° | 64.2° |
| Effective top tube | 560 mm | 590 mm | 619 mm | 652 mm | 682 mm |
| BB height | 343 mm | 343 mm | 343 mm | 343 mm | 343 mm |
| BB drop | 31 mm | 31 mm | 31 mm | 31 mm | 31 mm |
| Chainstay length | 440 mm | 440 mm | 440 mm | 444 mm | 449 mm |
| Fork offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm | 132 mm |
| Wheelbase | 1204 mm | 1234 mm | 1266 mm | 1301 mm | 1332 mm |
| Standover | 758 mm | 752 mm | 755 mm | 759 mm | 769 mm |
| Reach | 426 mm | 456 mm | 482 mm | 507 mm | 527 mm |
| Stack | 627 mm | 627 mm | 641 mm | 654 mm | 668 mm |
| Front centre | 765 mm | 795 mm | 826 mm | 857 mm | 884 mm |
Source: Trek.
Trek Fuel+ MX: FAQ
How much does the Trek Fuel+ MX cost?
£7,625 – £10,300 depending on the build (Fuel+ MX 9.8 XT Gen 2 £7,625, Fuel+ MX 9.8 Eagle 90 Gen 2 £7,625, Fuel+ MX 9.8 XT Di2 Gen 2 £8,075, Fuel+ MX 9.9 X0 AXS Gen 2 £10,300); RRP UK, VAT incl..
How many Trek Fuel+ MX builds are there?
4: Fuel+ MX 9.8 XT Gen 2, Fuel+ MX 9.8 Eagle 90 Gen 2, Fuel+ MX 9.8 XT Di2 Gen 2, Fuel+ MX 9.9 X0 AXS Gen 2. They share the frame platform and differ mainly in suspension, drivetrain, wheels and weight.
What motor and battery does the Trek Fuel+ MX use?
TQ HPR60 (60 Nm, 350 W peak) with a 580 Wh battery (removable).
How much travel does the Trek Fuel+ MX have?
160 mm fork and 150 mm rear travel on mullet 29" / 27.5" wheels.
