Santa CruzHeckler SL 90
- Motor
- Fazua Ride 6060 Nm
- Battery
- 430 WhFazua integrated battery, charged in the frame
- Travel F / R
- 160 / 150 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
- Weight
- 20.1 kgManufacturer figure (size not stated)
Overview

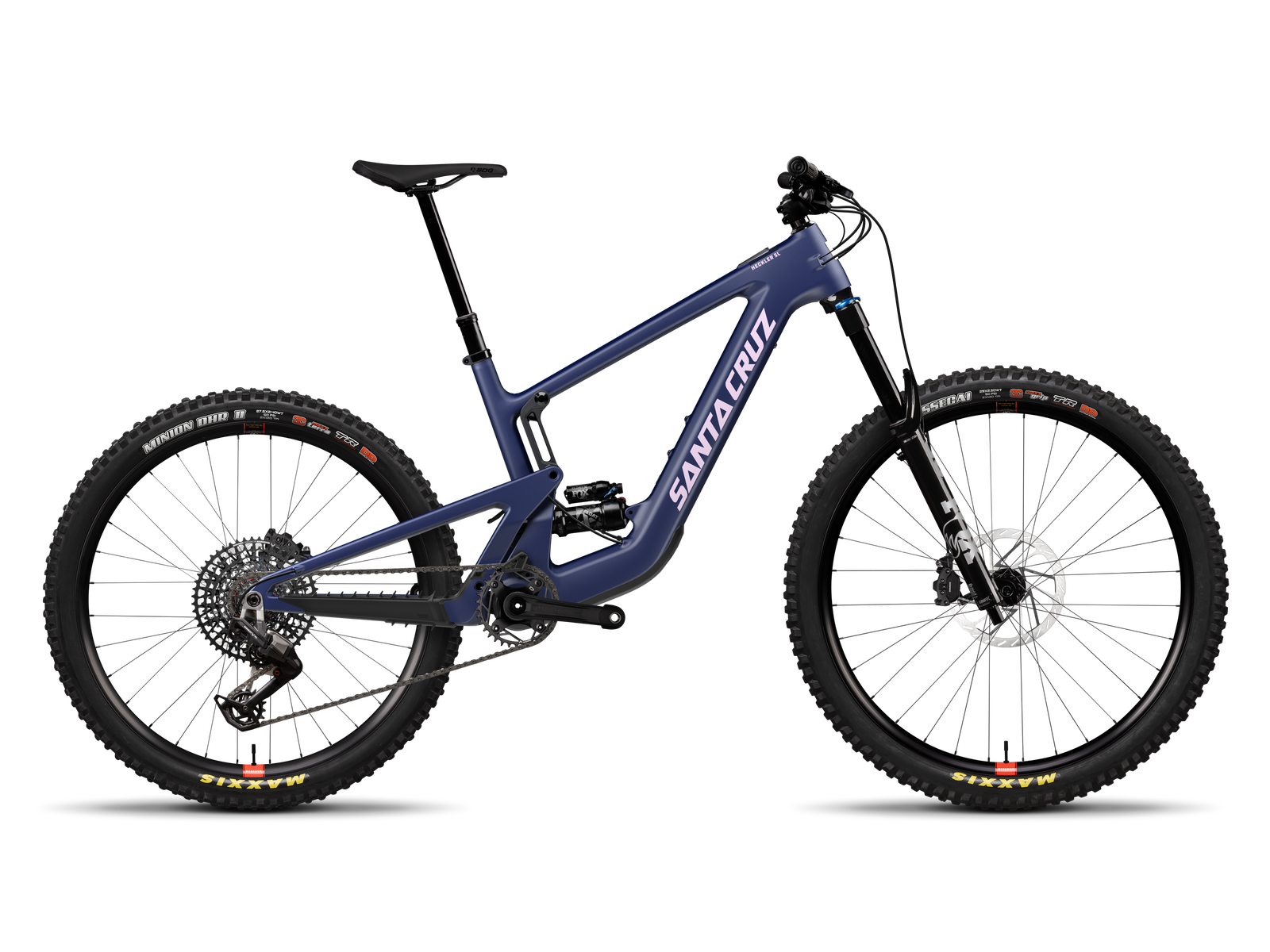

The Santa Cruz Heckler SL 90 (£6,999) is a mid-range build of the Heckler SL: Fazua Ride 60 with 430 Wh, FOX 36 Float Performance fork, FOX Float X Performance shock, SRAM 90 Eagle T-Type and SRAM Maven Base brakes. Claimed weight is 20.1 kg.
The Heckler SL is Santa Cruz's lightweight e-MTB, built around the Fazua Ride 60 drive unit and a 430 Wh battery integrated in the down tube. The carbon frame has 150 mm of VPP rear travel, a 160 mm fork, mixed wheels and a flip chip.

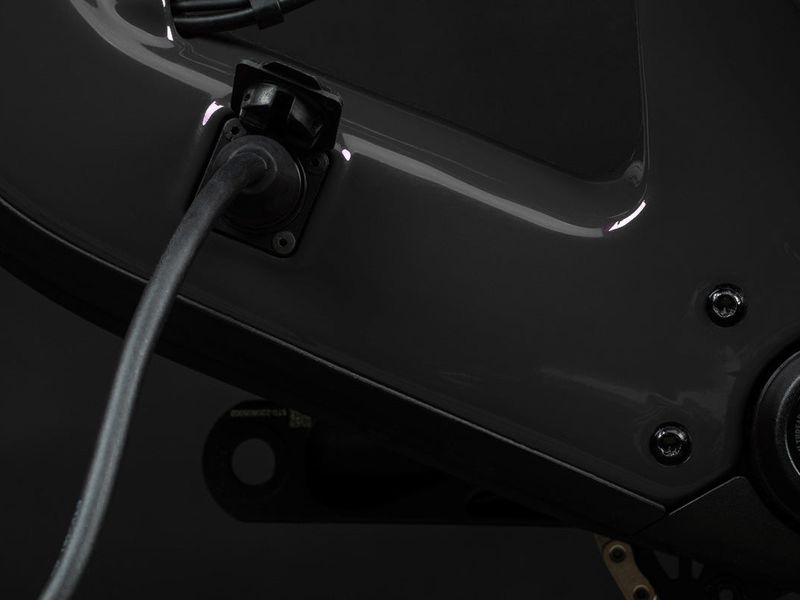

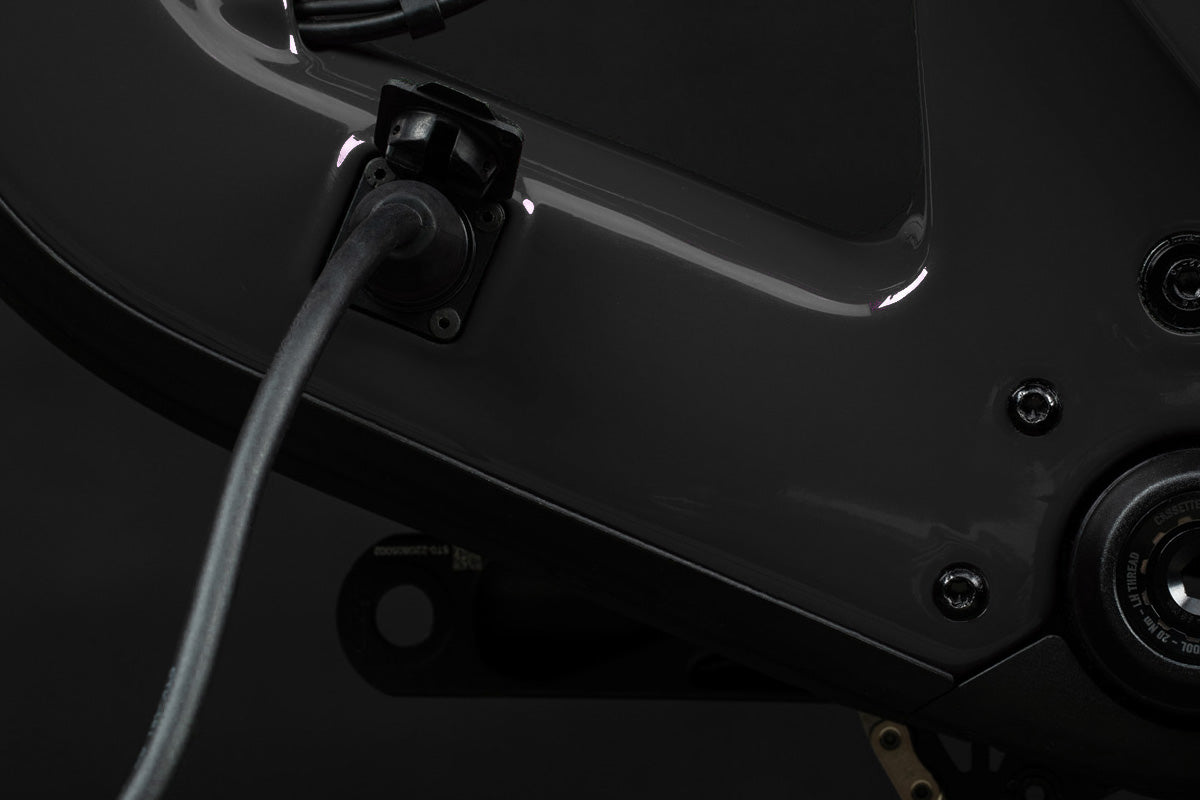

The battery is designed to be charged in the frame and removed only for service. The UK line-up mixes the MY26 70 and 90 builds with the MY25 GX AXS, X0 AXS RSV and XX AXS RSV, with claimed weights from 19.4 to 20.1 kg.
- Fazua Ride 60 light-assist motor
- 430 Wh integrated battery
- 150 mm VPP rear / 160 mm fork
- Mixed wheels, flip chip
Gallery
Photos: Santa Cruz
Full specifications
Frame & suspension
- Frame
- Carbon C MX 150mm Travel VPP™
- Wheel size
- MX (29" front / 27.5" rear)
- Fork
- FOX 36 Float Performance, Grip, 160mm
- Rear travel
- 150mm

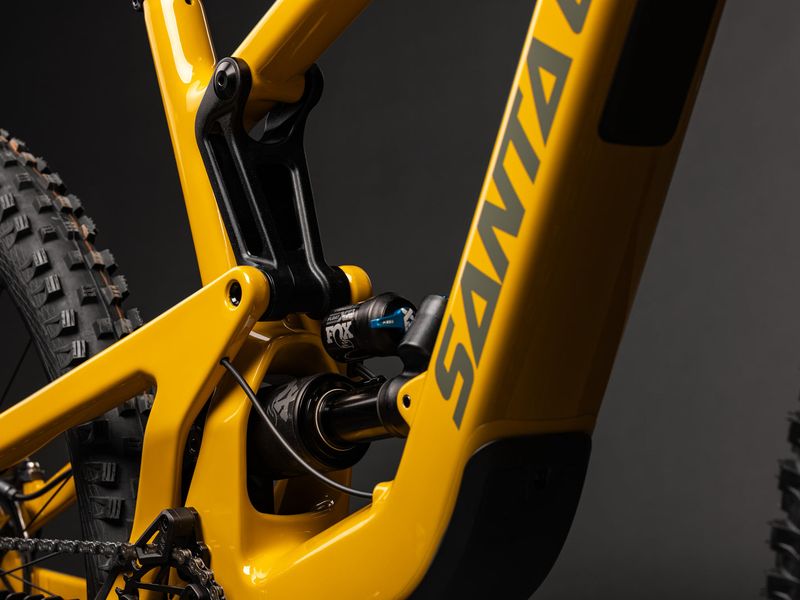

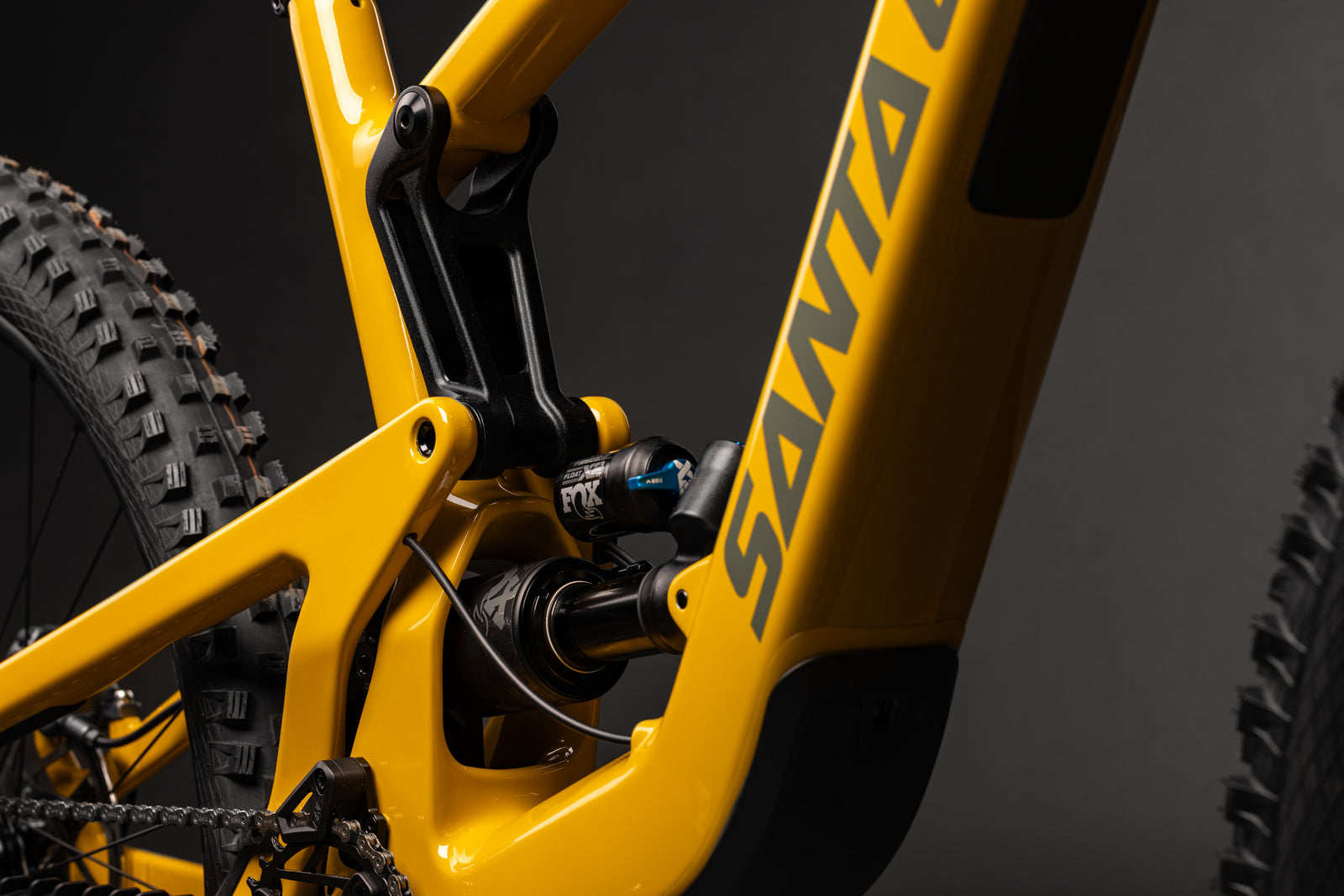

- Rear shock
- FOX Float X Performance, 210x55
E-system
- Motor
- Fazua Ride 60
- Battery
- Fazua 430Wh Integrated Battery
Drivetrain
- Shifter
- SRAM 90 Eagle T-Type, Single Click, 12spd

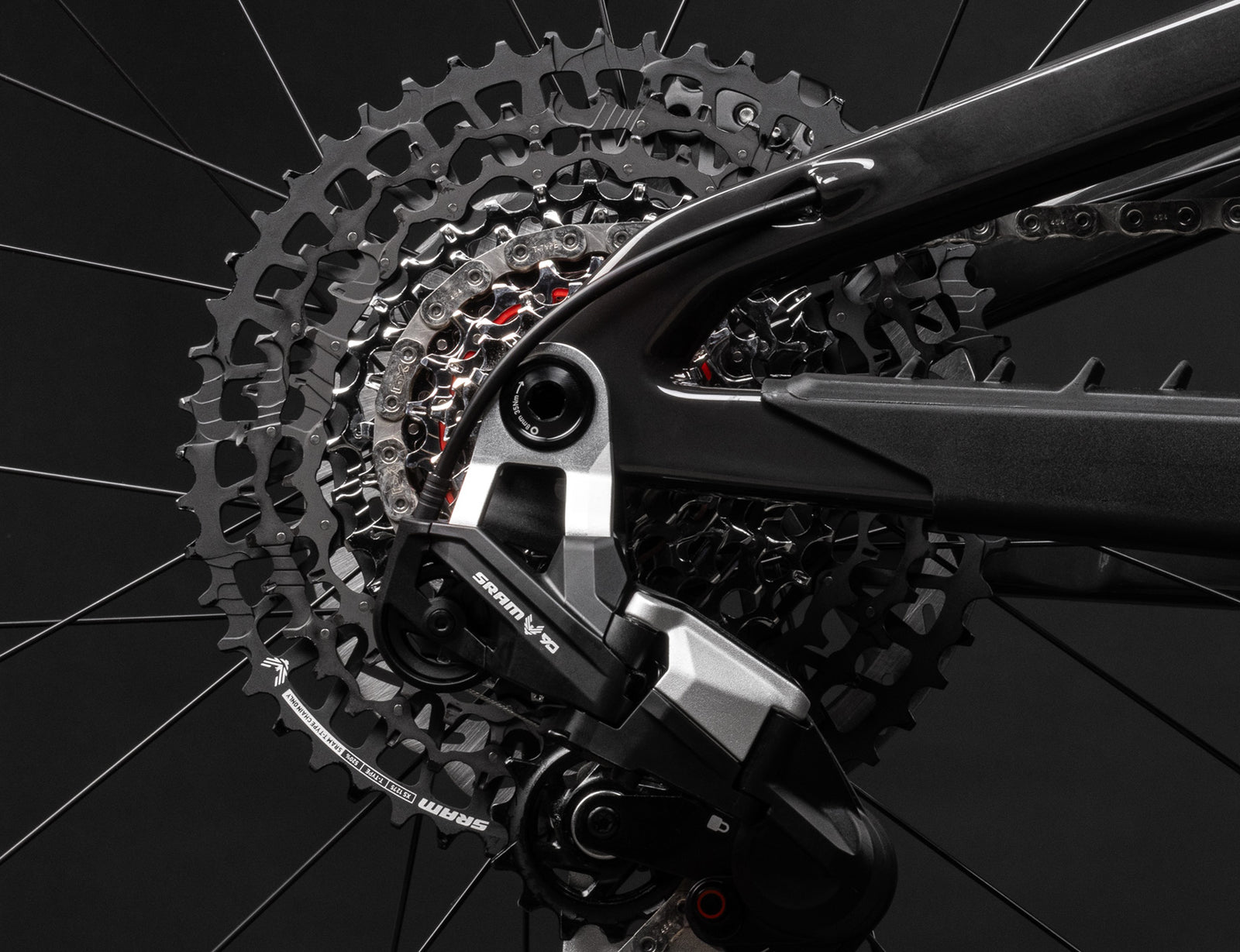

- Rear derailleur
- SRAM 90 Eagle T-Type, 12spd
- Cassette
- SRAM XS 1275 Eagle T-Type, 10-52t
- Chain
- SRAM GX Eagle T-Type, Flattop, 12spd
- Crankset
- E13 Helix eSpec, 165mm
- Chainguide
- OneUp Chainguide

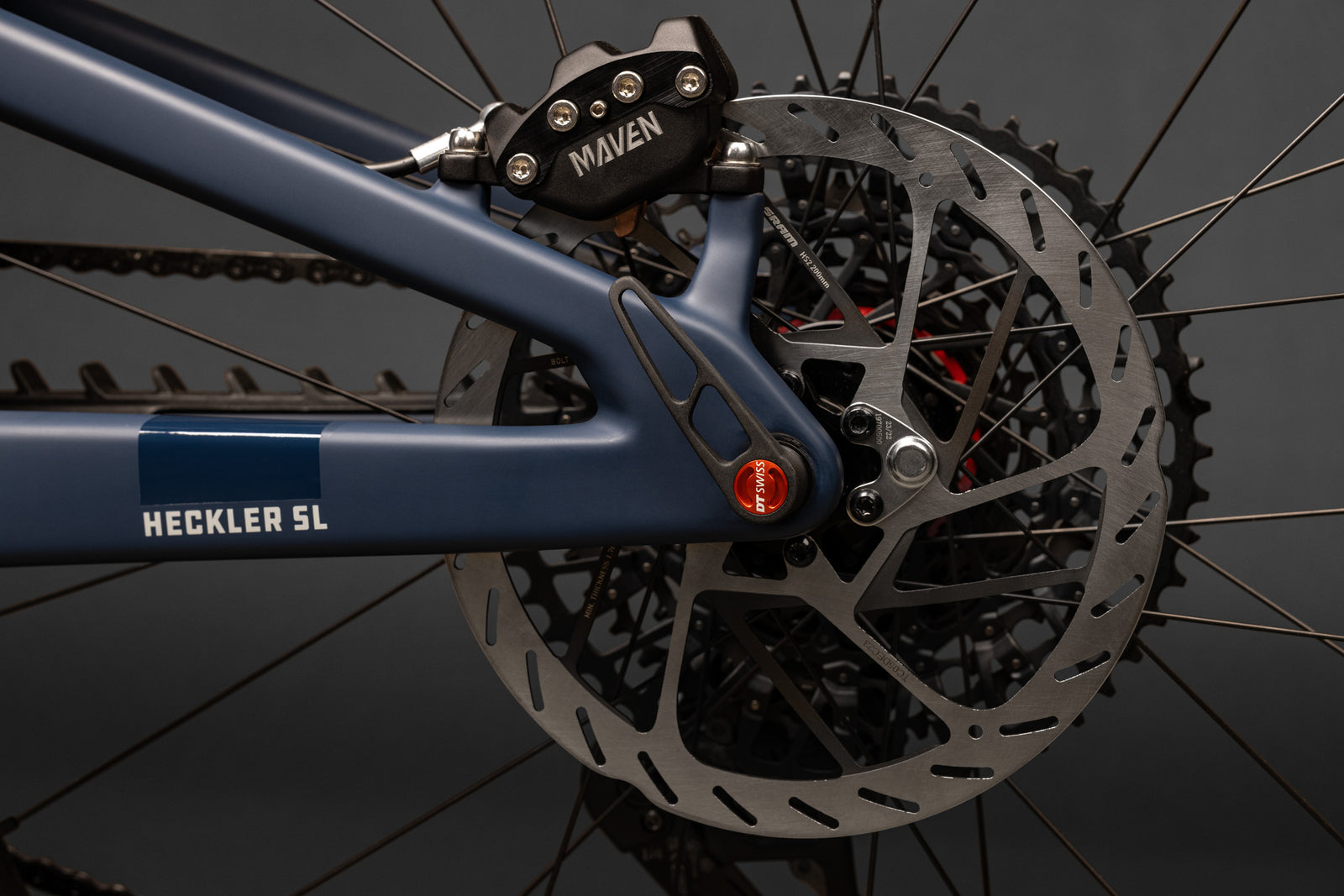

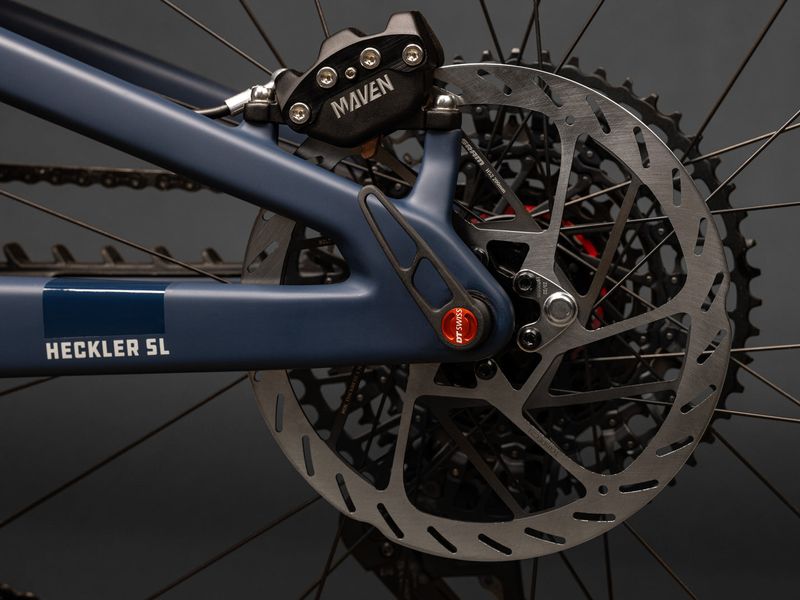

Brakes
- Brakes
- SRAM Maven Base
- Front rotor
- SRAM HS2 200mm
- Rear rotor
- SRAM HS2 200mm
Wheels & tyres
- Rims
- Reserve 30|HD AL
- Front hub
- E13 SL, 15x110, 6-Bolt, 32h
- Rear hub
- E13 SL E-Spec, 12x148, XD, 6-Bolt, 32h
- Front tyre
- Schwalbe Albert, 29x2.5, Trail Radial Ultra Soft
- Rear tyre
- Schwalbe Albert, 27.5x2.5, Trail Radial Soft
Cockpit
- Handlebar
- OneUp Aluminum Bar
- Stem
- OneUp Enduro Stem, 42mm
- Grips
- Santa Cruz Bicycles House Grips
- Headset
- Cane Creek 10 IS Integrated Headset
- Saddle
- SDG Bel-Air V3, Max Lux-Alloy
- Seatpost
- OneUp Dropper Post, 31.6
Other
- Weight
- 44.35lbs / 20.12 kg
- Head tube standard
- IS 41 / IS52
- Fork offset
- 44mm
- Fork axle-to-crown
- 571mm
- BB shell
- Fazua DU w/ E-TOR spindle
- Max chainring
- 36t
- UDH compatible
- Yes
- Rear spacing
- 148mm
- Rear brake mount
- PM 200mm
- Max rotor size
- 220mm
- Max tyre width
- 2.6"
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Heckler SL geometry
| Size | S | M | L | XL | XXL |
|---|---|---|---|---|---|
| Reach | 435 / 432.4 mm | 460 / 457.4 mm | 480 / 477.5 mm | 500 / 497.4 mm | 525 / 522.5 mm |
| Stack | 614.9 / 616.8 mm | 624 / 625.8 mm | 633 / 634.9 mm | 651 / 653 mm | 664.5 / 666.5 mm |
| Head tube angle | 64.3° / 64° | 64.3° / 64° | 64.3° / 64° | 64.3° / 64° | 64.3° / 64° |
| Head tube length | 100 mm | 110 mm | 120 mm | 140 mm | 155 mm |
| Rear center | 443 / 443.8 mm | 443 / 443.8 mm | 443 / 443.8 mm | 446 / 446.8 mm | 450 / 450.7 mm |
| Front center | 766.1 / 765.9 mm | 795.4 / 795.3 mm | 819.7 / 819.6 mm | 848.4 / 848.3 mm | 879.9 / 879.8 mm |
| BB height | 344 / 340.7 mm | 344 / 340.7 mm | 344 / 340.7 mm | 344 / 340.7 mm | 344 / 340.7 mm |
| BB drop front | 28.5 / 31.8 mm | 28.5 / 31.8 mm | 28.5 / 31.8 mm | 28.5 / 31.8 mm | 28.5 / 31.8 mm |
| BB drop rear | 9.9 / 13.3 mm | 9.9 / 13.3 mm | 9.9 / 13.3 mm | 9.9 / 13.3 mm | 9.9 / 13.3 mm |
| Wheelbase | 1209.1 / 1209.7 mm | 1238.4 / 1239.1 mm | 1262.7 / 1263.4 mm | 1294.4 / 1295.1 mm | 1329.9 / 1330.5 mm |
| Top tube length | 569.2 / 579.6 mm | 602.7 / 602.9 mm | 620.6 / 621.5 mm | 641.8 / 642.7 mm | 669.1 / 670 mm |
| Seat tube length | 380 mm | 405 mm | 430 mm | 460 mm | 500 mm |
| Seat tube angle | 76.8° / 76.6° | 77.1° / 76.9° | 77.5° / 77.2° | 77.7° / 77.5° | 77.8° / 77.5° |
| Standover height | 720.1 / 716.2 mm | 733 / 728.8 mm | 733.4 / 729.3 mm | 731.7 / 731.6 mm | 741 / 738.6 mm |
Where two values are given: High / Low flip-chip position. Source: Santa Cruz.
Heckler SL: builds compared
Heckler SL range →| Heckler SL 70 | Heckler SL 90 | Heckler SL GX AXS | Heckler SL X0 AXS RSV | Heckler SL XX AXS RSV | |
|---|---|---|---|---|---|
| Price | £5,999 | £6,999 | £8,399 | £9,799 | £11,499 |
| Frame | Carbon | Carbon | Carbon | Carbon | Carbon |
| Fork | RockShox Lyrik Base, 160mm | FOX 36 Float Performance, Grip | Fox 36 Float Performance Elite, Grip X2 | Fox 36 Float Factory, Grip X2 | Fox 36 Float Factory, Grip X2 |
| Shock | FOX Float Performance | FOX Float X Performance | Fox Float X Performance Elite | Fox Float X Factory | Fox Float X Factory |
| Derailleur | SRAM 70 Eagle T-Type | SRAM 90 Eagle T-Type | SRAM GX Eagle AXS T-Type | SRAM X0 Eagle AXS T-Type | SRAM XX Eagle AXS T-Type |
| Brakes | SRAM DB8 | SRAM Maven Base | SRAM Maven Bronze Stealth | SRAM Maven Silver Stealth | SRAM Maven Ultimate Stealth |
| Wheels | WTB ST Tough 30 | Reserve 30|HD AL | Reserve 30|SL AL 6069 or Raceface ARC 30 | Reserve 30|HD Carbon | Reserve 30|HD Carbon |
| Weight | 20 kg | 20.1 kg | 19.6 kg | 19.5 kg | 19.4 kg |
Heckler SL 90: FAQ
How much does the Santa Cruz Heckler SL 90 cost?
£6,999 (UK RRP, VAT incl.). The Heckler SL range runs from £5,999 (Heckler SL 70) to £11,499 (Heckler SL XX AXS RSV). Prices vary by country and dealer.
How much does the Santa Cruz Heckler SL 90 weigh?
Santa Cruz quotes 20.1 kg. The lightest Heckler SL build is the Heckler SL XX AXS RSV at 19.4 kg.
What motor and battery does the Santa Cruz Heckler SL 90 have?
Fazua Ride 60 (60 Nm). 430 Wh battery — fazua integrated battery, charged in the frame.
How much suspension travel does the Santa Cruz Heckler SL 90 have?
160 mm at the fork and 150 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Santa Cruz Heckler SL 90 come in?
S, M, L, XL, XXL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Heckler SL 90 and the Heckler SL GX AXS?
They share the Heckler SL frame platform and motor; the differences are in the parts — fork: FOX 36 Float Performance vs Fox 36 Float Performance Elite; shock: FOX Float X Performance vs Fox Float X Performance Elite; derailleur: SRAM 90 Eagle T-Type vs SRAM GX Eagle AXS T-Type; claimed weight: 20.1 kg vs 19.6 kg; price: £6,999 vs £8,399.
