Santa CruzVala AL Deore 6200
- Motor
- Bosch Performance Line CX100 Nm
- Battery
- 600 WhBosch PowerTube 600 Wh
- Travel F / R
- 160 / 150 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Alloy
- Weight
- 23.8 kgManufacturer figure (size not stated)
Overview

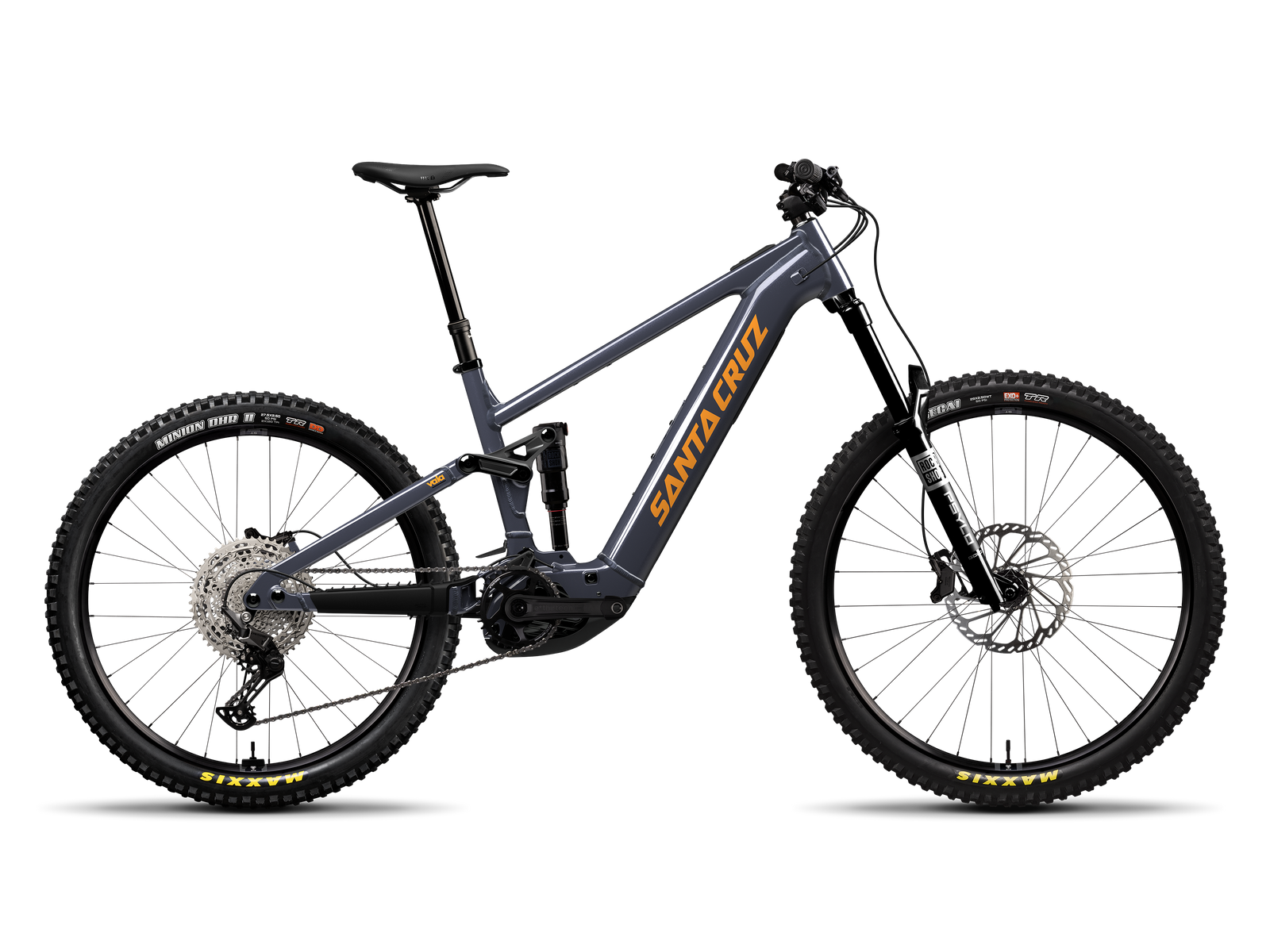

The Santa Cruz Vala AL Deore 6200 (£4,899) is the only build of the Vala AL: Bosch Performance Line CX with 600 Wh, RockShox Psylo Gold RC fork, RockShox Deluxe Select shock, Shimano Deore M6200 and Shimano Deore MT6220 brakes. Claimed weight is 23.8 kg.
The Vala AL is the aluminium version of the Vala: the same four-bar layout with 150 mm of rear travel, a 160 mm fork and mixed wheels (29-inch front, 27.5-inch rear), but without the flip chip and in sizes S to XL only.
It uses the Bosch Performance Line CX (BDU38) motor and a 600 Wh PowerTube battery. The UK build, Vala AL Deore 6200, combines a Shimano Deore drivetrain and brakes with RockShox suspension; Santa Cruz quotes 23.8 kg.
- Aluminium four-bar frame
- Bosch Performance Line CX, 600 Wh
- 150 mm rear / 160 mm fork, mixed wheels
- Sizes S to XL

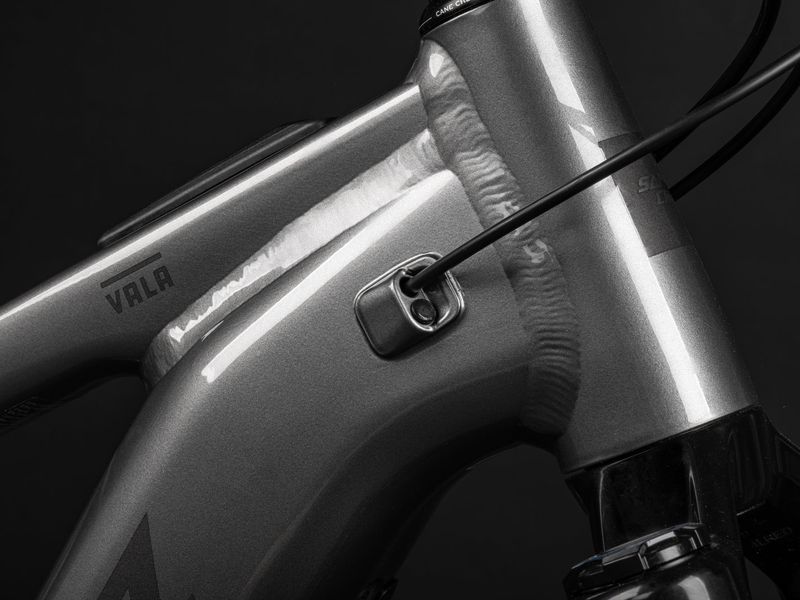

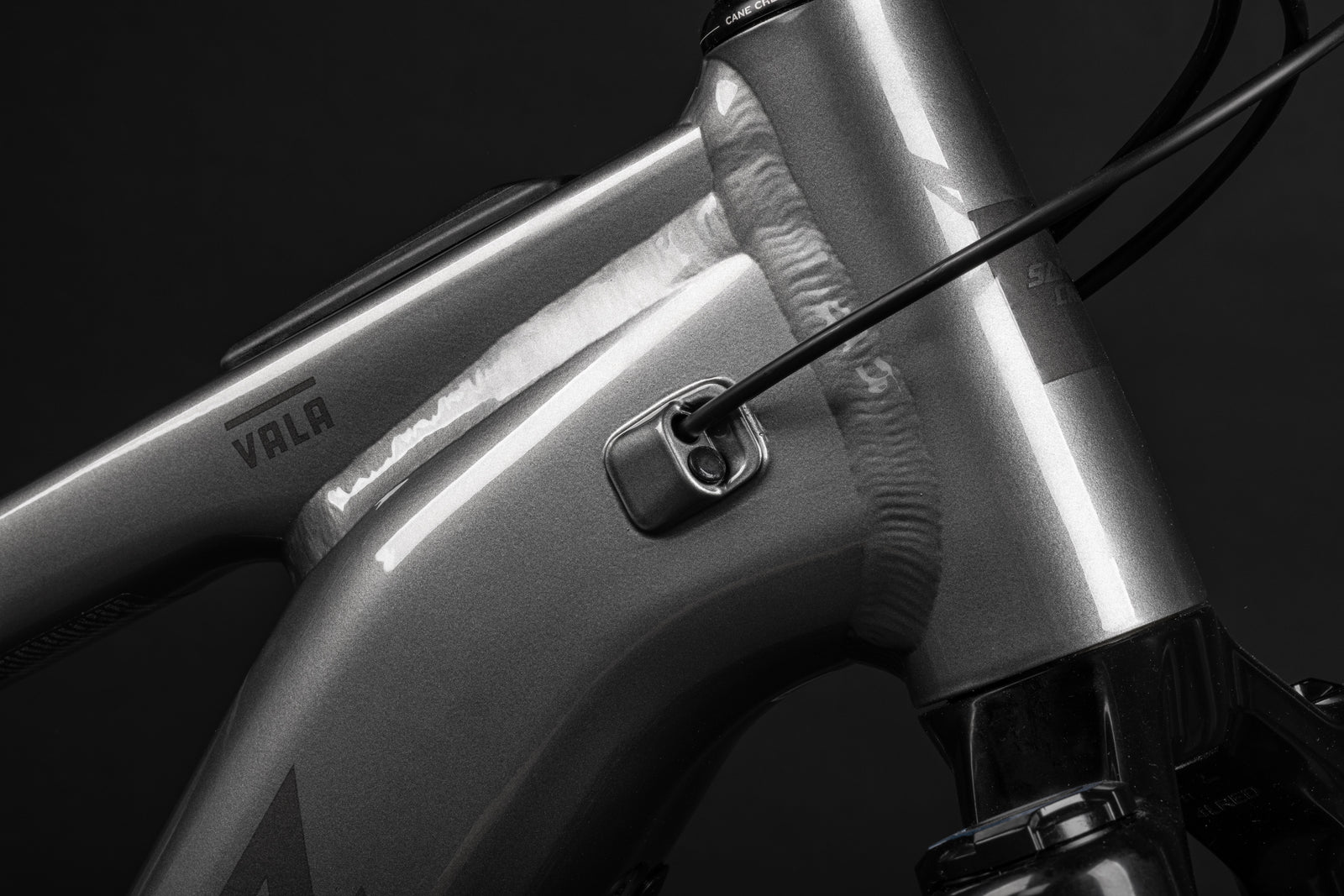

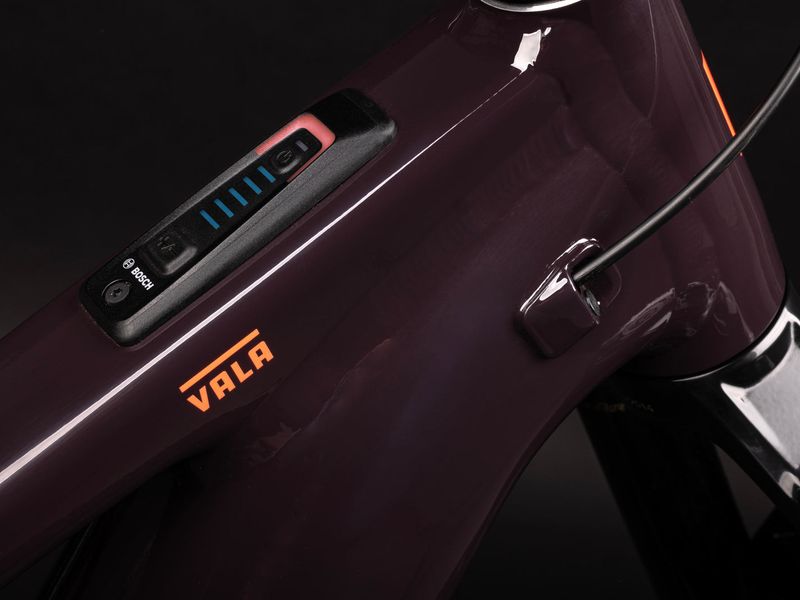

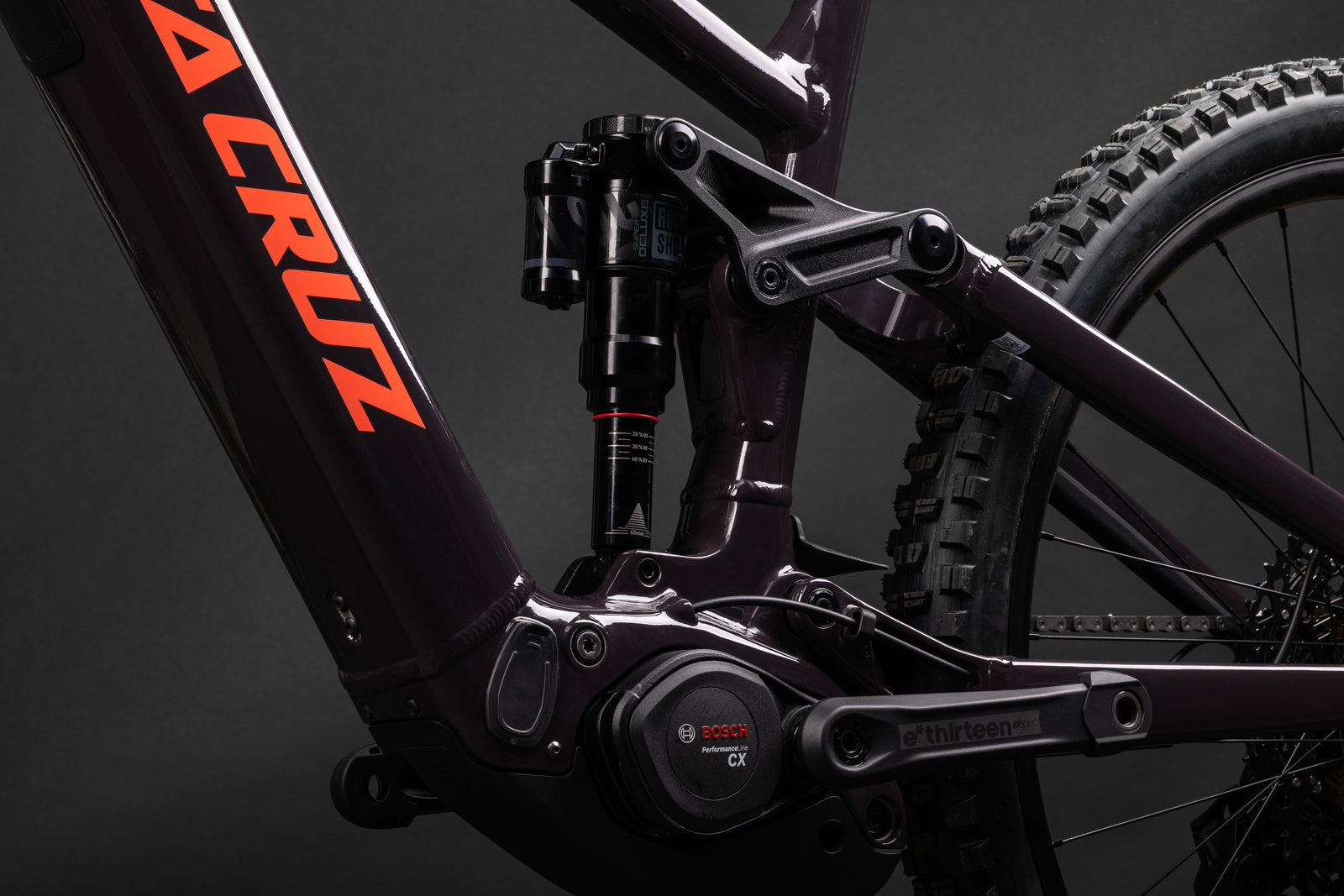

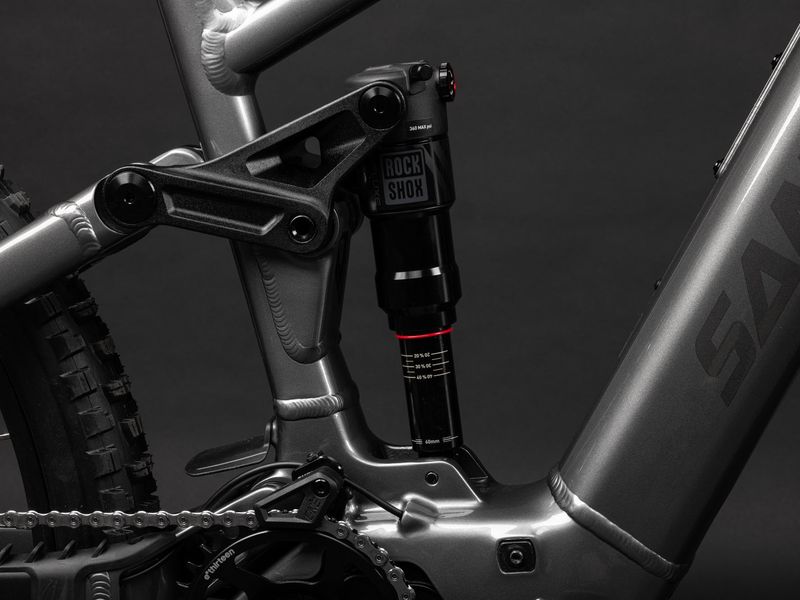

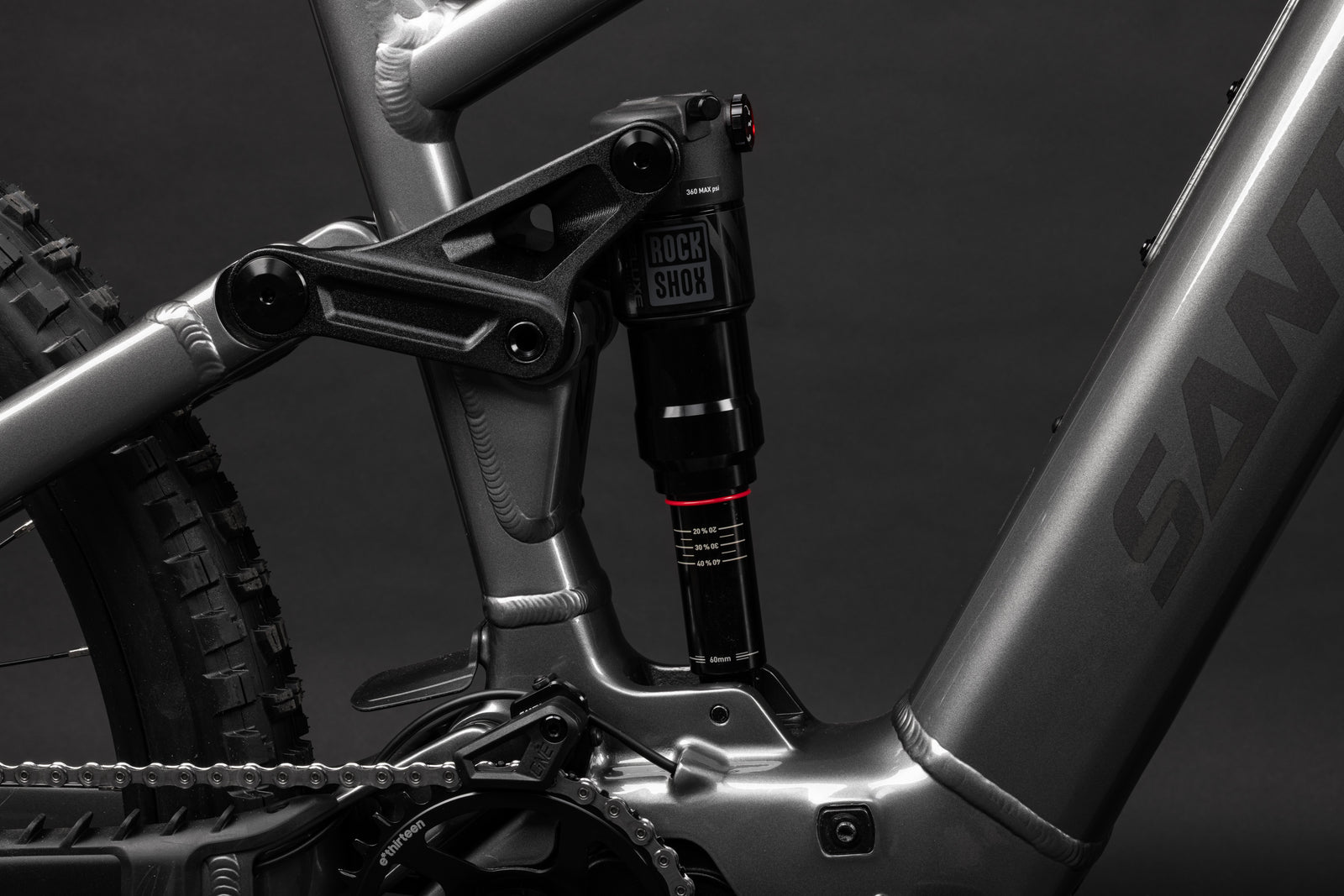

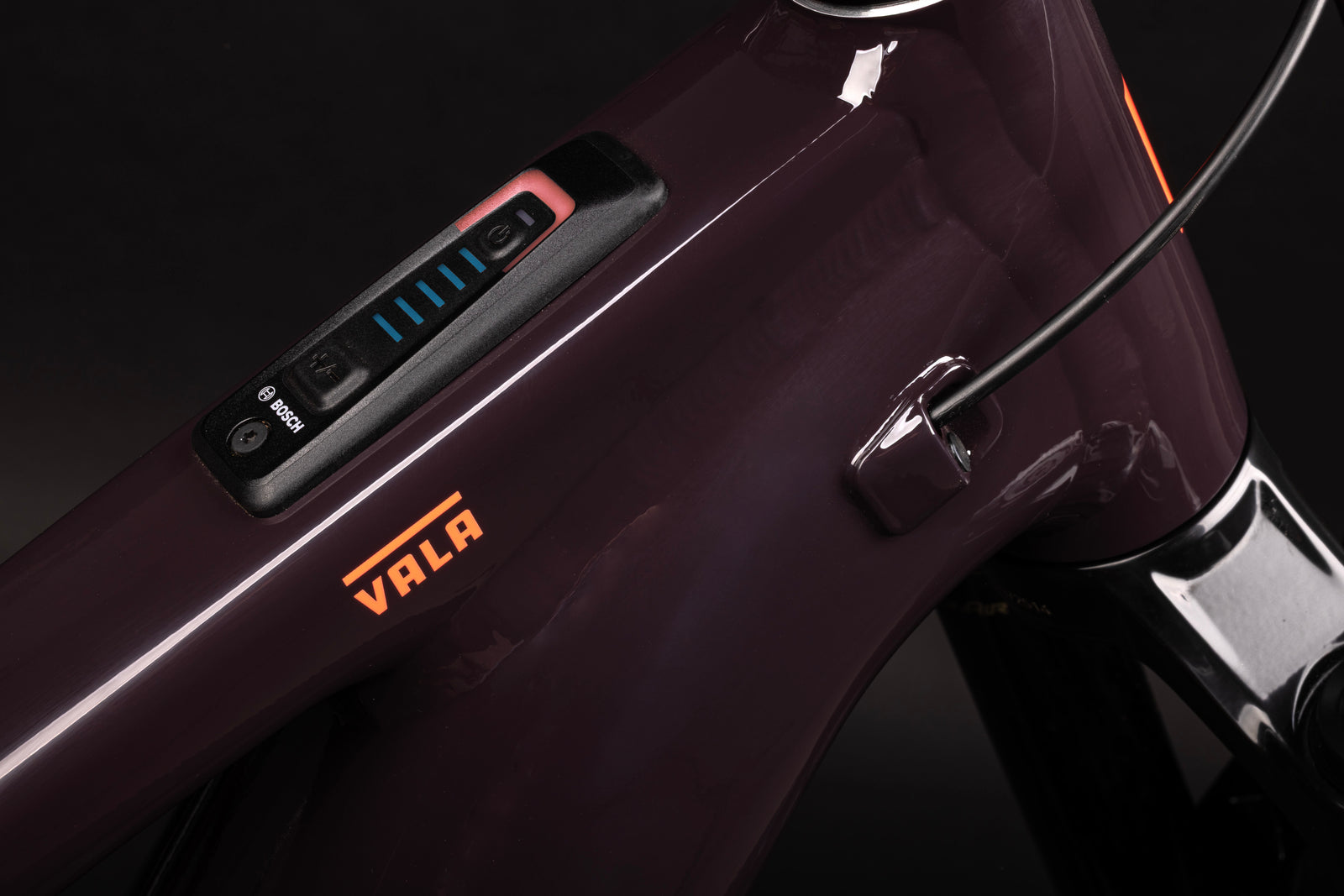

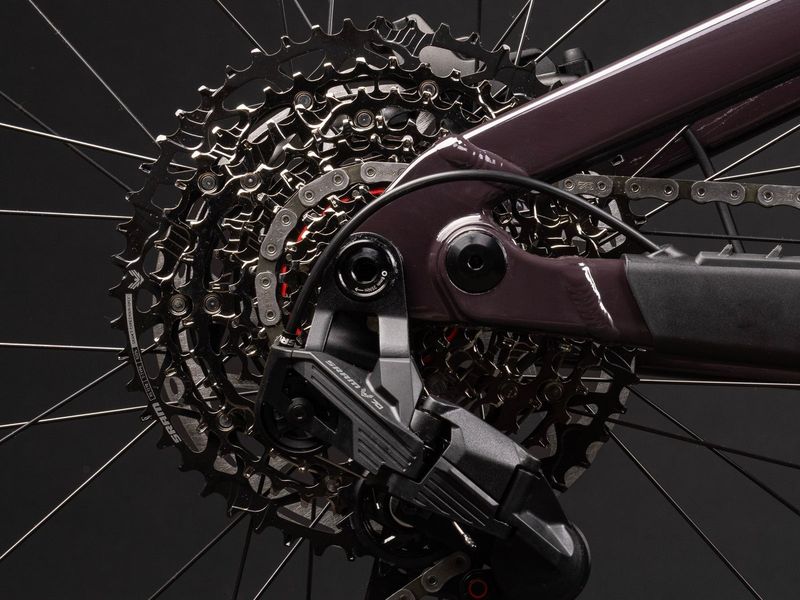

Gallery
Photos: Santa Cruz
Full specifications
Frame & suspension
- Frame
- Aluminium MX 150mm Travel 4-Bar
- Frame material
- Aluminium
- Wheel size
- MX (29" front / 27.5" rear)
- Rear travel
- 150mm
- Fork
- RockShox Psylo Gold RC, 160mm

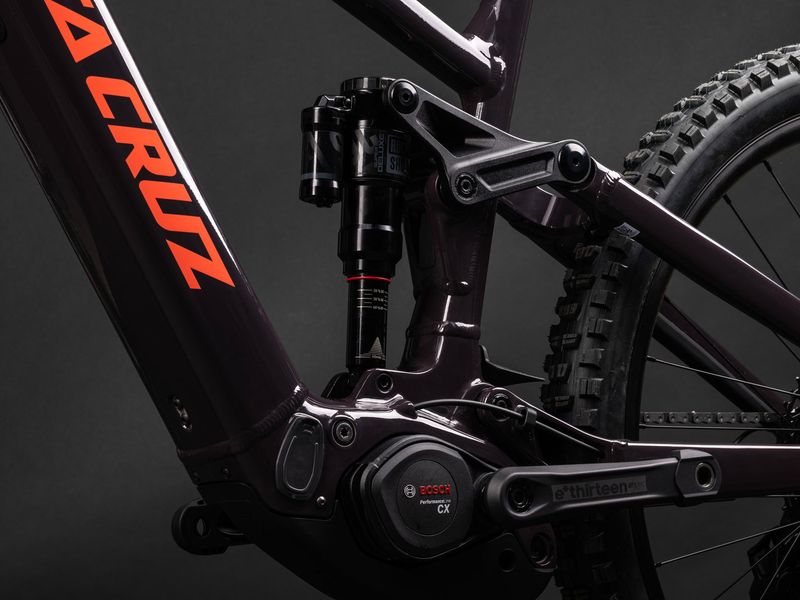

- Rear shock
- RockShox Deluxe Select, 205x60
E-system

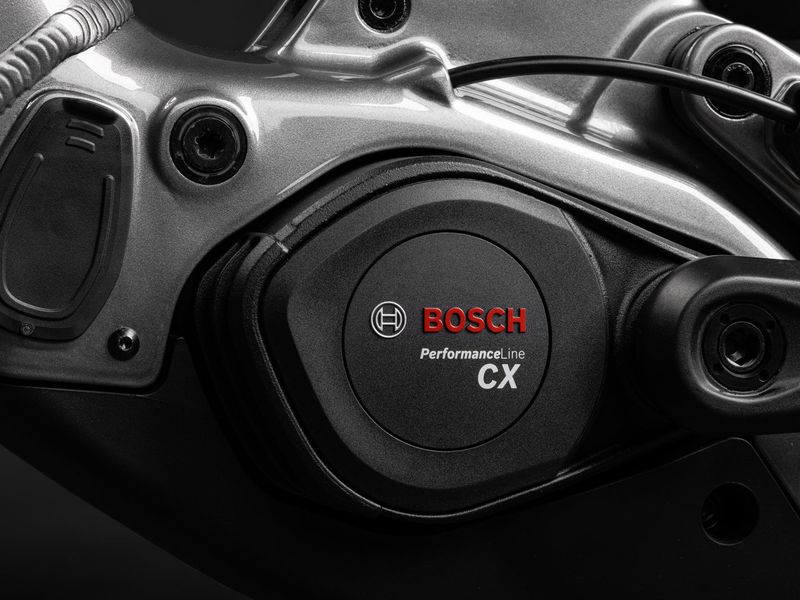

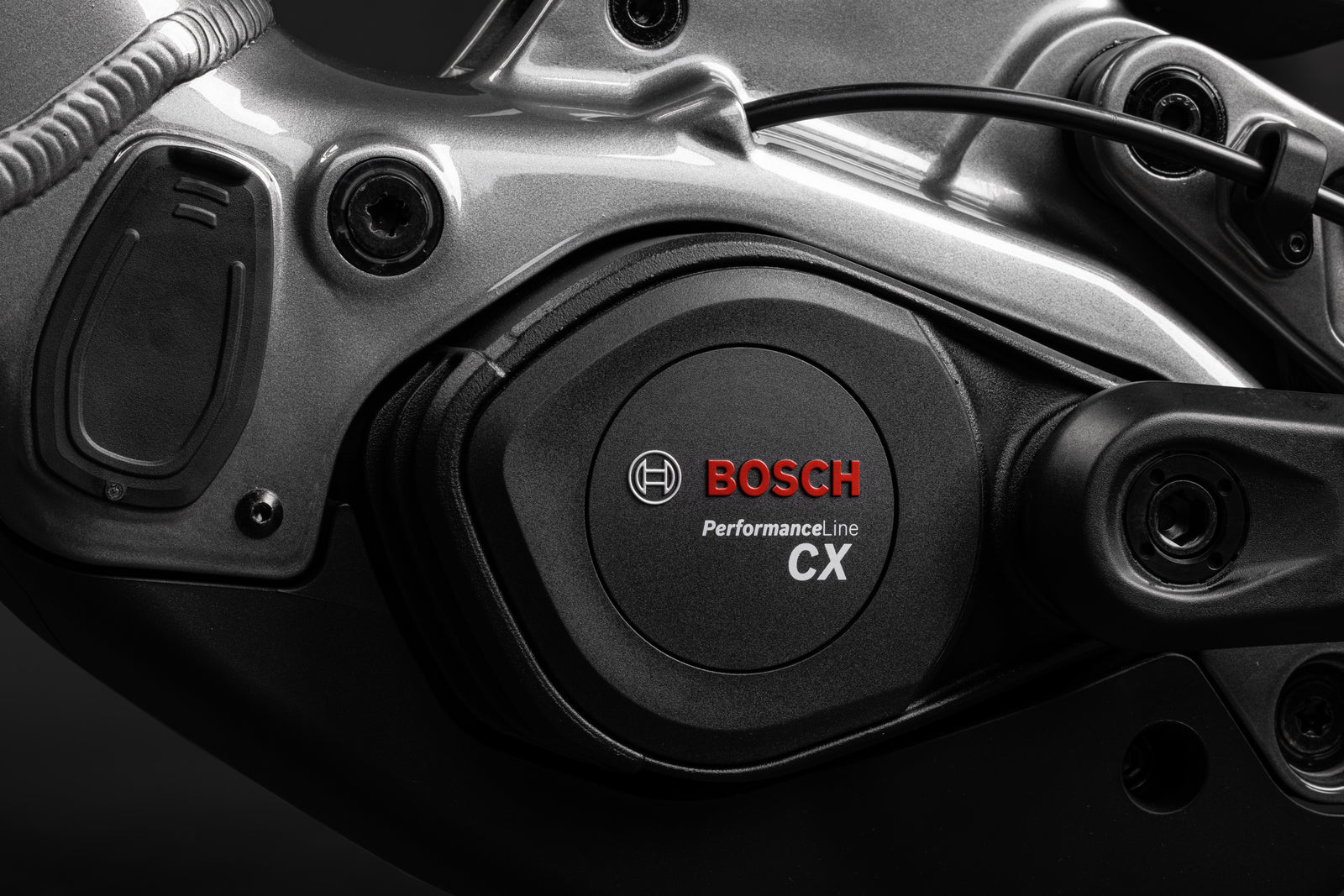

- Motor
- Bosch Performance CX BDU38
- Battery
- Bosch PowerTube Battery 600Wh
Drivetrain
- Shifter
- Shimano Deore M6200, 12spd
- Rear derailleur
- Shimano Deore M6200, 12spd
- Cassette
- Shimano Deore M6200, 10-51t
- Chain
- Shimano Deore M6100, 12spd
- Crankset
- e13 Helix Core e*spec; All Sizes: 160mm
- Chainguide
- OneUp Chainguide
Brakes
- Brakes
- Shimano Deore MT6220
- Front rotor
- Shimano RT750, Centerlock, 220mm
- Rear rotor
- Shimano RT750, Centerlock, 200mm
Wheels & tyres
- Rims
- WTB ST Tough 30
- Front hub
- Shimano TC500, 15x110, Centerlock, 32h
- Rear hub
- Shimano TC600, 12x148, MicroSpline, Centerlock, 32h
- Front tyre
- Maxxis Assegai 29x2.5", EXO+
- Rear tyre
- Maxxis Minion DHRII, 27.5"x2.5", DoubleDown
- Valves
- Reserve Fillmore Valves
Cockpit

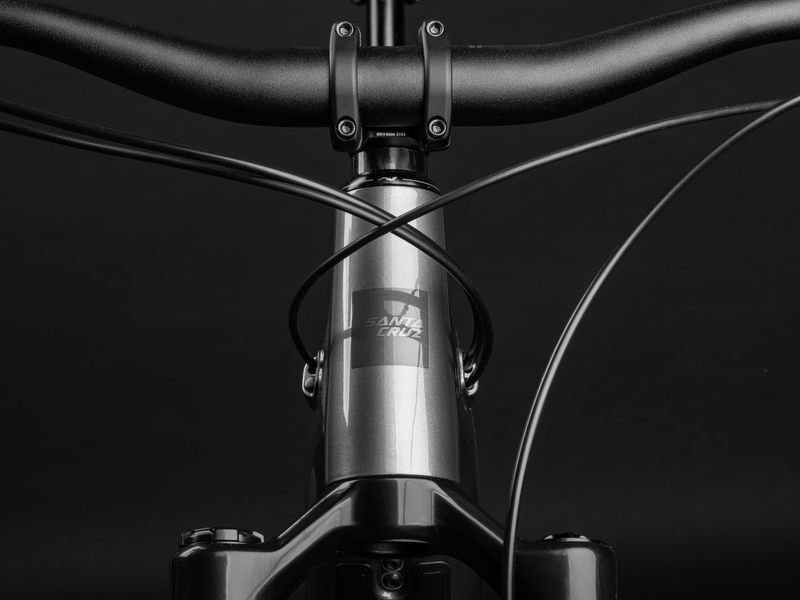

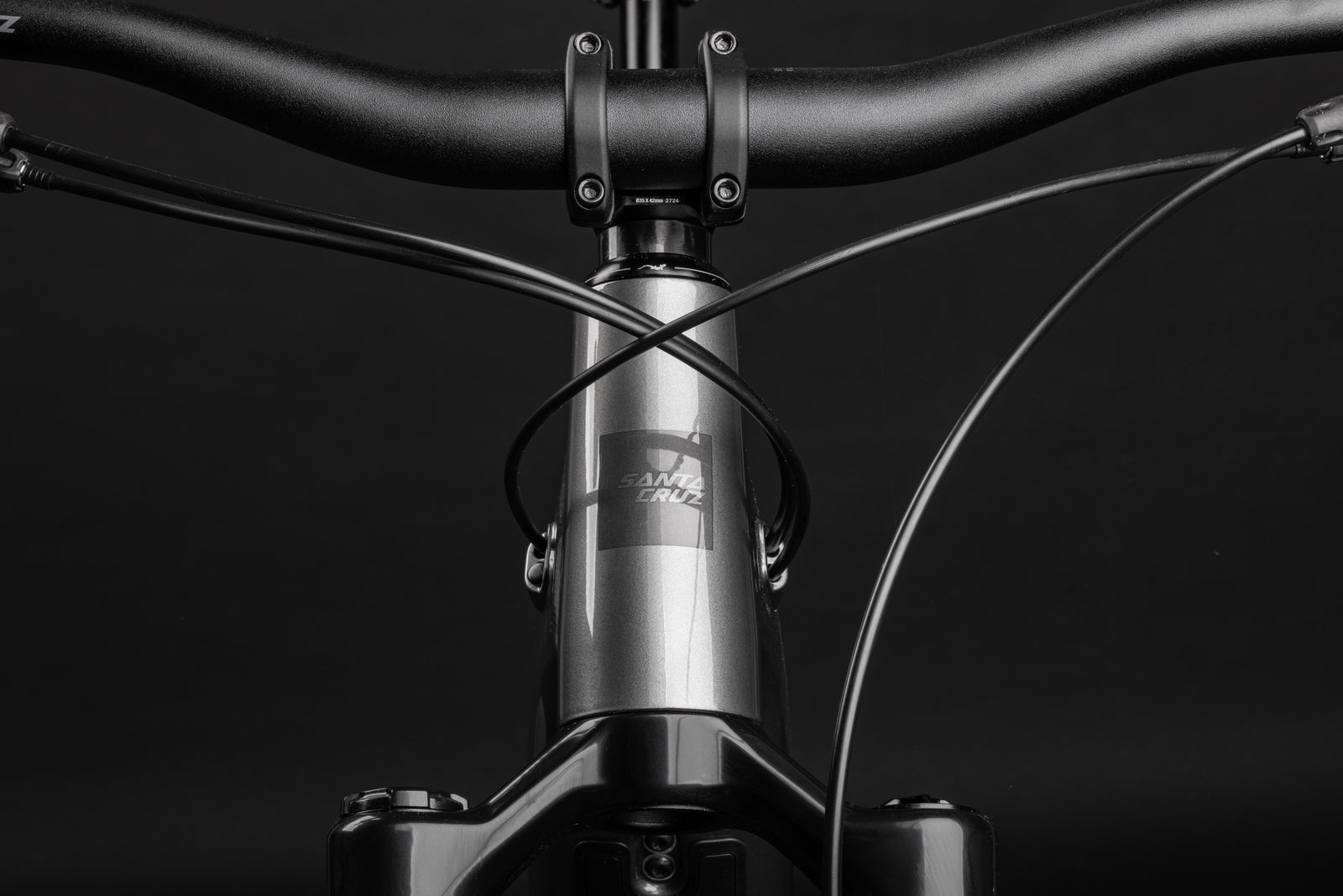

- Handlebar
- Santa Cruz Bicycles Aluminum Bar, 35mm; S: 780mm, 20mm Rise, M-XL: 800mm, 30mm Rise or RaceFace Aeffect R, 20mm Rise, 780mm (small only)
- Stem
- OneUp Enduro Stem; All Sizes: 42mm
- Grips
- Santa Cruz Bicycles House Grips
- Headset
- FSA IS-2/47/42 ACB
- Saddle
- WTB Silverado, Steel
- Seatpost
- TransX Dropper, 31.6; S: 125mm, M: 170mm, L-XL: 200mm
Other
- Weight
- 52.46 lbs / 23.79 kg
- Head tube standard
- Integrated (IS41/52)
- Fork offset
- 44mm
- Fork axle-to-crown
- 571mm
- Recommended sag
- 30%
- BB shell
- EMTB
- Max chainring
- 36t
- UDH compatible
- Yes
- Rear spacing
- 148mm
- Rear brake mount
- 200mm PM
- Max rotor size
- 220mm
- Max tyre width
- 2.5"
- Seatpost diameter
- 31.6mm
- Bottle mounts
- 1
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Vala AL geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| Reach | 433 mm | 458 mm | 478 mm | 498 mm |
| Stack | 625 mm | 634 mm | 643 mm | 656 mm |
| Head tube angle | 64.1° | 64.1° | 64.1° | 64.1° |
| Head tube length | 110 mm | 120 mm | 130 mm | 145 mm |
| Rear center | 440 mm | 440 mm | 445 mm | 445 mm |
| Front center | 771 mm | 800 mm | 825 mm | 851 mm |
| BB height | 342 mm | 342 mm | 342 mm | 342 mm |
| BB drop front | 30 mm | 30 mm | 30 mm | 30 mm |
| BB drop rear | 13 mm | 13 mm | 13 mm | 13 mm |
| Wheelbase | 1211 mm | 1241 mm | 1270 mm | 1297 mm |
| Top tube length | 578 mm | 606 mm | 628 mm | 652 mm |
| Seat tube length | 380 mm | 400 mm | 420 mm | 460 mm |
| Seat tube angle | 76.9° | 76.9° | 76.8° | 76.8° |
| Standover height | 744 mm | 745 mm | 729 mm | 732 mm |
The Vala AL frame has no flip chip. Source: Santa Cruz.
Vala AL Deore 6200: FAQ
How much does the Santa Cruz Vala AL Deore 6200 cost?
£4,899 (UK RRP, VAT incl.). Prices vary by country and dealer.
How much does the Santa Cruz Vala AL Deore 6200 weigh?
Santa Cruz quotes 23.8 kg.
What motor and battery does the Santa Cruz Vala AL Deore 6200 have?
Bosch Performance Line CX (100 Nm). 600 Wh battery — bosch PowerTube 600 Wh.
How much suspension travel does the Santa Cruz Vala AL Deore 6200 have?
160 mm at the fork and 150 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Santa Cruz Vala AL Deore 6200 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
