RadonRender 10.0 800
- Motor
- Bosch Performance Line CX Gen5100 Nm
- Battery
- 800 WhBosch Powertube; PowerMore 250 range extender compatible
- Travel F / R
- 160 / 140 mm
- Wheels
- 29"
- Frame
- Carbon main frame, alloy rear
- Weight
- 23.4 kgManufacturer figure (smallest frame size, without pedals)
Overview

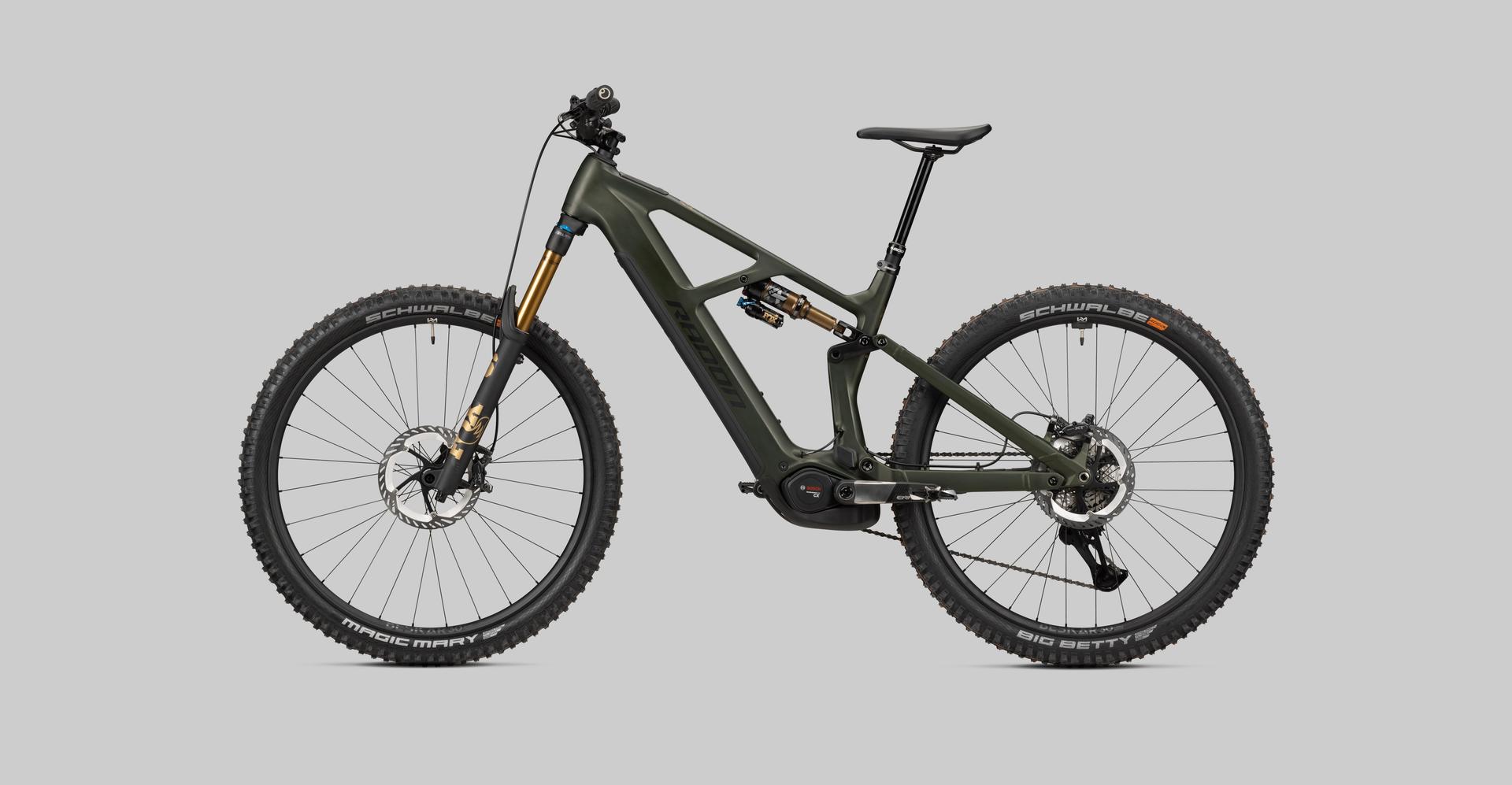

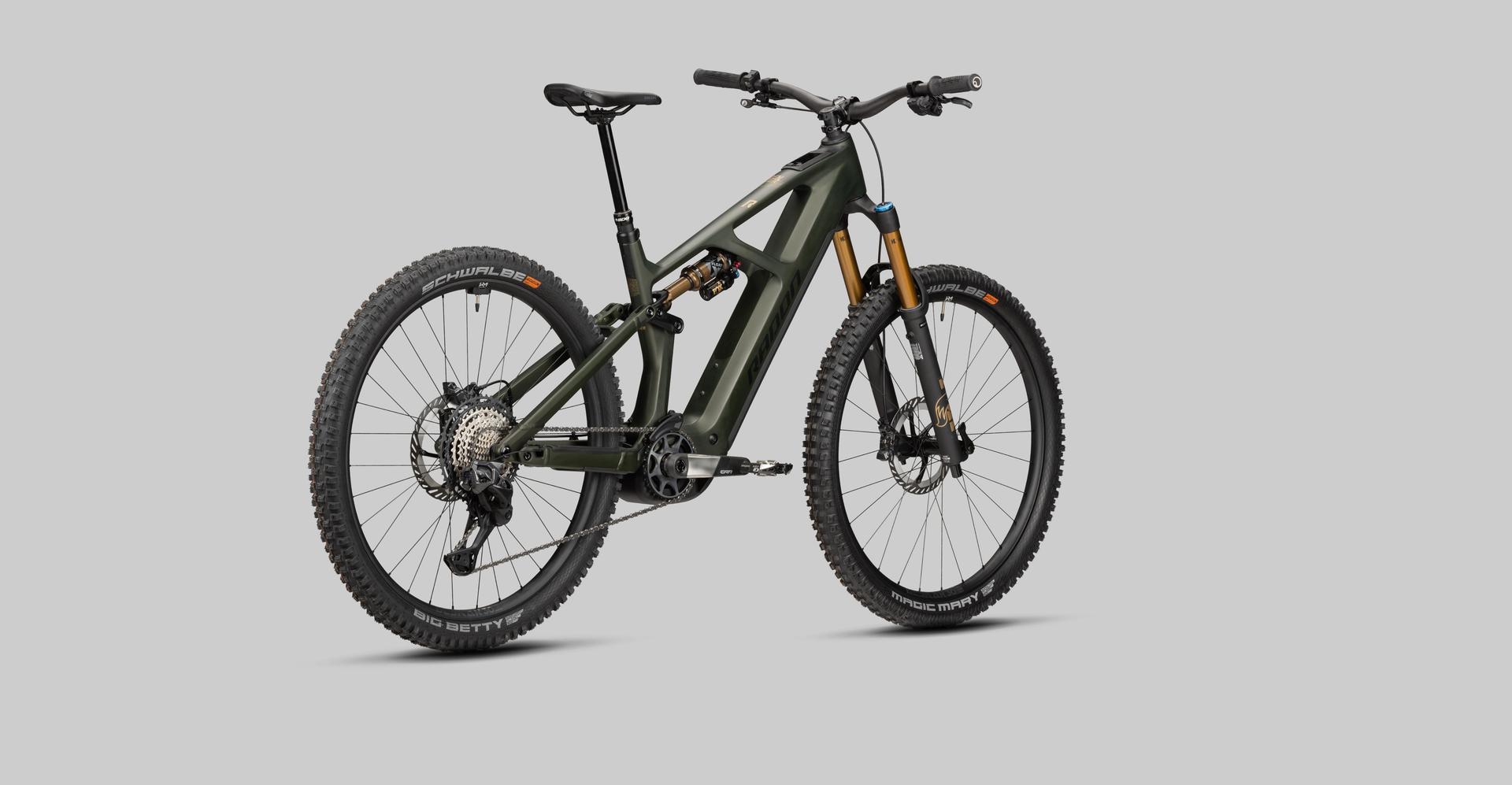

The Radon Render 10.0 800 (€6,299) is a mid-range build of the Render: Bosch Performance Line CX Gen5 (100 Nm) with 800 Wh, Fox 36 Factory fork, Fox Float X Factory shock, Shimano XT Di2 RD-M8260-SGS and Shimano XT BR-M8220 brakes. Claimed weight is 23.4 kg.
The Render is Radon's 29-inch all-mountain e-MTB with a carbon main frame, an aluminium rear triangle, 140 mm of rear travel and a 160 mm fork. All builds use the Bosch Performance Line CX Gen5 Smart System motor (100 Nm) with a removable 800 Wh Powertube battery.

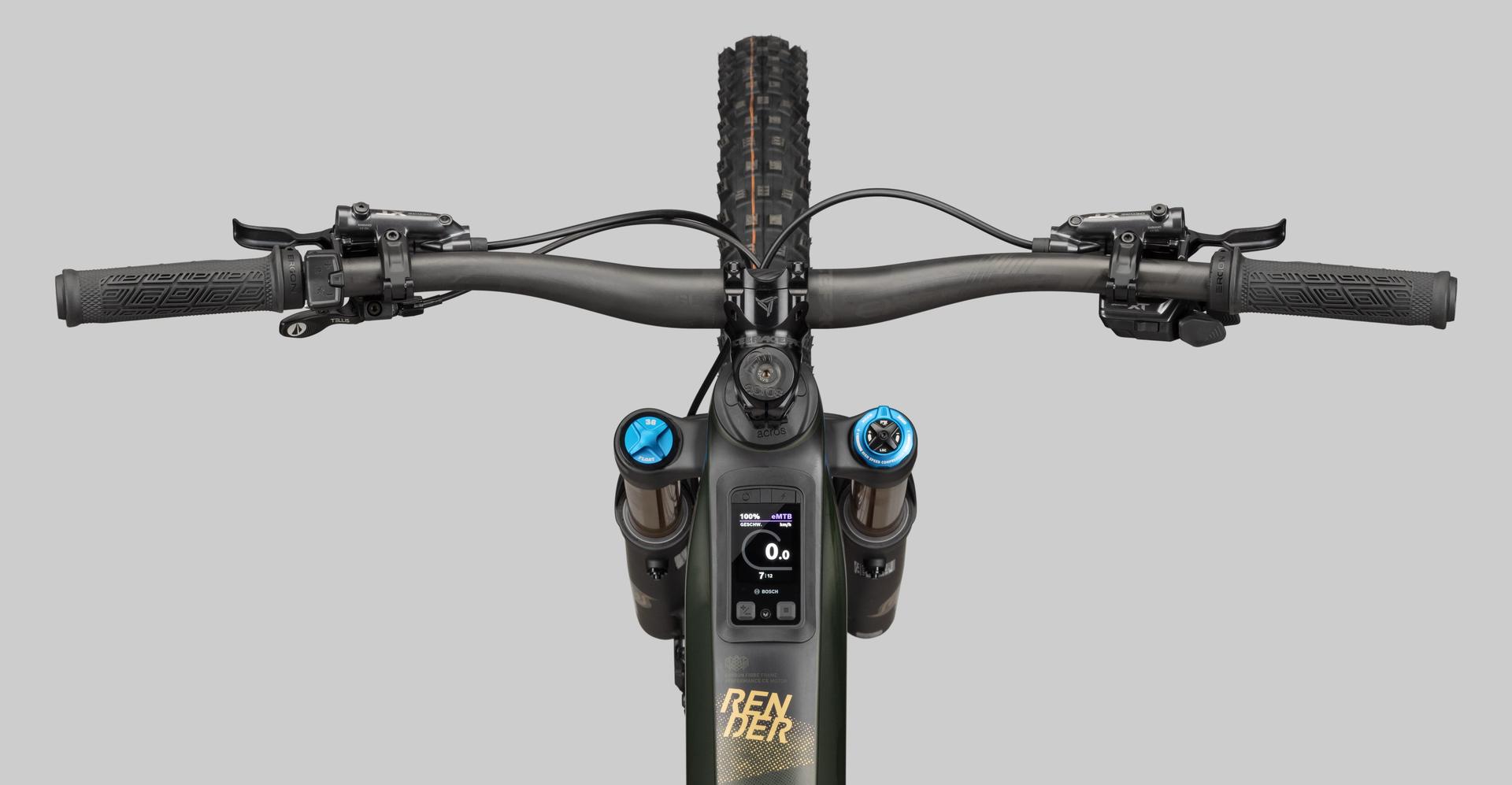

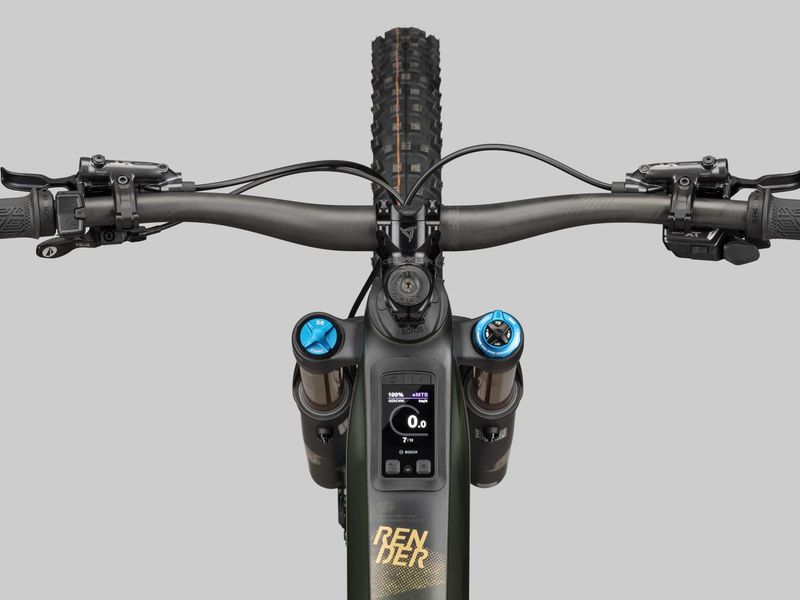

The Bosch Kiox 400C display sits recessed in the top tube and is paired with the wireless Mini Remote. The four builds come in sizes M, L and XL; the 10.0 HD is a downhill-oriented build with heavier-duty parts. Claimed weights range from 23.4 to 24.85 kg.
- Carbon main frame, alloy rear triangle
- 140 mm rear / 160 mm fork, 29"
- Bosch CX Gen5 with 800 Wh Powertube
- Kiox 400C integrated in top tube
Gallery
Photos: Radon
Full specifications
Frame & suspension
- Frame
- RENDER 800 (Carbon main frame / Aluminium rear triangle)
- Fork
- Fox 36 Factory, FIT GRIP X, E-Tuned, Boost

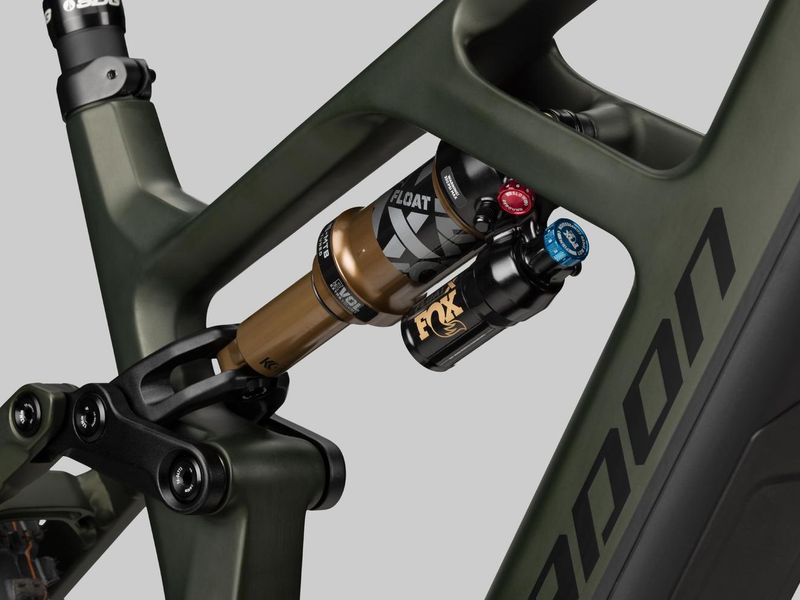

- Rear shock

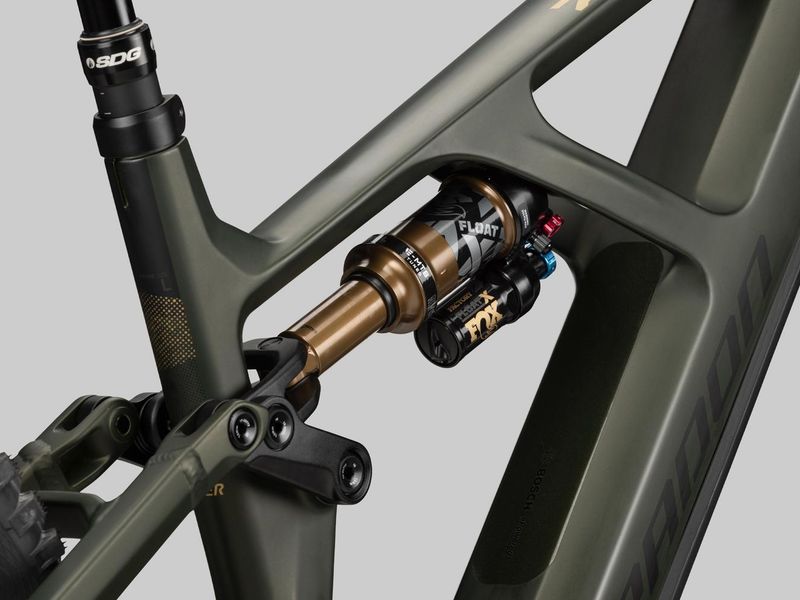

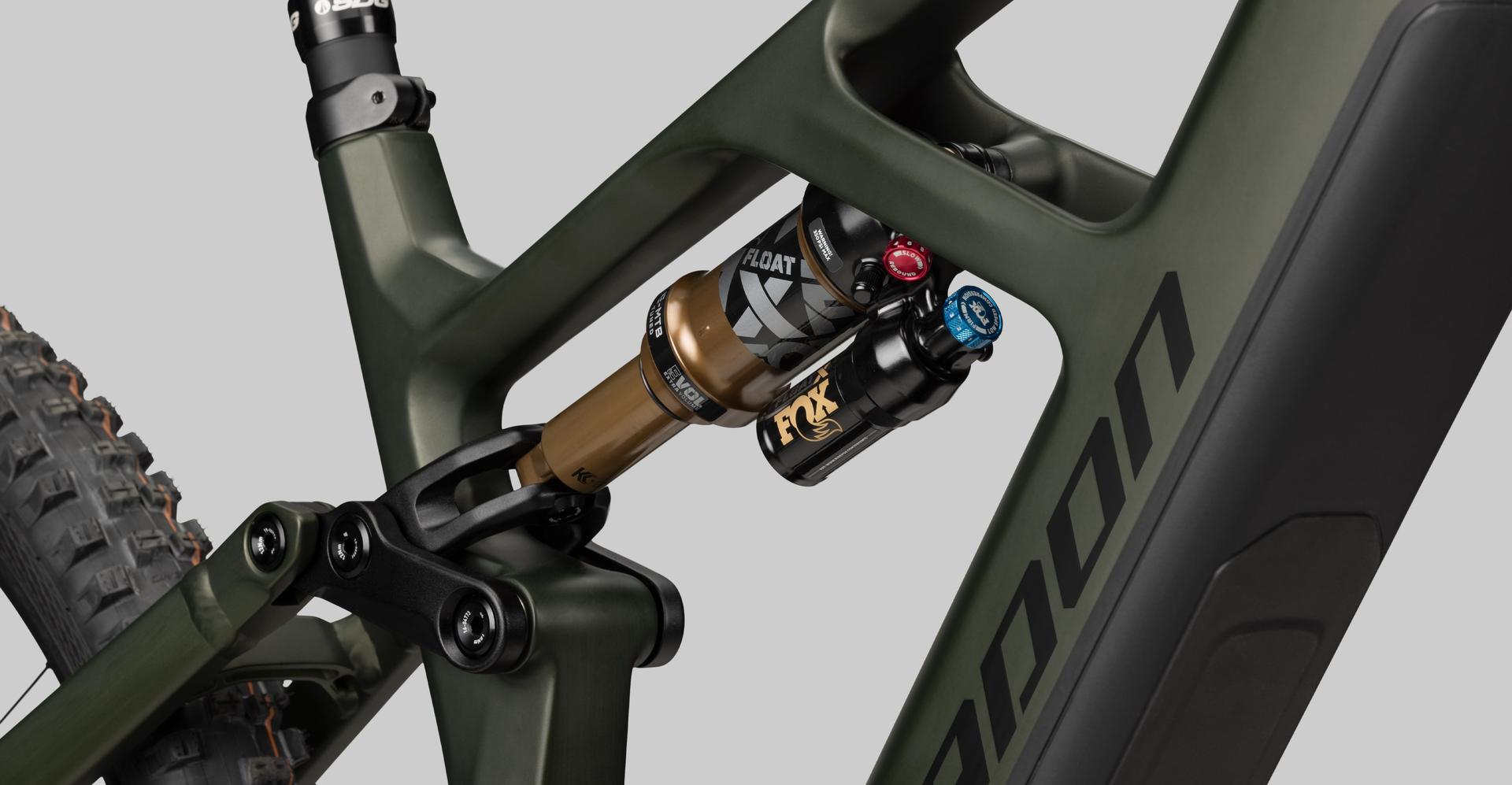

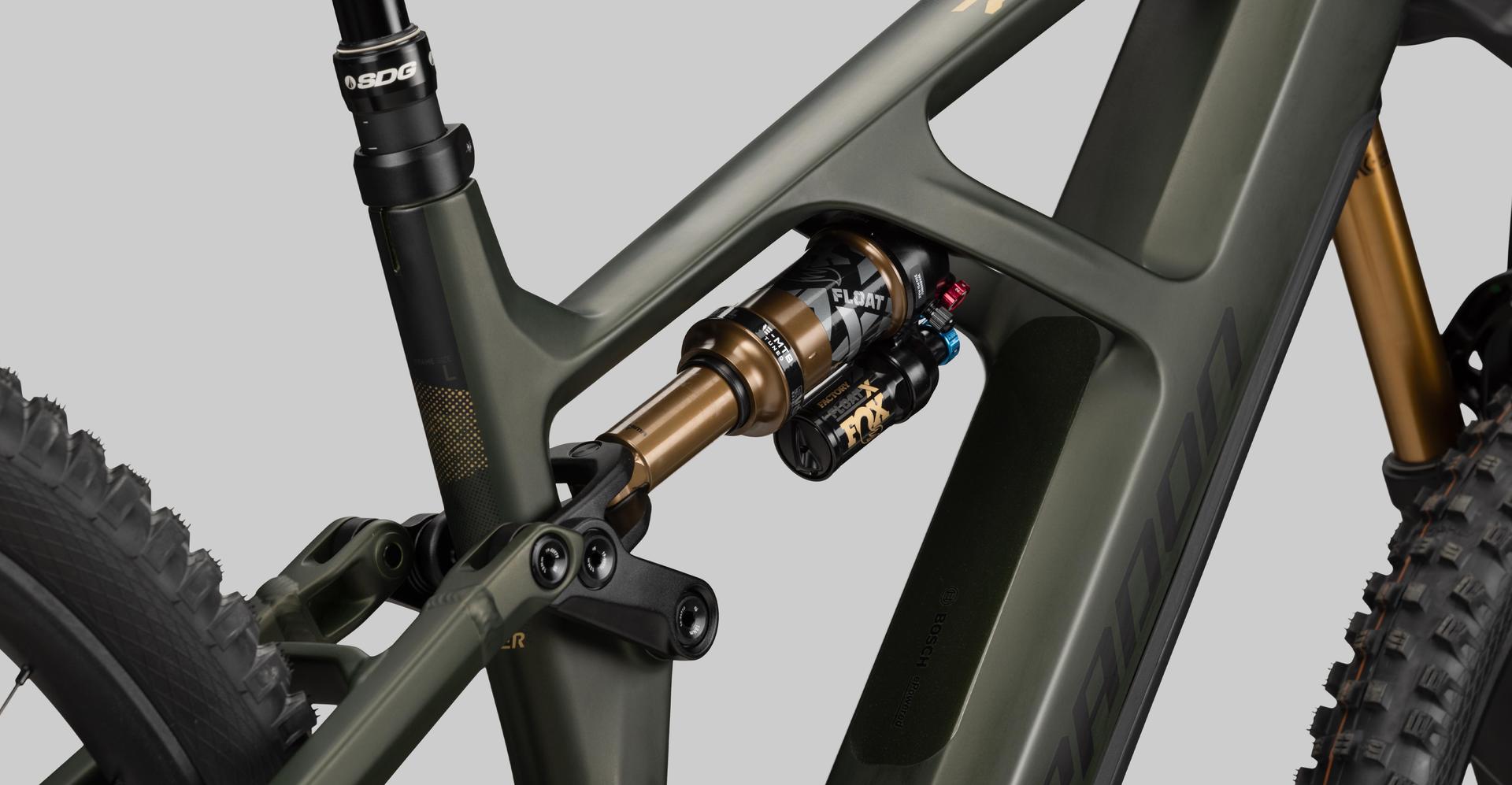

- Fox Float X Factory, 2-Pos., EVOL LV, Kashima, 210 x 55mm
- Fork travel
- 160mm
- Rear travel
- 140mm
- Headset
- Acros Block-Lock with ICR, ZS56/ZS56
- Colour
- swamp / deepblack
- Sizes
- M, L, XL
E-system

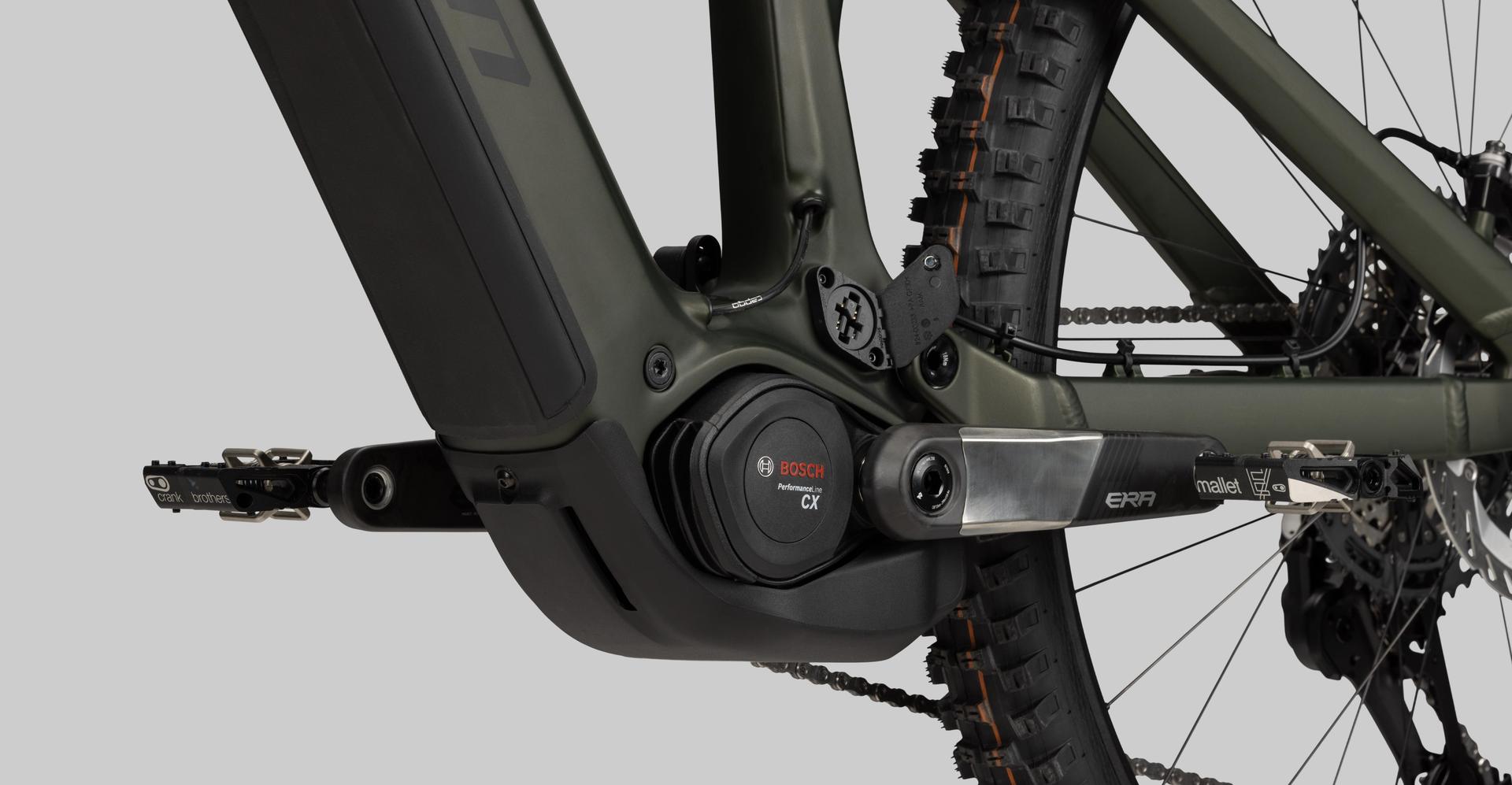

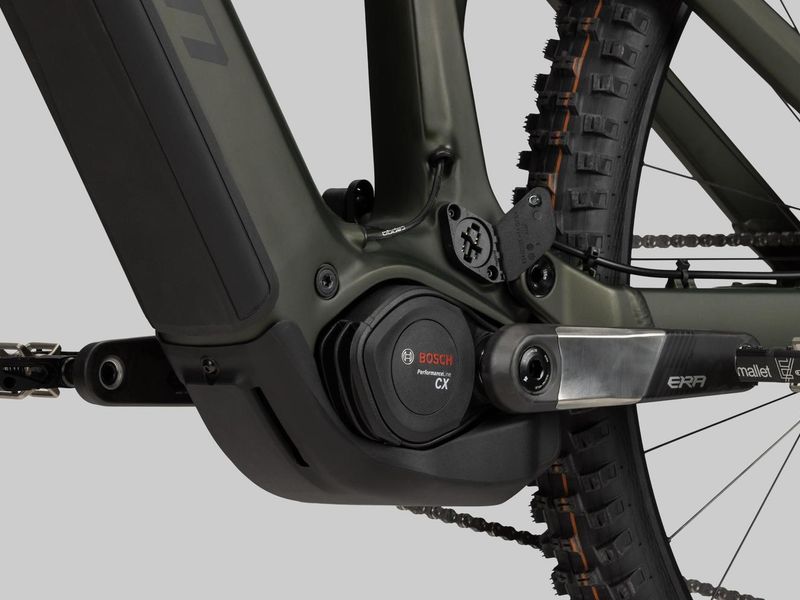

- Motor
- Bosch Performance Line CX Gen5 Smart System
- Battery
- Bosch Powertube 800Wh
- Display
- Bosch Kiox 400C / Mini Remote
- Charger
- Bosch Charger 4A
Drivetrain

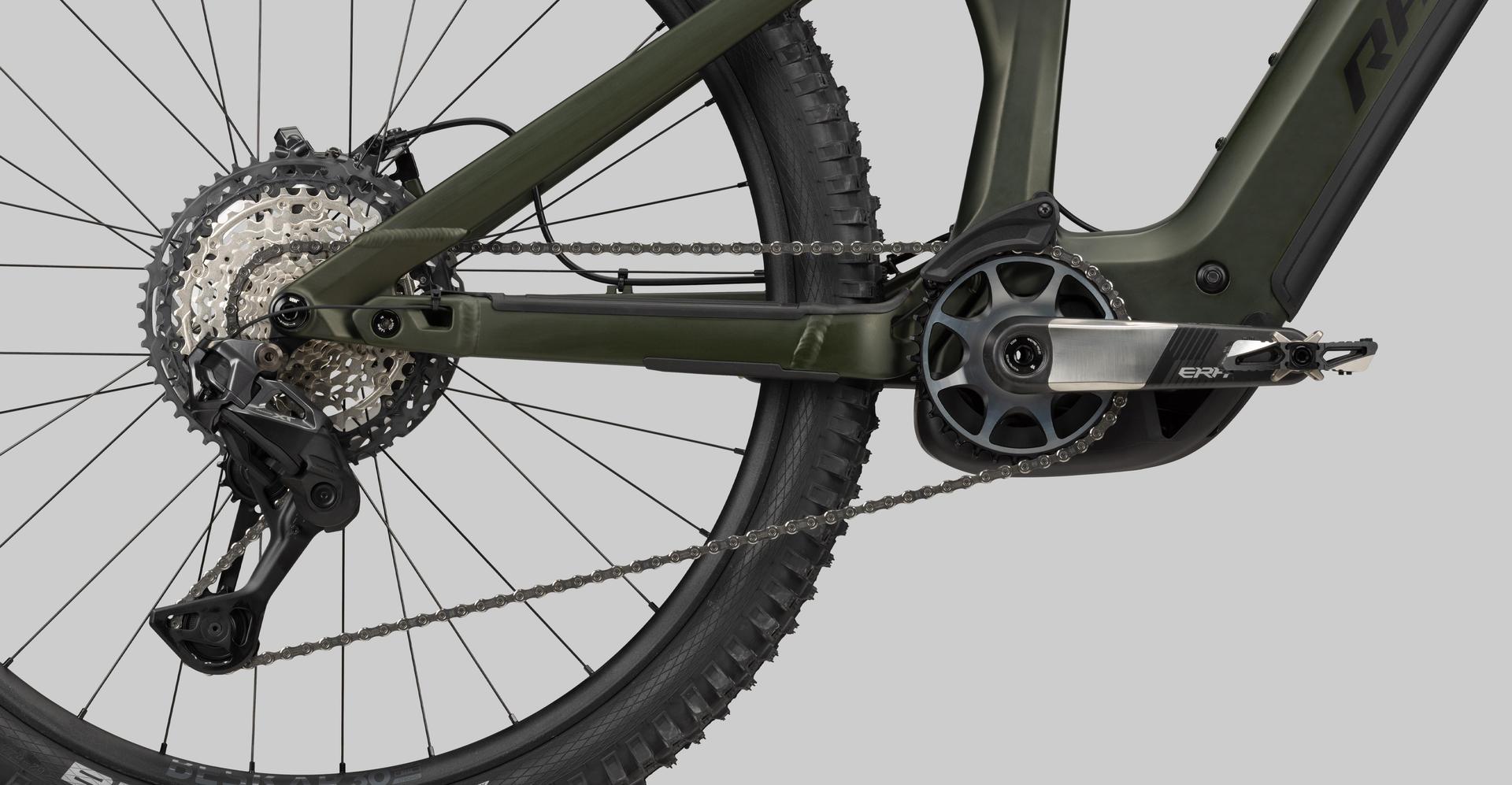

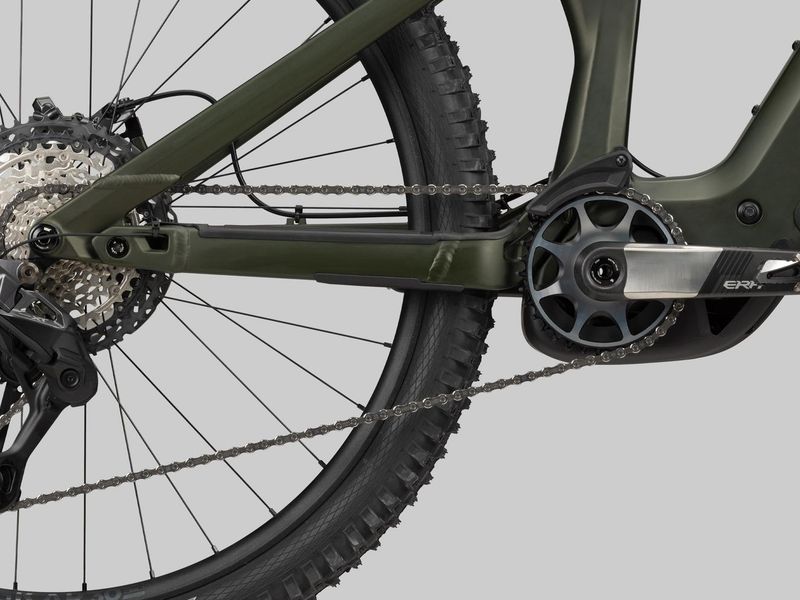

- Crankset
- Race Face Era 165mm, 34T
- Shifter
- Shimano XT Di2 SW-M8250-IR
- Rear derailleur
- Shimano XT Di2 RD-M8260-SGS, 12-speed
- Cassette
- Shimano XT CS-M8200, 10-51
- Chain
- Shimano XT CN-M8100
- Chain Guide
- Reverse Components Flip-Guide, direct mount
Brakes

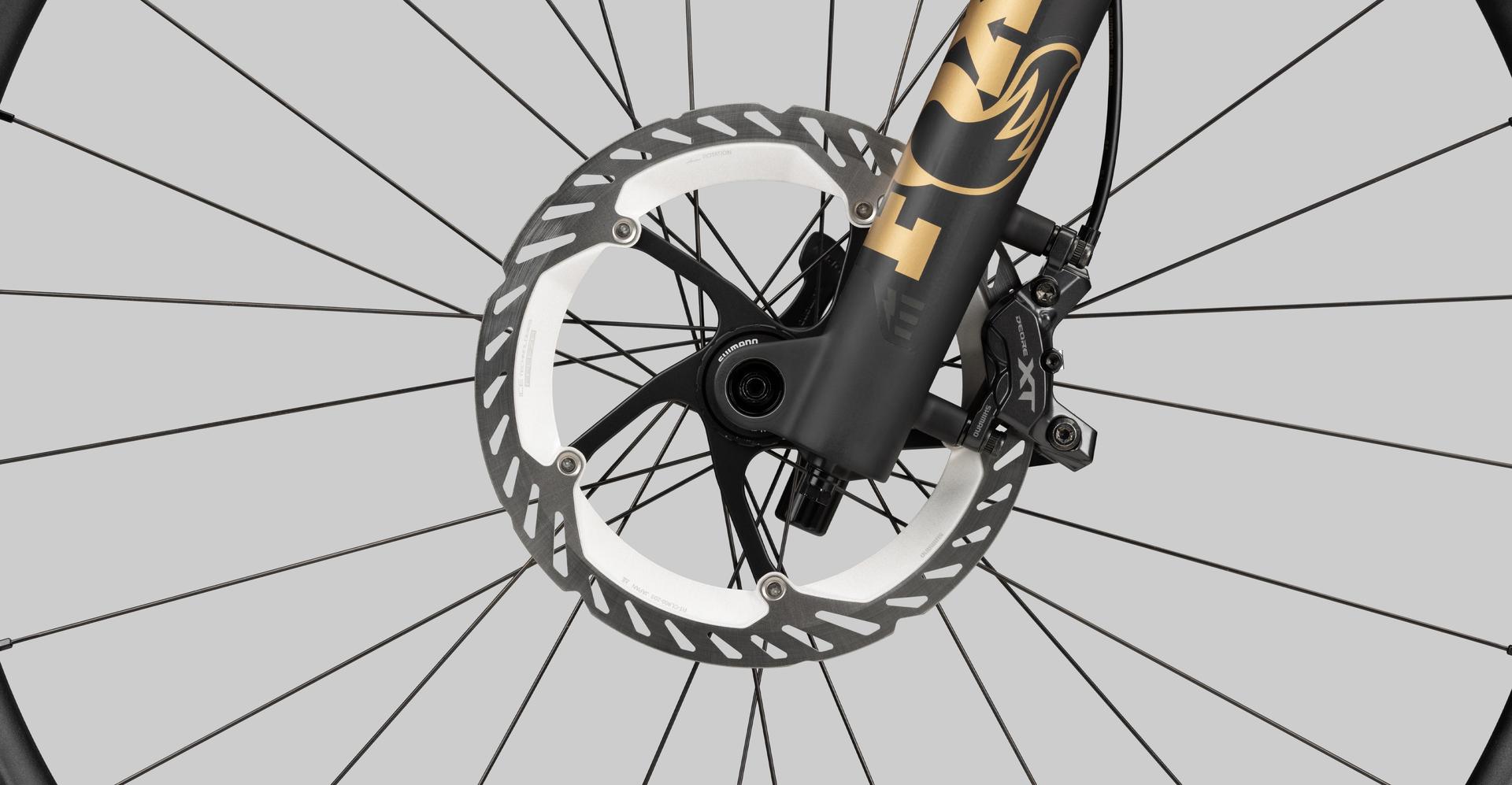

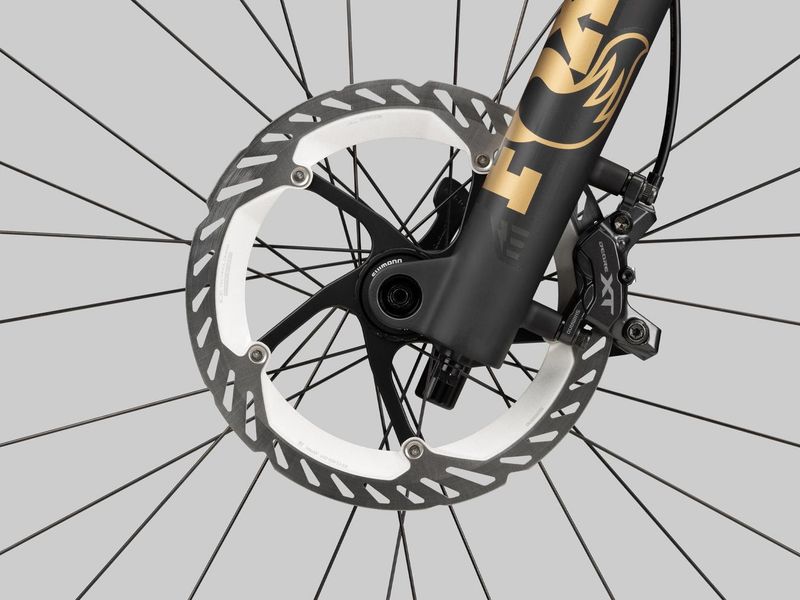

- Brakes
- Shimano XT BR-M8220
- Brake discs
- Shimano RT-CL800, 203/203mm, center-lock
Wheels & tyres
- Wheelset
- NEWMEN Beskar 30 base/strong, 110/148mm
- Front tyre
- Schwalbe Magic Mary, Addix-Soft, Super Trail, TLE, 29" x 2.4"
- Rear tyre
- Schwalbe Big Betty, Addix-Soft, Super Gravity, TLE, 29" x 2.4"
- Wheelsize
- 29"
Cockpit
- Handlebar
- Race Face Turbine, 35 x 780mm, 40mm rise
- Stem
- Race Face Turbine R, Ø35mm
- Grips
- Ergon GDH
- Seatpost
- SDG Tellis V2, Ø31.6mm
- Saddle
- Ergon SM10 Enduro
- Pedals
- ACID FLAT C3-ZP
Other
- Max system weight
- 150 kg
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Render: builds compared
Render range →| Render 8.0 800 | Render 9.0 800 | Render 10.0 800 | Render 10.0 HD 800 | |
|---|---|---|---|---|
| Price | €4,499 | €5,499 | €6,299 | €6,999 |
| Frame | Carbon main frame, alloy rear | Carbon main frame, alloy rear | Carbon main frame, alloy rear | Carbon main frame, alloy rear |
| Fork | Fox 36 Rhythm, FIT GRIP | Fox 36 Performance, FIT GRIP | Fox 36 Factory, FIT GRIP X | RockShox Lyrik Ultimate, Charger 3.2 RC2 |
| Shock | Fox Float Rhythm R | Fox Float X Performance | Fox Float X Factory | RockShox Super Deluxe Ultimate |
| Derailleur | Shimano XT RD-M8100-SGS | SRAM GX Eagle Transmission | Shimano XT Di2 RD-M8260-SGS | SRAM X0 Eagle Transmission |
| Brakes | Magura Louise | SRAM Maven | Shimano XT BR-M8220 | SRAM Maven Ultimate |
| Display | Bosch System Controller / Mini Remote / Purion 400 | Bosch Kiox 400C / Mini Remote | Bosch Kiox 400C / Mini Remote | Bosch Kiox 400C / Mini Remote |
| Weight | 24.9 kg | 24.5 kg | 23.4 kg | 23.4 kg |
Render 10.0 800: FAQ
How much does the Radon Render 10.0 800 cost?
€6,299 (RRP Germany, VAT incl. (radon-bikes.de list price; currently offered at 5499 €)). The Render range runs from €4,499 (Render 8.0 800) to €6,999 (Render 10.0 HD 800). Prices vary by country and dealer.
How much does the Radon Render 10.0 800 weigh?
Radon quotes 23.4 kg. It is the lightest build of the Render.
What motor and battery does the Radon Render 10.0 800 have?
Bosch Performance Line CX Gen5 (100 Nm). 800 Wh battery — bosch Powertube; PowerMore 250 range extender compatible.
How much suspension travel does the Radon Render 10.0 800 have?
160 mm at the fork and 140 mm at the rear, on 29" wheels.
What sizes does the Radon Render 10.0 800 come in?
M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Render 10.0 800 and the Render 10.0 HD 800?
They share the Render frame platform and motor; the differences are in the parts — fork: Fox 36 Factory vs RockShox Lyrik Ultimate; shock: Fox Float X Factory vs RockShox Super Deluxe Ultimate; derailleur: Shimano XT Di2 RD-M8260-SGS vs SRAM X0 Eagle Transmission; price: €6,299 vs €6,999.
