ObscurEnyx Ultra
- Motor
- Intradrive GD8
- Battery
- 840 WhRemovable
- Travel F / R
- 160 / 150 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon (T300/T700, UD)
Overview
The €15,900 Enyx Ultra is Obscur's top build: Öhlins RXF 38 m.3 fork and TTX 2 Air shock, Hope Tech 4 EVO brakes and Duke SL5 carbon wheels on Erase hubs, around the same Intradrive GD8 gearbox motor and 840 Wh battery.
The Enyx is the first e-MTB from French carbon specialist Obscur: a hand-laid high-modulus carbon all-mountain bike with 150 mm rear and 160 mm front travel on a 29/27.5" mullet setup. It is built around the Intradrive GD8 motor with an integrated 8-speed robotised gearbox and a compact 840 Wh removable battery mounted low, under the shock.
- Intradrive GD8 motor with built-in 8-speed gearbox
- 840 Wh removable battery mounted under the shock
- Hand-laid carbon frame (4 kg) made in France
- Reach-adjust headset cups: three reach settings per size

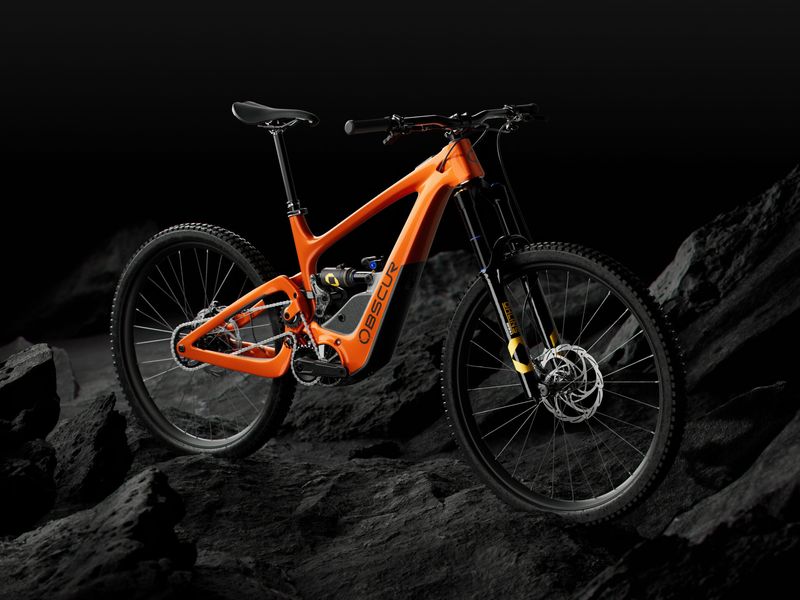

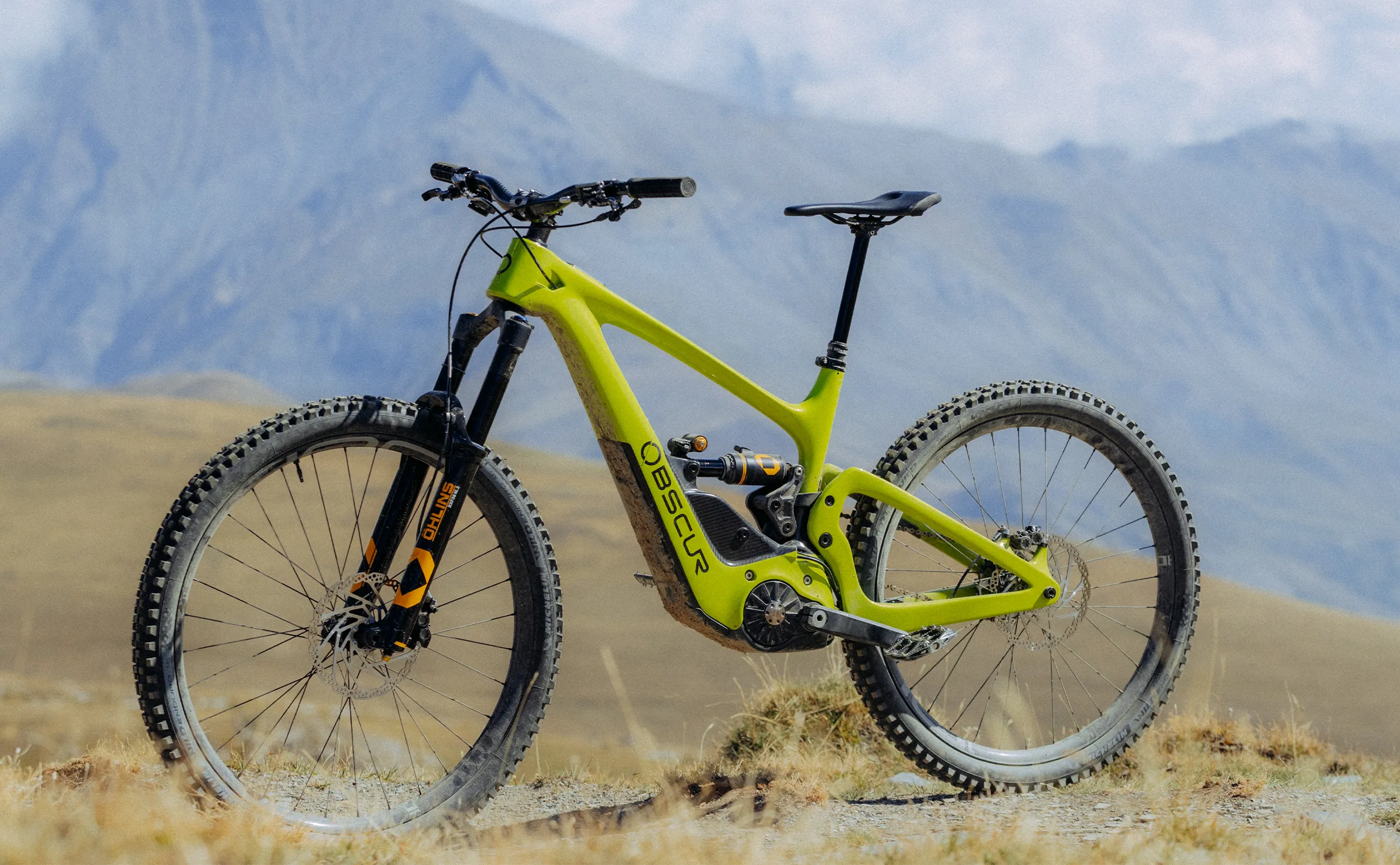

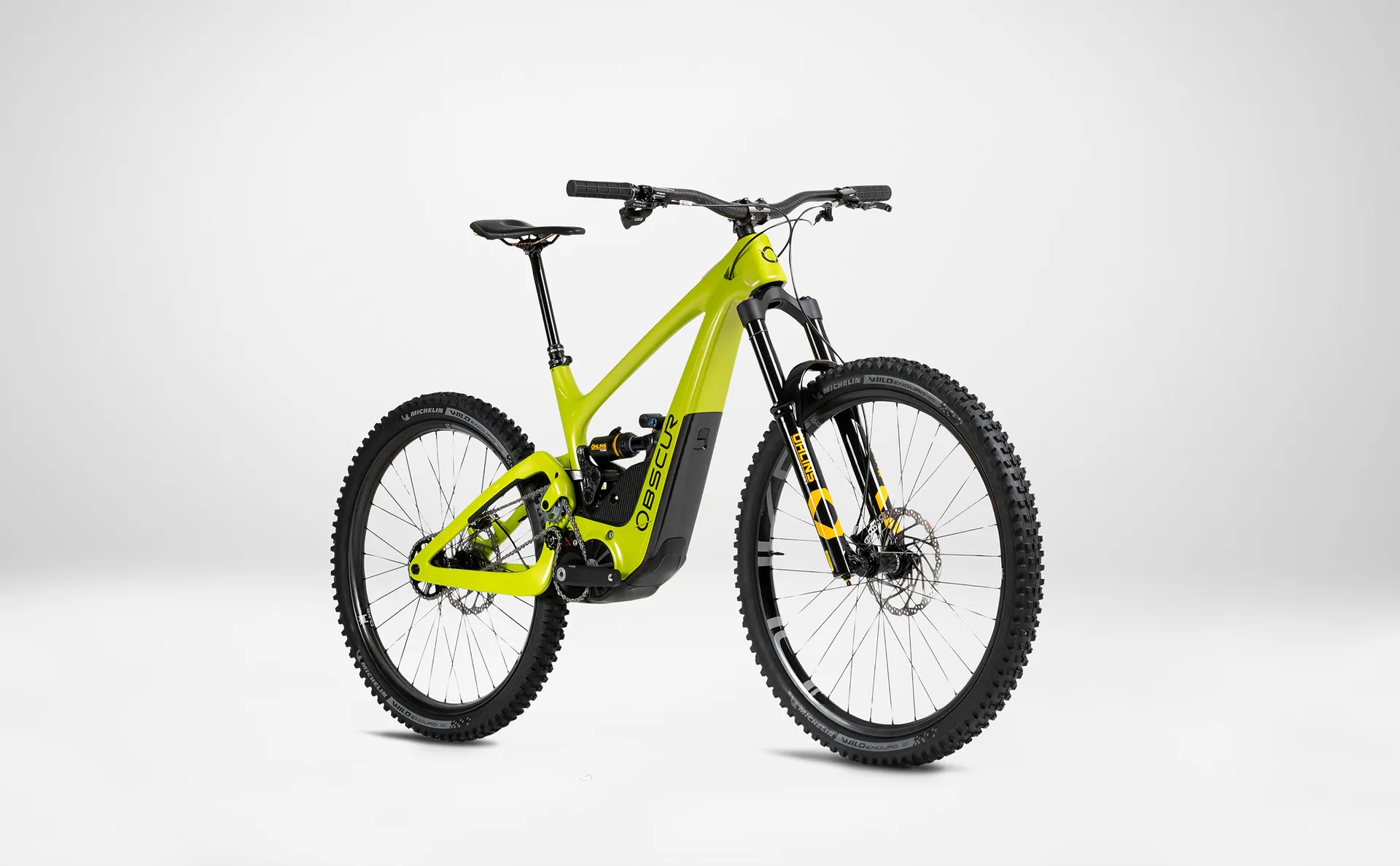

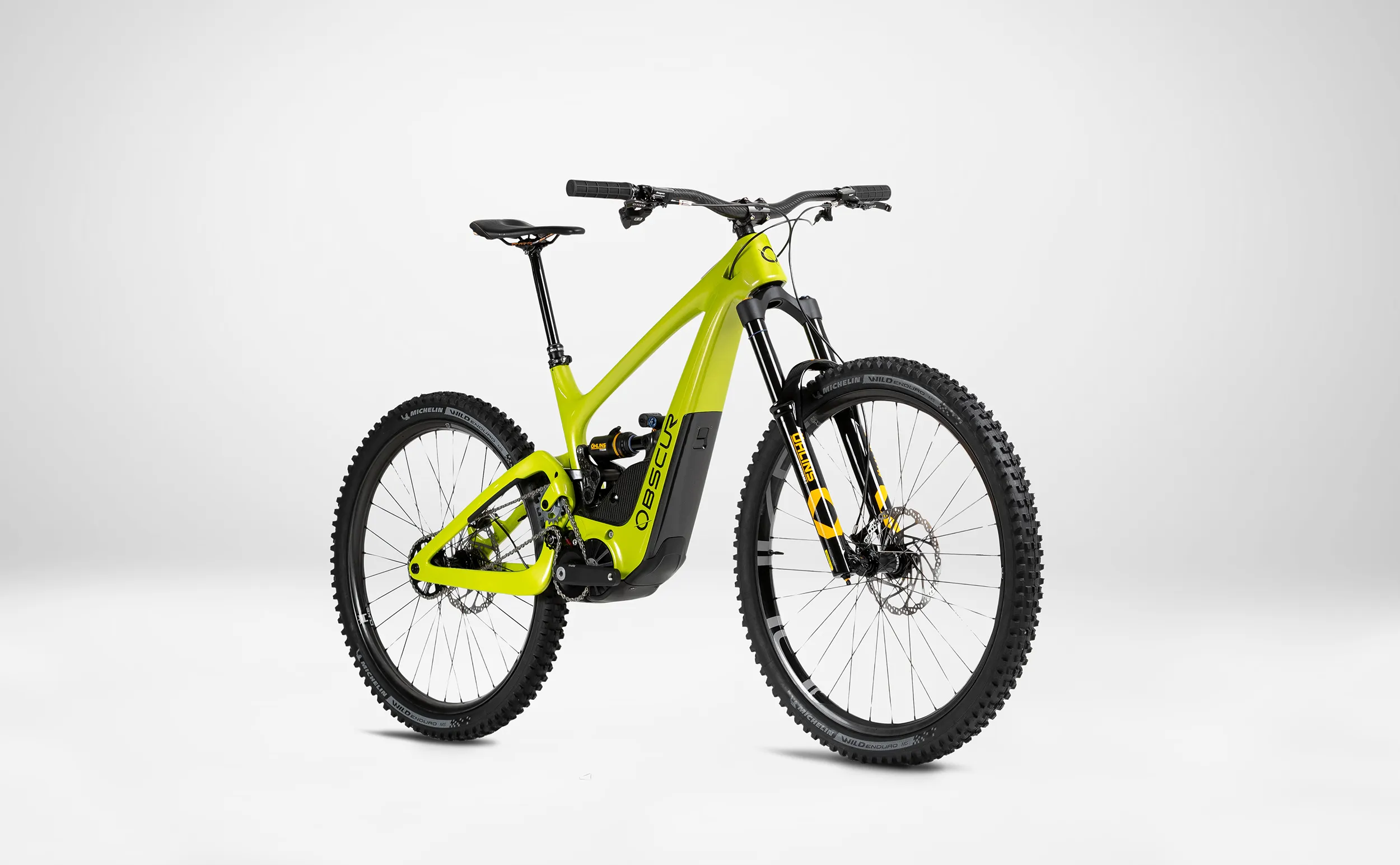

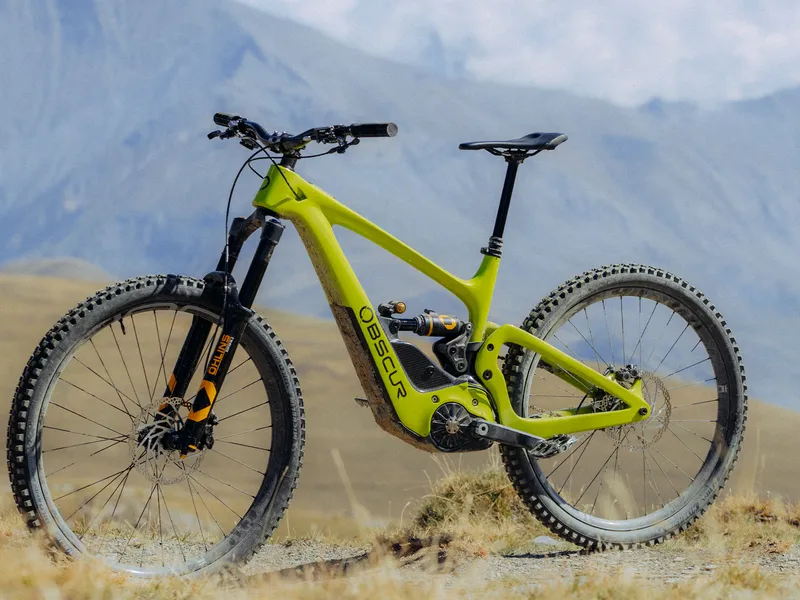

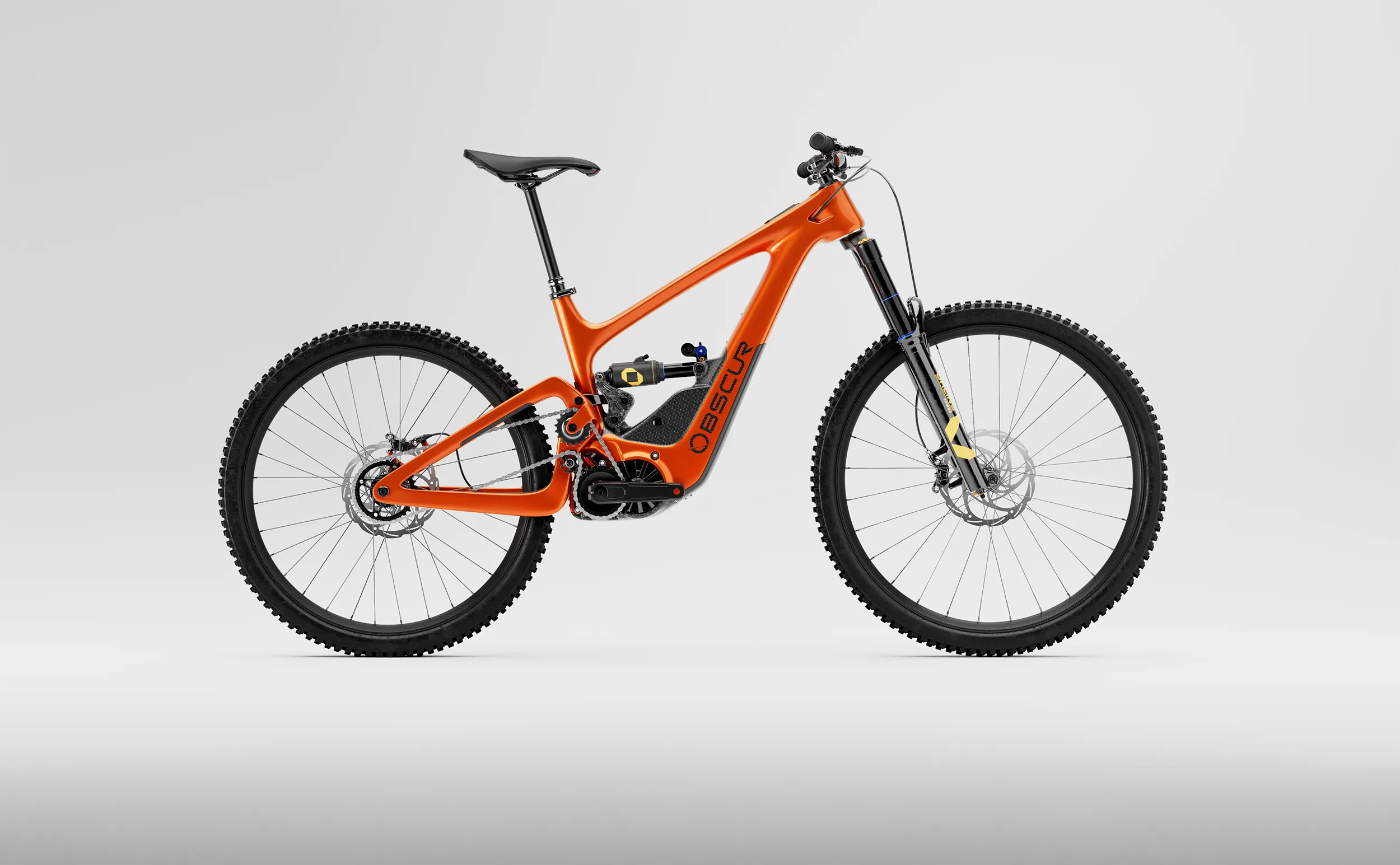

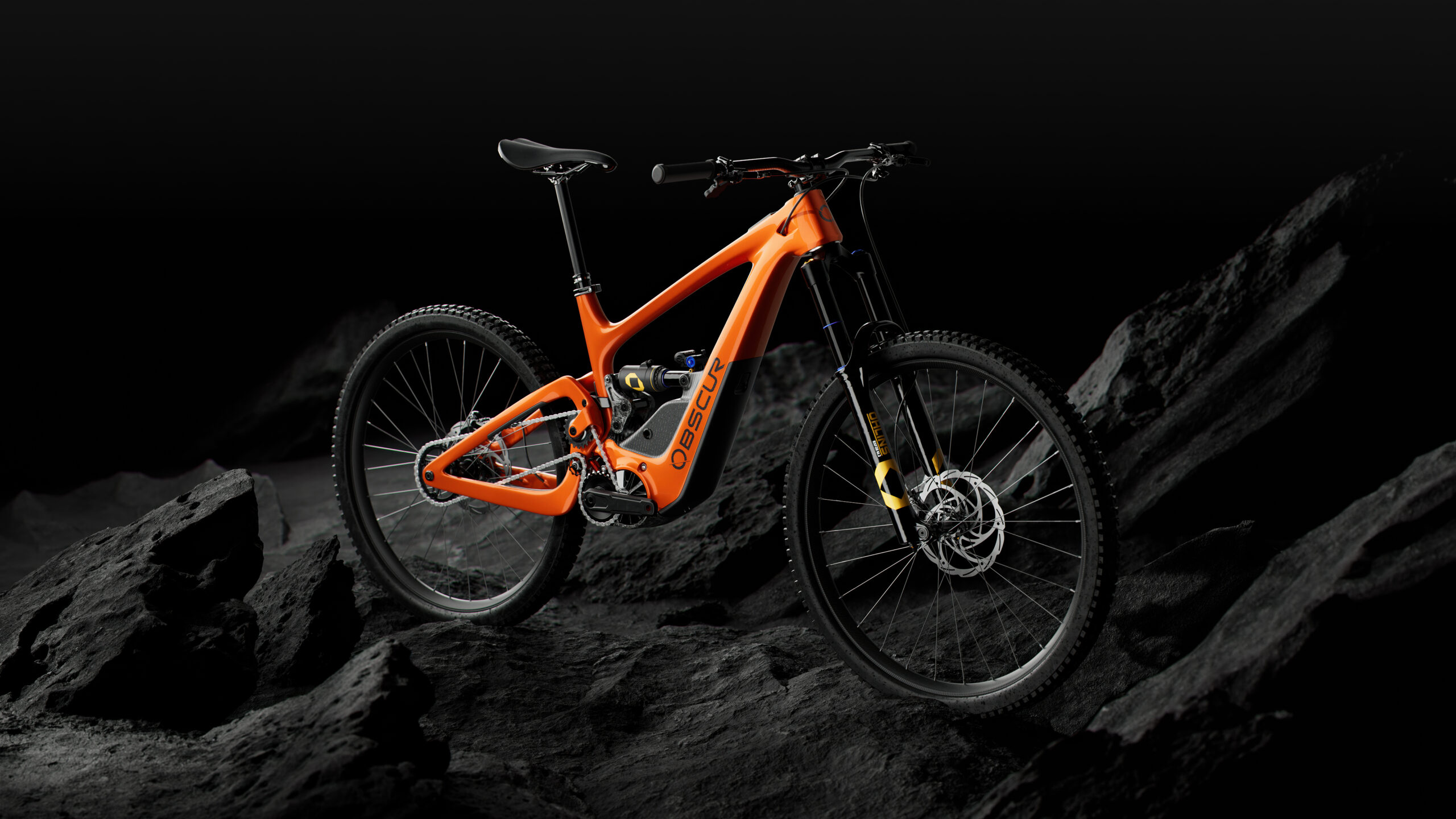

Gallery
Photos: Obscur
Full specifications
Frame & suspension
- Frame
- Full carbon (T300/T700 and UD), 150 mm travel, Boost 148, reach-adjust headset cups, removable integrated battery, moulded internal routing; frame weight 4 kg
- Colours
- Green, orange, metallic white, matte grey
- Fork
- Öhlins RXF 38 m.3, 160 mm, 29"
- Shock
- Öhlins TTX 2 Air, 205x65 mm trunnion
E-system
- Motor
- Intradrive GD8 (700 W, 8-speed gearbox, 480% range)
- Battery
- Obscur high-density 840 Wh, removable
- Display / remote
- Intradrive display, Intradrive shifter
Drivetrain
- Chainring / sprocket
- 24T front, 30T rear (single-speed chain line, gears in the motor)
- Chain
- 9-speed chain 11/128"
- Cranks
- Obscur CNC AL 7075, 150 mm
Brakes
- Brakes
- Hope Tech 4 EVO, Hope V4 200 mm rotors
Wheels & tyres
- Wheels
- Duke SL5 carbon rims, Erase Classic Boost hubs, CX-Ray / CX-Sprint spokes; 29" front / 27.5" rear
- Tyres
- Michelin Wild Enduro MS front, Wild Enduro MH rear
Cockpit
- Handlebar
- Obscur, 780 mm, 31.8 mm
- Stem
- Hope Trail, 40 mm
Enyx geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| Reach (short / mid / long) | 431 / 438 / 445 mm | 451.5 / 459 / 466 mm | 478 / 485 / 492 mm | 503 / 510 / 517 mm |
| Stack (short / mid / long) | 611 / 615 / 618 mm | 623 / 626 / 630 mm | 642 / 645 / 648 mm | 663 / 666 / 670 mm |
| Head angle | 64.7° | 64.7° | 64.7° | 64.7° |
| Head tube | 99 mm | 112 mm | 132.5 mm | 156 mm |
| Chainstay | 440 mm | 440 mm | 440 mm | 440 mm |
| BB height | 348.6 mm | 348.6 mm | 348.6 mm | 348.6 mm |
| BB drop | 10 mm | 10 mm | 10 mm | 10 mm |
| Wheelbase | 1207 mm | 1233 mm | 1268 mm | 1303 mm |
| Top tube | 585 mm | 608.5 mm | 639 mm | 669 mm |
| Seat tube | 402 mm | 422 mm | 442 mm | 462 mm |
| Seat angle | 76.6° | 76.6° | 76.6° | 76.6° |
| Max. seatpost insertion | 180 mm | 220 mm | 240 mm | 260 mm |
Reach and stack given for the short / mid / long reach-adjust cup positions. Source: Obscur.
Enyx: builds compared
Enyx range →| Enyx | Enyx Ultra | |
|---|---|---|
| Price | €12,500 | €15,900 |
| Frame | Carbon (T300/T700, UD) | Carbon (T300/T700, UD) |
| Fork | Formula Selva V, 160 mm | Öhlins RXF 38 m.3, 160 mm |
| Shock | Formula Nebbia Air | Öhlins TTX 2 Air |
| Brakes | Formula Cura 4 | Hope Tech 4 EVO |
Enyx Ultra: FAQ
How much does the Obscur Enyx Ultra cost?
€15,900 (From, France). The Enyx range runs from €12,500 (Enyx) to €15,900 (Enyx Ultra). Prices vary by country and dealer.
What motor and battery does the Obscur Enyx Ultra have?
Intradrive GD8. 840 Wh battery — removable.
How much suspension travel does the Obscur Enyx Ultra have?
160 mm at the fork and 150 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Obscur Enyx Ultra come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Enyx Ultra and the Enyx?
They share the Enyx frame platform and motor; the differences are in the parts — fork: Öhlins RXF 38 m.3 vs Formula Selva V; price: €15,900 vs €12,500.
