BHiLYNX+ NX Enduro Carbon 9.7
- Motor
- Bosch Performance Line CX100 Nm
- Battery
- 800 WhIntegrated, non-removable
- Travel F / R
- 170 / 160 mm
- Wheels
- 29"
- Frame
- Carbon
Overview
The BH iLYNX+ NX Enduro Carbon 9.7 (€7,499.90) is a mid-range build of the iLYNX+ NX Enduro: Bosch Performance Line CX (Gen 5) (100 Nm) with 800 Wh, FOX 38 FLOAT Performance fork, FOX FLOAT X Performance shock, Shimano XT DI2 12sp and Shimano XT 4 Piston brakes.
The iLYNX+ NX Enduro is the 160 mm travel version of the Bosch-powered iLYNX+ NX, with 160–170 mm forks and 29-inch wheels.

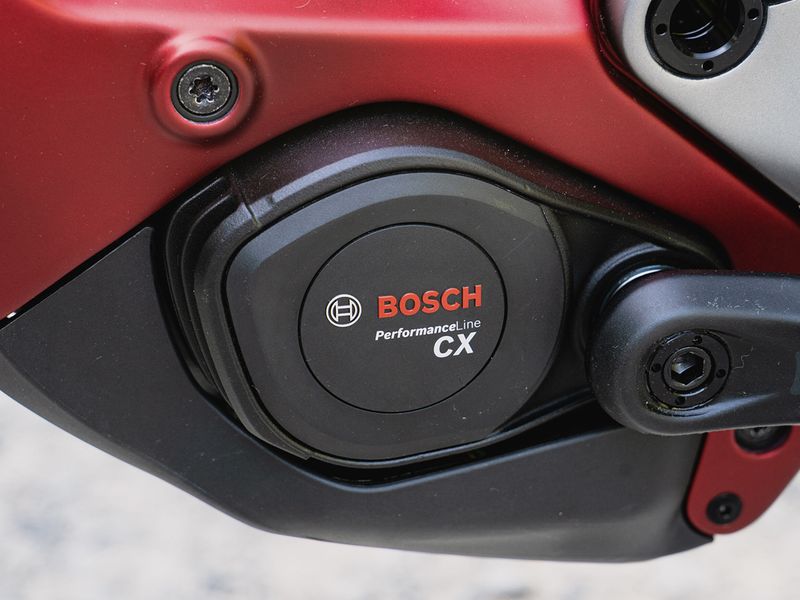

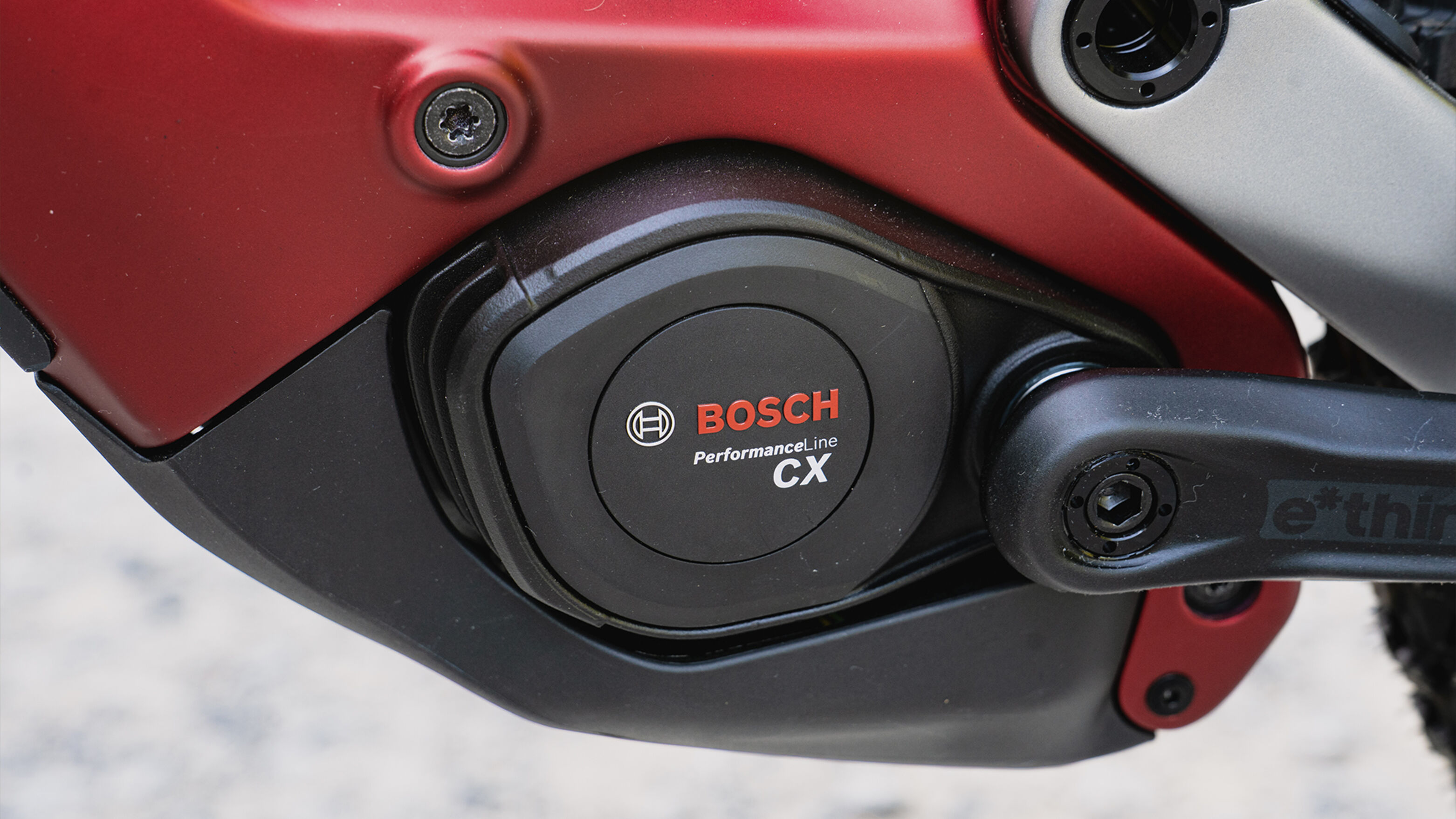

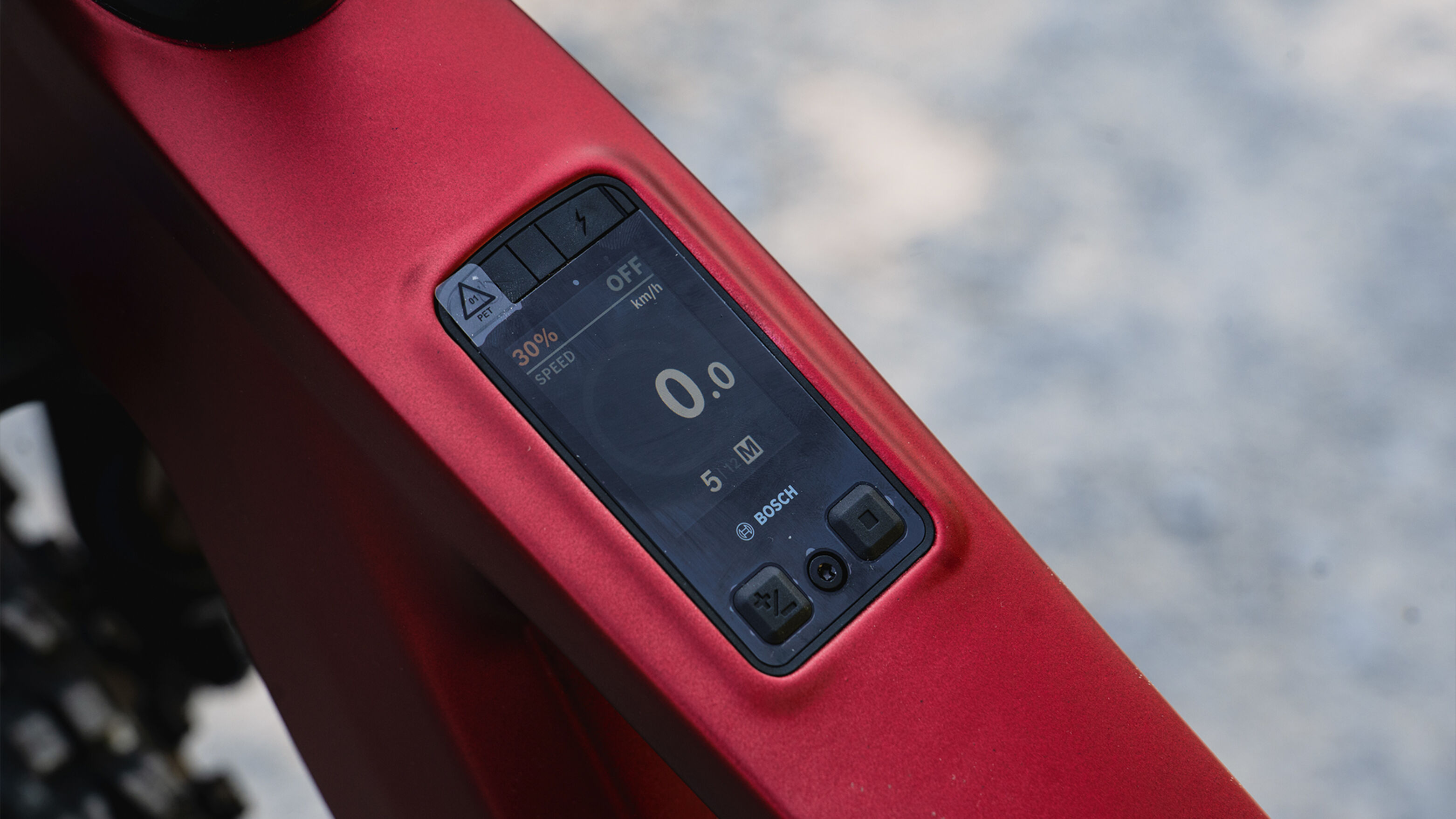

It uses the Bosch Performance Line CX motor (100 Nm per BH) with an 800 Wh battery, Kiox 400C display and Mini Remote, on Split Pivot suspension and a 440 mm rear centre. Alloy and carbon frames are available.
- Bosch Performance Line CX, 100 Nm
- 800 Wh battery
- 160 mm rear, 160–170 mm fork
- Alloy or carbon frame

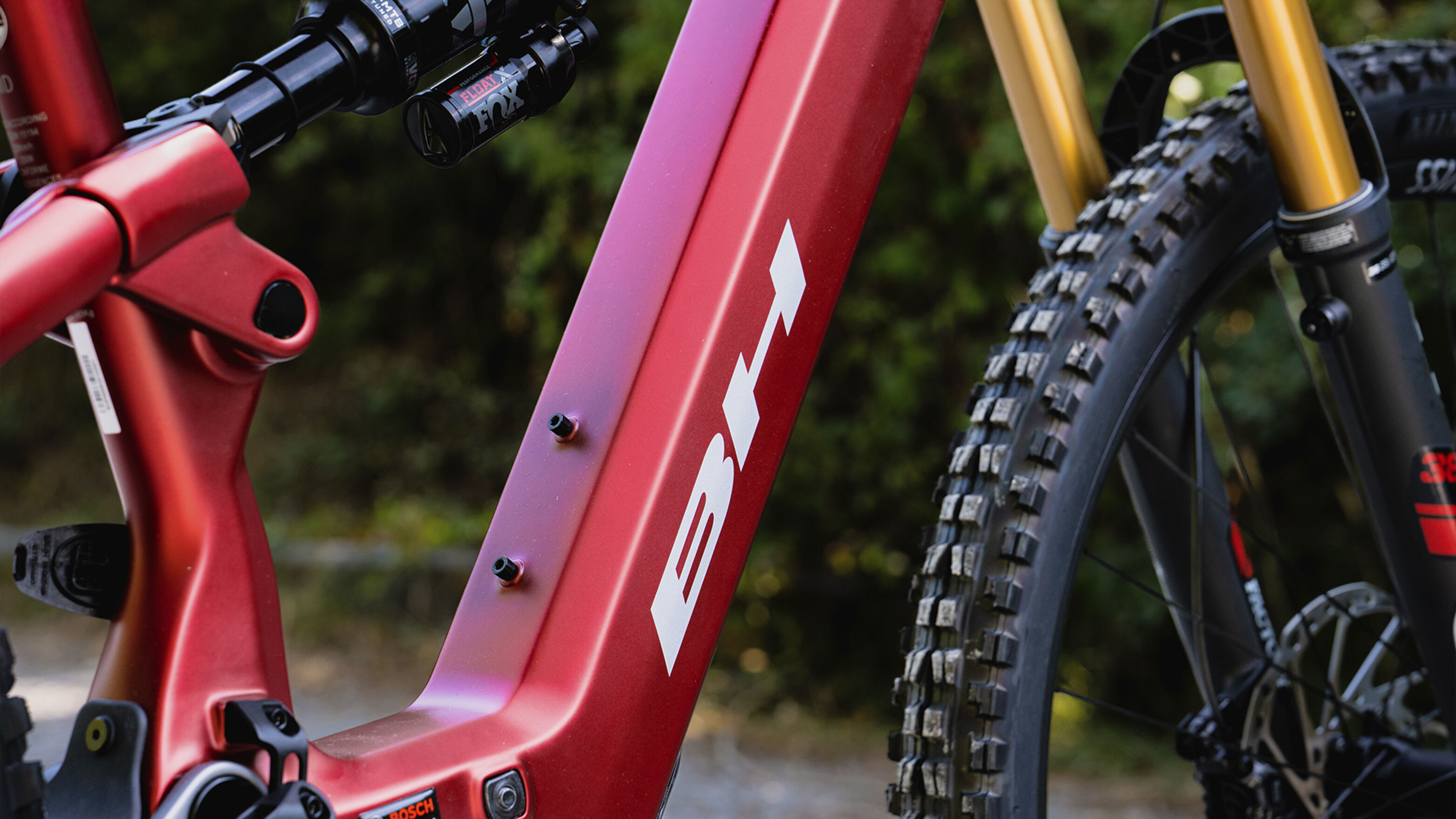

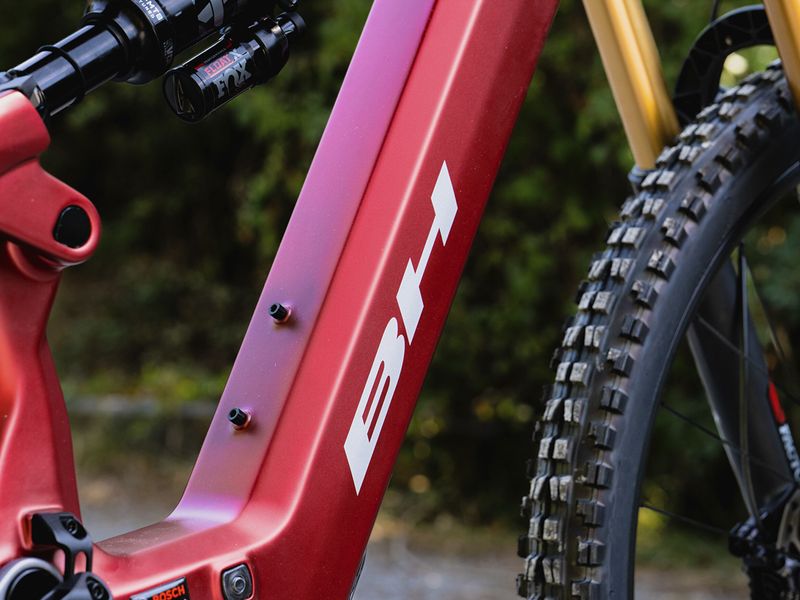

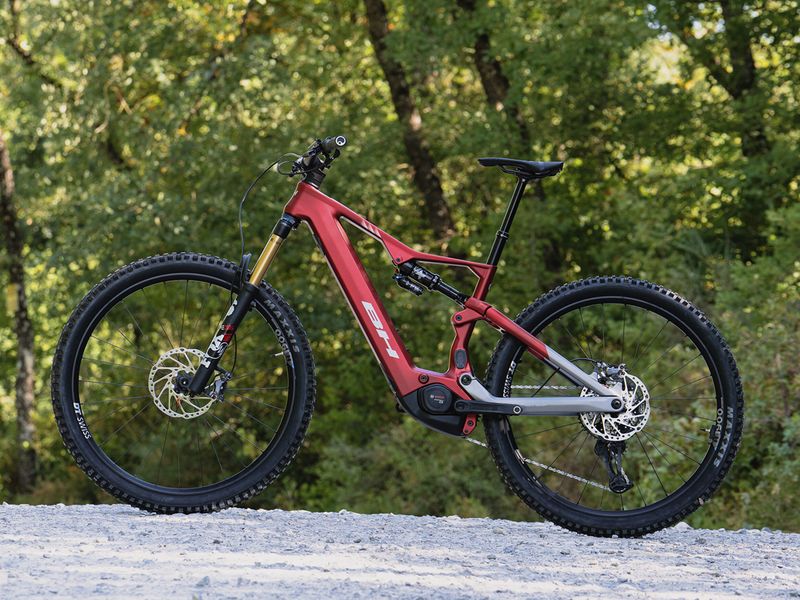

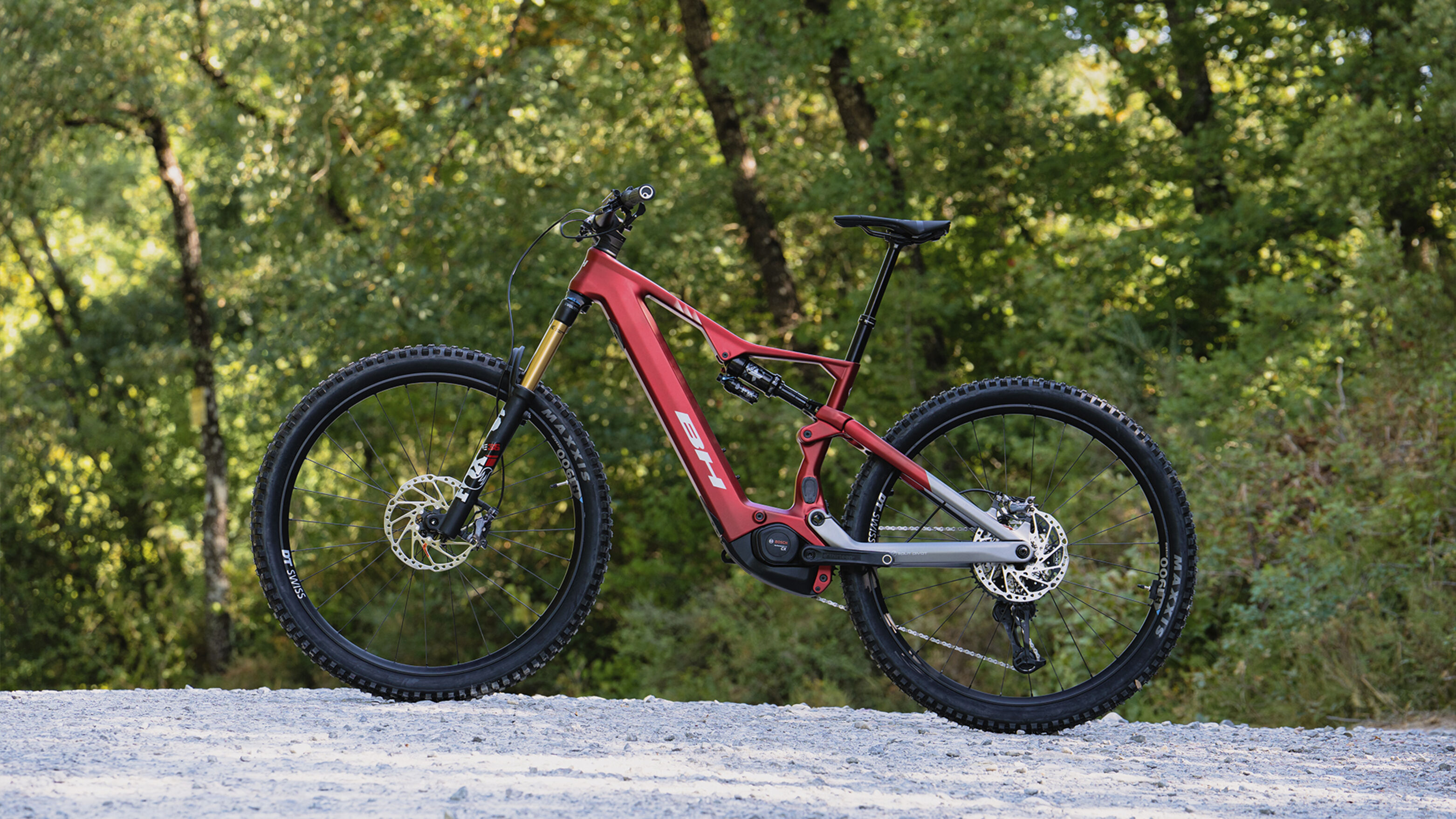

Gallery
Photos: BH Bikes
Full specifications
Frame & suspension
- Frame

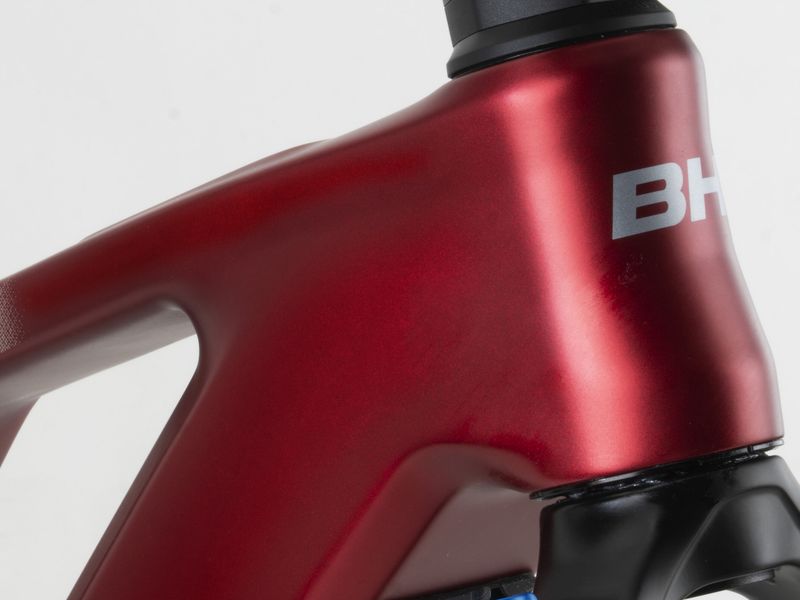

- iLynx+NX, BCL Carbon Layup, 160 mm FS Carbon 29", ICR
- Rear shock
- FOX FLOAT X Performance
- Fork
- FOX 38 FLOAT Performance 170mm 15QR
E-system
- Battery system
- Non Removable
- Battery
- 800Wh
- Motor
- Bosch CX Gen 5
- Display

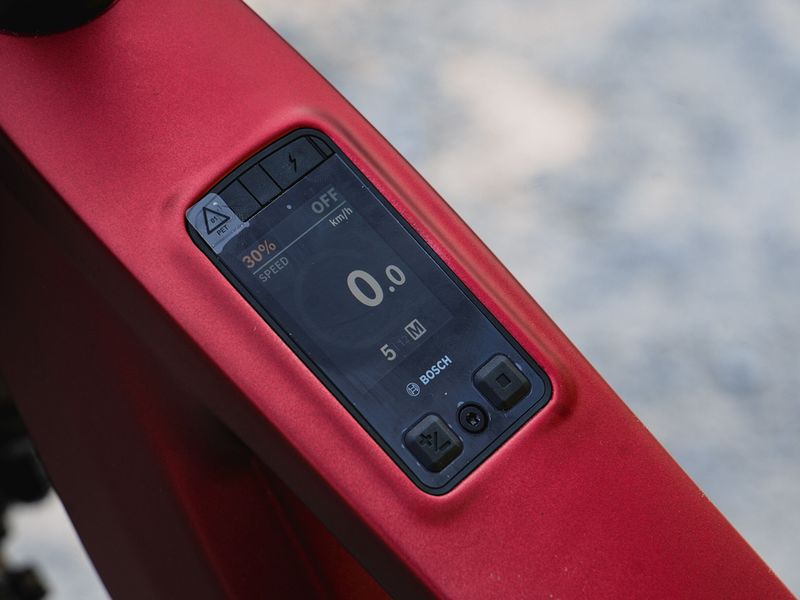

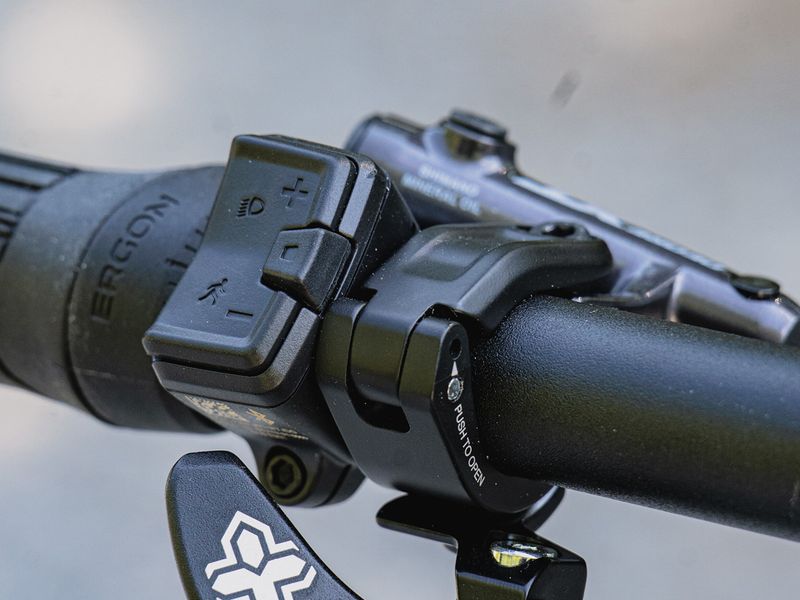

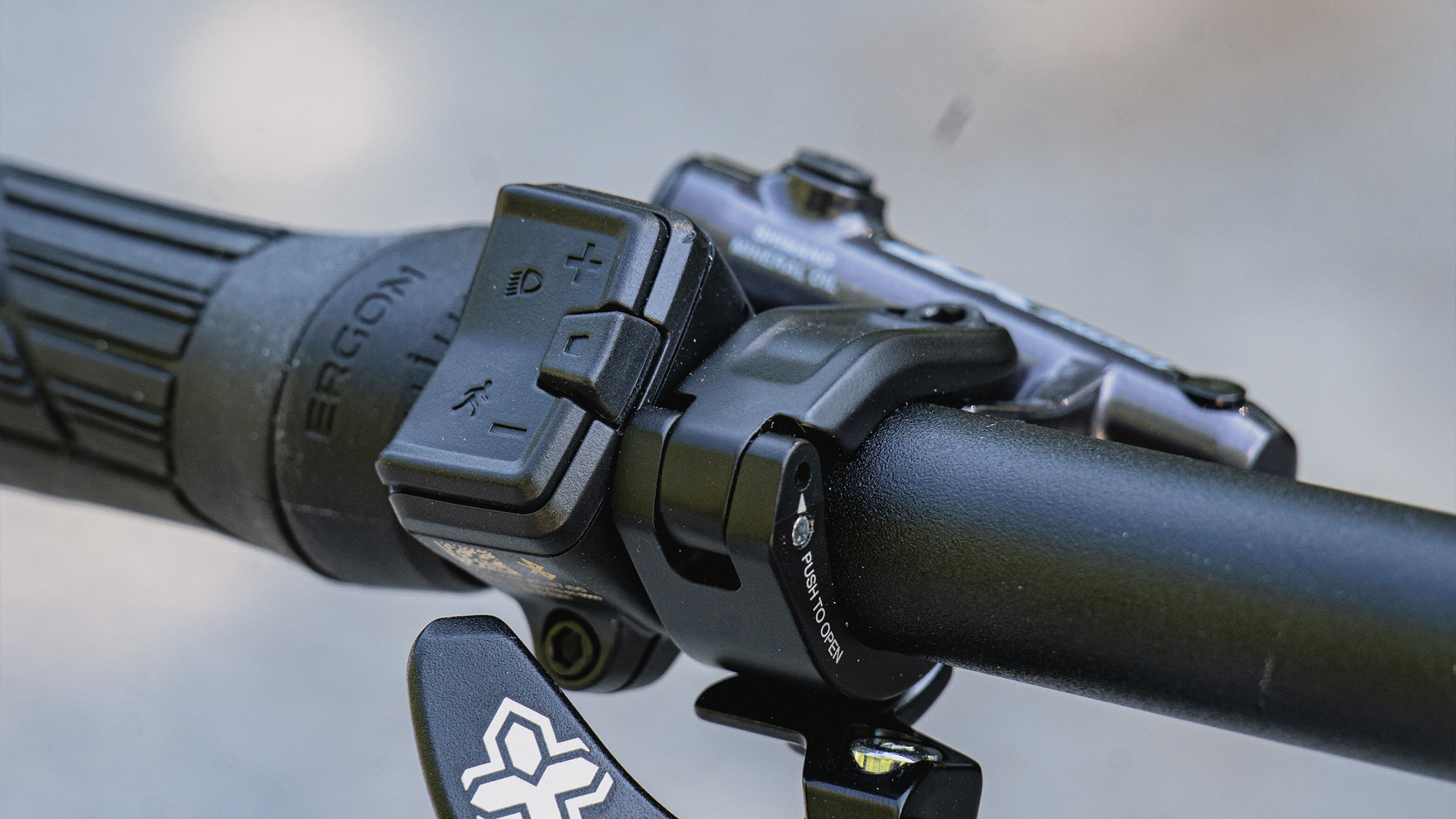

- Bosch Kiox 400C + Mini Remote
Drivetrain
- Shifters
- Shimano Deore DI2
- Rear derailleur
- Shimano XT DI2 12sp
- Crankset
- EThirteen Helix Core 34T 160mm
- Cassette
- Shimano CSM6100 12sp (1051T)
- Chain
- Shimano CNM6100
Brakes
- Front brake
- Shimano XT 4 Piston, 203mm
- Rear brake
- Shimano XT 4 Piston, 203mm
Wheels & tyres
- Wheelset
- DT Swiss H1900 TR
- Tyres
- Maxxis Assegai TPI60/MinionTPI120 TerraEXO 29X2,5/2,4
- Hubs
- DT Swiss
- Spokes
- Stainless Steel
Cockpit
- Saddle
- Prologo Proxim W450 Stn
- Seat clamp
- Integrated
- Seatpost
- Race Face DP Aeffect 31,6
- Handlebar
- Race Face Aeffect Riser 35, 780mm
- Stem
- Satori URSA 35
- Headset
- Acros AIX327 ICR BL.
- Grips
- Ergon GE10 EVO
Other
- Chainstay protector
- Double Integrated
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
iLYNX+ NX Enduro geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| H1Seat tube length | 400 mm | 420 mm | 440 mm | 480 mm |
| H2Head tube length | 90 mm | 100 mm | 110 mm | 125 mm |
| H3Fork length | 588 mm | 588 mm | 588 mm | 588 mm |
| H4Top tube length | 583 mm | 601 mm | 623 mm | 644 mm |
| H5Front centre | 766 mm | 799 mm | 810 mm | 833 mm |
| H6Chainstay length | 440 mm | 440 mm | 440 mm | 440 mm |
| H7Wheelbase | 1206 mm | 1226 mm | 1250 mm | 1273 mm |
| H8BB drop | 21 mm | 21 mm | 21 mm | 21 mm |
| H9Bb Height | 346 mm | 346 mm | 346 mm | 346 mm |
| A1Seat tube angle | 76° | 76° | 76° | 76° |
| A2Head tube angle | 64° | 64° | 64° | 64° |
| Standover | 756 mm | 772 mm | 789 mm | 814 mm |
| Reach | 432 mm | 448 mm | 468 mm | 485 mm |
| Stack | 613 mm | 621 mm | 628 mm | 636 mm |
Source: BH.
iLYNX+ NX Enduro: builds compared
iLYNX+ NX Enduro range →| iLYNX+ NX Enduro 9.0 | iLYNX+ NX Enduro 9.1 | iLYNX+ NX Enduro Carbon 9.6 | iLYNX+ NX Enduro Carbon 9.7 | iLYNX+ NX Enduro Carbon 9.8 | |
|---|---|---|---|---|---|
| Price | €4,999.90 | €5,499.90 | €6,499.90 | €7,499.90 | €8,799.90 |
| Frame | Alloy | Alloy | Carbon main frame, alloy rear | Carbon | Carbon |
| Fork | Rock Shox Psylo 160mm 15QR | FOX 36 FLOAT Rhythm 170mm 15QR | FOX 38 FLOAT Performance 170mm 15QR | FOX 38 FLOAT Performance 170mm 15QR | FOX 38 FLOAT Factory 170mm 15QR |
| Shock | Rock Shox Deluxe Debonair | FOX FLOAT Rhythm | FOX FLOAT X Performance | FOX FLOAT X Performance | FOX FLOAT DHX2 Factory |
| Derailleur | Shimano Deore 12sp | Shimano XT 12sp | Shimano XT 12sp | Shimano XT DI2 12sp | Shimano XT DI2 12sp |
| Brakes | Shimano MT520 4 Piston | Shimano MT520 4 Piston | Shimano MT520 4 Piston | Shimano XT 4 Piston | Shimano XT 4 Piston |
| Display | Bosch Purion 200 | Bosch Purion 200 | Bosch Kiox 400C + Mini Remote | Bosch Kiox 400C + Mini Remote | Bosch Kiox 400C + Mini Remote |
iLYNX+ NX Enduro Carbon 9.7: FAQ
How much does the BH iLYNX+ NX Enduro Carbon 9.7 cost?
€7,499.90 (RRP Spain, VAT incl.). The iLYNX+ NX Enduro range runs from €4,999.90 (iLYNX+ NX Enduro 9.0) to €8,799.90 (iLYNX+ NX Enduro Carbon 9.8). Prices vary by country and dealer.
What motor and battery does the BH iLYNX+ NX Enduro Carbon 9.7 have?
Bosch Performance Line CX (100 Nm). 800 Wh battery — integrated, non-removable.
How much suspension travel does the BH iLYNX+ NX Enduro Carbon 9.7 have?
170 mm at the fork and 160 mm at the rear, on 29" wheels.
What sizes does the BH iLYNX+ NX Enduro Carbon 9.7 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the iLYNX+ NX Enduro Carbon 9.7 and the iLYNX+ NX Enduro Carbon 9.8?
They share the iLYNX+ NX Enduro frame platform and motor; the differences are in the parts — fork: FOX 38 FLOAT Performance 170mm 15QR vs FOX 38 FLOAT Factory 170mm 15QR; shock: FOX FLOAT X Performance vs FOX FLOAT DHX2 Factory; price: €7,499.90 vs €8,799.90.
