TRPEVO 12 Alloy Crankset
No EUR/GBP price on trpcycling.com (US/Canada store only, USD); US store lists US$164.99
- Material
- Forged aluminium
- Spindle
- 30 mm
- Crank lengths
- 165 / 170 / 175 mm
- Weight
- 549 g (165 mm)
- Weight
- 549 g165 mm, claimed (170 mm: 561 g, 175 mm: 573 g); chainring sold separately
Overview
TRP's forged-aluminium EVO 12 crankset with 30 mm spindle in 165–175 mm, 549 g (165 mm) without chainring; US$164.99.
The alloy crankset for TRP's EVO 12 group is forged aluminium for a durable, robust construction, with a 30 mm spindle for power transfer.
It is available in 165, 170 and 175 mm lengths, weighing a claimed 549, 561 and 573 g respectively; the chainring is sold separately. EVO 12 is TRP's mechanical 12-speed mountain-bike drivetrain, built around a Microspline 10–52T cassette, a clutch derailleur with an integrated Hall Lock lever, a MatchMaker-compatible shifter with a shift-mode switch, and 30 mm-spindle alloy or carbon cranks.
- Forged aluminium arms
- 30 mm spindle
- 165 / 170 / 175 mm
- 549 g (165 mm) claimed

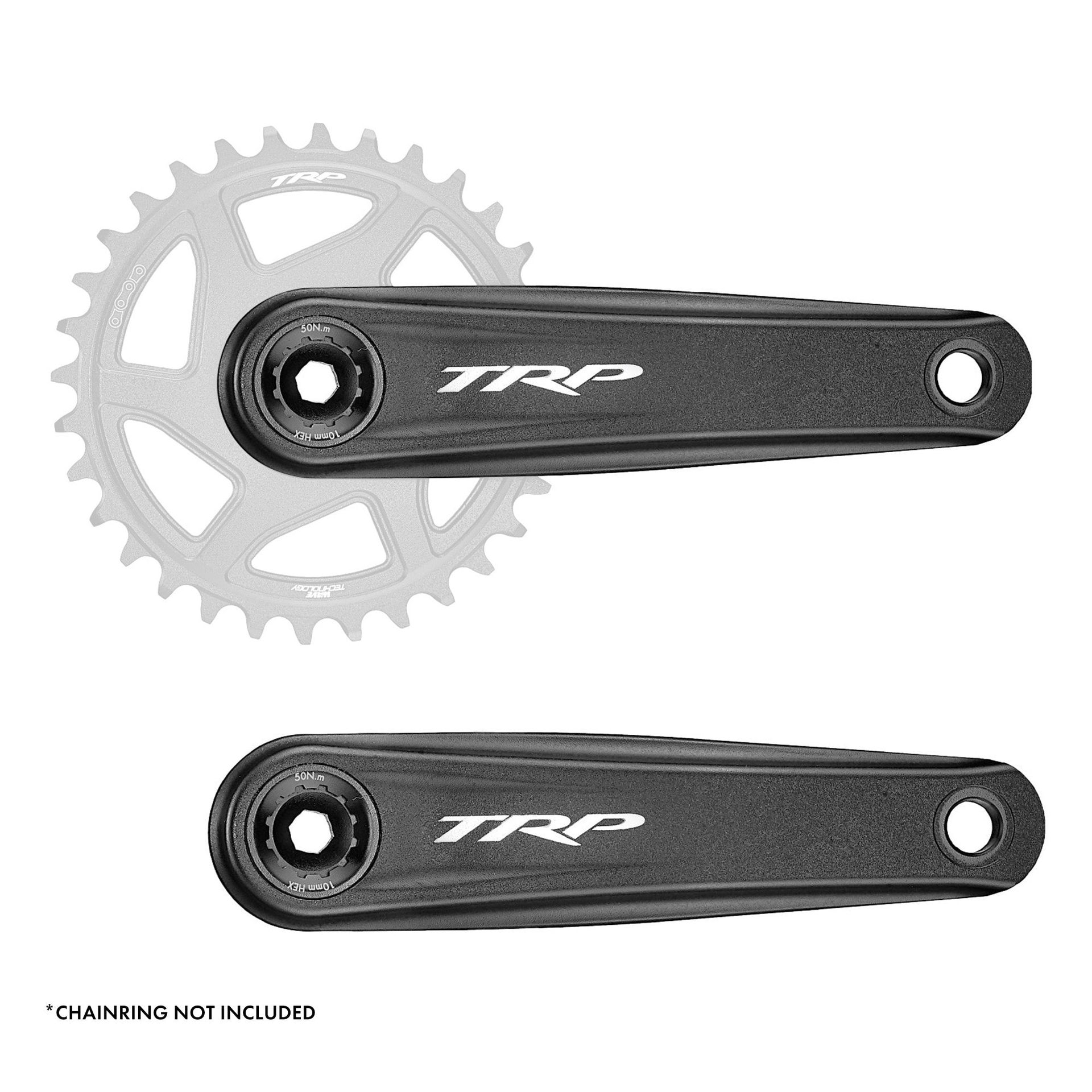

- Chainring sold separately
Gallery
Full specifications
General
- Material
- Forged aluminium
- Spindle diameter
- 30 mm
- Lengths
- 165 mm, 170 mm, 175 mm
- Weights
- 165 mm: 549 g; 170 mm: 561 g; 175 mm: 573 g
- Chainring
- Sold separately
- Colour
- Black
- US price
- US$164.99
Manufacturer specification — TRP. Specs and prices can change; check with the brand or your dealer.
TRP EVO 12 versions compared
| EVO 12 Derailleur | EVO 12 Shifter | EVO 12 Cassette | EVO 12 Carbon Crankset | EVO 12 Alloy Crankset | |
|---|---|---|---|---|---|
| Price | — | — | — | — | — |
| Speeds | 12 | 12 | 12 | — | — |
| Max sprocket | 52T | — | — | — | — |
| Shifting | Mechanical | Mechanical, up to 5 upshifts per sweep | — | — | — |
| Clutch | Instant, silent | — | — | — | — |
| Weight | 300 g | 125 g | 372 g | 493 g (165 mm) | 549 g (165 mm) |
| Mount | — | MatchMaker compatible | — | — | — |
| Range | — | — | 10–52T | — | — |
| Freehub | — | — | Microspline | — | — |
| Weight | 300 g | 125 g | 372 g | 493 g | 549 g |
| E-bike rated | — | — | — | — | — |
TRP EVO 12 Alloy Crankset: FAQ
How much does the TRP EVO 12 Alloy Crankset weigh?
TRP quotes 549 g (165 mm, claimed (170 mm: 561 g, 175 mm: 573 g); chainring sold separately).
Is the TRP EVO 12 Alloy Crankset suitable for e-bikes?
TRP does not specifically rate it for e-bikes. Check the manufacturer’s approval and your bike maker’s recommendations before fitting it to an eMTB.
What are the key specs of the TRP EVO 12 Alloy Crankset?
Material: Forged aluminium; Spindle: 30 mm; Crank lengths: 165 / 170 / 175 mm; Weight: 549 g (165 mm).
What other versions of the TRP EVO 12 are there?
EVO 12 Derailleur, EVO 12 Shifter, EVO 12 Cassette, EVO 12 Carbon Crankset.
