Cane CreekElectric Wings
No EUR/GBP RRP published (canecreek.com sells in USD/Americas only); official US store price USD 899.99.
- Material
- 6/4 titanium, additive manufacturing
- Length
- 165 mm
- Interface
- ISIS motor spindle
- Weight
- 383 g
- E-bike specific
- Yes
- Weight
- 383 gincluding all hardware, claimed
Overview
Electric Wings are Cane Creek's eMTB-specific 3D-printed titanium cranks: 165 mm, ISIS, 383 g including hardware; USD 899.99 in the US store.
Electric Wings are a crankset designed specifically for the rigours of eMTB: 100% 6/4 titanium arms made with additive manufacturing (3D printing), which let Cane Creek create the more complex shapes needed for e-bike compatibility while minimising material. They weigh 383 g including all hardware.
Cane Creek says they are as light as carbon but significantly stronger, passing crank fatigue testing at double the stress load of the international standard, with reduced pedal overhang to cut pedal strikes. They fit ISIS motor spindles and are listed as compatible with Bafang, Bosch, Brose, DJI, Fazua (excl. Ride 60), Panasonic, TQ and Yamaha motors.
- E-MTB-specific titanium cranks, additively manufactured
- 383 g including hardware
- Tested to double the international crank fatigue standard
- ISIS motor spindle; Bosch, Brose, DJI, Yamaha, TQ and more
- Reduced pedal overhang, 5-year warranty

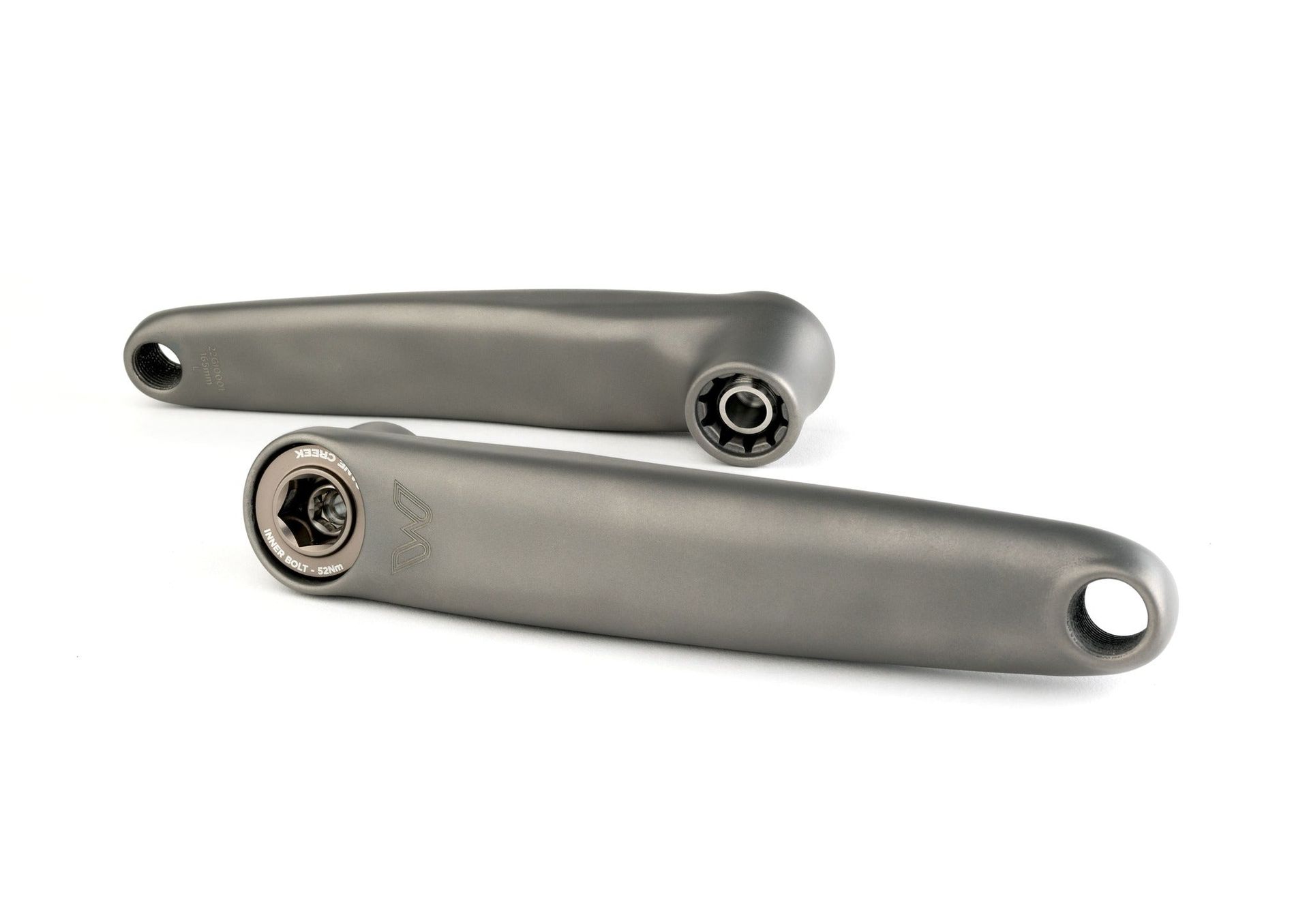

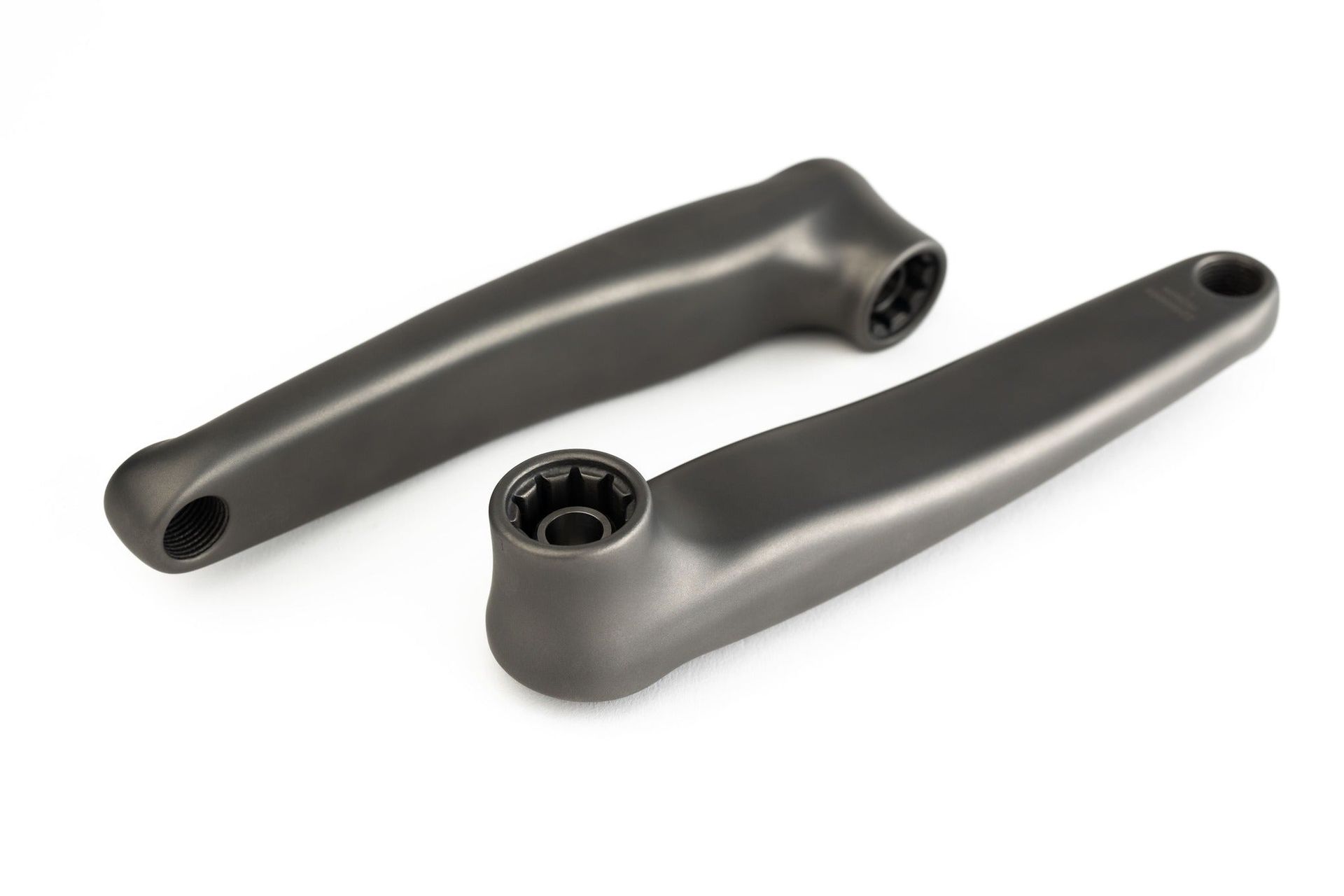

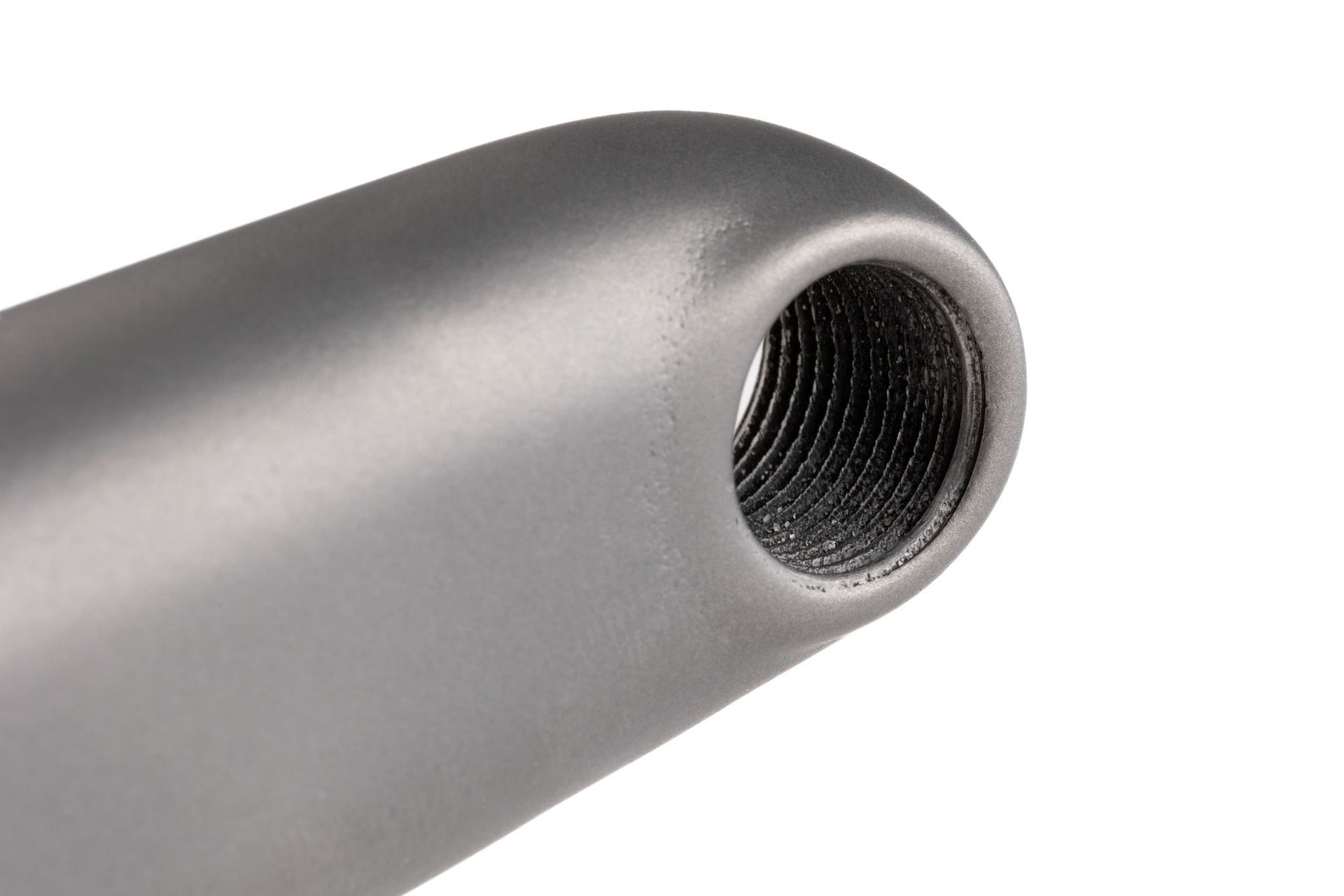

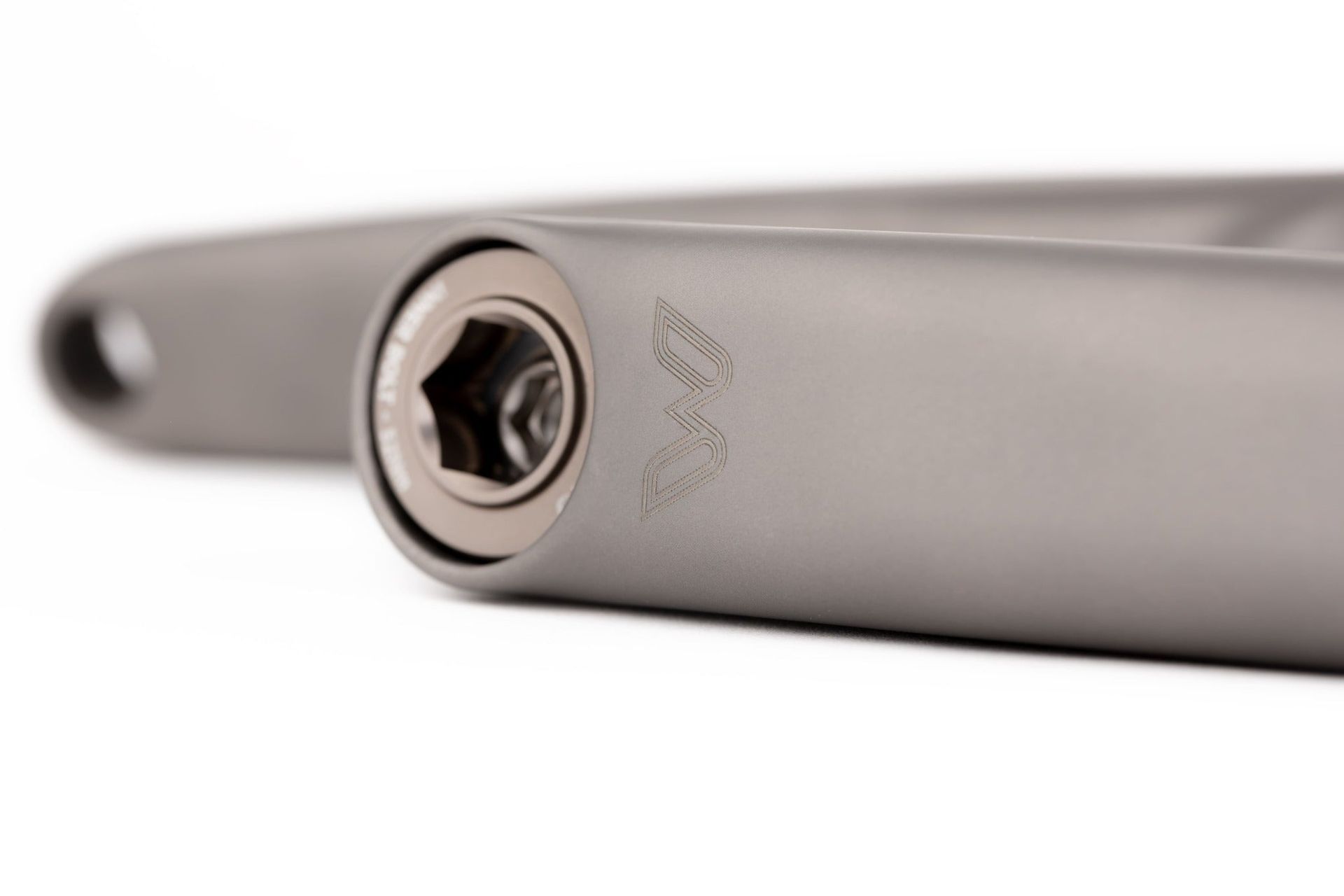

Gallery
Full specifications
General
- Weight
- 383 g (including all hardware)
- Materials
- 6/4 titanium, additive manufacturing
- Lengths
- 165 mm
- Spindle interface
- ISIS
- Frame clearance
- 26.7 mm at pedal (inside of crank arm to spindle-interface plane)
- Warranty
- 5 years
- Part number
- BAI0226 – 165 mm
Compatibility
- Compatible motors
- Bafang, Bosch, Brose, DJI, Fazua (excluding Ride 60), Panasonic, TQ, Yamaha
- Compatible bikes
- Long list published on product page (e.g. Canyon Strive ON, Cube Stereo Hybrid, Giant Trance E, Forbidden Druid E, Amflow PL Carbon)
Manufacturer specification — Cane Creek. Specs and prices can change; check with the brand or your dealer.
Cane Creek eeWings versions compared
| eeWings Mountain | Electric Wings | |
|---|---|---|
| Price | — | — |
| Material | Titanium (3/2.5 arms, 6/4 spindle) | 6/4 titanium, additive manufacturing |
| Spindle | 30 mm | — |
| Lengths | 160 / 165 / 170 mm | — |
| Q-factor | 176 mm | — |
| Chainring | SRAM 8-bolt direct mount | — |
| Length | — | 165 mm |
| Interface | — | ISIS motor spindle |
| Weight | — | 383 g |
| Weight | — | 383 g |
| E-bike rated | — | Yes |
Cane Creek Electric Wings: FAQ
How much does the Cane Creek Electric Wings weigh?
Cane Creek quotes 383 g (including all hardware, claimed).
Is the Cane Creek Electric Wings suitable for e-bikes?
Yes — Cane Creek lists it as e-bike rated or e-bike specific.
What are the key specs of the Cane Creek Electric Wings?
Material: 6/4 titanium, additive manufacturing; Length: 165 mm; Interface: ISIS motor spindle; Weight: 383 g; E-bike specific: Yes.
What other versions of the Cane Creek eeWings are there?
eeWings Mountain.
