NorcoRange VLT CX C1
- Motor
- Bosch Performance Line CX85 Nm (120 Nm upgrade via Flow App); 750 W peak
- Battery
- 800 WhBosch PowerTube 800 Wh
- Travel F / R
- 170 / 160 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
Overview

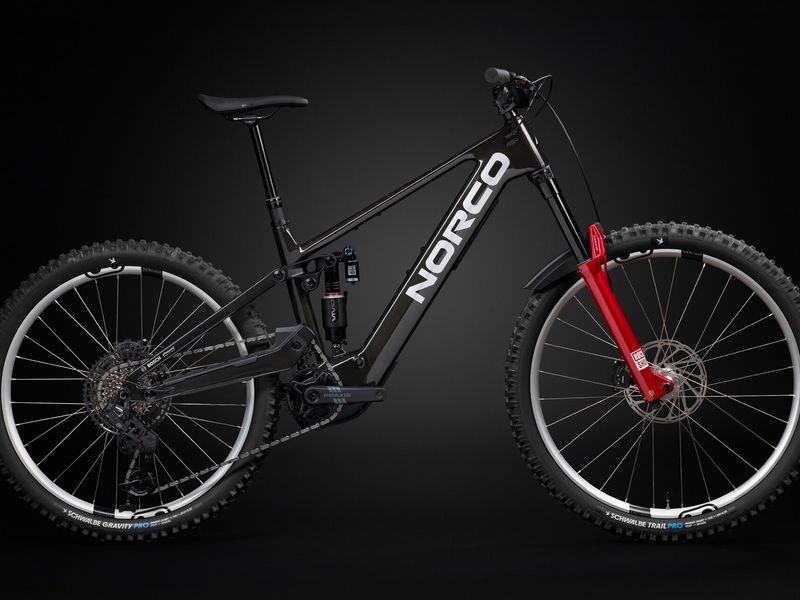

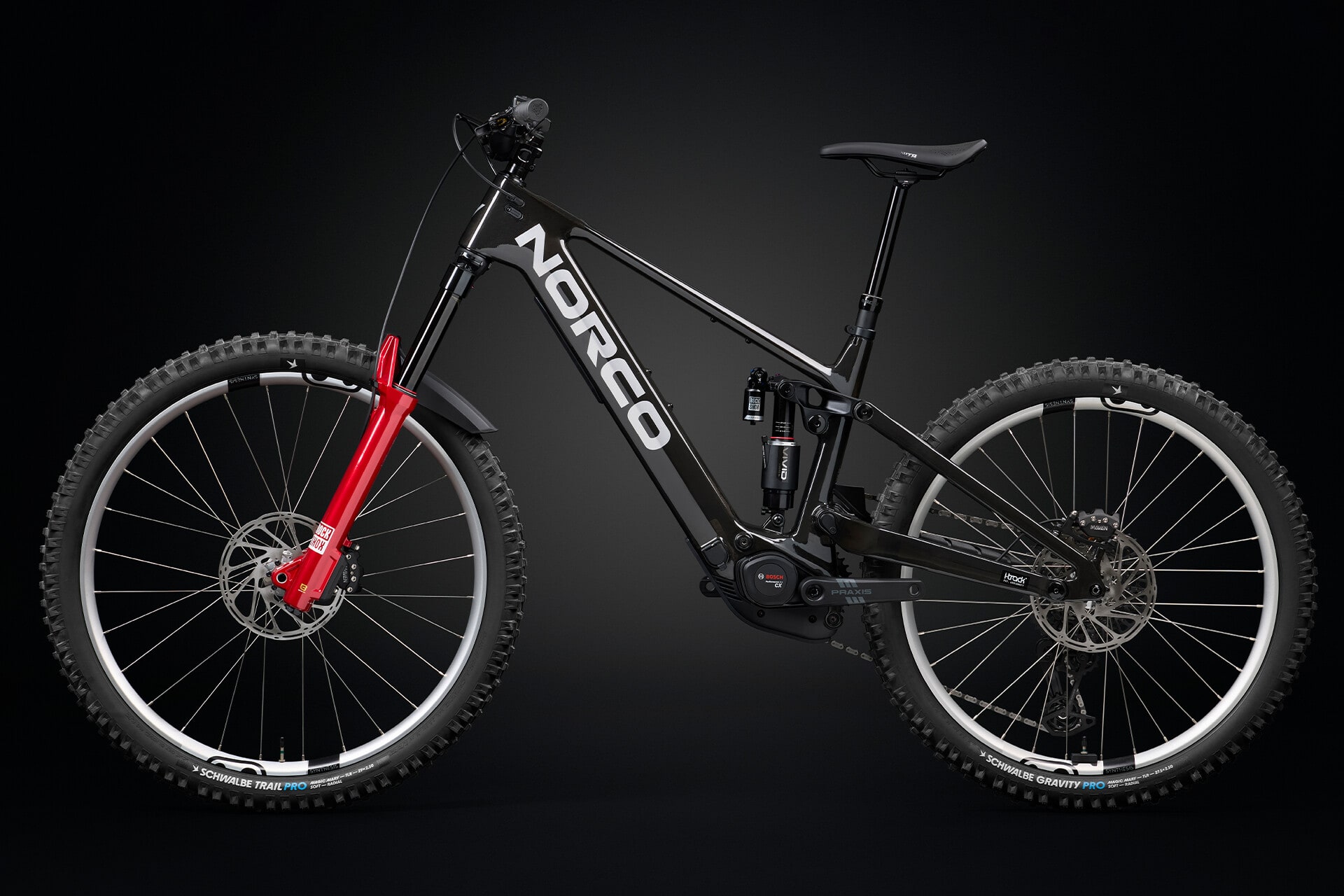

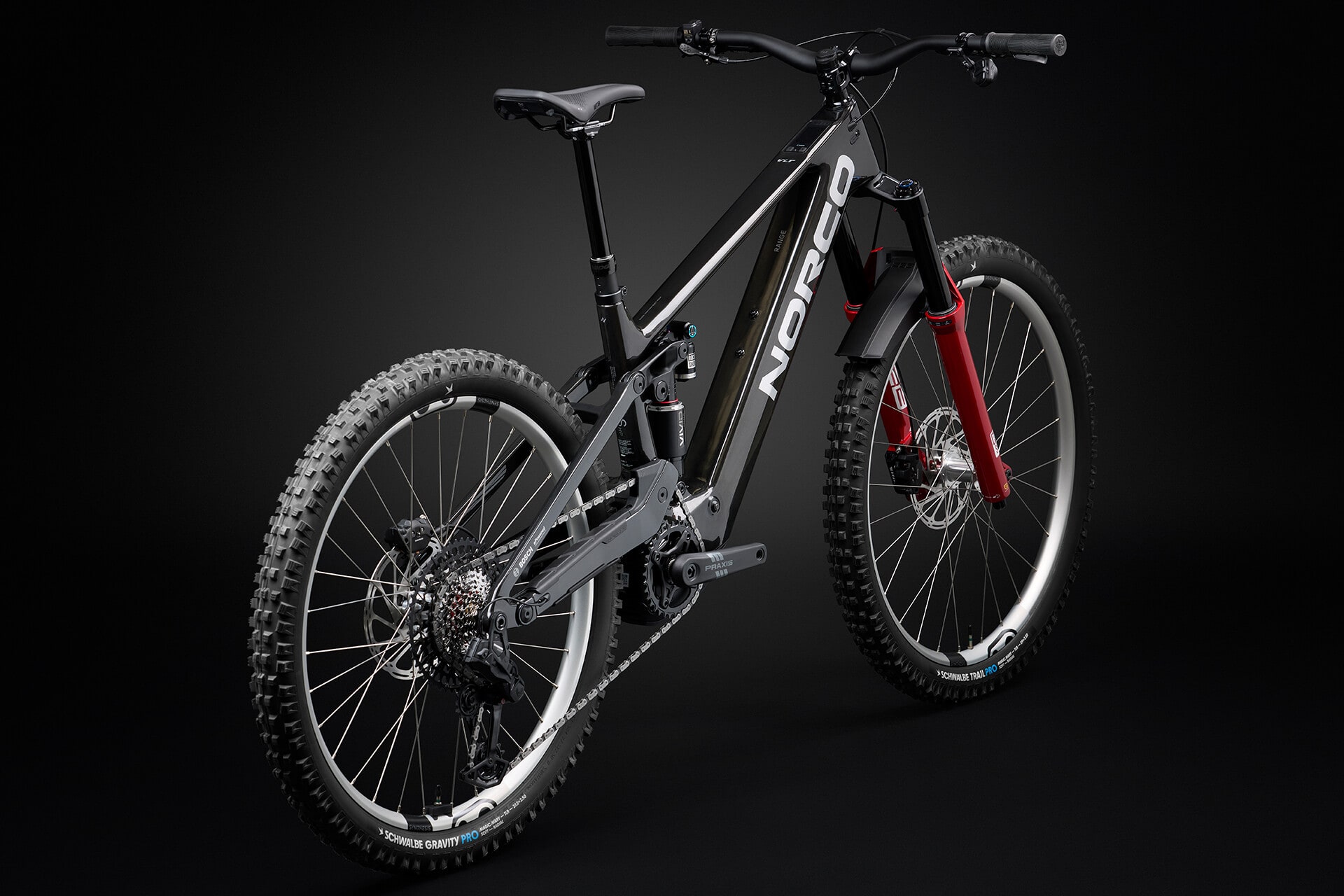

The Norco Range VLT CX C1 ($9,999) is the top build of the Range VLT CX: Bosch Performance Line CX with 800 Wh, RockShox Zeb Ultimate Charger 3.2 fork, RockShox Vivid 2 Ultimate Air shock, SRAM S1000 Eagle AXS T-Type and SRAM Maven Bronze B1 brakes.
The Range VLT CX is Norco's carbon enduro e-MTB, the longer-travel sibling of the Sight VLT CX, with 160 mm rear travel and a 170 mm fork on mixed wheels (29" front, 27.5" rear).
It runs the Bosch Performance Line CX with 85 Nm and 750 W peak as delivered, upgradeable to 120 Nm via the Bosch eBike Flow app, fed by an 800 Wh PowerTube battery. The frame is UDH and SRAM Transmission compatible.
- Bosch Performance Line CX, 800 Wh

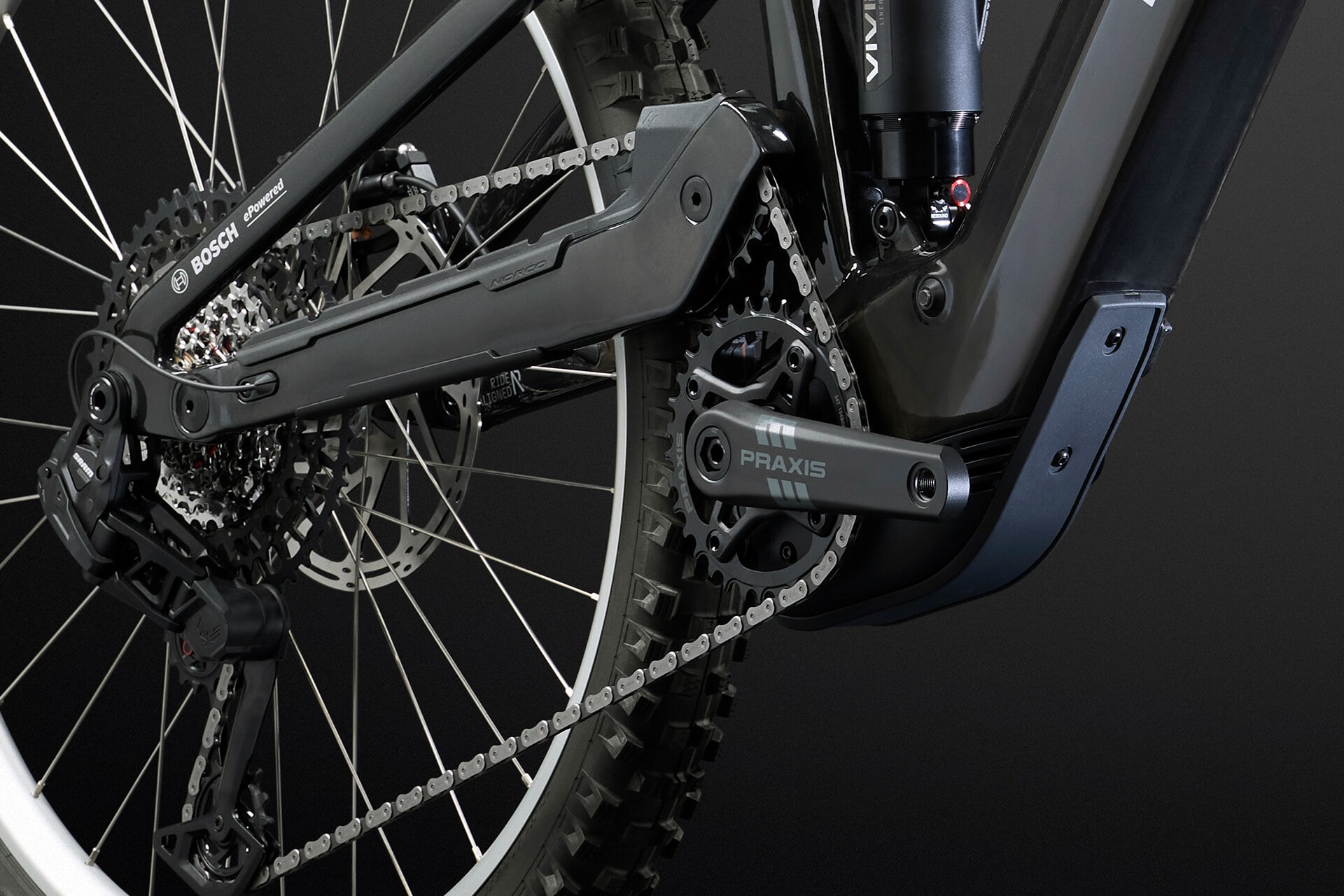

- High-pivot enduro platform
- 160 mm rear / 170 mm fork
- Carbon frame, UDH

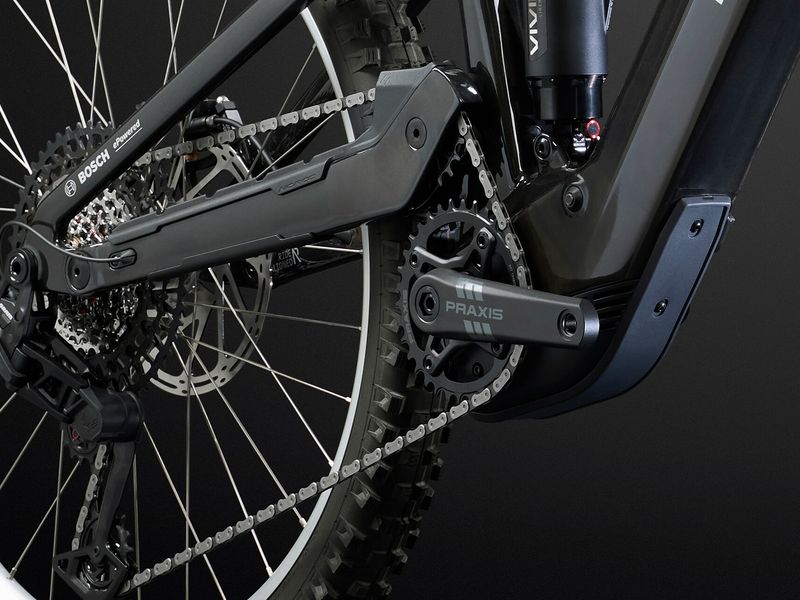

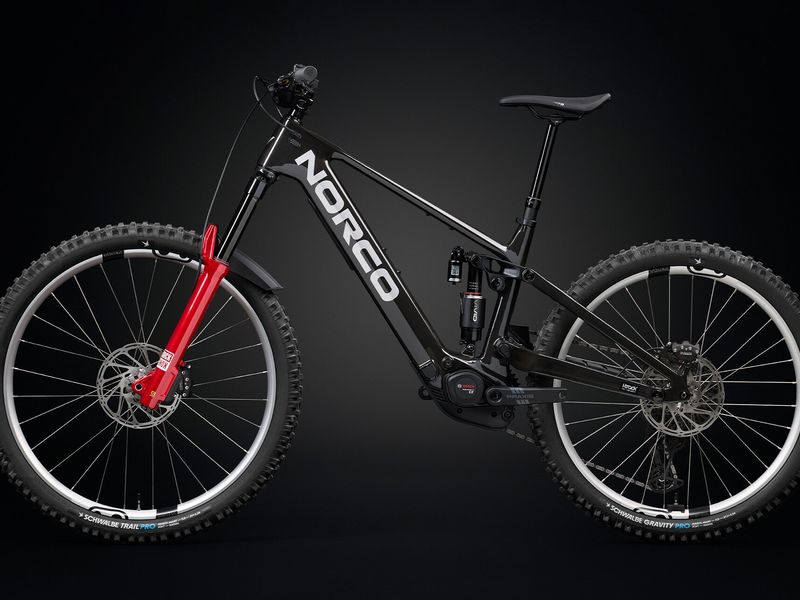

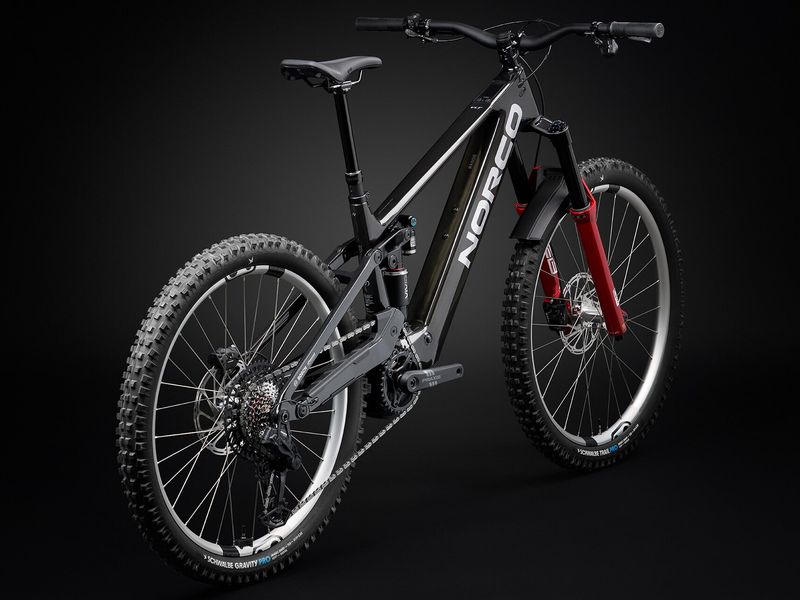

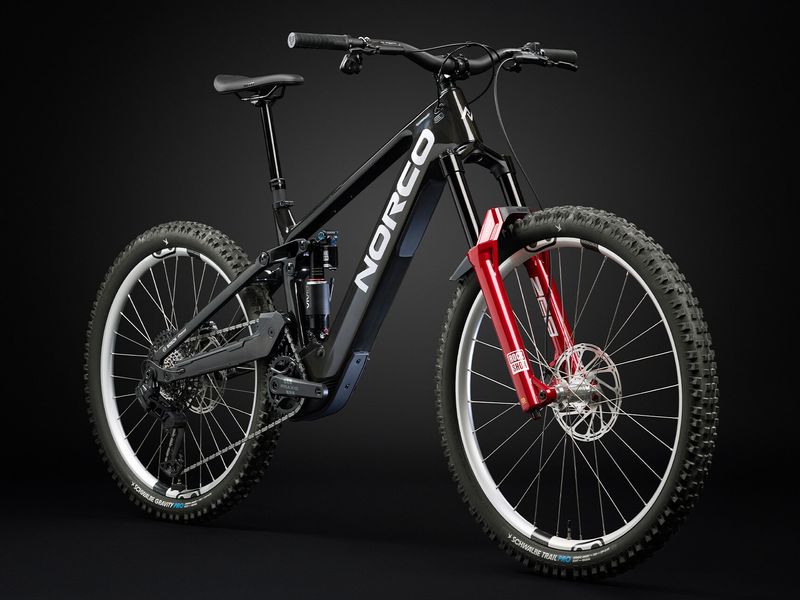

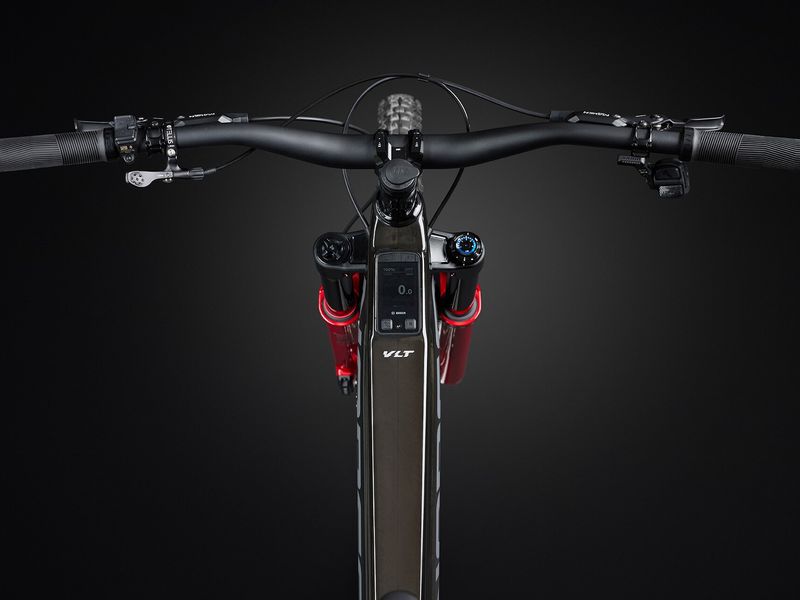

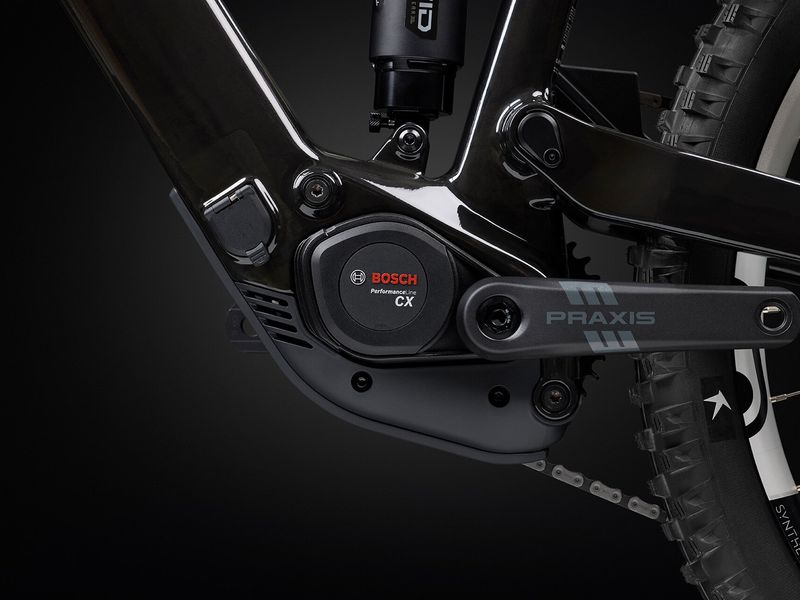

Gallery
Photos: Norco
Full specifications
Frame & suspension
- Frame
- Carbon Frame, 160mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™
- Fork

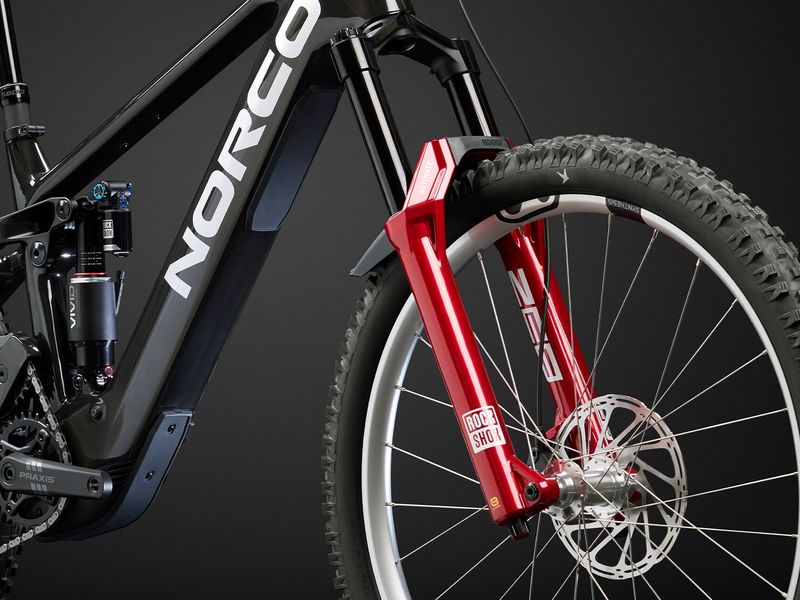

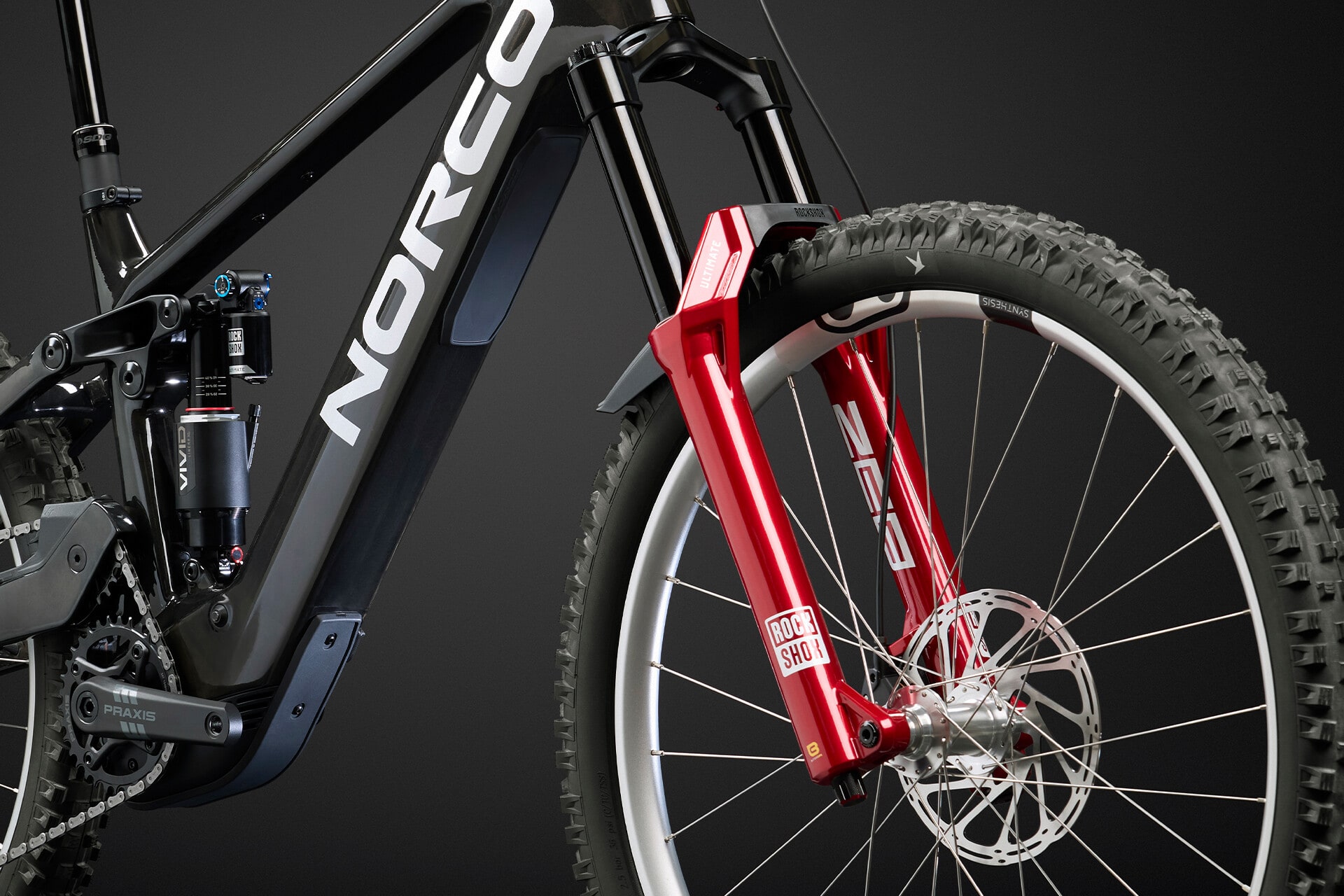

- RockShox Zeb Ultimate Charger 3.2, 170mm Travel, 44mm Offset, E-MTB Rated, Fender Included
- Rear shock
- RockShox Vivid 2 Ultimate Air, 205x65mm TR
E-system
- Motor

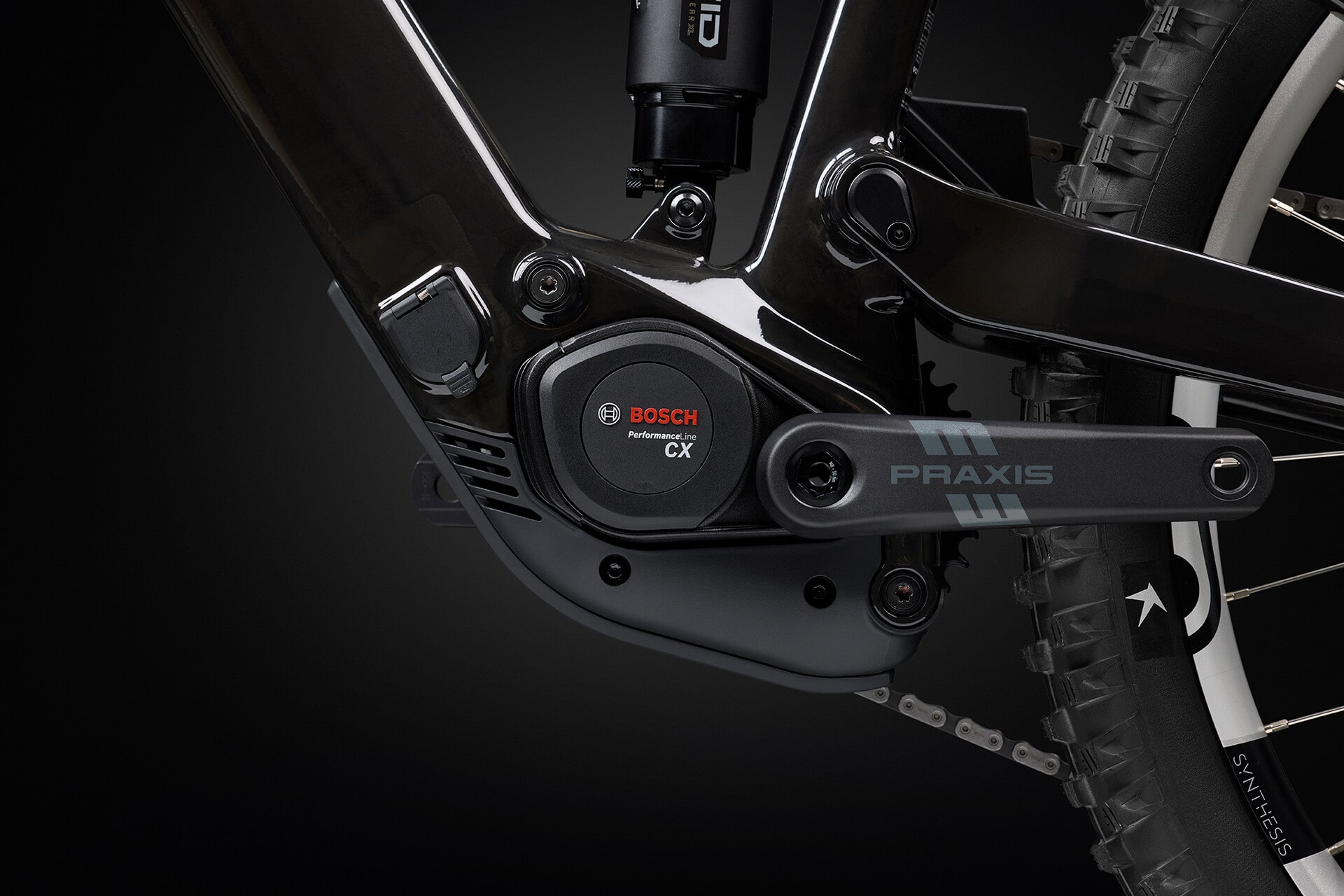

- Bosch Performance Line CX, 85Nm / 750W (120Nm Upgrade available via Flow App)
- Battery
- Bosh Power Tube 800 Wh
- Display
- Kiox 400c
Drivetrain
- Rear Shifter
- SRAM AXS POD Controller, Discrete Clamp
- Rear derailleur
- SRAM S1000 Eagle AXS T-Type, 12sp
- Crankset
- Praxis HD Aluminum Bosch Cranks, 34T, 155mm (S2,S3) - 160mm (S4, S5)
- Bottom Bracket
- Bosch BDU38
- Cassette
- SRAM 1275 Eagle T-Type, 10-52T, 12sp
- Chain
- SRAM Eagle 70 T-Type, 12sp
Brakes
- Front Brake
- SRAM Maven Bronze B1, Metallic Pads
- Front Brake Rotor
- SRAM Centerline A2, 200mm, 2mm thickness, 6-bolt
- Rear Brake
- SRAM Maven Bronze, Metallic Pads
- Rear Brake Rotor
- SRAM Centerline A2, 180mm, 2mm thickness, 6-bolt
- Brake Levers
- SRAM Maven Bronze
Wheels & tyres
- Front Hub
- Crank Bros. Synthesis, 15x110mm Boost, 32h, 6-bolt
- Rear Hub
- Crank Bros. Synthesis E-Bike V2, 12x148mm Boost, XD, 32h, 6-bolt
- Rims
- Crank Bros. Synthesis Alloy V2 Enduro Silver, F- 31.5mm 28h, R- 29.5mm 32h, 29"-27.5" F/R
- Front Tire
- Schwalbe Magic Mary, Trail casing, Ultra Soft , Radial, 29x2.5"
- Rear Tire
- Schwalbe Magic Mary, Gravity Pro, Soft, Radial, 27.5x2.5"
- Spokes/Nipples
- Sapim D-Light (front), Sapim Race (rear)

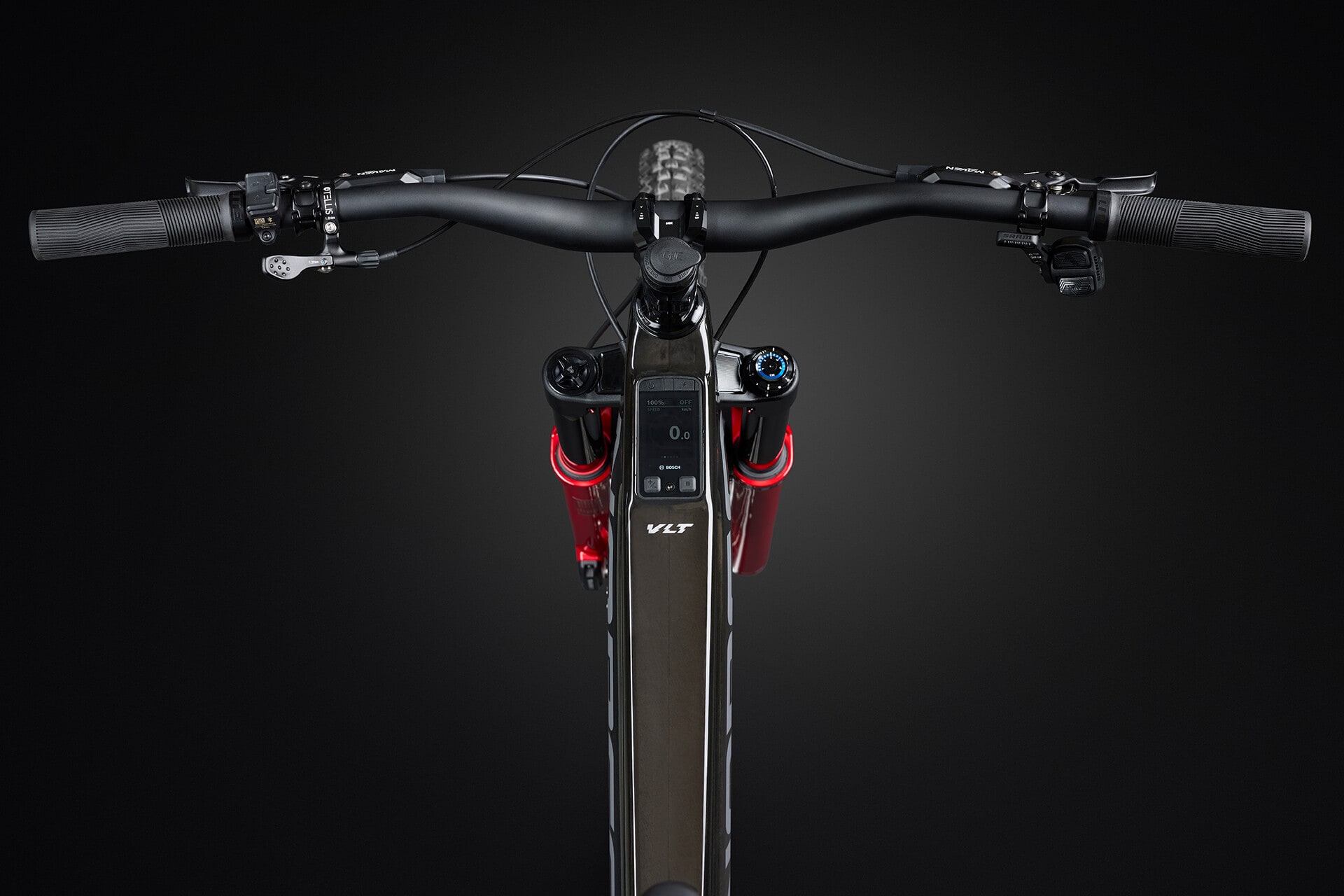

Cockpit
- Handlebar
- Norco 6061 DB Alloy, 800mm, 25mm Rise
- Stem
- Norco Alloy, 40mm Length, 35mm Clamp
- Seatpost
- SDG Tellis V2, 31.6mm, 150mm (S2) -170mm (S3) -200mm (S4, S5)
- Headset
- FSA No.55 Sealed Bearing, 1 1/8" - 1.8" Tapered, ( ZS44/28.6 | ZS56/40 )
- Saddle
- "WTB Rocket Fusion Med, 142x250 mm "
- Grips
- WTB Wavelength, 140mm Length
- Tool
- OneUp EDC Lite
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Range VLT CX geometry
| Size | 2 | 3 | 4 | 5 |
|---|---|---|---|---|
| Reach | 441 mm | 466 mm | 491 mm | 516 mm |
| Stack | 631 mm | 640 mm | 650 mm | 659 mm |
| HTAHead Tube Angle | 63.5° | 63.5° | 63.5° | 63.5° |
| OSFork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| STSeat Tube Length | 395 mm | 415 mm | 445 mm | 475 mm |
| STAEffective Seat Tube Angle | 76.5° | 77° | 77.25° | 77.5° |
| RCRear Centre Length | 432 mm | 436 mm | 440 mm | 444 mm |
| RCRear Centre Length at Sag | 442 mm | 446 mm | 450 mm | 454 mm |
| BBDF/RBottom Bracket Drop (Front/Rear) | 20.5/0 mm | 20.5/0 mm | 20.5/0 mm | 20.5/0 mm |
| BBHBottom Bracket Height | 353 mm | 353 mm | 353 mm | 353 mm |
| HTTHorizontal Top Tube | 589 mm | 613 mm | 637 mm | 661 mm |
| WBWheelbase | 1228 mm | 1261 mm | 1295 mm | 1328 mm |
| SOHStandover | 705 mm | 711 mm | 718 mm | 733 mm |
| HTHead Tube Length | 115 mm | 125 mm | 135 mm | 145 mm |
| Trail | 138 mm | 138 mm | 138 mm | 138 mm |
| Recommended Seatpost Drop | 150 mm | 170 mm | 200 mm | 200 mm |
| Maximum Post Insertion | 250 mm | 270 mm | 300 mm | 330 mm |
| Stem Length | 40 mm | 40 mm | 40 mm | 40 mm |
| Crank Length | 165 mm | 165 mm | 165 mm | 165 mm |
| Tire Size | 2.35" - 2.6" | 2.35" - 2.6" | 2.35" - 2.6" | 2.35" - 2.6" |
| Water Bottle Compatible | 1 x 620 mL | 1 x 750 mL | 1 x 750 mL | 1 x 750 mL |
Source: Norco. Sizes are Norco Ride Aligned sizes 1-5.
Range VLT CX: builds compared
Range VLT CX range →| Range VLT CX C2 | Range VLT CX C1 | |
|---|---|---|
| Price | $7,699 | $9,999 |
| Frame | Carbon | Carbon |
| Fork | RockShox Zeb Base,170mm Travel, 44mm Offset | RockShox Zeb Ultimate Charger 3.2, 170mm Travel |
| Shock | RockShox Vivid 2 Base Air | RockShox Vivid 2 Ultimate Air |
| Derailleur | Shimano Deore RD-M6200 | SRAM S1000 Eagle AXS T-Type |
| Brakes | Shimano SLX BR-M7120 4-P | SRAM Maven Bronze B1 |
| Wheels | WTB ST Tough i30 TCS 2.0 ,30 mm, 32H | Crank Bros, Synthesis Alloy V2 Enduro Silver |
| Display | Kiox 400c | Kiox 400c |
Range VLT CX C1: FAQ
How much does the Norco Range VLT CX C1 cost?
$9,999 (US MSRP (Norco US site, excl. tax)). The Range VLT CX range runs from $7,699 (Range VLT CX C2) to $9,999 (Range VLT CX C1). Prices vary by country and dealer.
What motor and battery does the Norco Range VLT CX C1 have?
Bosch Performance Line CX (85 Nm (120 Nm upgrade via Flow App); 750 W peak). 800 Wh battery — bosch PowerTube 800 Wh.
How much suspension travel does the Norco Range VLT CX C1 have?
170 mm at the fork and 160 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Norco Range VLT CX C1 come in?
2, 3, 4, 5. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Range VLT CX C1 and the Range VLT CX C2?
They share the Range VLT CX frame platform and motor; the differences are in the parts — fork: RockShox Zeb Ultimate Charger 3.2 vs RockShox Zeb Base,170mm Travel; shock: RockShox Vivid 2 Ultimate Air vs RockShox Vivid 2 Base Air; derailleur: SRAM S1000 Eagle AXS T-Type vs Shimano Deore RD-M6200; brakes: SRAM Maven Bronze B1 vs Shimano SLX BR-M7120 4-P; price: $9,999 vs $7,699.
