CanyonNeuron:ONfly CF 7
- Motor
- Bosch Performance Line SX
- Battery
- 400 WhBosch CompactTube
- Travel F / R
- 140 / – mm
- Wheels
- 29"
- Frame
- Carbon
- Weight
- 20.3 kgSize M, manufacturer figure
Overview

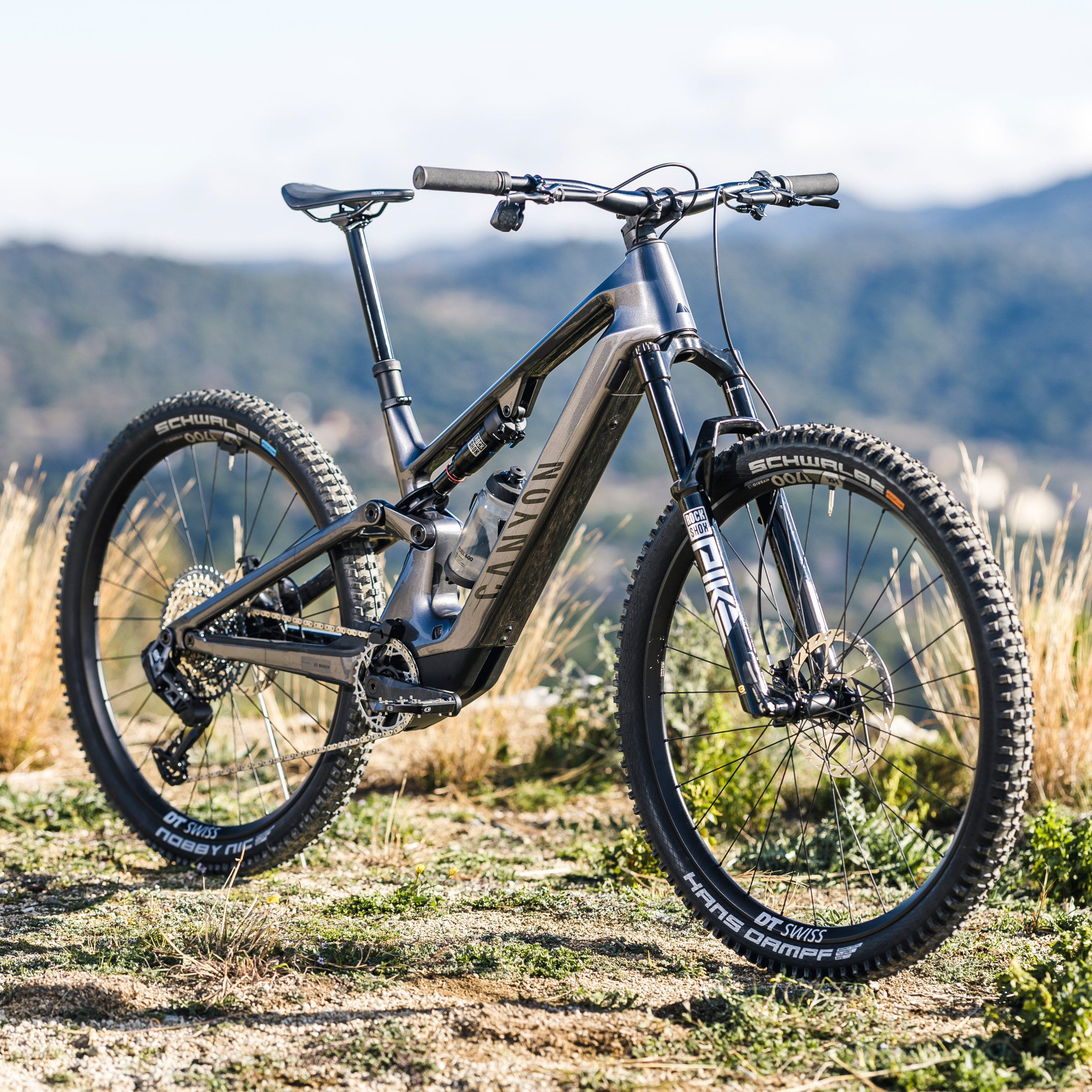

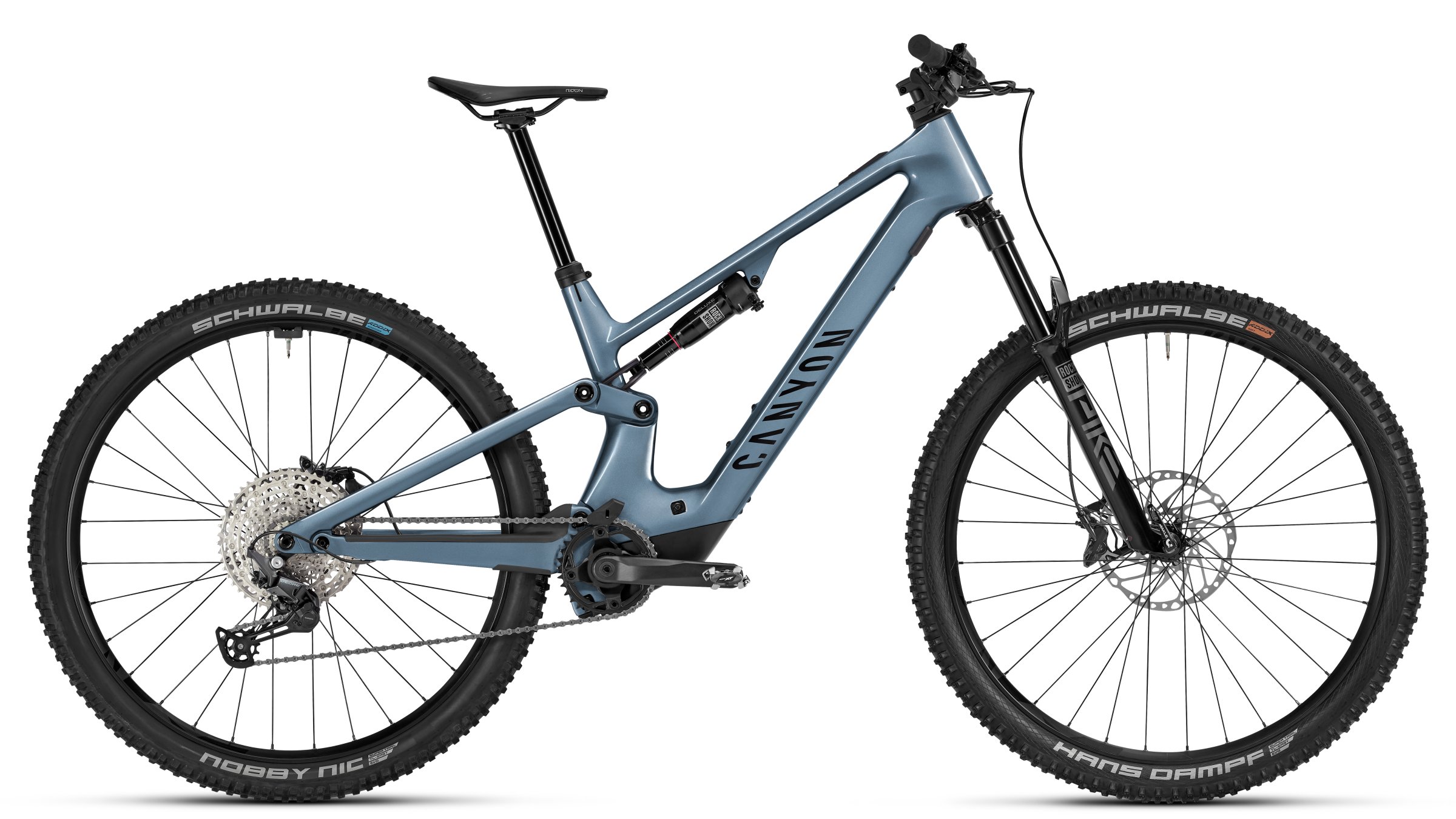

The Neuron:ONfly CF 7 (€4,499) is Canyon's lightweight carbon trail eMTB: Bosch Performance Line SX with a 400 Wh battery, a 140 mm RockShox Pike fork, Deluxe Select+ shock and Shimano Deore 12-speed, at a claimed 20.3 kg.
The Neuron:ONfly is Canyon's lightweight carbon trail eMTB: a 140 mm fork, 29-inch wheels and the Bosch Performance Line SX motor with a 400 Wh CompactTube battery, at a claimed 20.3 kg.
- Bosch SX motor, 400 Wh
- Carbon frame, 140 mm fork
- 29" wheels
- 20.3 kg claimed
Gallery
Photos: Canyon
Full specifications
Frame & suspension
- Frame
- Canyon Neuron:ONfly CF — Axle dimension: 12x148 mm, Material: Carbon (CF)
- Rear Shock
- RockShox Deluxe Select+
- Fork
- RockShox Pike Base — Axle dimension: 15x110 mm, Stanchion Diameter: 35 mm, Travel: 140 mm, Offset: 44 mm
- Seatpost Clamp
- Canyon GP0446-01
E-system
- Motor

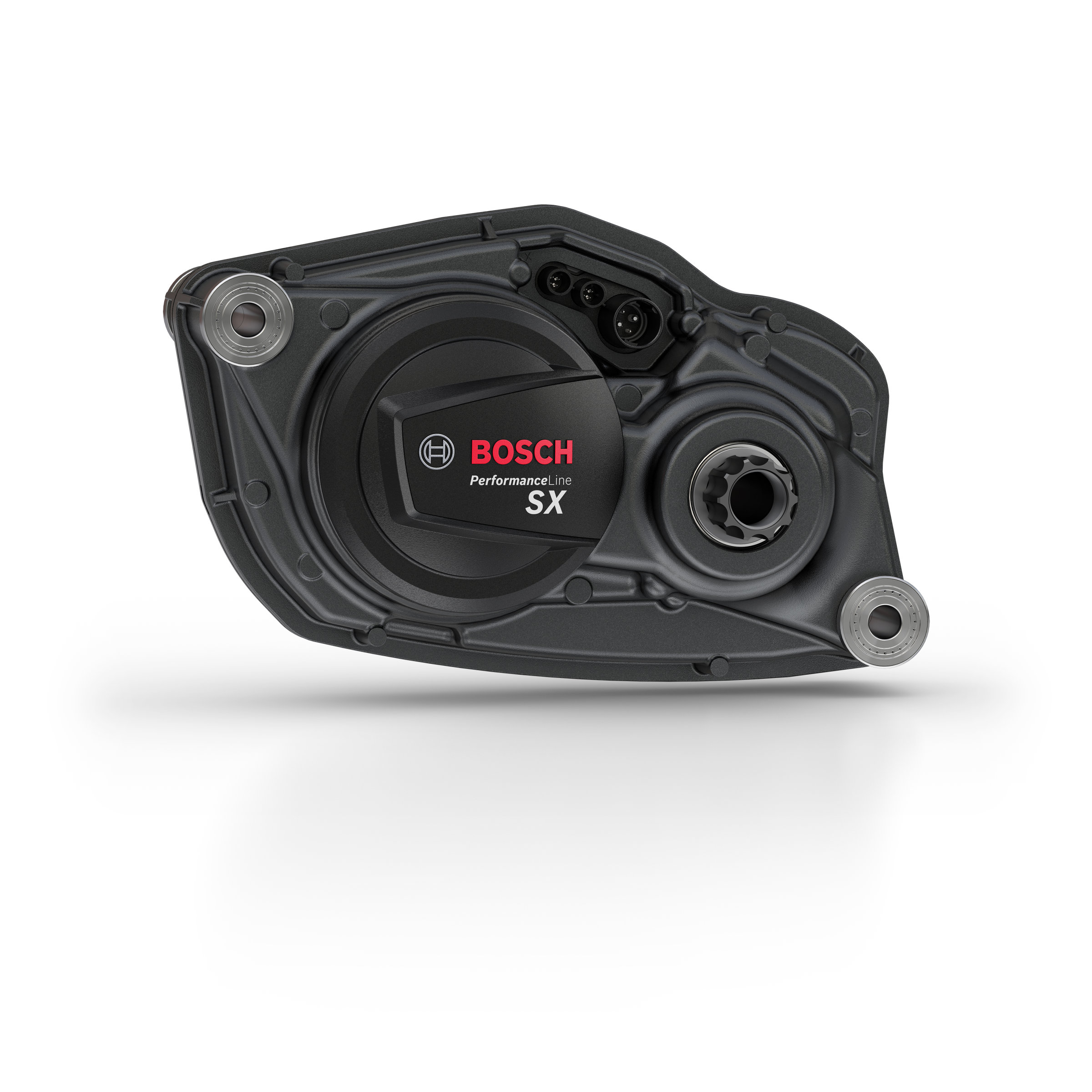

- Bosch Performance Line SX
- Battery

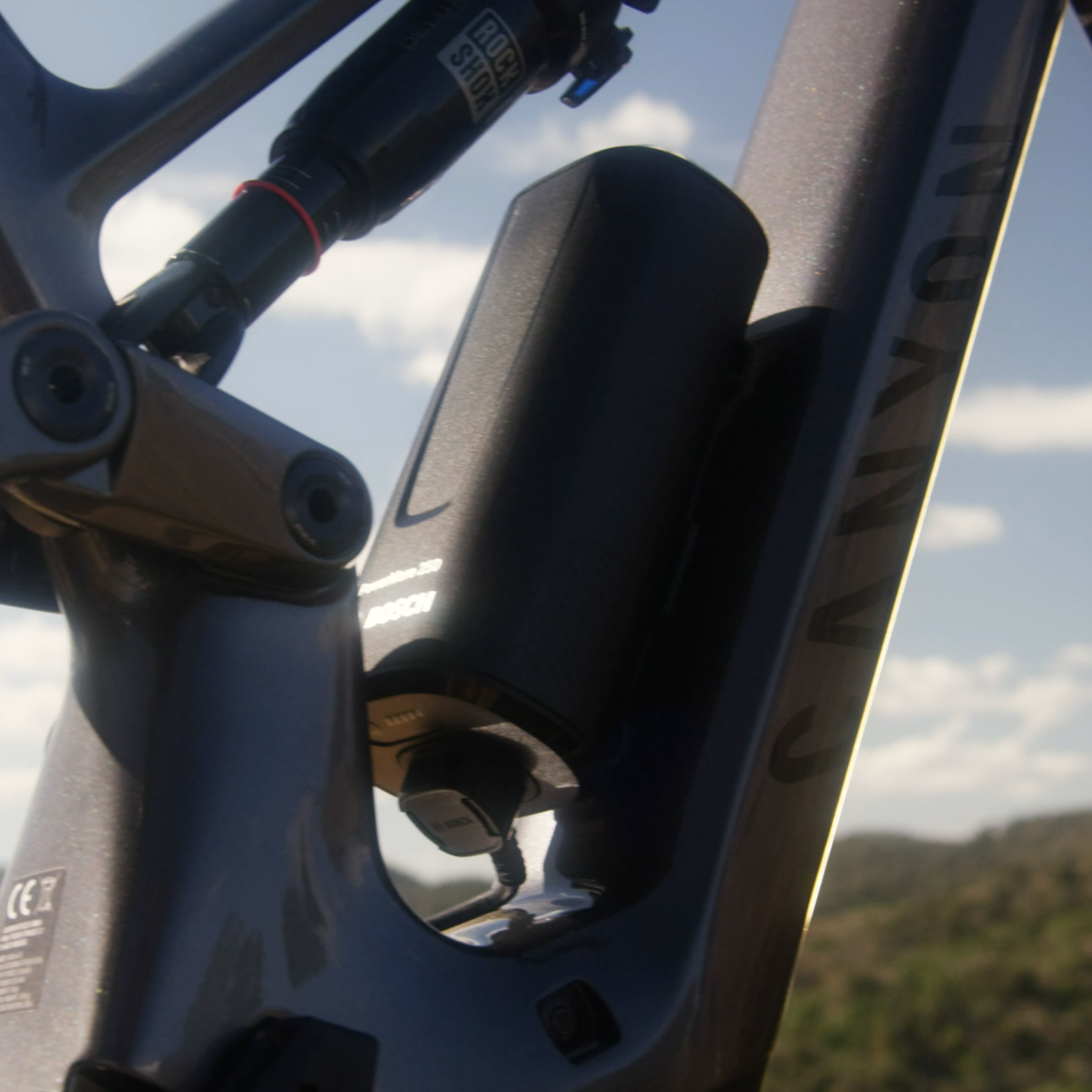

- Bosch CompactTube 400Wh — Battery capacity: 400 Wh
- Battery Charger
- Bosch 4A
Drivetrain
- Rear Derailleur
- Shimano Deore M6100, 12-Speed — Cage length: long
- Chainguard
- Canyon GP0480-01 slim
- Shift Lever
- Shimano Deore M6100, 12-Speed
- Cassette
- Shimano Deore M6100 — Number of sprockets: 12, Range: 10-51
- Crank
- FSA CK-745 170mm — Crank Length: 170,0
- Chainring
- FSA 34T
- Chain
- Shimano Deore M6100
Brakes
- Brake
- Shimano M6220 — Number of pistons: 4
- Brake
- SHIMANO BR-M9220
- Brake Rotor
- Shimano RT64 — Disc Size: 203 / 203
Wheels & tyres
- Front Wheel
- Rodi TRYP 30 | Shimano MT400 — Axle dimension: 15x110 mm, Rim material: Aluminium
- Rear Wheel
- Iridium 30 | Shimano MT510 — Axle dimension: 12x148 mm, Rim material: Aluminium
- Tyre
- Schwalbe Hans Dampf — Width: 60 mm
- Tyre
- Schwalbe Nobby Nic — Width: 62 mm
- Thru Axle
- Canyon Quixle — Axle dimension: 12x148 mm
Cockpit
- Stem
- Canyon:ON ST0031 — Rise: 20 mm
- Grips
- Canyon Lock-On
- Saddle
- Fizik Terra Aidon X5
- Seatpost
- Canyon SP0070-01 — Material: Aluminium (AL)
Other
- Pedals
- Flat Pedals
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Neuron:ONfly geometry
| Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Body Height | ≤ 166 cm | 166 - 175 cm | 175 - 183 cm | 183 - 192 cm | ≥ 192 cm |
| ASeat Height | 632 - 767 mm | 665 - 790 mm | 705 - 830 mm | 735 - 860 mm | 775 - 900 mm |
| BSeat Tube Length | 392 mm | 405 mm | 415 mm | 445 mm | 455 mm |
| CTop Tube Length | 556 mm | 585 mm | 612 mm | 640 mm | 667 mm |
| DHead Tube Length | 110 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| EHead Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| FSeat Tube Angle | 76.5° | 76.5° | 76.5° | 76.5° | 76.5° |
| GChainstay Length | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm |
| HWheel Base | 1179 mm | 1213 mm | 1242 mm | 1271 mm | 1301 mm |
| IStack | 608 mm | 626 mm | 635 mm | 644 mm | 653 mm |
| JReach | 410 mm | 435 mm | 460 mm | 485 mm | 510 mm |
| KStand-over Height | 757 mm | 767 mm | 770 mm | 775 mm | 779 mm |
| LBottom Bracket Offset | 36 mm | 36 mm | 36 mm | 36 mm | 36 mm |
Source: Canyon.
Neuron:ONfly CF 7: FAQ
How much does the Canyon Neuron:ONfly CF 7 cost?
€4,499 (RRP Germany, VAT incl.). Prices vary by country and dealer.
How much does the Canyon Neuron:ONfly CF 7 weigh?
Canyon quotes 20.3 kg.
What motor and battery does the Canyon Neuron:ONfly CF 7 have?
Bosch Performance Line SX. 400 Wh battery — bosch CompactTube.
How much suspension travel does the Canyon Neuron:ONfly CF 7 have?
140 mm at the fork, on 29" wheels.
What sizes does the Canyon Neuron:ONfly CF 7 come in?
XS, S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
